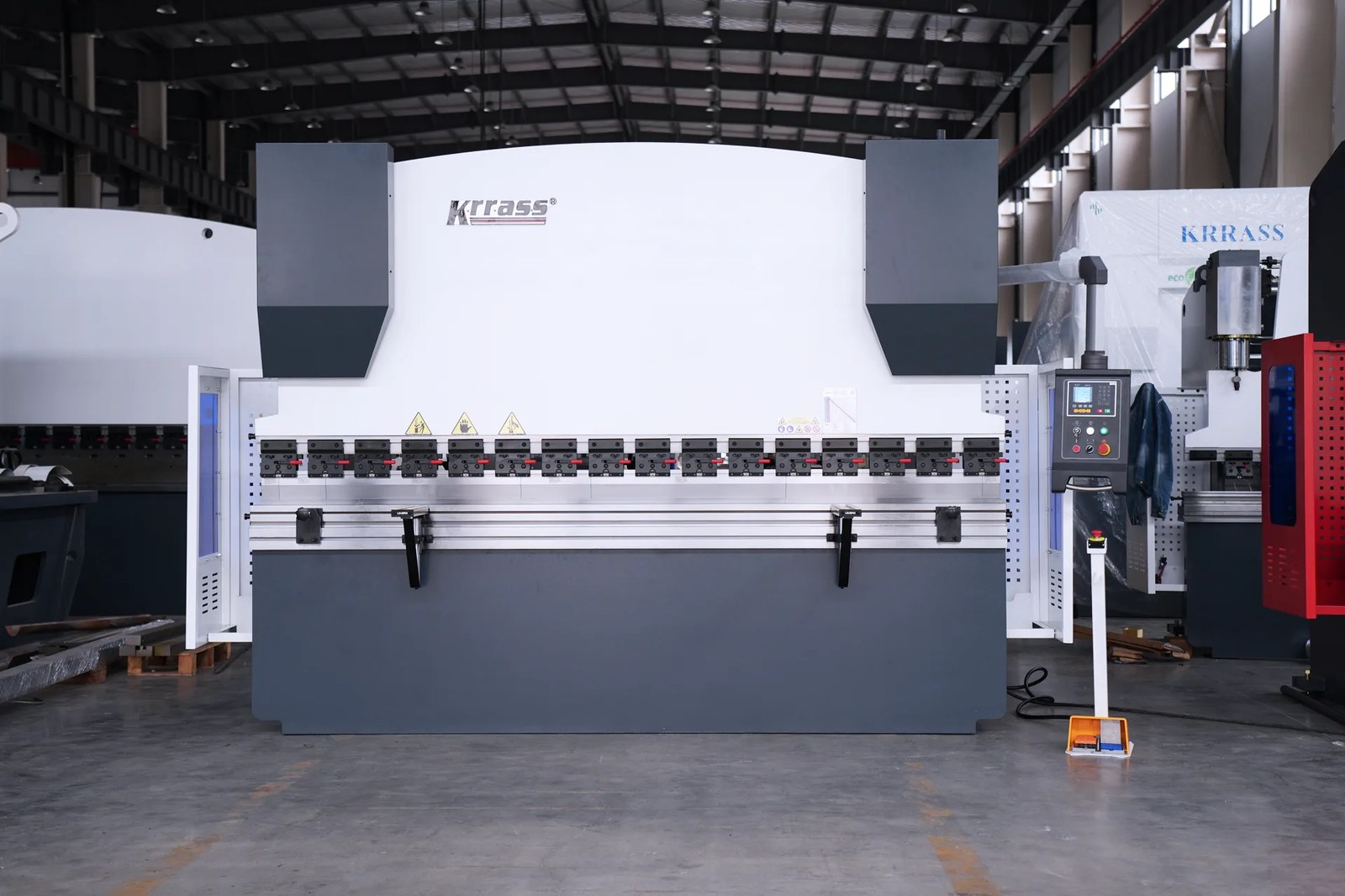

WC67K Series Press Brake with E21 Control, WC67K-200T3200 NC Press Brake
Discover the 200T WC67K Series Press Brake, designed for precise and efficient metal bending. This 200T NC press brake ensures optimal performance.
Engineering details
Configuration
Explore the key specifications, components, and available options designed to support different materials, processes, and production requirements.
Technologyies
| Bending Pressure: | 2000KN |
| Bending Length: | 3200mm |
| CNC Control Axes: | Y+X |
| Main Motor: | 15KW |
| Operating Voltage: | 380V 50Hz |
| CNC System: | E21 |
| Length* Width* Height: | 3770mm * 1600mm * 2690mm |
Configurations
Main Feature
The WC67K Series Press Brake with E21 Controller with its easy-to-use control unit, rigid body frame, flawless design, high efficiency, multiple tool usage solutions, top CE safety standards, and a suitable price range make it the best-in-class world leader. It is ideal for bend-sensitive, energy-efficient solutions.
- Simple and solid WC67K Press Brake
- Work area can be customized and all types of tool clamping can be installed
- Tailored-made NC Press Brake

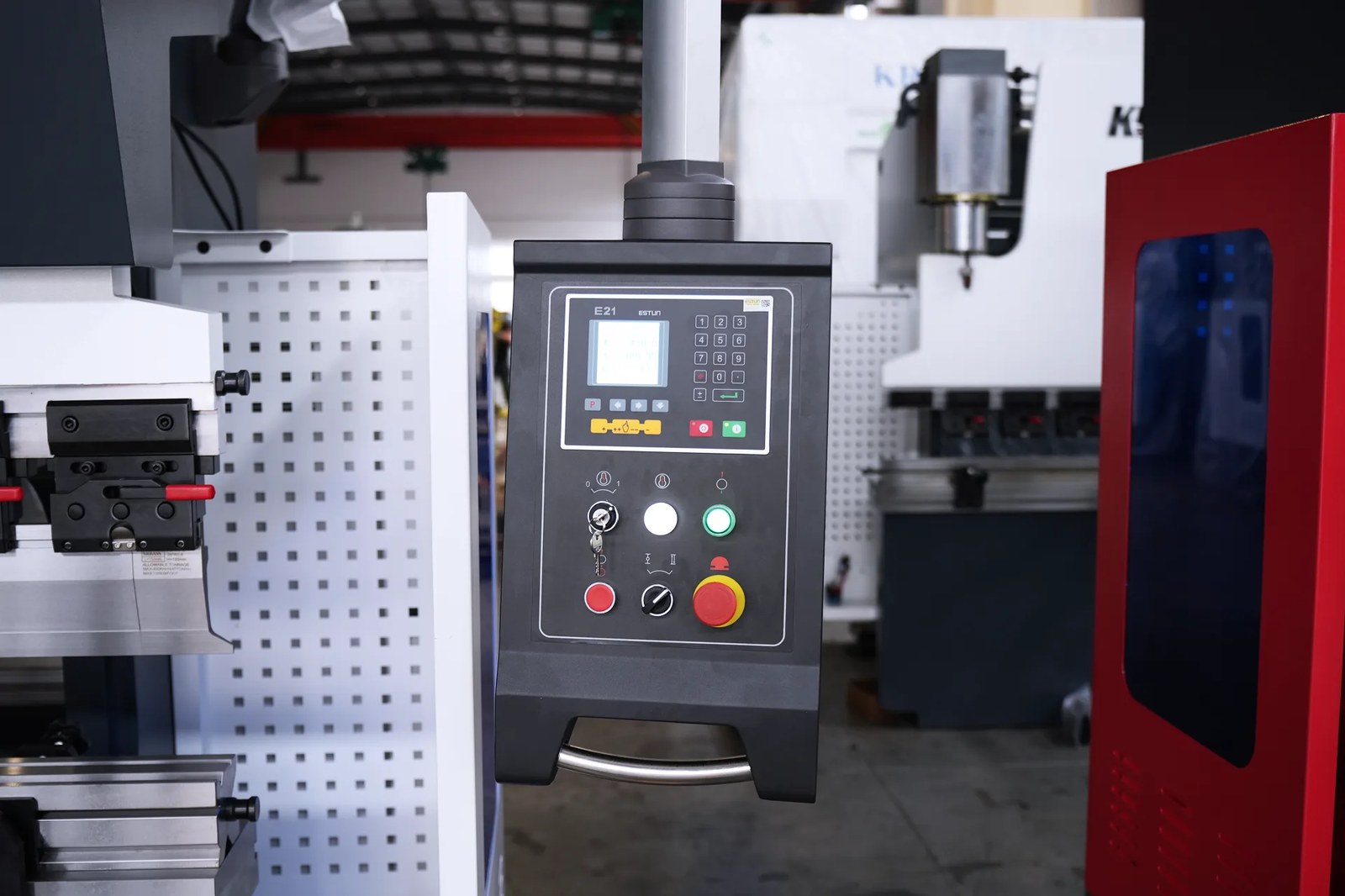

ESTUN E21 Control
- Backgauge control
- Control the common motor or inverter
- X&Y-axis intelligent positioning
- Multi-step programming, 40 programs, each program 25 steps
- Built-in time relay function
- One-button function switching
- Unilateral positioning function
- A key backup and restore of parameters
- Chinese and English
- Metric system

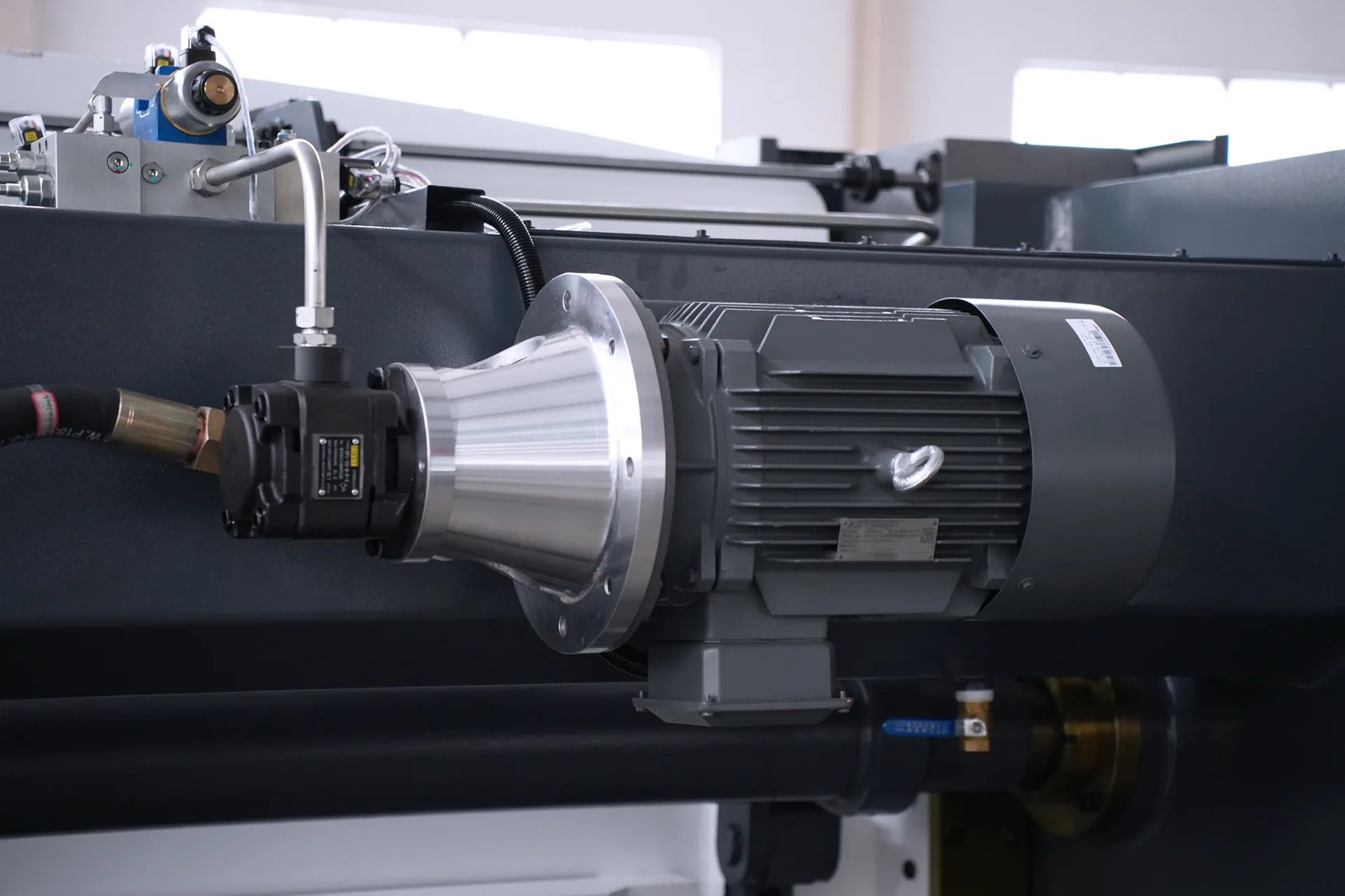

German Siemens Main Motor
The German famous brand motor increases the service life of the machine and keeps the machine working in a low-noise environment.
American FIRST oil pump, low noise, long life.

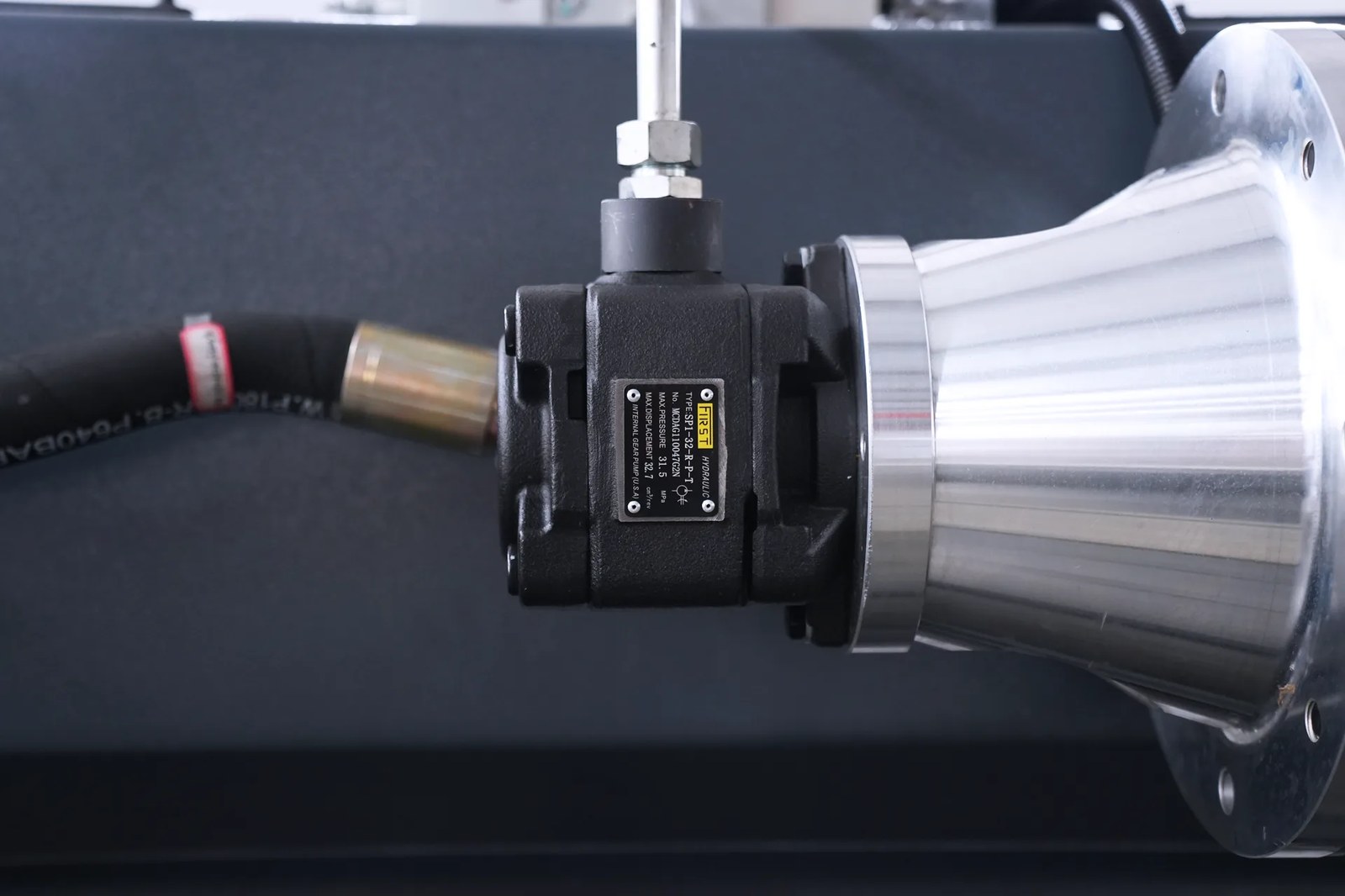

FIRST Hydraulic Oil Pump
The oil pump is highly regarded for its exceptional performance, known for its quiet operation and remarkable longevity, making it a reliable choice for various applications.

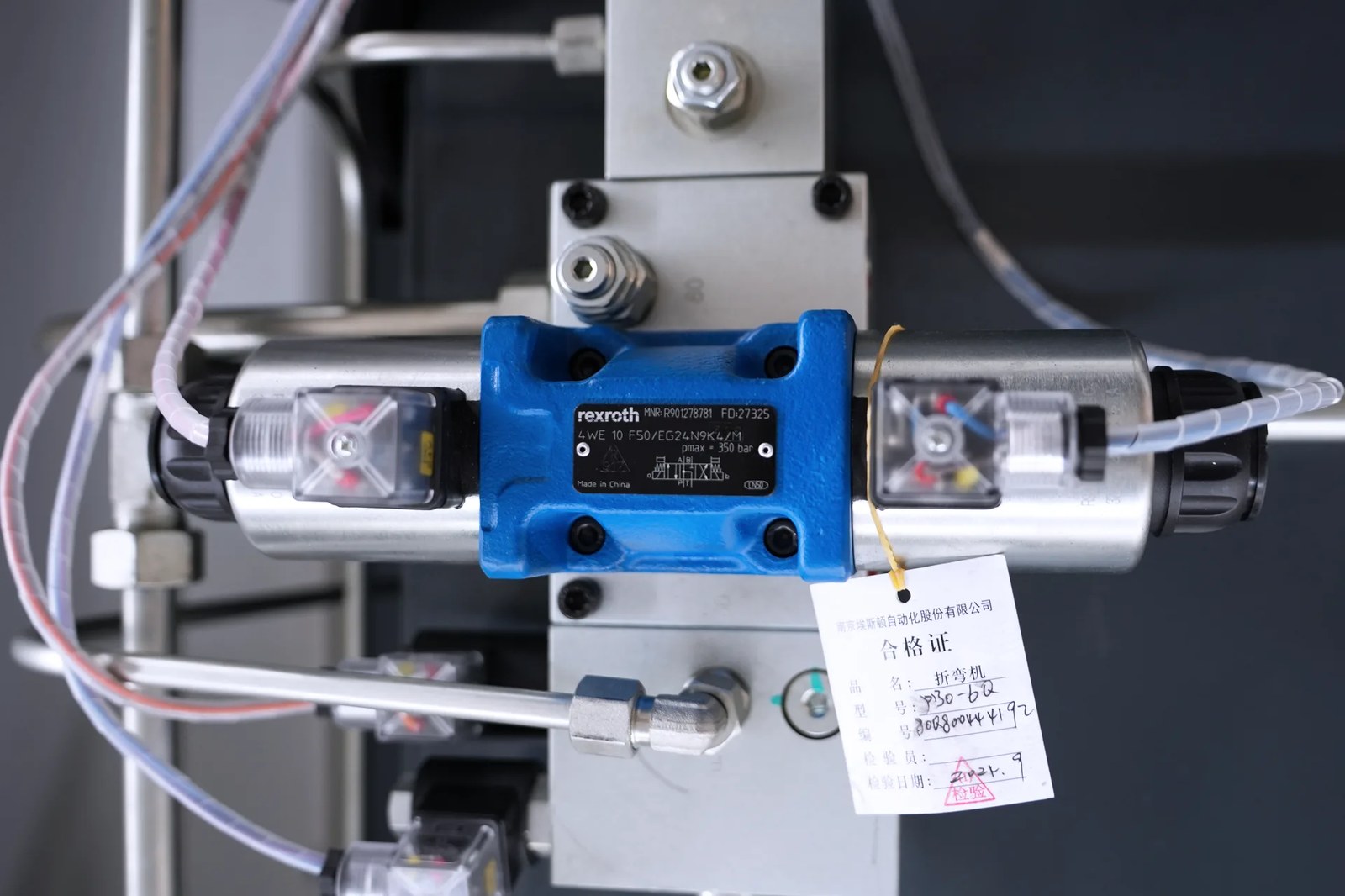

Rexroth Hydraulic Valves
The valve group from German Rexroth is used to ensure more accurate bending accuracy and service life.
The hydraulic pipes are made of the German EMB brand, which is guaranteed to never leak oil.

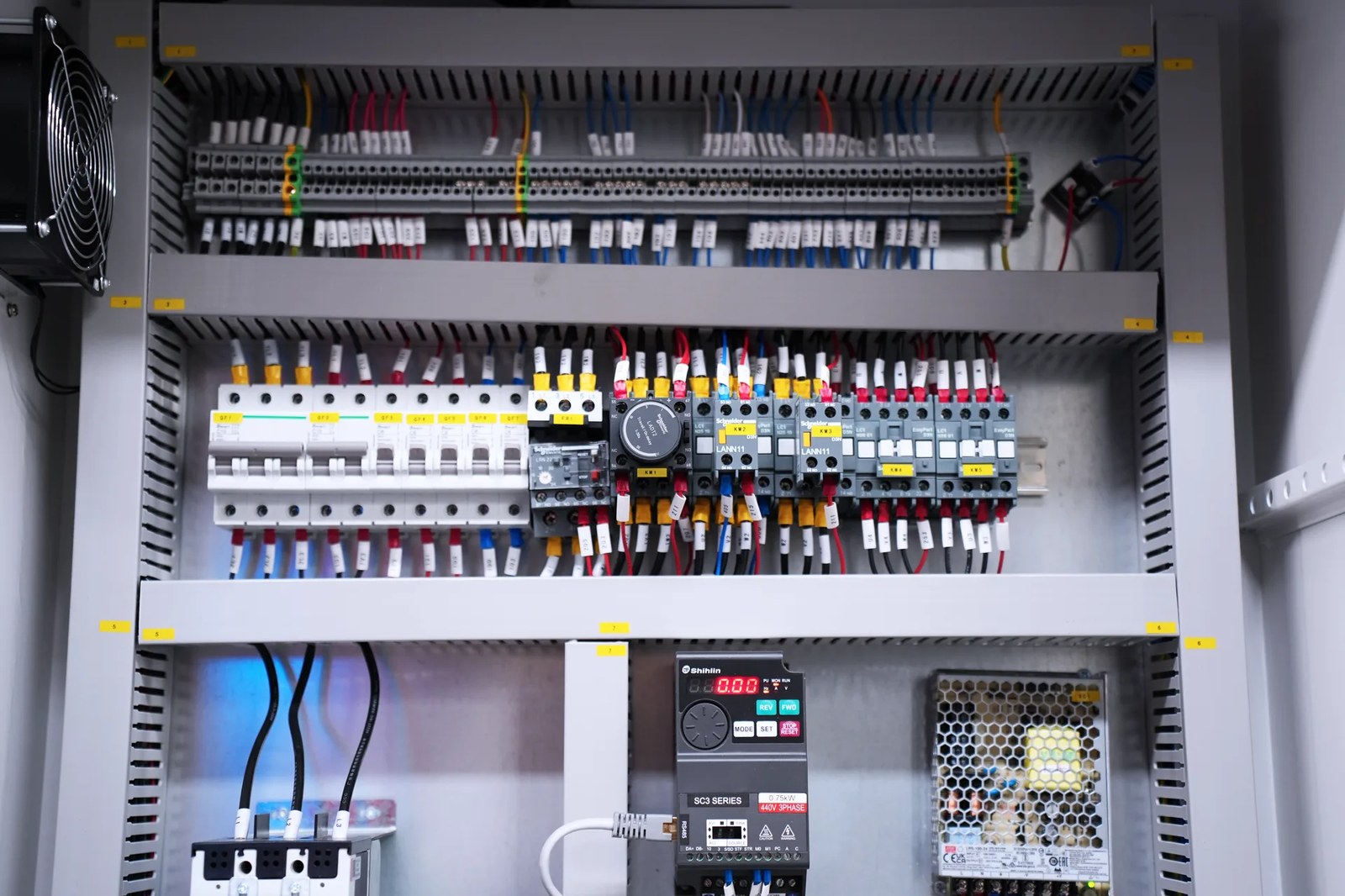

Schneider Electric
High quality electric parts can perform well even the electricity is not stable and customers can easily get the replacement anywhere in the word.

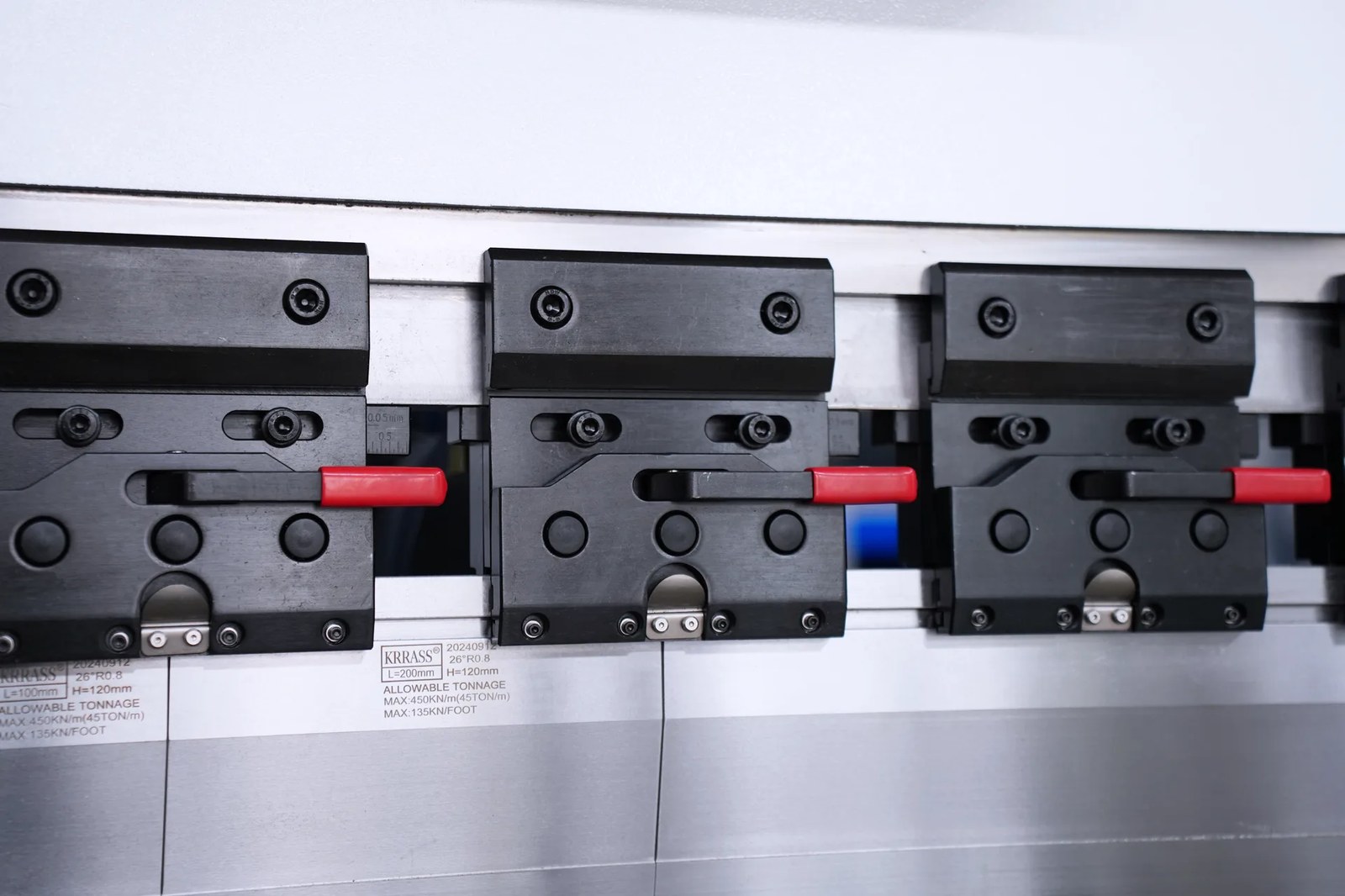

Manual Upper Tool Clamping
Our sheet metal press brake uses raw material provided by qualified suppliers, and the chemical composition corresponds to international standards. Therefore, the raw material yield and tensile strength are guaranteed. The materials are standardized with an 8.4 x 3.5 mm safety groove, which prevents the tool from falling out.

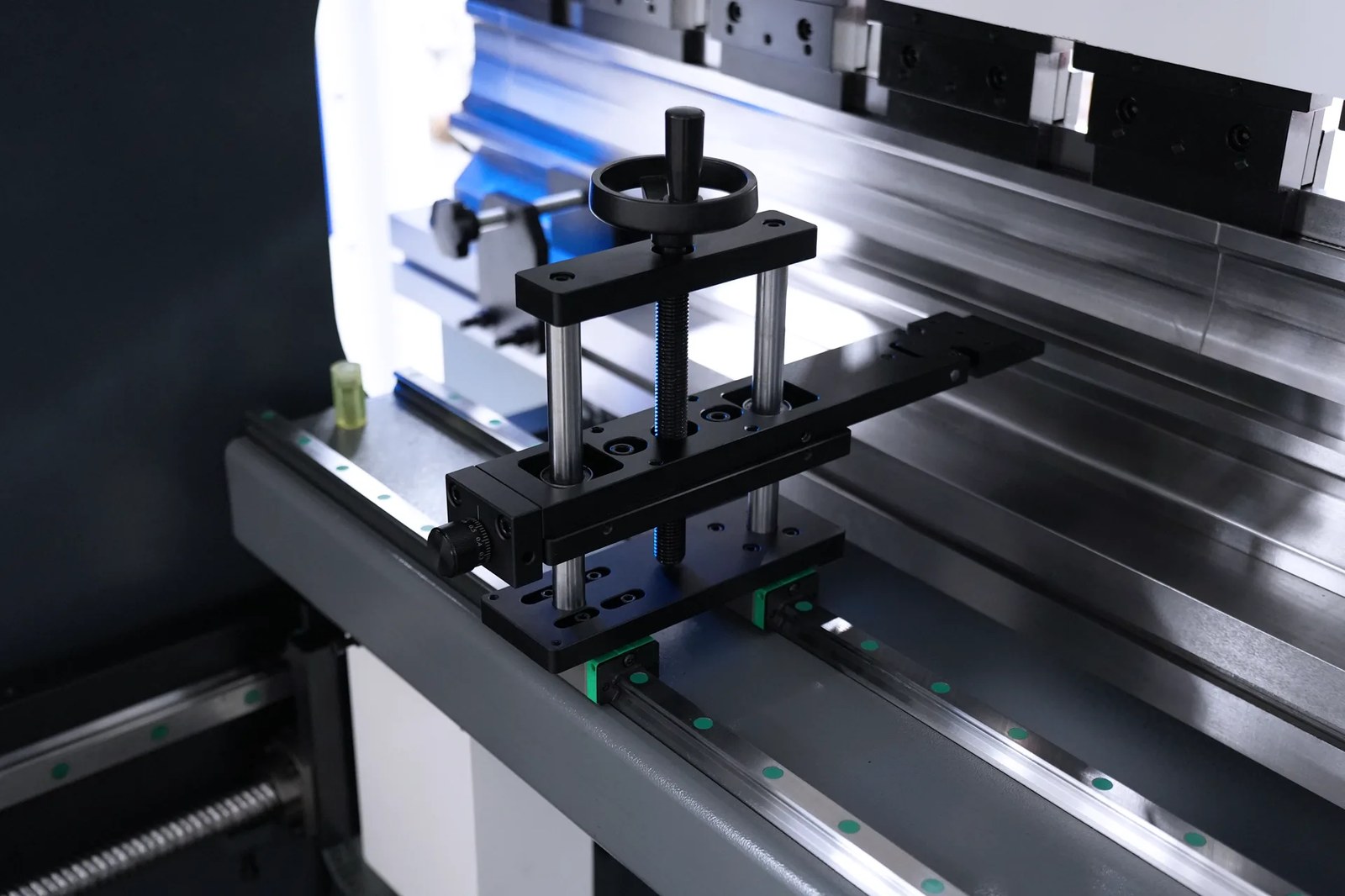

Hight-precision Fine-tuning Back Finger Stoper
High-precision backstop means that customers can input the size into the system according to the size of the product, and it can be positioned accurately with an accuracy of 0.01mm.
The crossbeam adopts double linear guide rails, and the blocking fingers can move left and right on it.

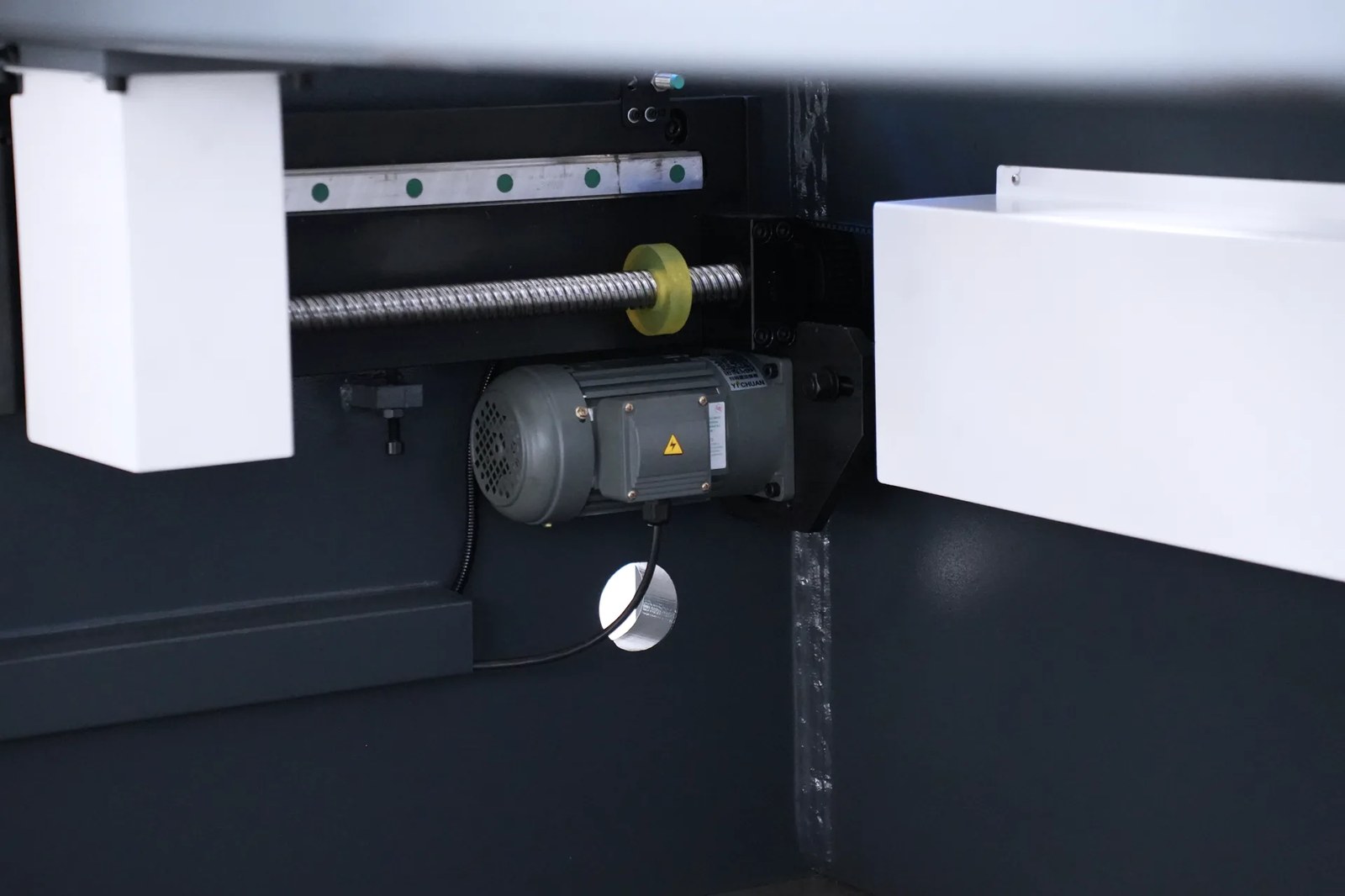

X-axis 200W Reduction Motor
- Precision: Ball screws offer improved precision, reduced energy consumption, and lower maintenance requirements.
- Responsiveness: Ball screws deliver very smooth motion.
- Friction: Ball screws rely on recirculating balls to alleviate friction instead of lubricants.

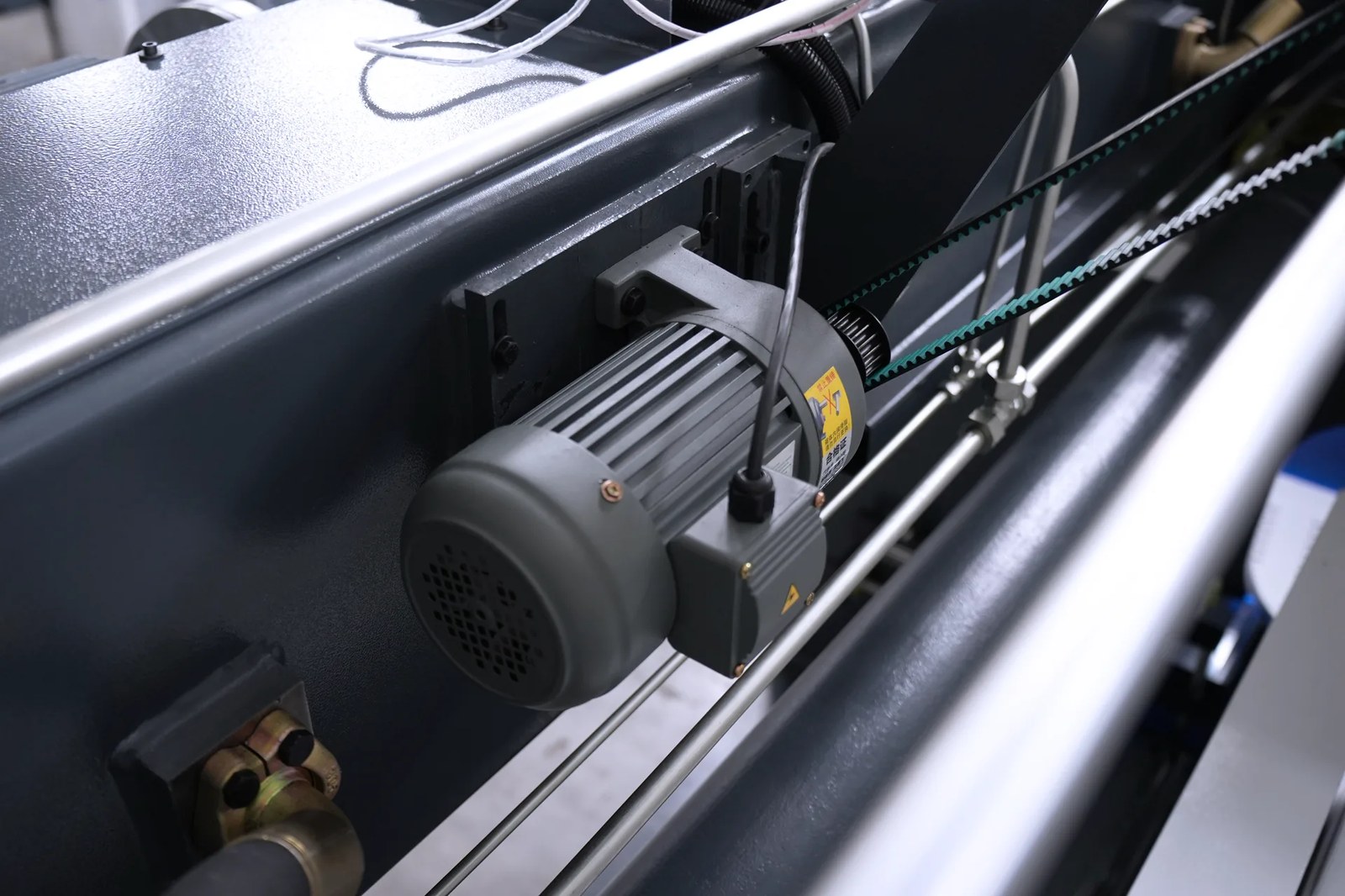

Y-axis 400W Reduction Motor
Reduction motors have several advantages, including:
- Increasing output torque
- Lowering input speed for specific applications
- Enhancing mechanical system efficiency
- Allowing for precise speed control
- Adapting power sources to various machinery
- Reducing wear and tear on components
- Improving performance in diverse industries

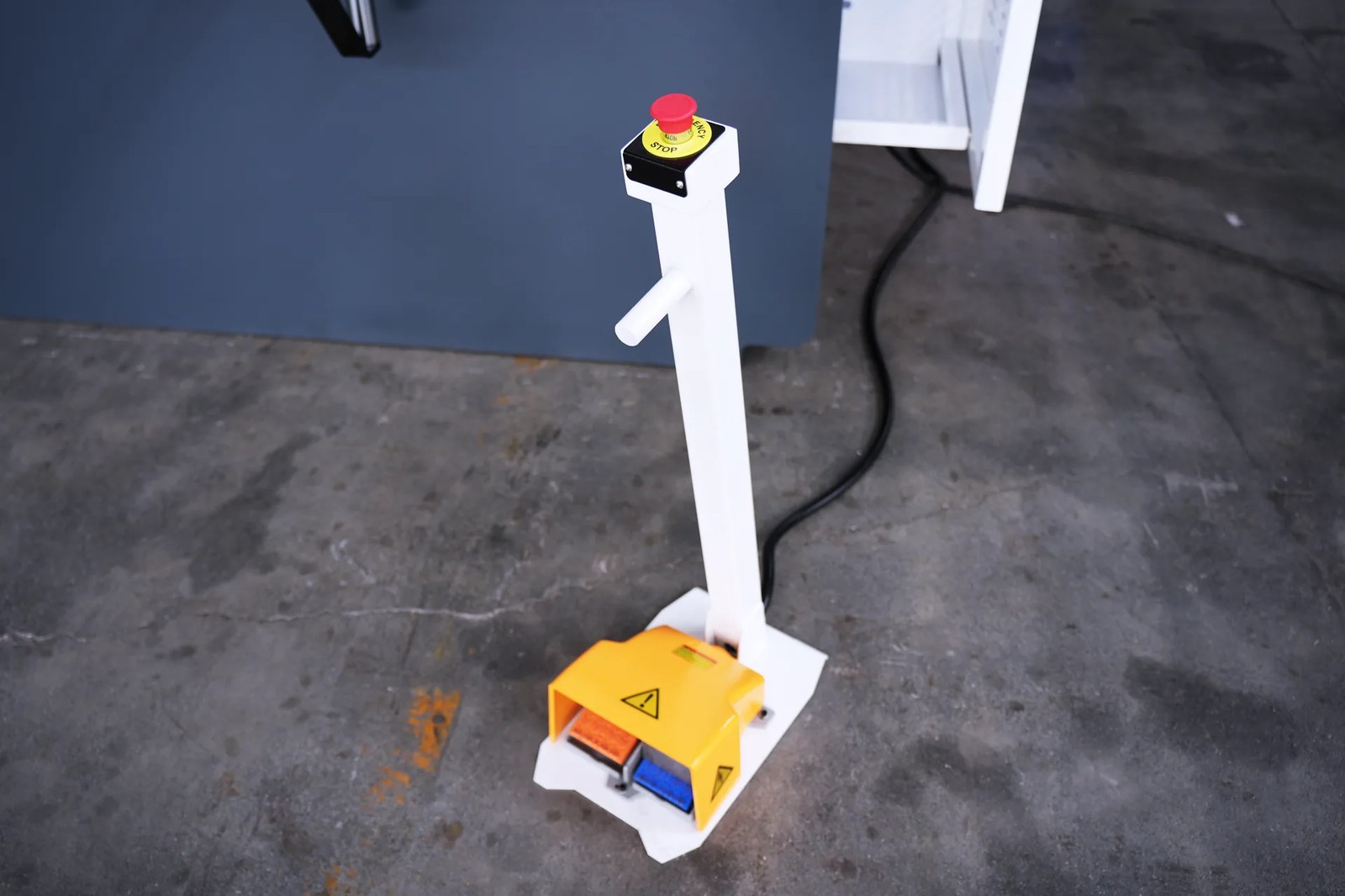

South Korea KACON Foot Switch
South Korea brand foot switch ismovableand can stop the machineanytime by theemergency button.

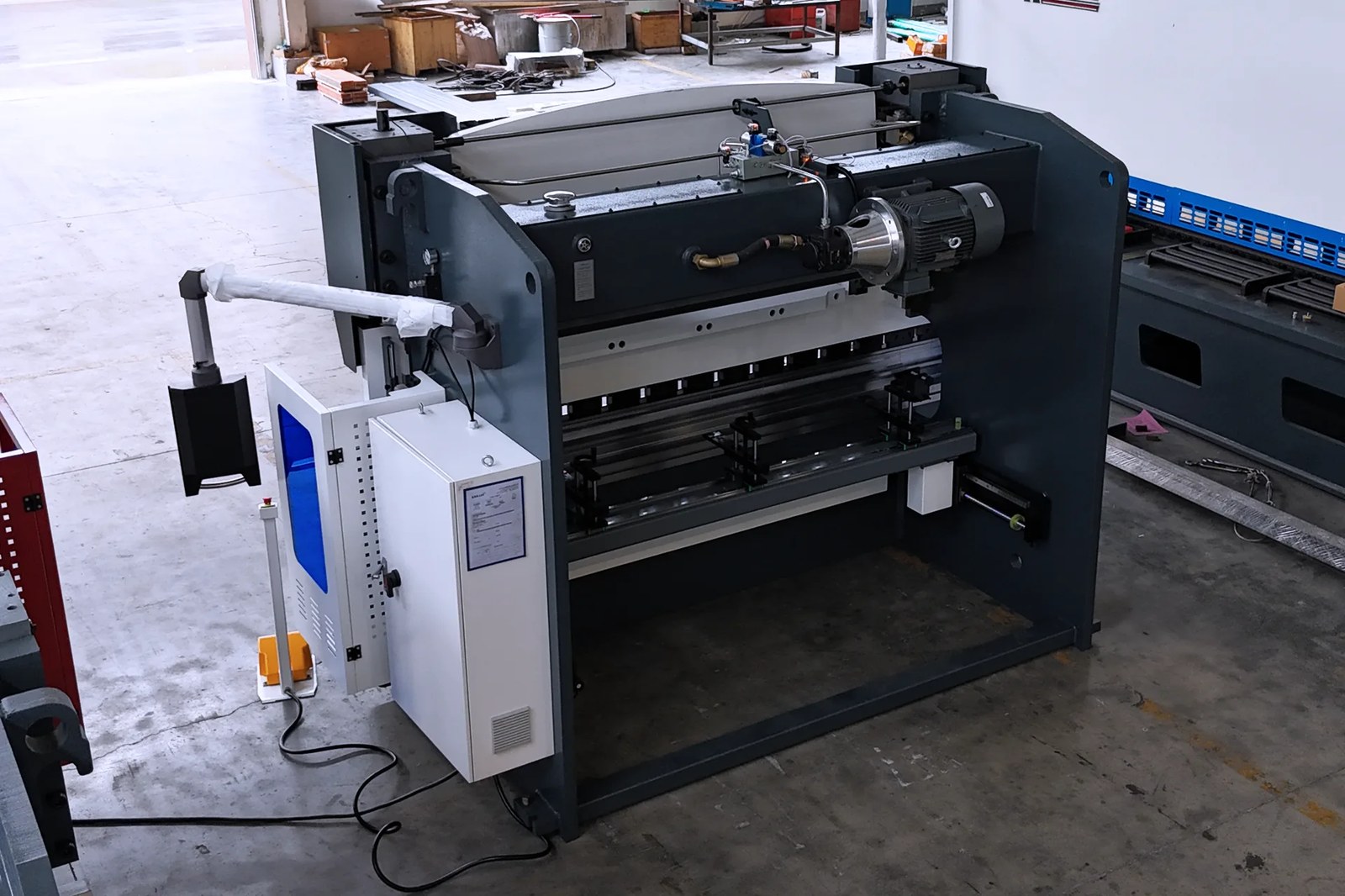

Back of The Fuselage
The whole of the WC67K Series Press Brake has a clean and neat structure design, regular lines and is easy to operate, making it an ideal choice for bending metal sheets.

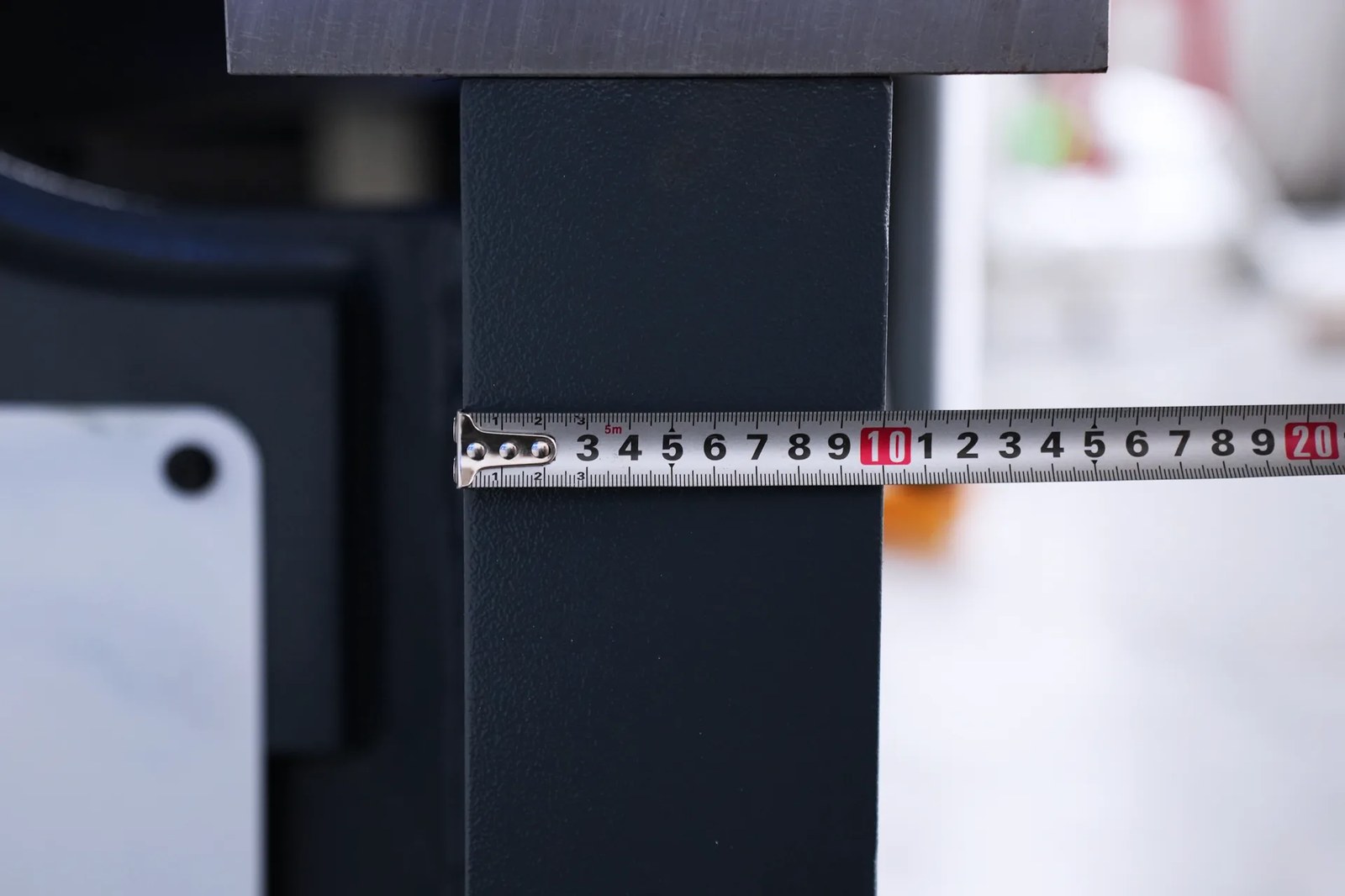

Thickness of Workbench (100mm)

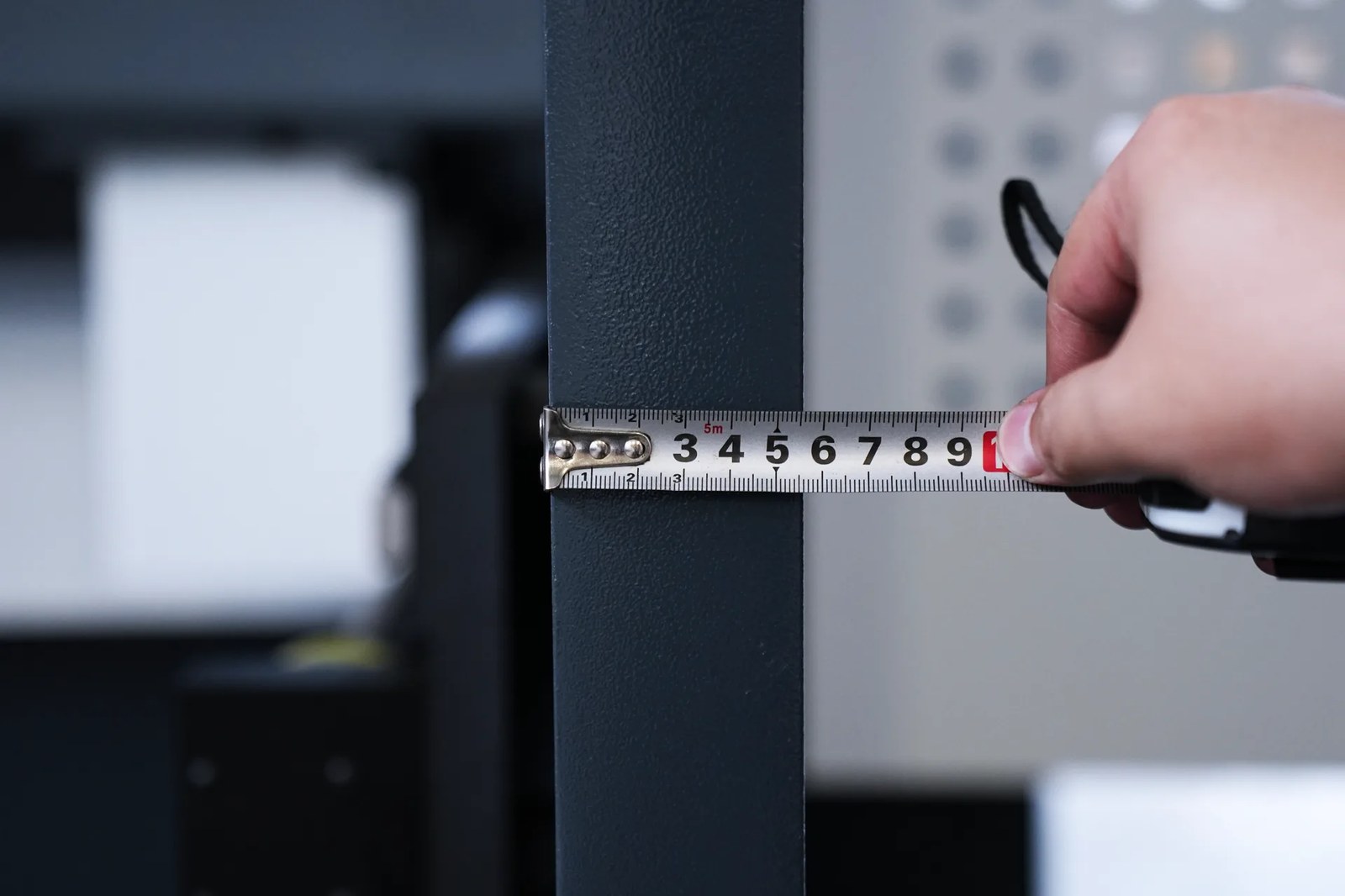

Thickness of Side Panel (55mm)

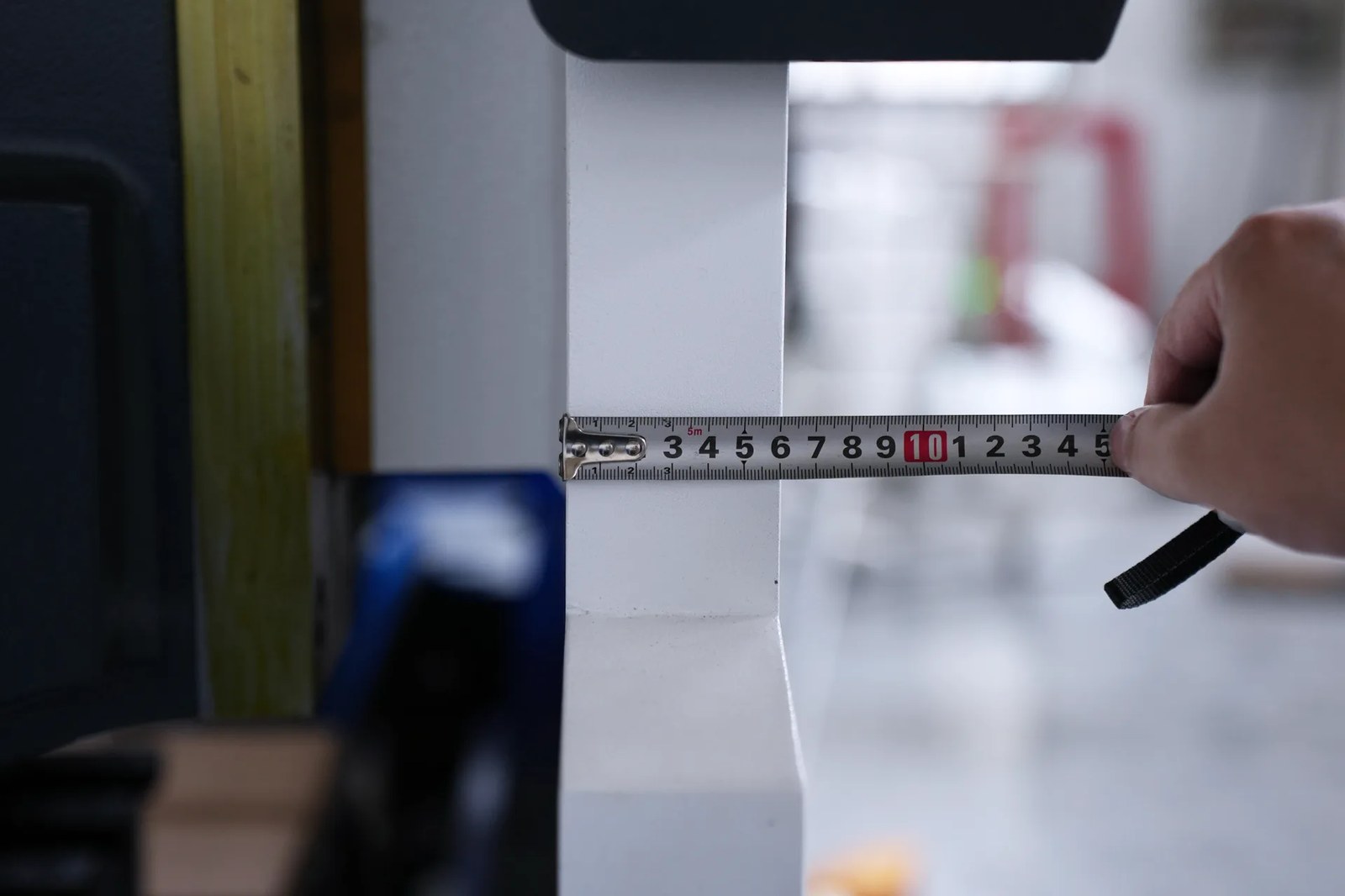

Thickness of Slider (60mm)
