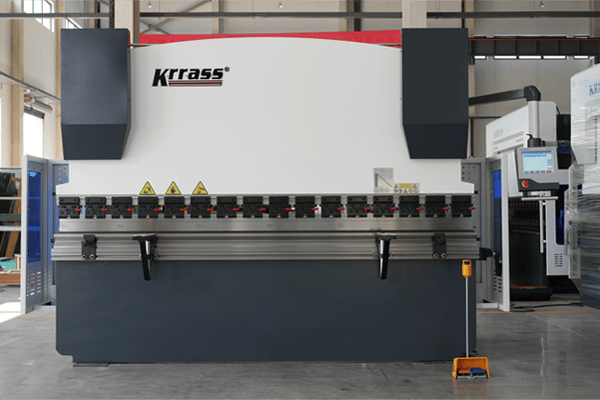

WC67K-160T3200 Press Brake Machine with Estun E300P Control and Manual Crowning
160Ton Press Brake, 3200mm NC Press Brake, can bend stainless steel, iron plates, aluminum plates, and can produce different complex products.
Engineering details
Configuration
Explore the key specifications, components, and available options designed to support different materials, processes, and production requirements.
Technologyies
| Bending Pressure: | 1600KN |
| Bending Length: | 3200mm |
| NC Control Axes: | Y+X+W Crowning |
| Main Motor: | 11KW |
| Operating Voltage: | 380V 50Hz |
| CNC System: | E300P |
| Length* Width* Height: | 3720mm * 1580mm * 2650mm |
Configurations
Main Feature
The 160Ton Press Brake with E300P Controller with its easy-to-use control unit, rigid body frame, flawless design, high efficiency, multiple tool usage solutions, top CE safety standards, and a suitable price range make it the best-in-class world leader. It is ideal for bend-sensitive, energy-efficient solutions.
- Simple and solid 160Ton Press Brake
- Work area can be customized and all types of tool clamping can be installed
- Tailored-made Hydraulic Press Brake

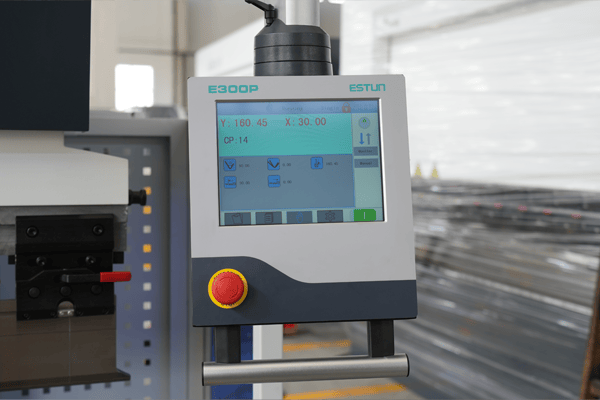

ESTUN E300P Control
- 4 axes are supported, viz, X-axis, Y-axis, R-axis and C-axis.
- The back gauge can be controlled in a high-accuracy since the servo systems control X-axis and R-axis.
- Automatic calculation of the block position, according to the bending angle, material, thickness and mold parameters.
- The back gauge can be controlled in a high-accuracy since the servo systems control X-axis and R-axis.
- Optional hydraulic or mechanical to control the C-axis.
- Program in absolute value or angle.
- Materials and die informations are programable.
- Language setting and unit setting.

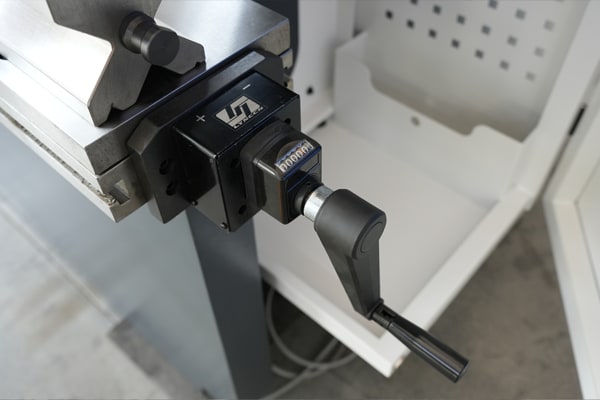

Manual Crowning System (Optional)
The elastic deformation produced in the middle of the slider of the 160Ton Press Brake and the middle of the worktable causes the angle of the entire length to be inconsistent during bending, which is an important factor affecting the bending accuracy. Therefore, our 160Ton Press Brake is equipped with this function as standard.

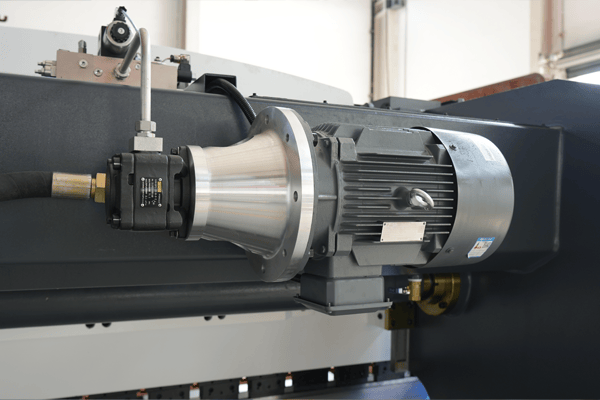

German Siemens main motor
The German famous brand motor increases the service life of the 160Ton Press Brake and keeps the machine working in a low-noise environment.
American FIRST oil pump, low noise, long life.

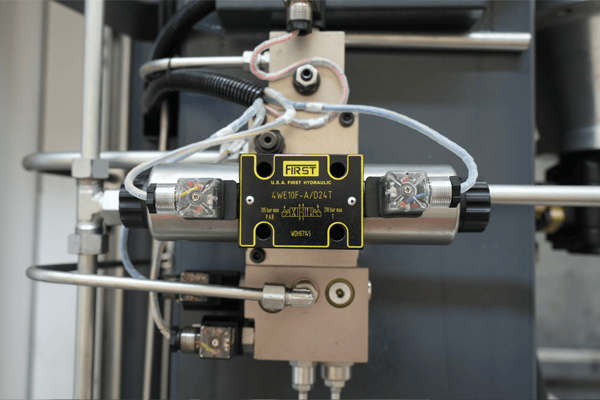

FIRST hydraulic valves
The valve group from USA FIRST is used to ensure more accurate bending accuracy and service life.
The hydraulic pipes are made of the German EMB brand, which is guaranteed to never leak oil.

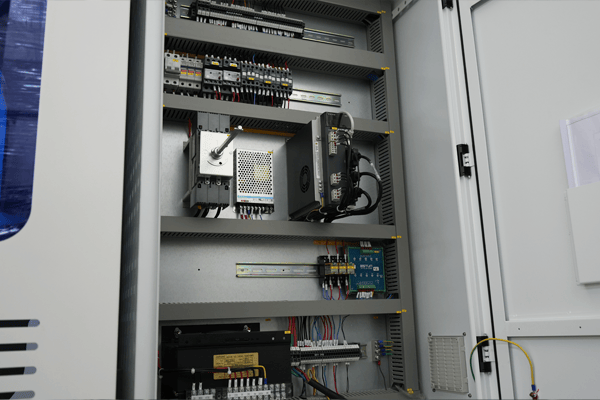

Schneider Electric
High quality electric parts can perform well even the electricity is not stable and customers can easily get the replacement anywhere in the word.
Taiwan Shilin inverter ensures the positioning accuracy of the X-axis and Y-axis.

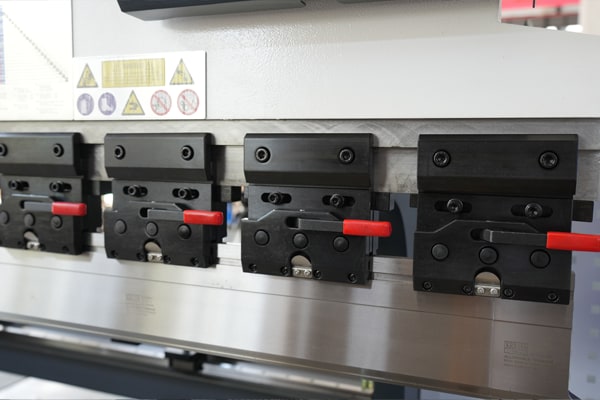

High-precision Quick Mold Change Device
The upper mold is divided into different gold sizes and can also be cut according to customer requirements.
The lower mold adopts a multi-V square mold, which can adapt to customers’ bending of materials with different thicknesses. The mold can also be modified according to customer requirements. To meet the best needs of customers.

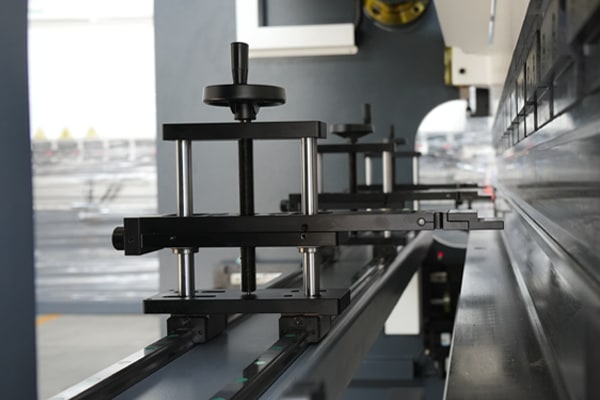

Hight-Precision fine-tuning back finger stoper
High-precision backstop means that customers can input the size into the system according to the size of the product, and it can be positioned accurately with an accuracy of 0.01mm.
The crossbeam adopts double linear guide rails, and the blocking fingers can move left and right on it.

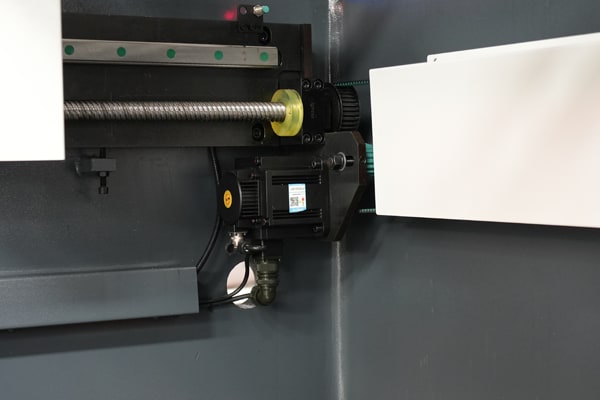

X-axis ball screw linear guide and servo motor
- Precision: Ball screws offer improved precision, reduced energy consumption, and lower maintenance requirements.
- Responsiveness: Ball screws deliver very smooth motion.
- Friction: Ball screws rely on recirculating balls to alleviate friction instead of lubricants.
- High output power: Relative to their size and weight
- Closed-loop control: Ensures greater accuracy
- Quiet operation: Little sound noise

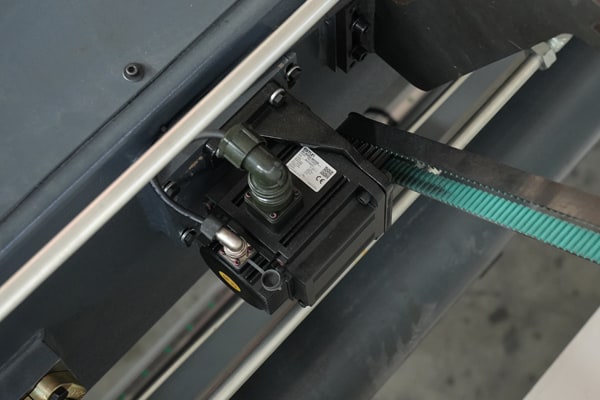

Y-axis servo motor
Servo motors have several advantages, including:
- High efficiency: Can approach 90% at light loads
- High output power: Relative to their size and weight
- Closed-loop control: Ensures greater accuracy
- Quiet operation: Little sound noise
- High reliability: Highly reliable
- High ratio of torque to inertia: Can provide as much as 50% more torque in many applications
- High precision: Can precisely actuate, hold, and speed up positions, torque, and speeds in fractions of seconds

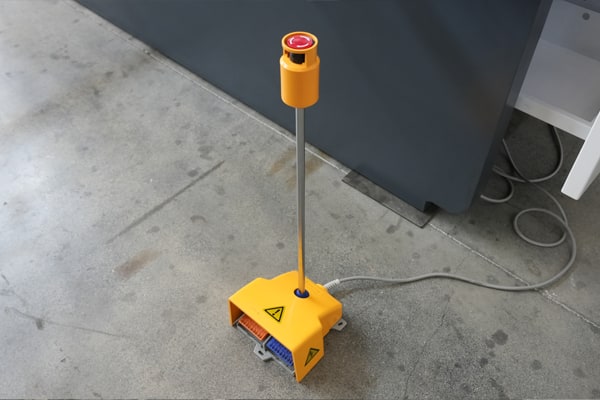

South Korea KACON Foot Switch
South Korea brand foot switch ismovableand can stop the machineanytime by theemergency button.
Thickness of workbench (90mm)

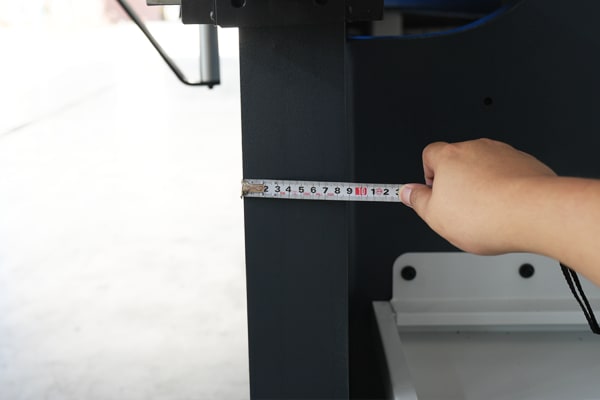

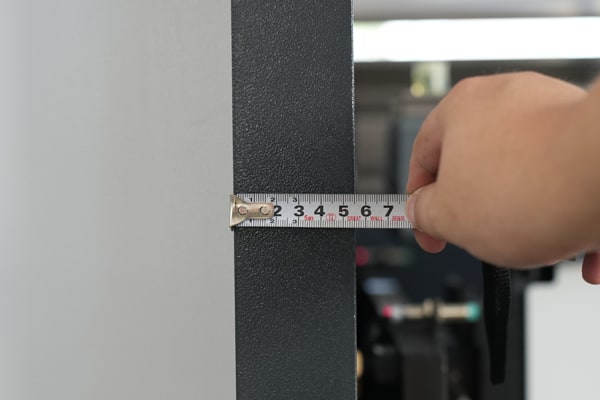

Thickness of side panel (55mm)

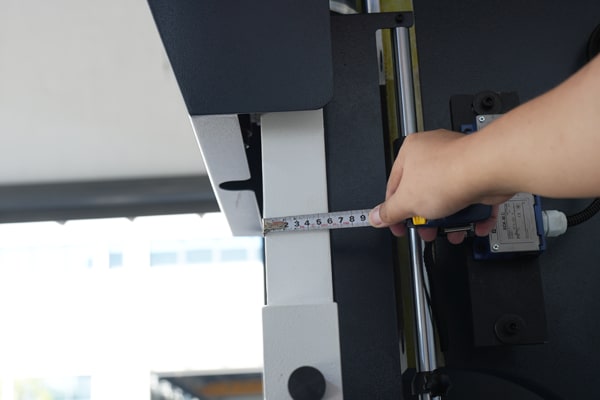

Thickness of slider (60mm)
