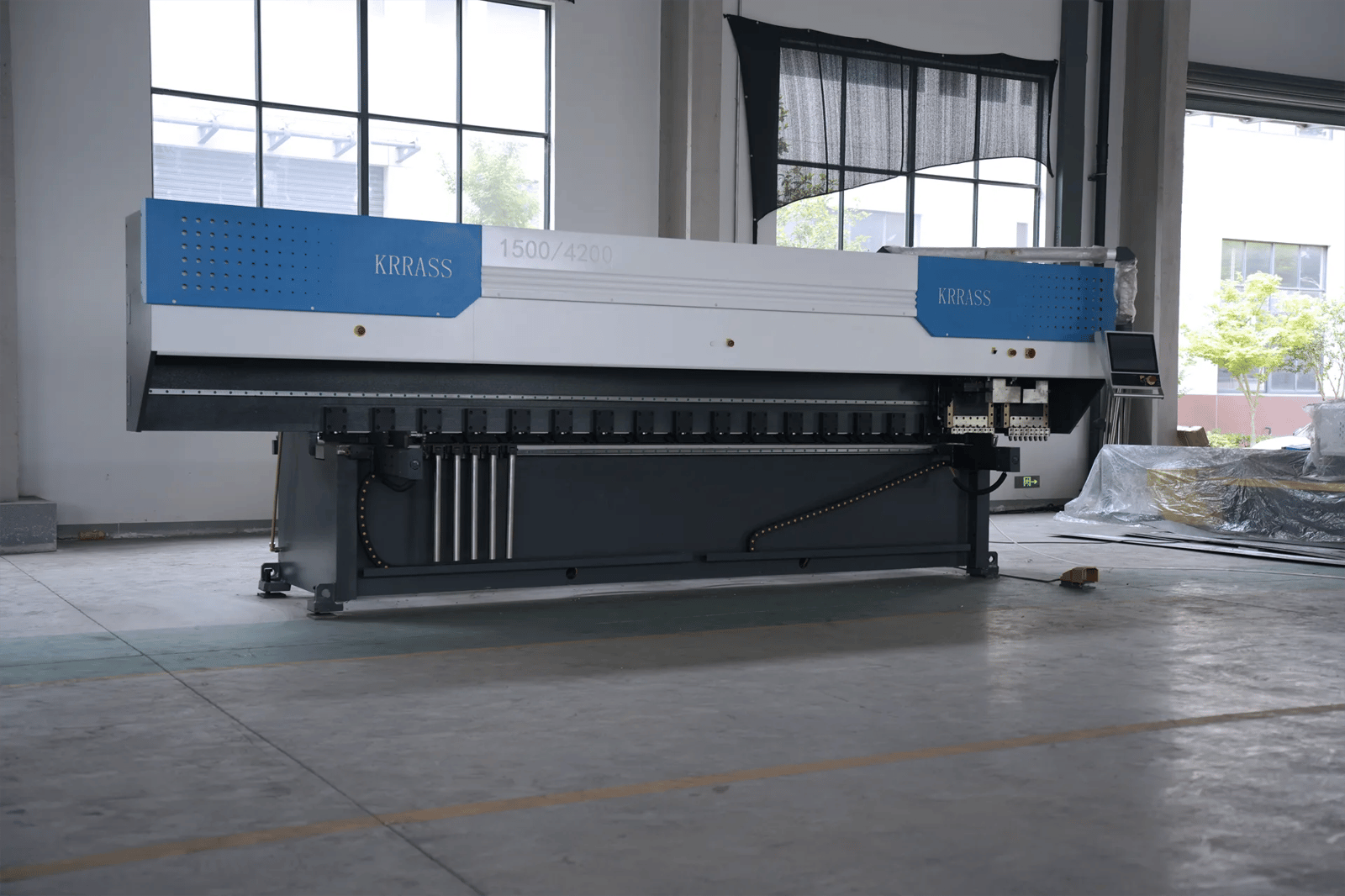

7-Axis Vertical V Grooving Machine with Double Rails HRK-1500X4200
Stainless Steel V Gooving Machine HRK-1500X4200, 7-Axis Vertical V Grooving Machine with Double Rails
Engineering details
Configuration
Explore the key specifications, components, and available options designed to support different materials, processes, and production requirements.
Technologyies
| Max Plate Thickness: | 6mm |
| Max Plate Length: | 4200mm |
| Operating Voltage: | 380V 50Hz |
| CNC System: | SYNTEC |
| Length * Width * Height: | 5800mm * 2750mm * 2100mm |
Configurations
Main Feature
KRRASS Vertical V Grooving Machine products provide a reliable, effective and economical solution. Knowledge, ability and experience has been the basis for the development of our mechanical and electronic drive components. Product performance and quality is never compromised while manufacturing HRK Series.

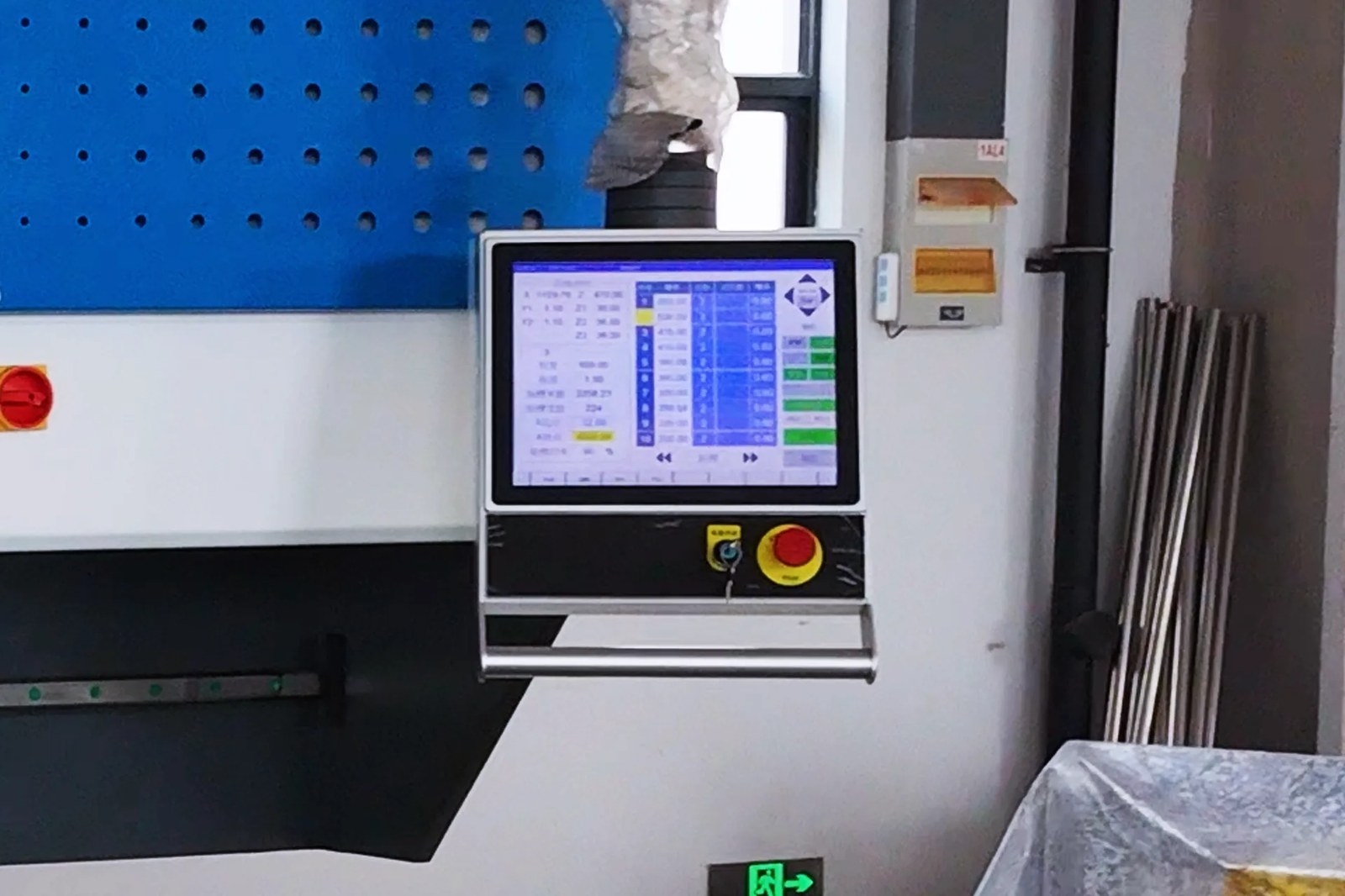

SYNTEC Control
- 15 inch CNC touch display
- Acceleration / deceleration response time: 0.5US
- With fallback function
- PLC interrupt function: scan time is
- Fixed at 10ms
- Avoid collision

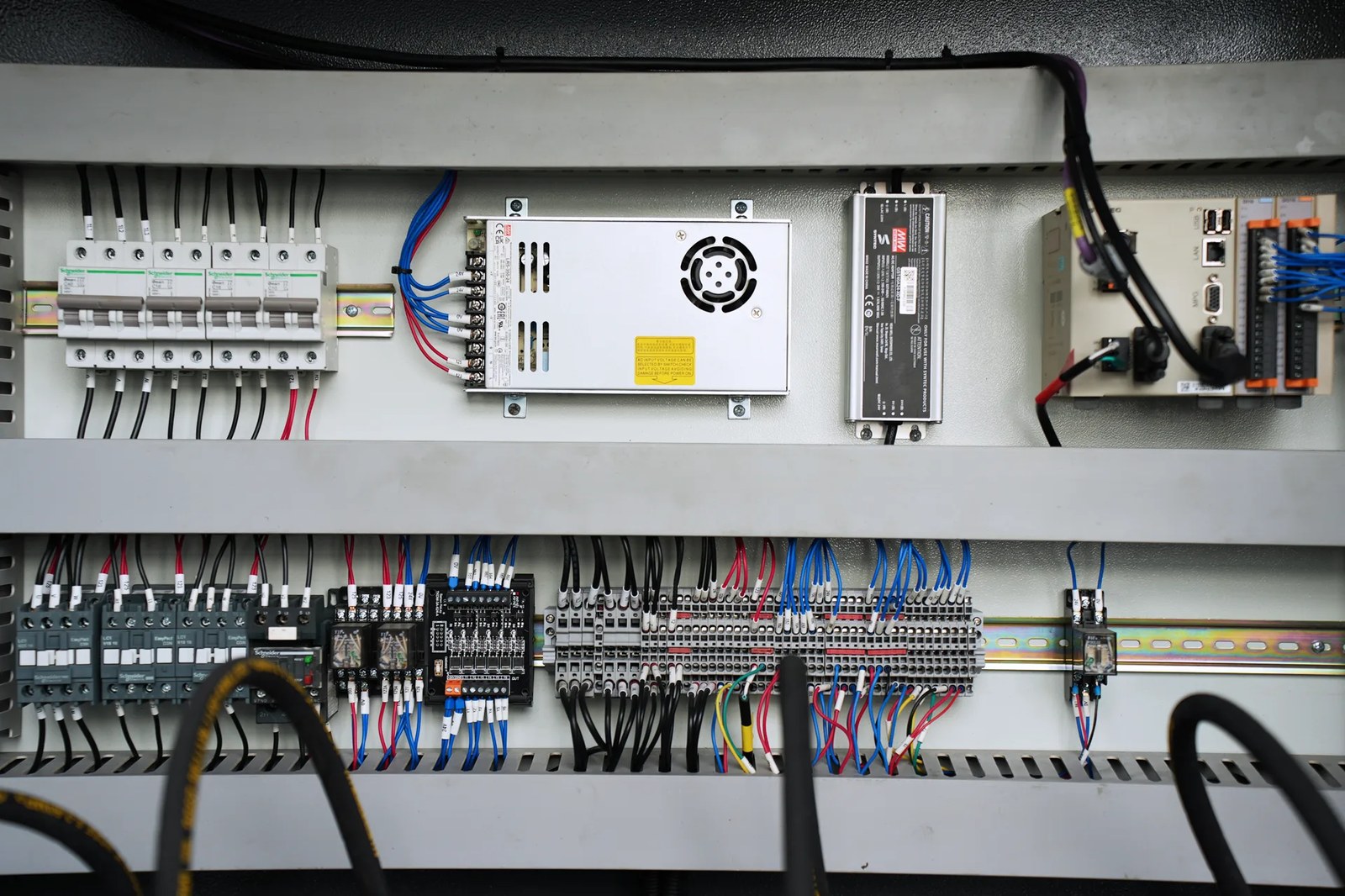

Schneider Electric
High quality electric parts can perform well even the electricity is not stable and customers can easily get the replacement anywhere in the word.

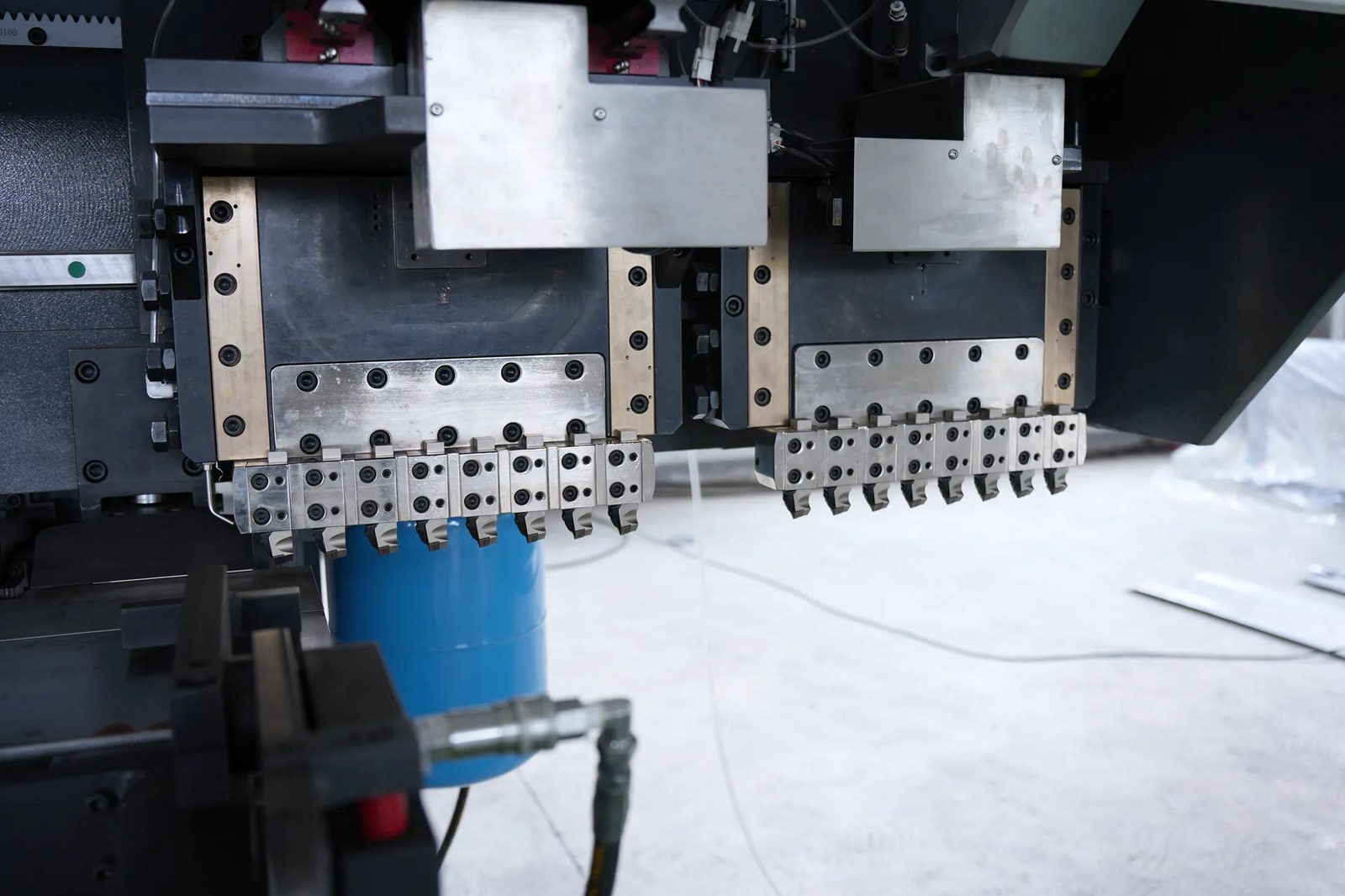

High-Precision V Grooving with Double Rails
Double guide rail precision V-groove, perfect cutting of the plate. Advanced technology ensures the accuracy of each V-groove cut, providing ideal pre-treatment for bending. Each set has 8 cutter heads, a total of 16 cutter heads, making you more efficient.

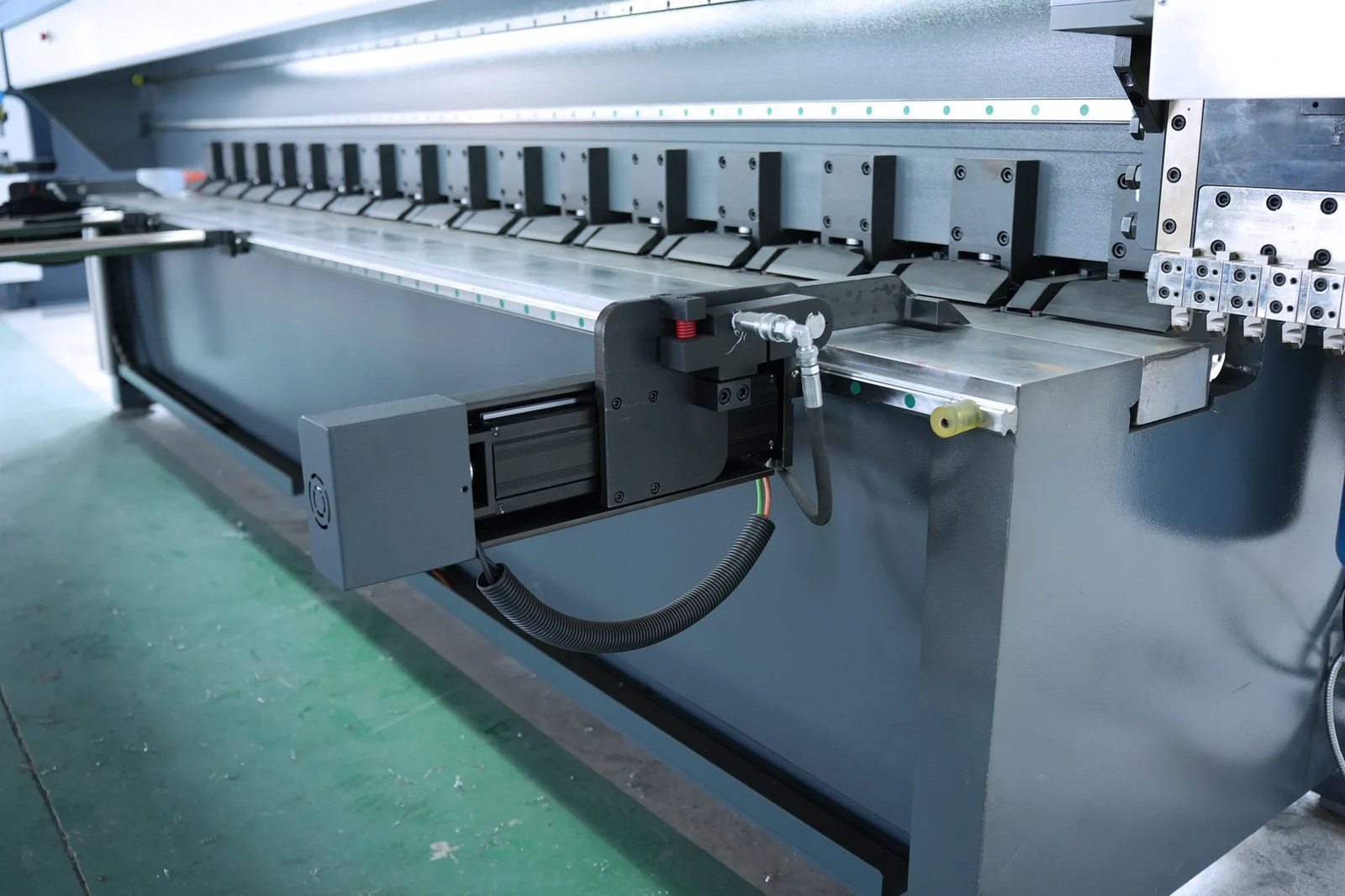

High-precision Front Clamps
Two high-precision front clamps are installed at the front of the Vertical V Grooving Machine body, which can ensure that the plate will not move randomly when you are slotting the plate, making the operation more accurate. These two high-precision front clamps can move forward and backward automatically with the CNC system, and can also be moved left and right manually according to the length of the slotted plate.

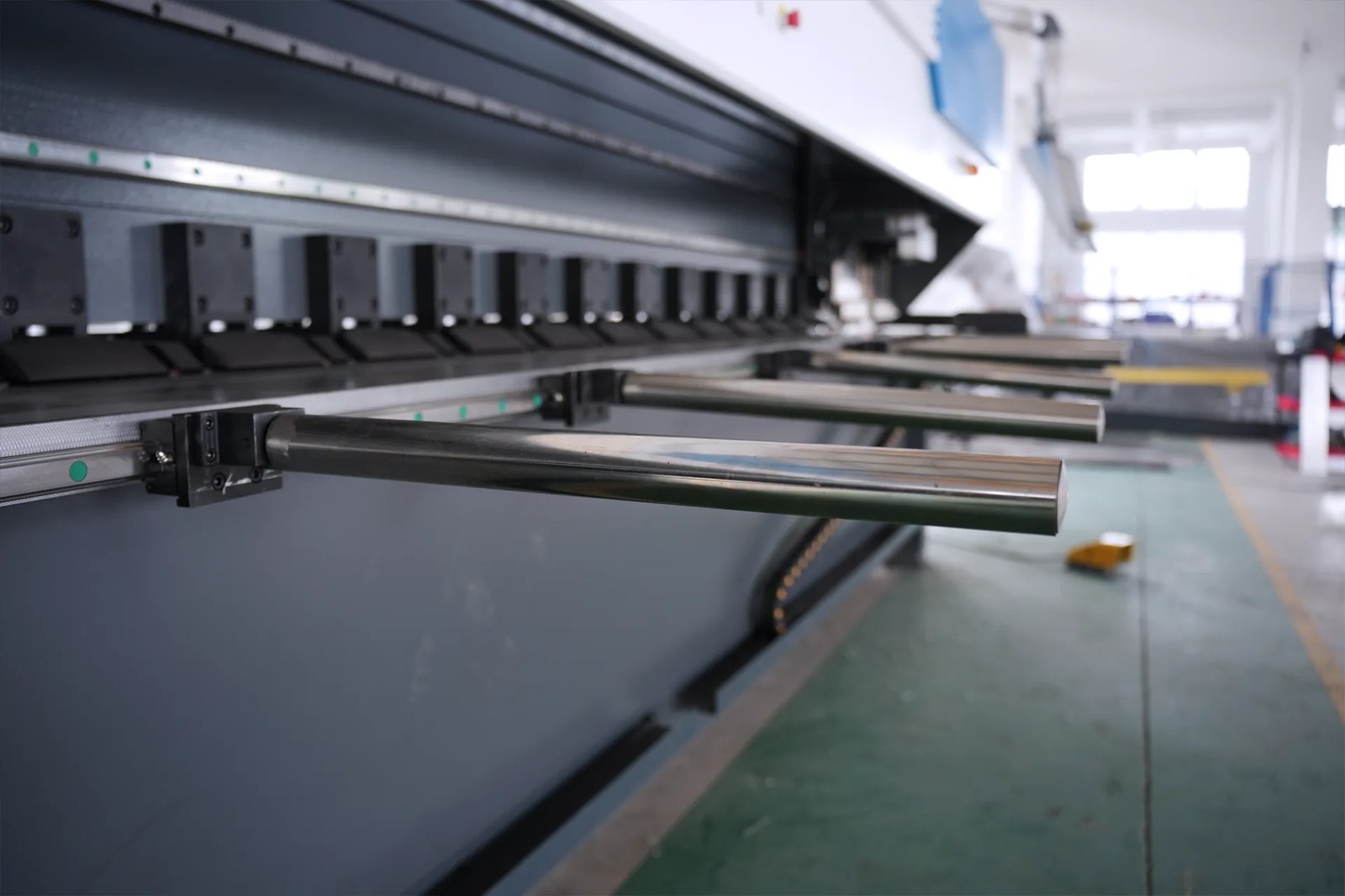

Quick-change Front Support
The front support of Vertical V Grooving Machine is strong, wear-resistant, and can be quickly retracted and switched, which is helpful when you need to groove large plates.

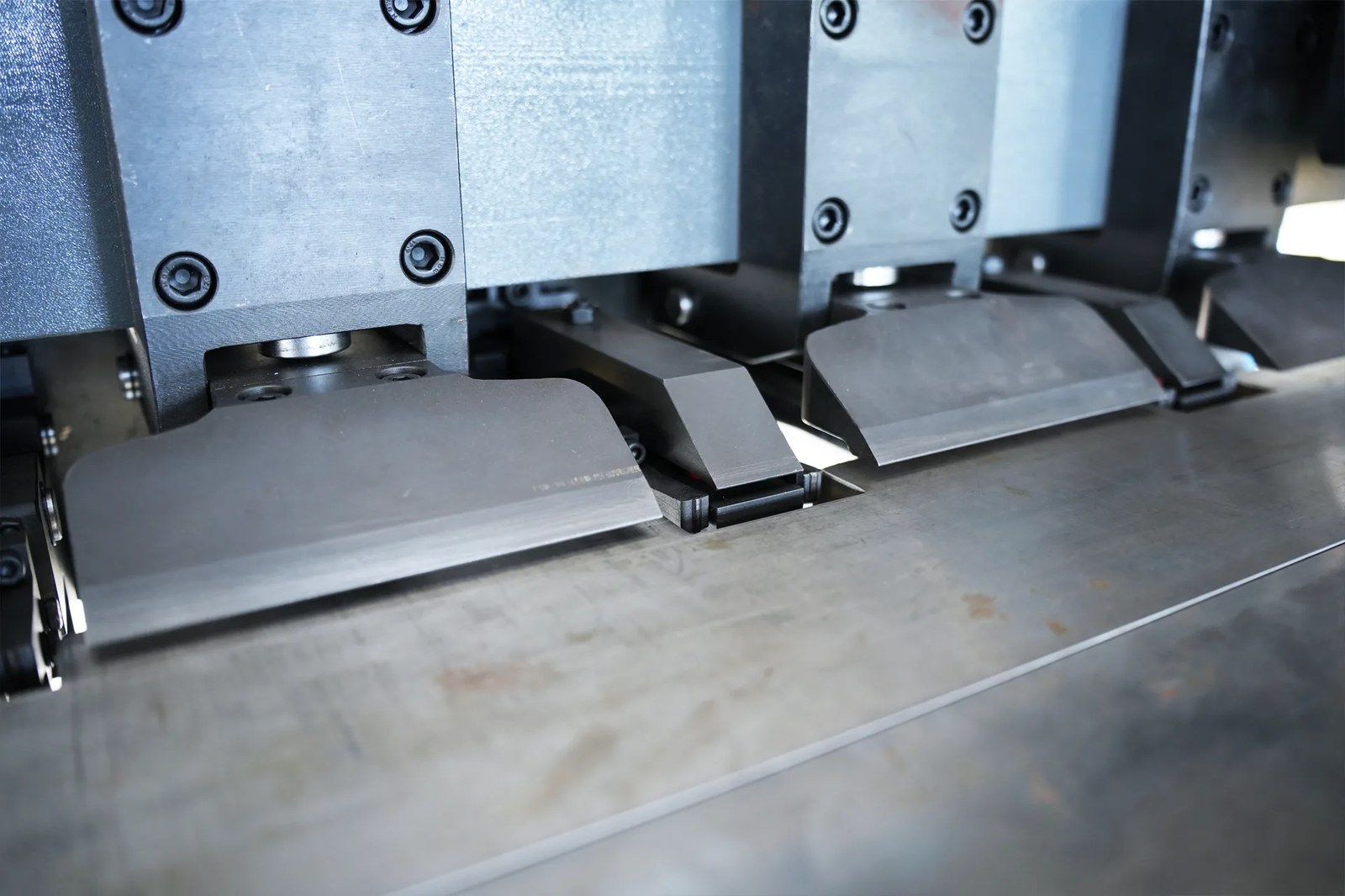

High-precision Rear Clamp
The Vertical V Grooving Machine is also equipped with a very high-precision rear clamp, which is driven by a high-precision servo motor to move forward and backward, and is clamped and released by a hydraulic system.

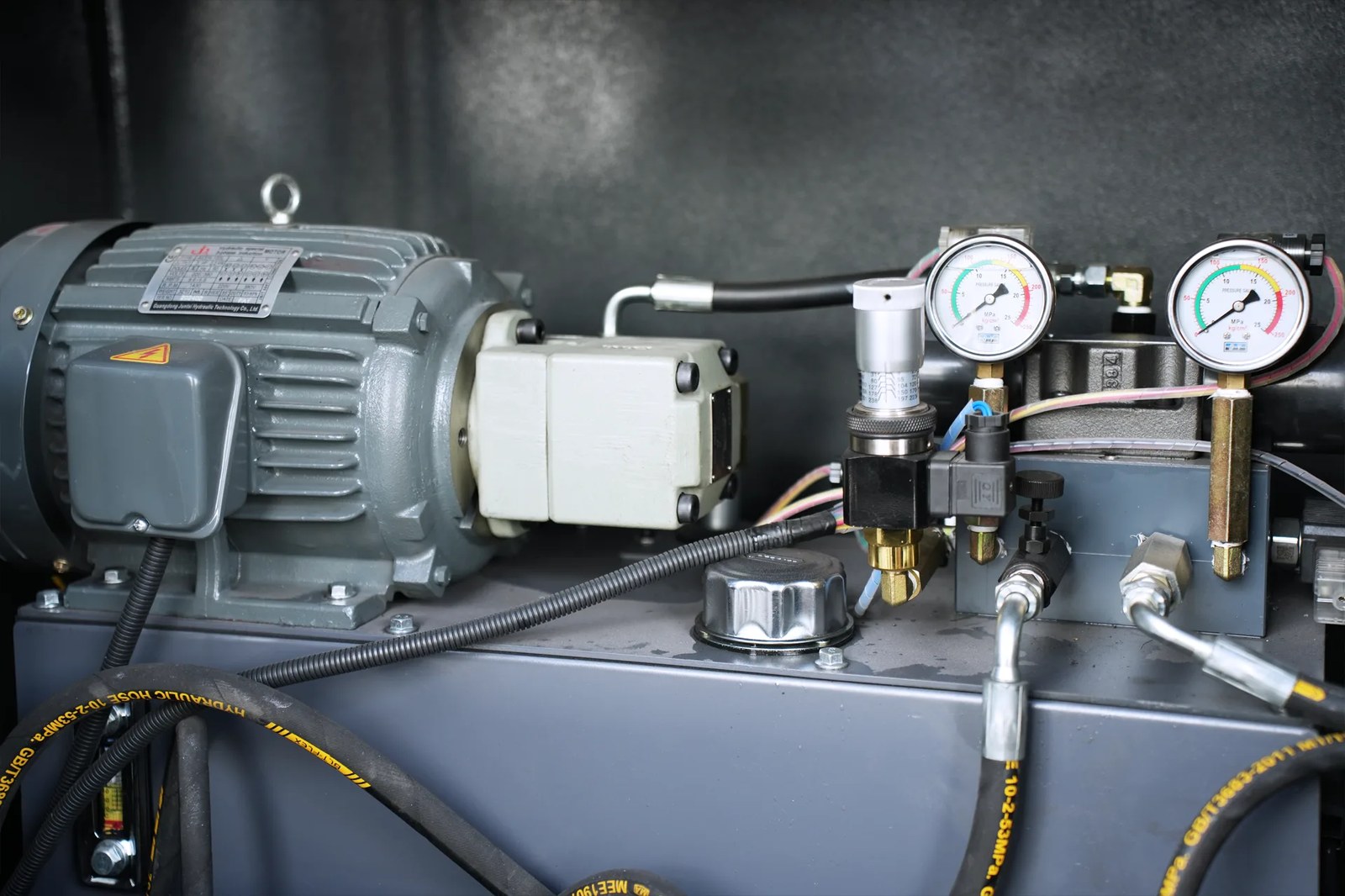

Hydraulic Station
The hydraulic system is controlled by a CNC controller, which can effectively provide powerful hydraulic power for the front and rear clamps, ensuring that the clamps can firmly clamp the metal plate during operation and ensure the grooving accuracy.

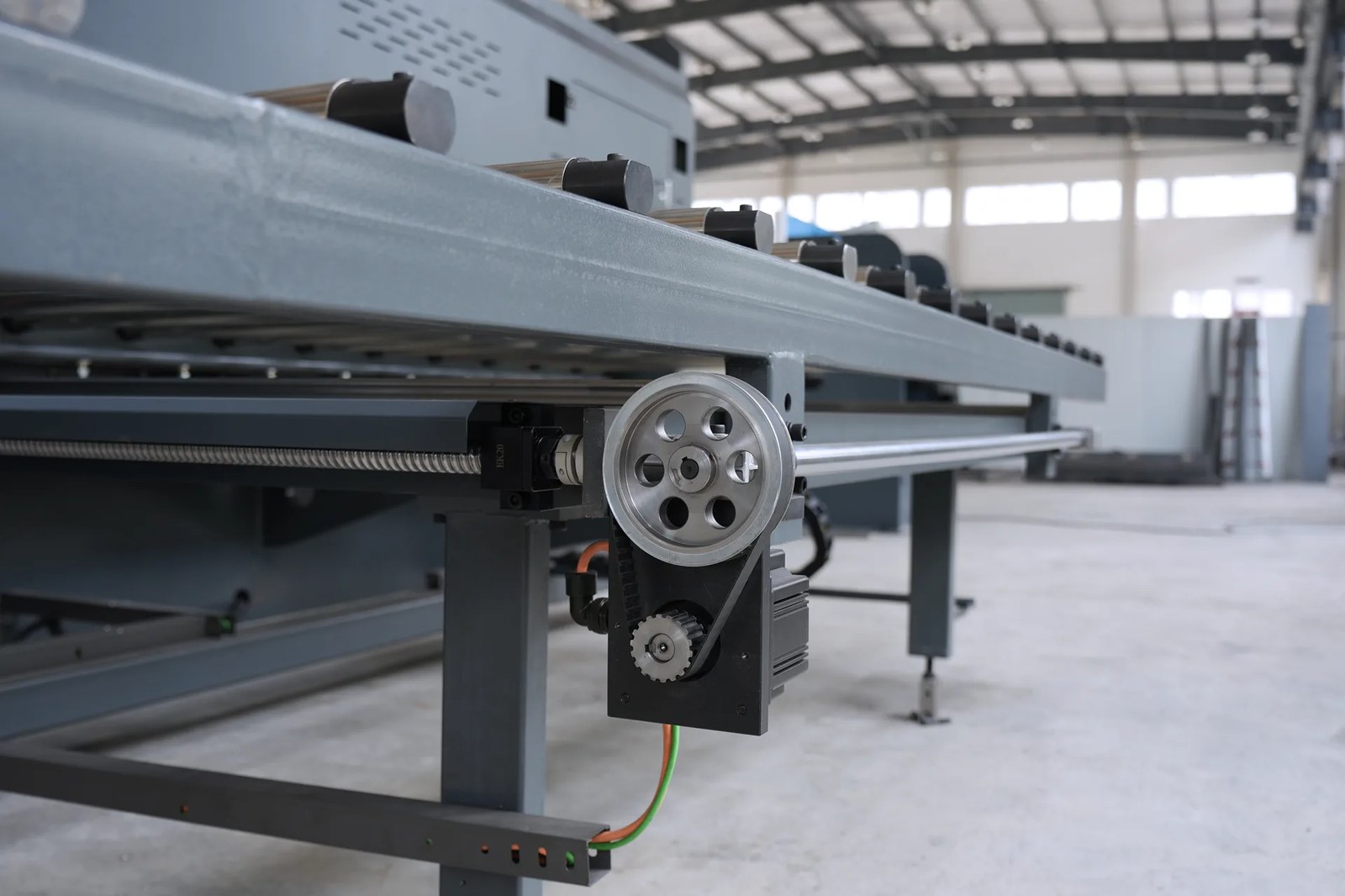

Accurate Back Support Device
The plate is fed into the Vertical V Grooving Machine through the rear clamp on the rear support device, which is driven by a servo motor to ensure that the feeding tolerance is ≤±0.03mm. The surface of the support plate has been reinforced to be more wear-resistant.
