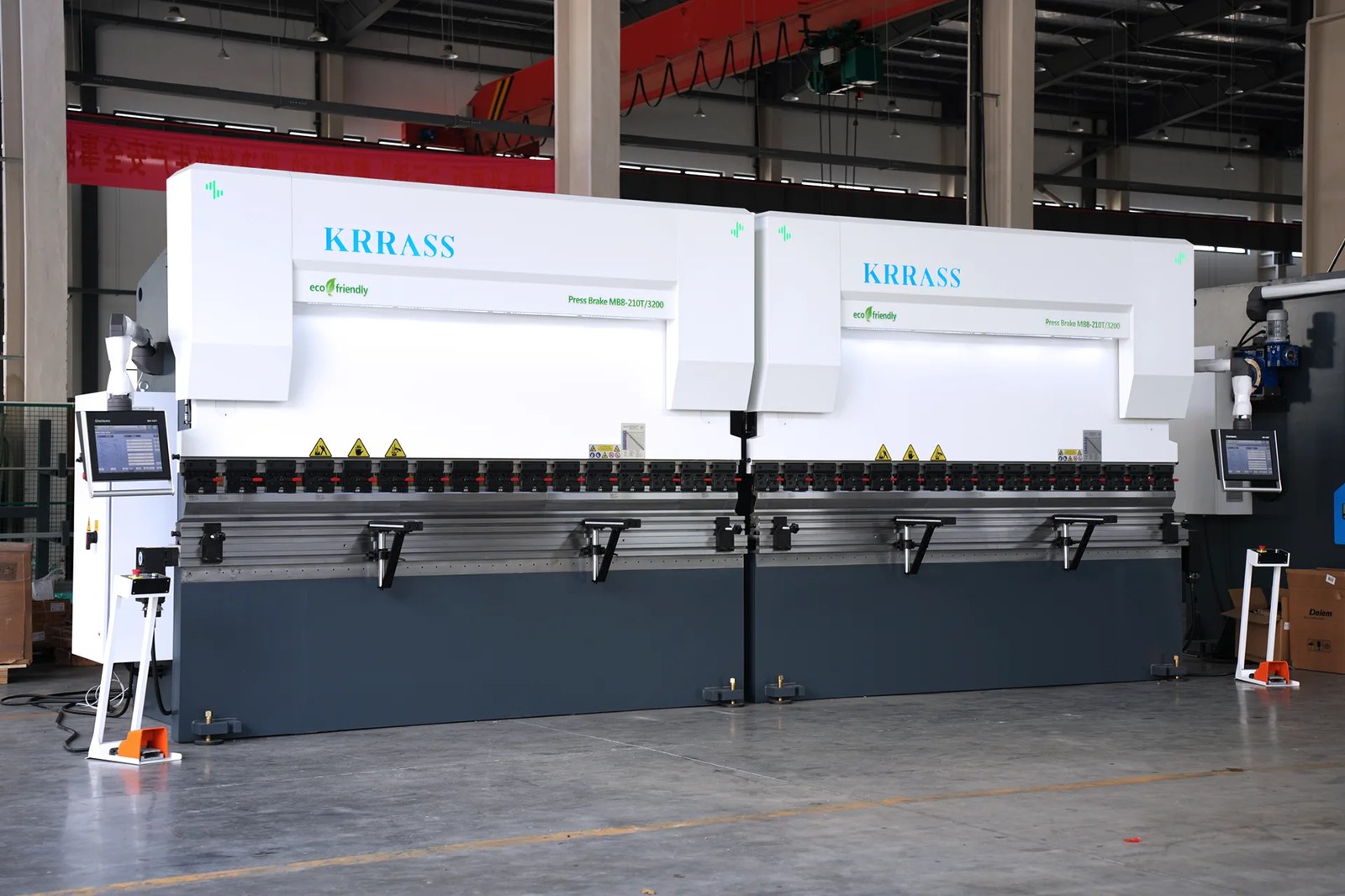

2XMB8-210T3200 With DA58T 3+1 Axis Tandem CNC Press Brake

Technologyies(Single)

Bending Pressure:	2100KN
Bending Length:	3200mm
CNC Control Axes:	Y1+Y2+X+W Crowning
Main Motor:	15KW
Operating Voltage:	380V 50Hz
CNC System:	DA-58T
Length* Width* Height:	4020mm * 1850mm * 2850mm

Configurations

Best CNC Press Brake Features

The Tandem CNC Press Brake with DA-53T Controller with its easy-to-use control unit, rigid body frame, flawless design, high efficiency, multiple tool usage solutions, top CE safety standards, and a suitable price range make it the best-in-class world leader. It is ideal for bend-sensitive, energy-efficient solutions.

• Simple and solid CNC Press Brake
• Work area can be customized and all types of tool clamping can be installed
• Tailored-made CNC Press Brake

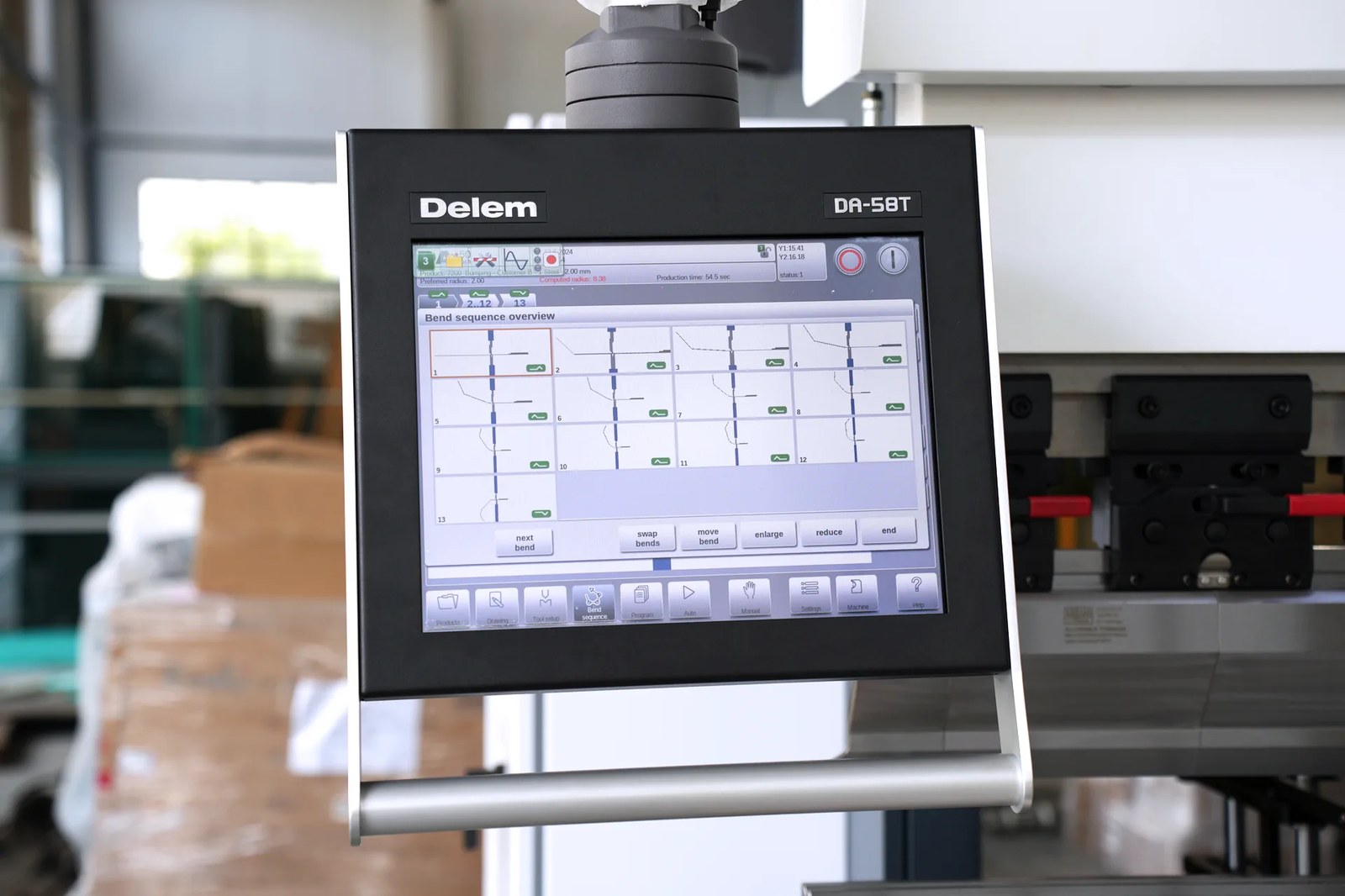

DELEM DA-58T Control

• 15″ high resolution colour TFT
• 2D graphical touch screen programming
• Up to 4 axes (Y1, Y2 + 2 aux. axes)
• Bend sequence calculation
• Advanced Y-axis control algorithms for closed-loop as well as open-loop valves.
• CNC Crowning control
• USB memory stick interfacing
• Profile-58TL offline software

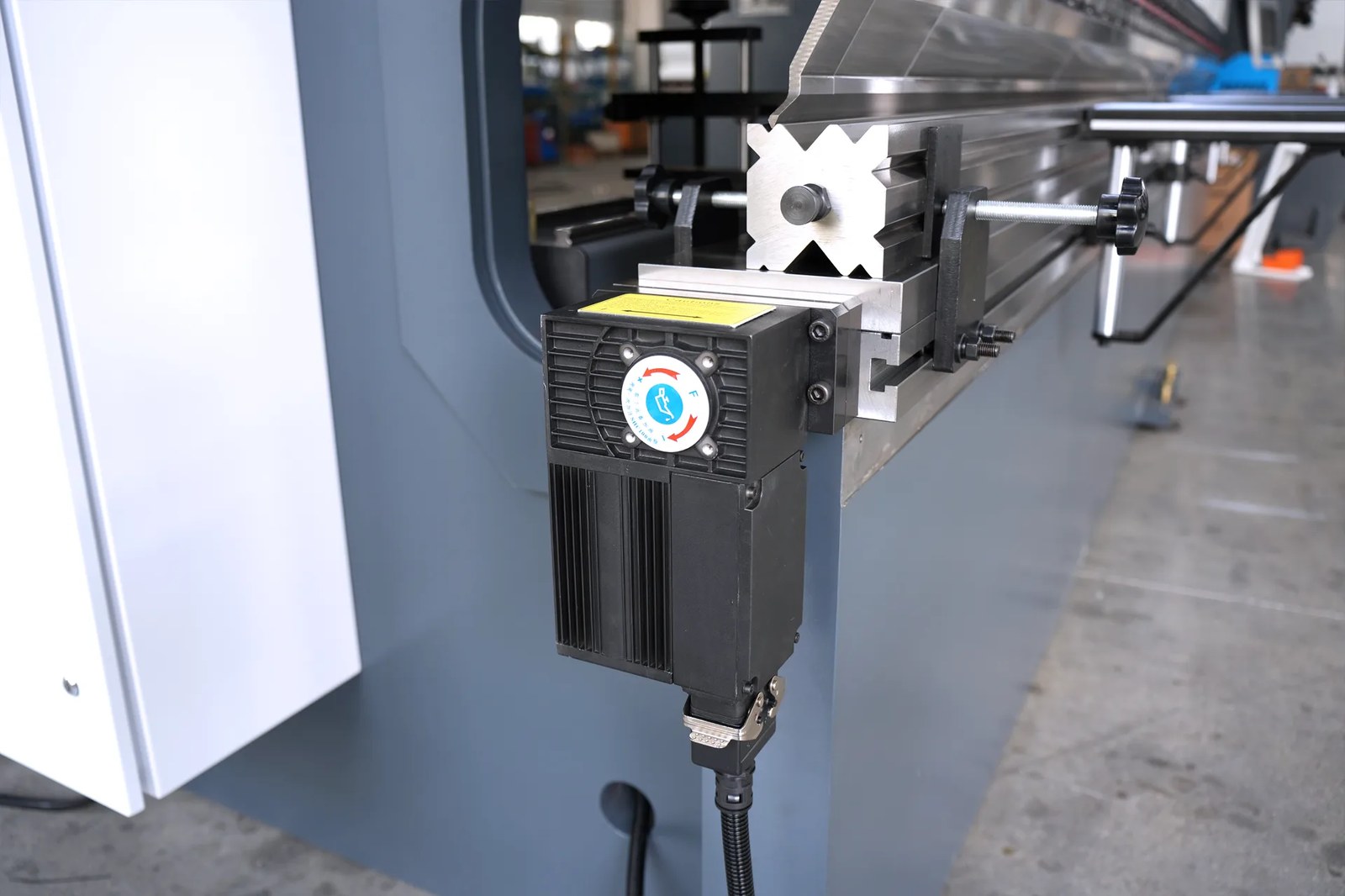

Electric Crowning System

• Very precise bending angles
• Europe type dies with 60 mm and 90 mm
• Base can be clamped as well as single dies with 13 mm tang
• Electric crowning with a controller
• Precise positioning and alignment of the crowning table
• Easy and fast usage

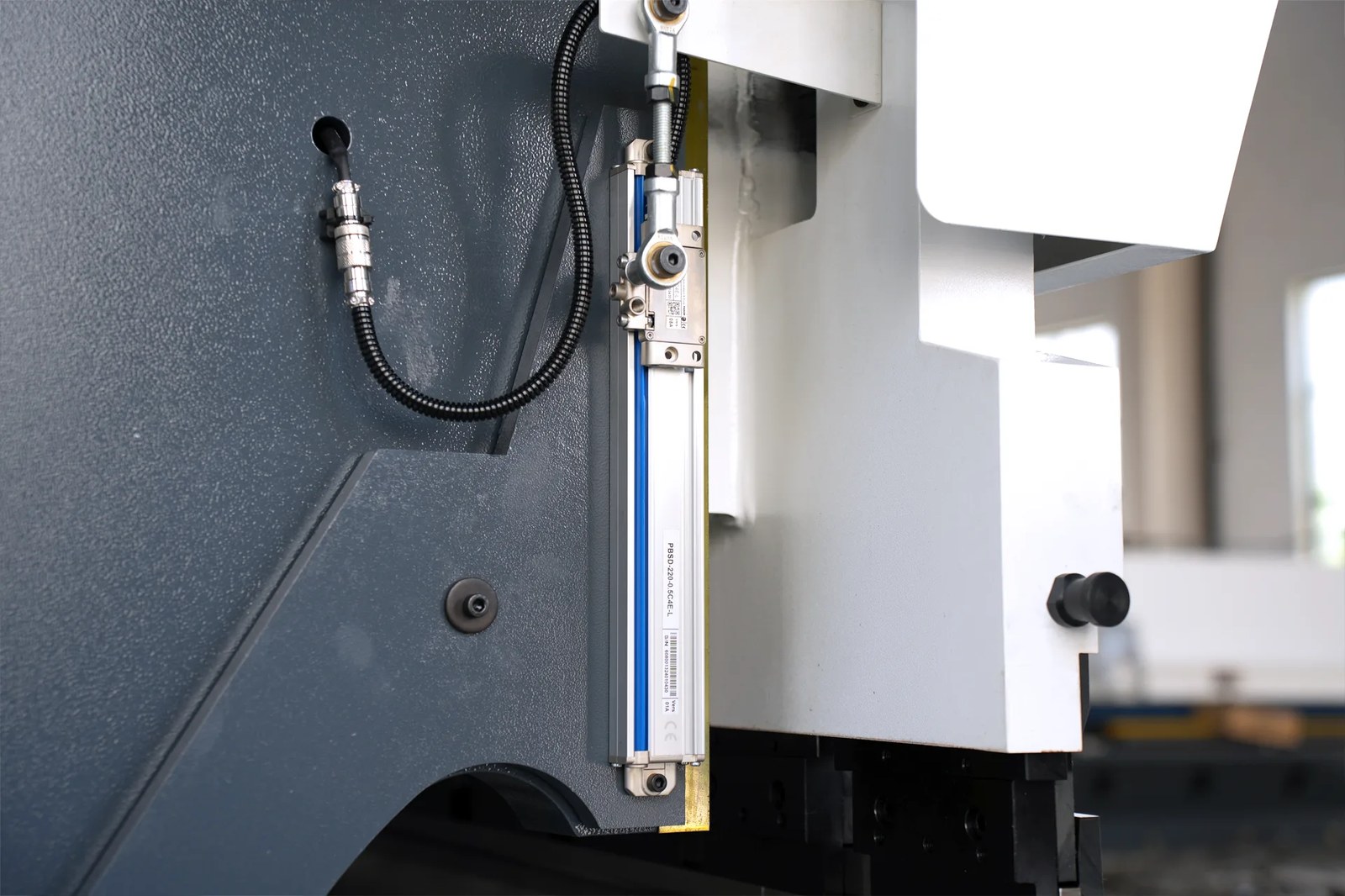

Fagor Grating Ruler

Slider position signal is feedbacked to controller by Spain FAGOR Grating ruler , then the CNC controller adjusts the amount of fuel tank by changing the synchronous valve opening size.

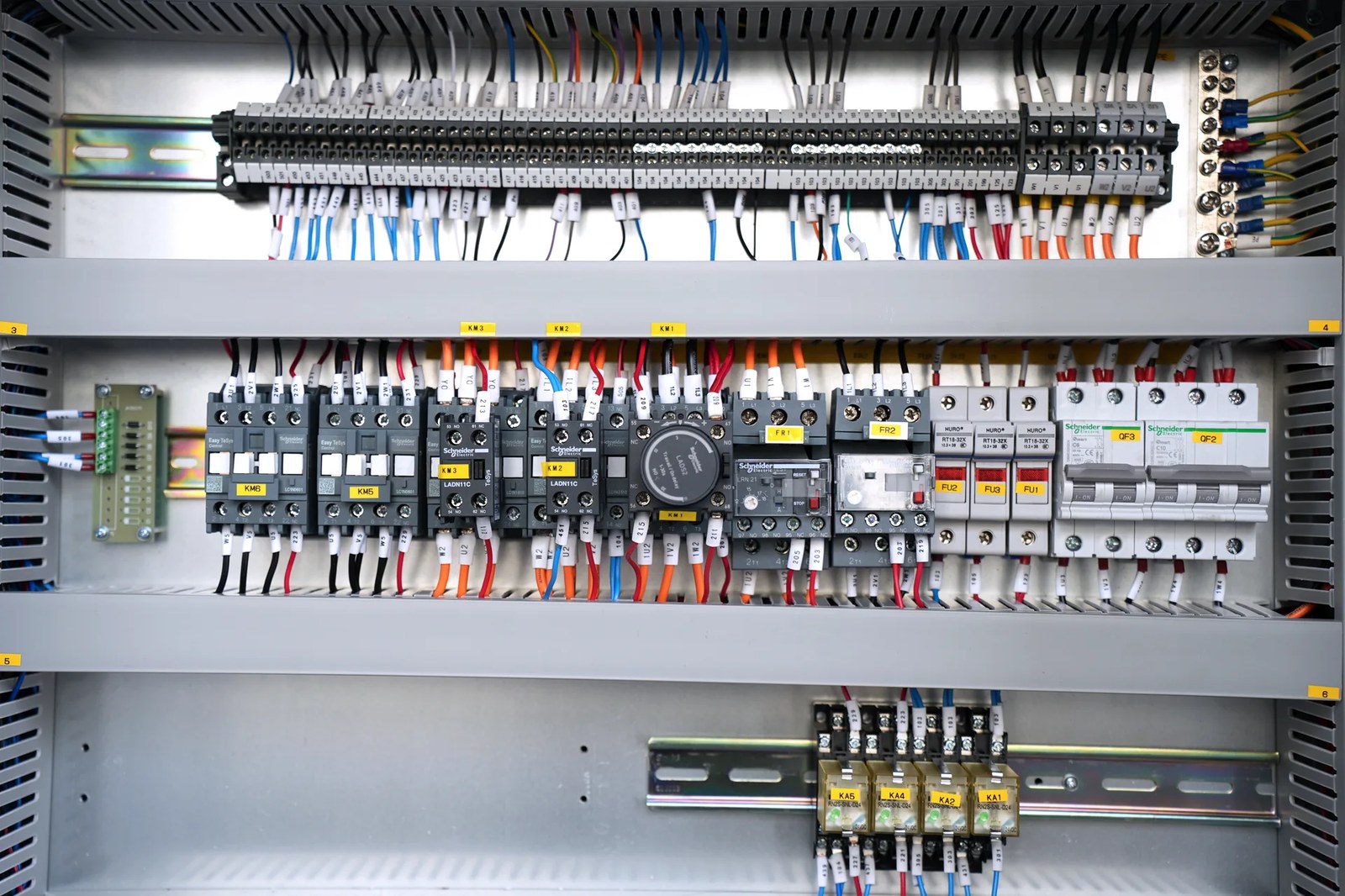

Schneider Electric

High quality electric parts can perform well even the electricity is not stable and customers can easily get the replacement anywhere in the word.

German Siemens Main Motor

The German famous brand motor increases the service life of the CNC Press Brake and keeps the machine working in a low-noise environment.

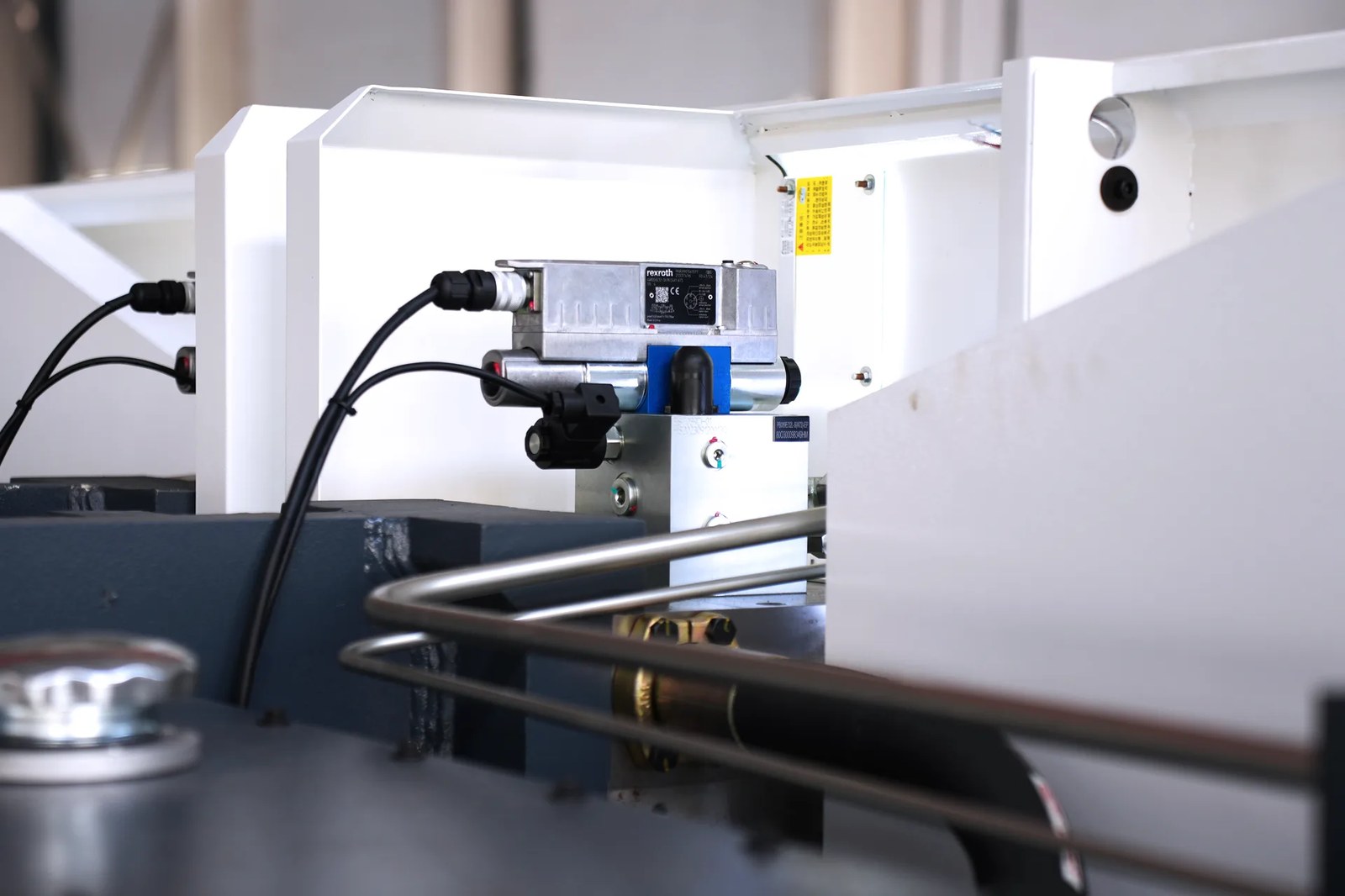

Rexroth Proportional Valve

The German Rexroth fully closed-loop electro-hydraulic servo high-frequency synchronous control system is adopted to ensure that the CNC Press Brake tool has high stability and high precision in the process of high-speed operation.

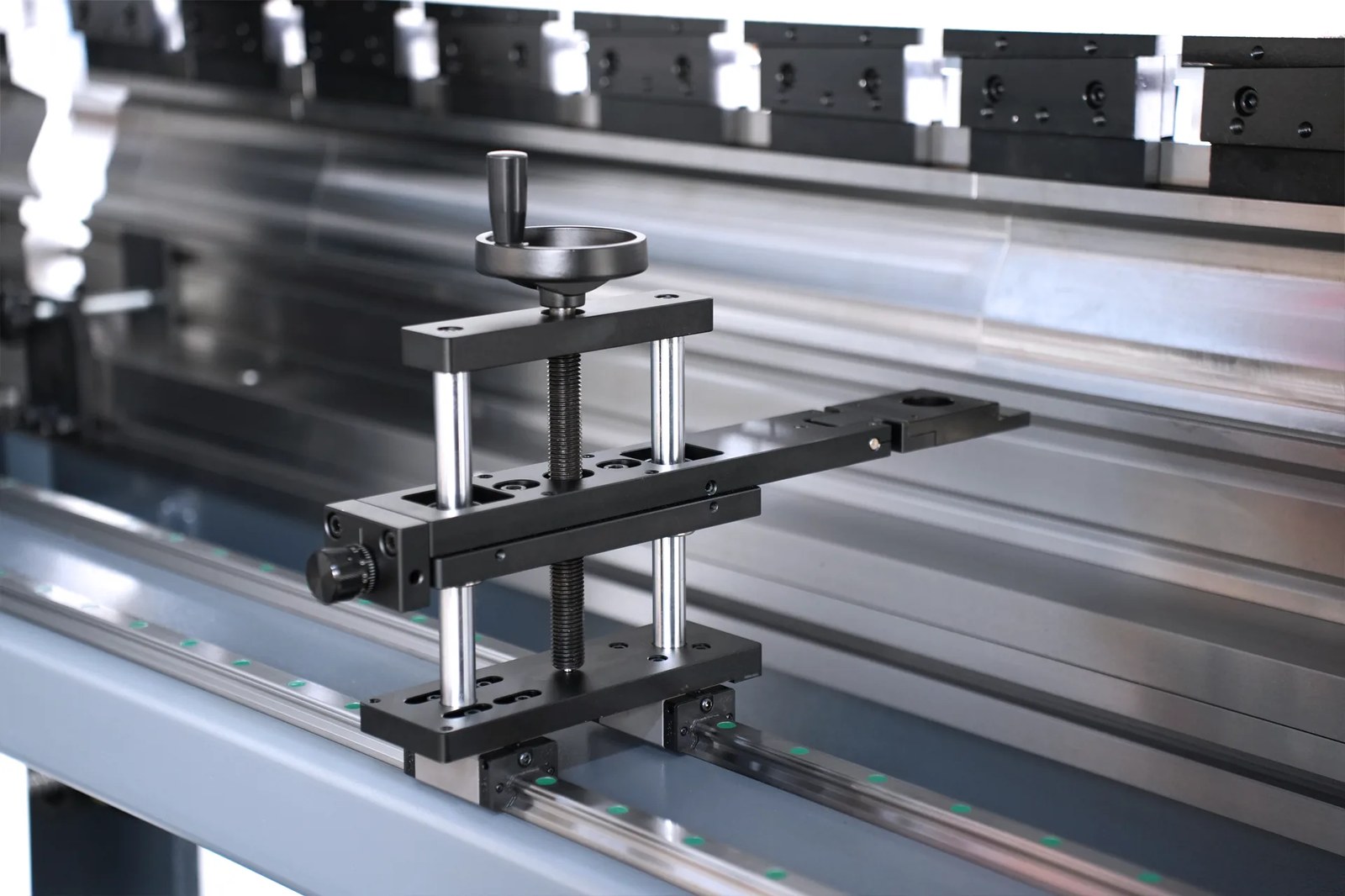

Liftable Rear Backgauge with X-Axis

• Hiwin Ball screws and linear guide on X-axis
• Axis X speed 500 mm/s
• Manual Z1, Z2-axis with HIWIN linear guide
• Mechanical accuracy ± 0.01 mm
• Fingers with double stop and micrometric adjustment

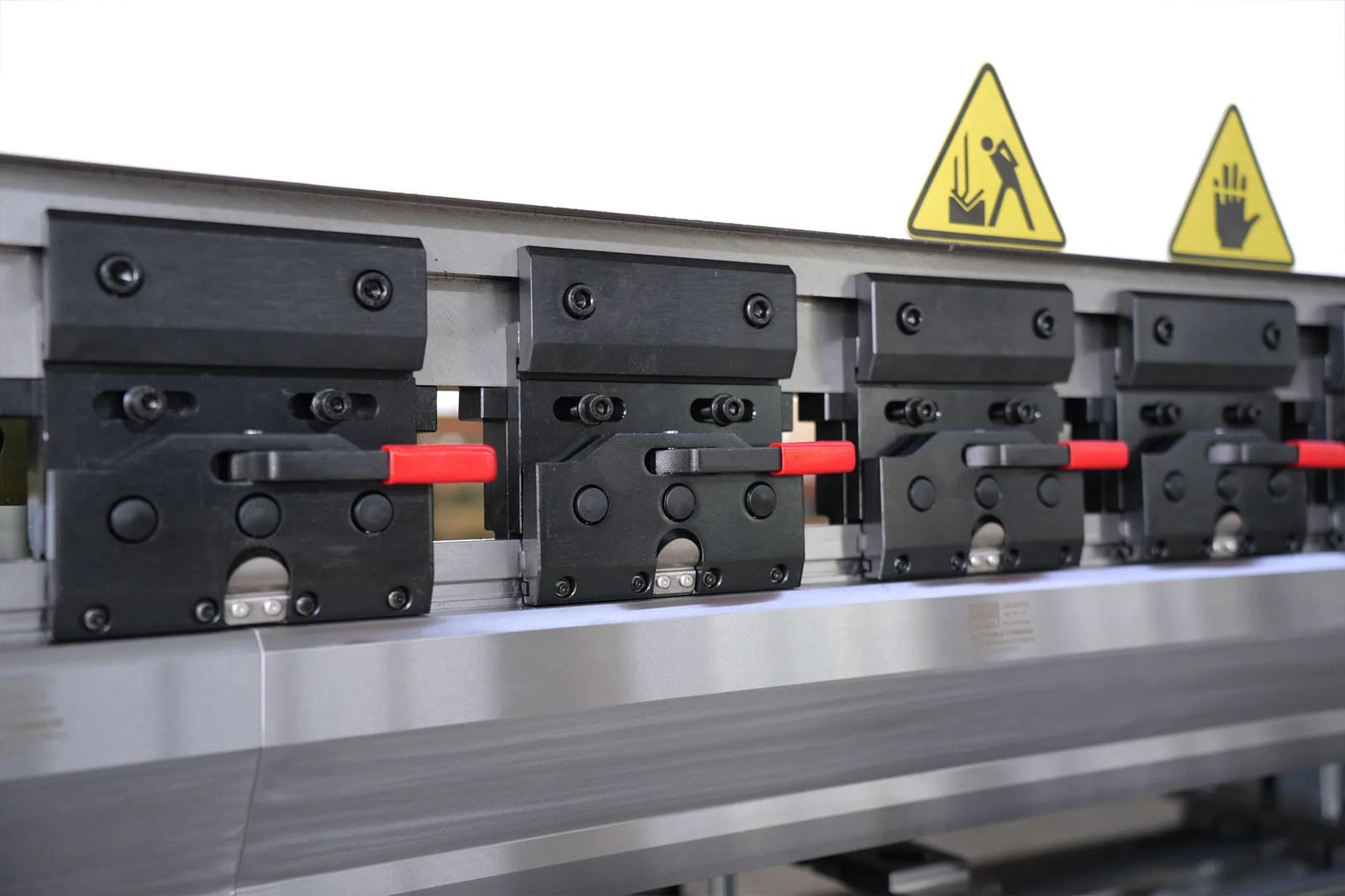

Manual Upper Tool Clamping

The Tandem CNC Press Brake uses raw material provided by qualified suppliers, and the chemical composition corresponds to international standards. Therefore, the raw material yield and tensile strength are guaranteed. The materials are standardized with an 8.4 x 3.5 mm safety groove, which prevents the tool from falling out.

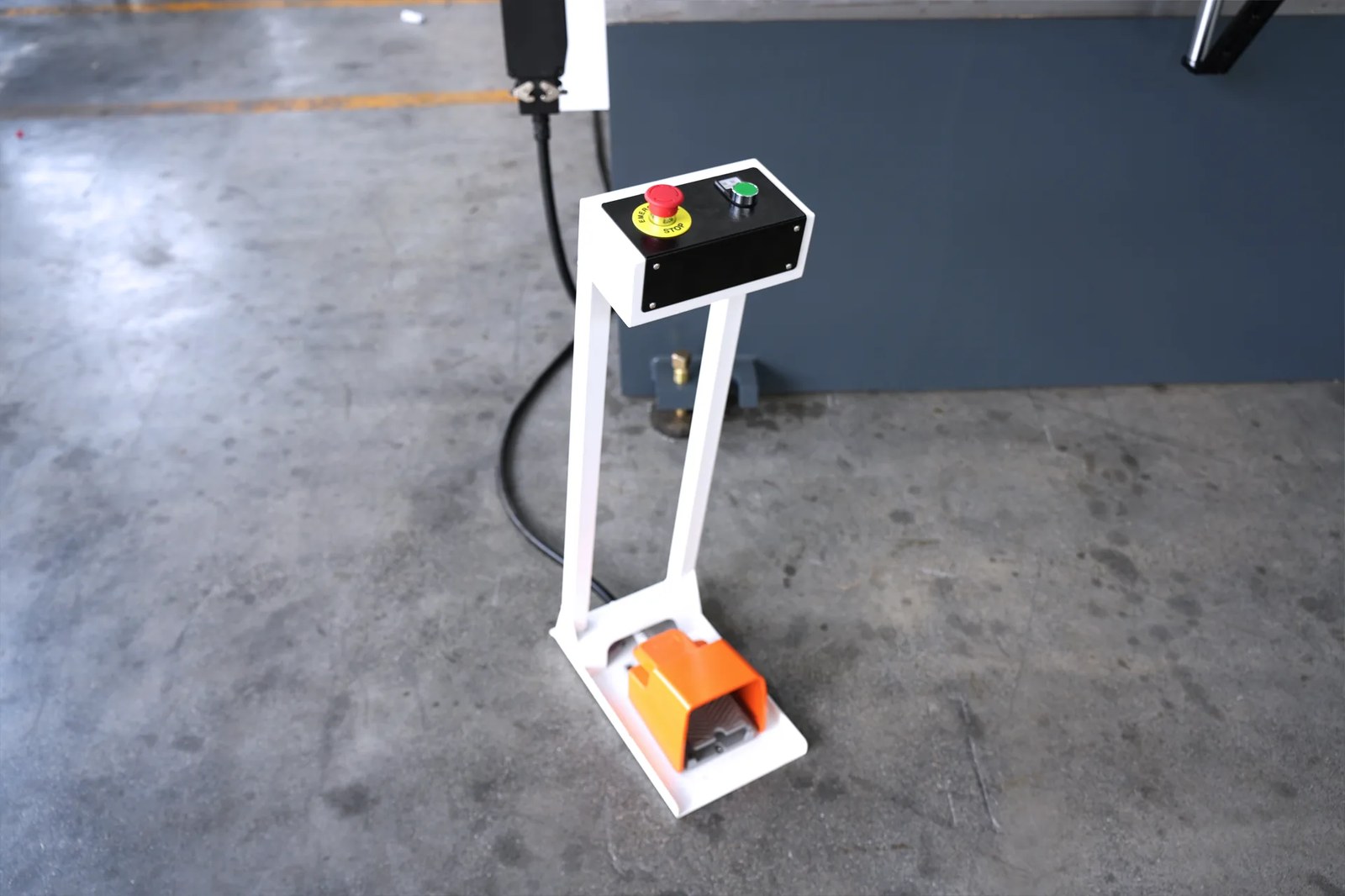

South Korea KACON Foot Switch

South Korea brand foot switch is movableand can stop the Tandem CNC Press Brake anytime by theemergency button.

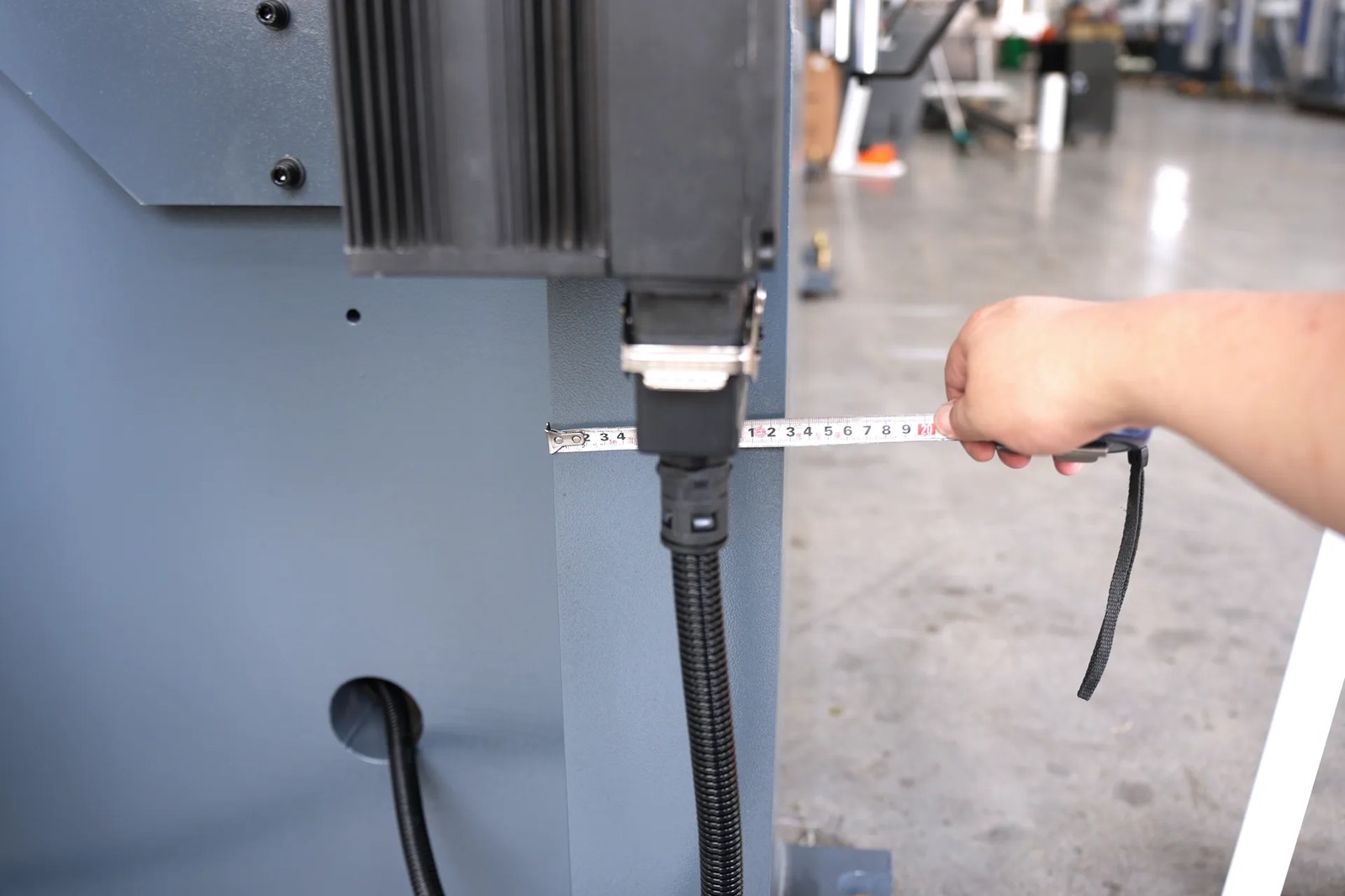

Thickness of workbench (125mm)

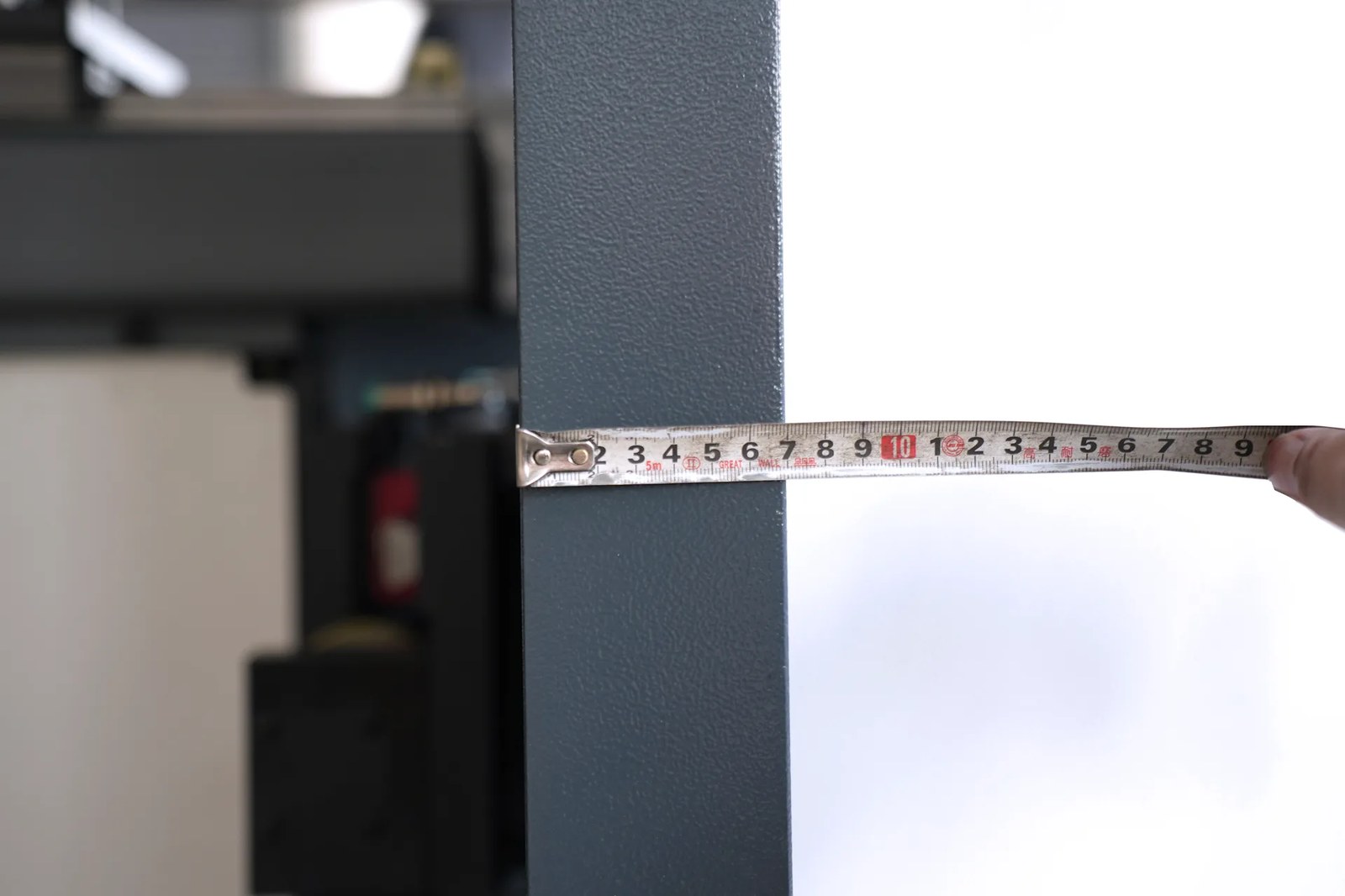

Thickness of side panel (70mm)

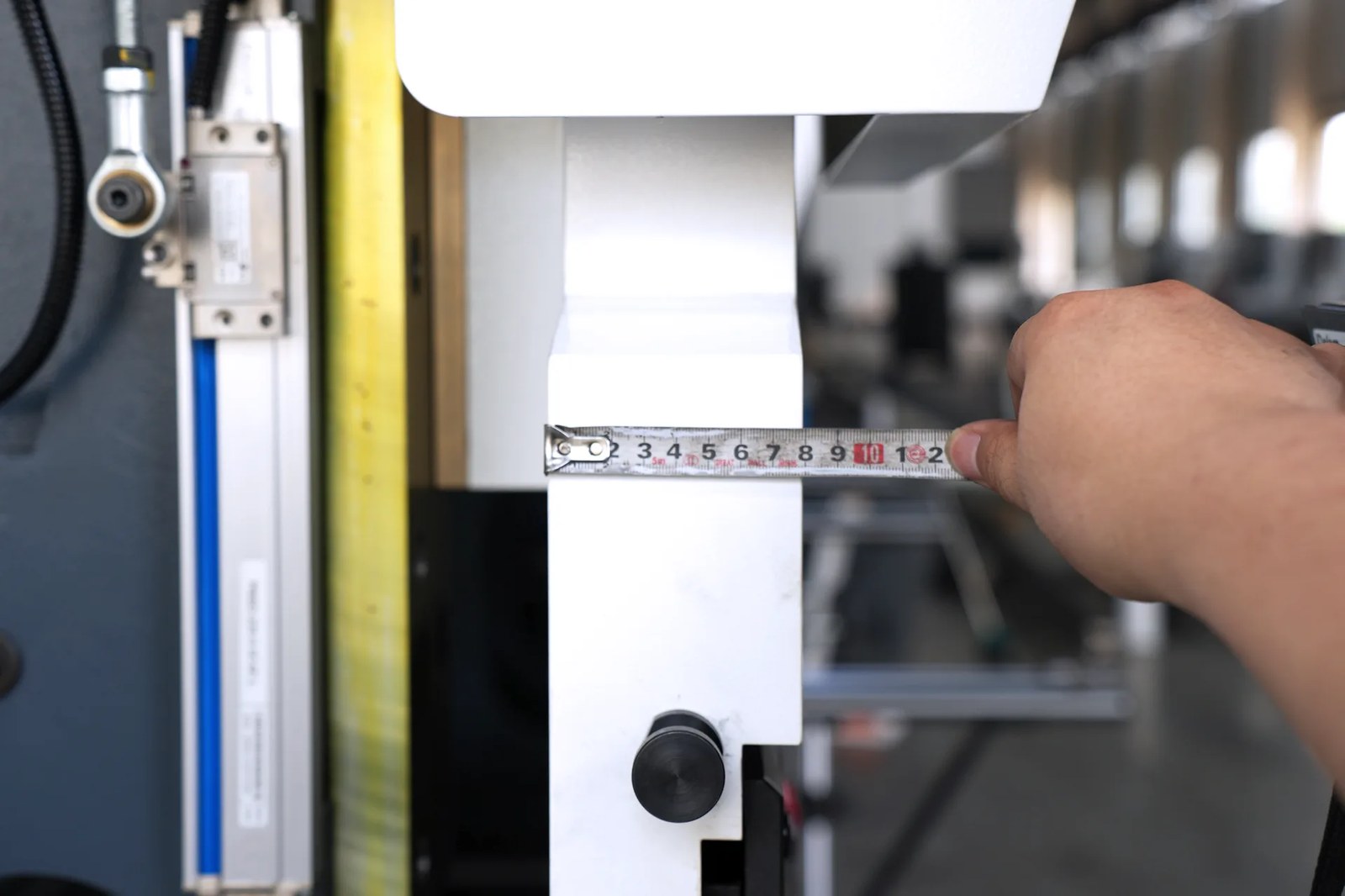

Thickness of slider (80mm)

Tooling (Optional)

Standard tooling

Non-Standard tooling

Gooseneck tooling

Double-V Concentric Mold

Four-V Concentric Mold

Multi-V Mold
