Press Brake Bending Machine MB8-210T6000 3+1 Axis With DELEM DA53T controller

Technologyies

Bending Pressure:	2100KN
Bending Length:	6000mm
CNC Control Axes:	Y1+Y2+X+W Crowning
Main Motor:	15KW
Operating Voltage:	380V 50Hz
CNC System:	DA-53T
Length* Width* Height:	6820mm * 1850mm * 3350mm

Configurations

Main Feature

Due to its user-friendly control unit, robust body frame, flawless design, high efficiency, varied tool use possibilities, outstanding CE safety requirements, and reasonable price range, the 210-ton press brake bending machine for sale with DA-53T controller is the best-in-class globally. It is ideal for bend-sensitive, energy-efficient solutions.

• Simple and solid Hydraulic Press Brake
• Work area can be customized and all types of tool clamping can be installed
• Tailored-made Hydraulic Press Brake

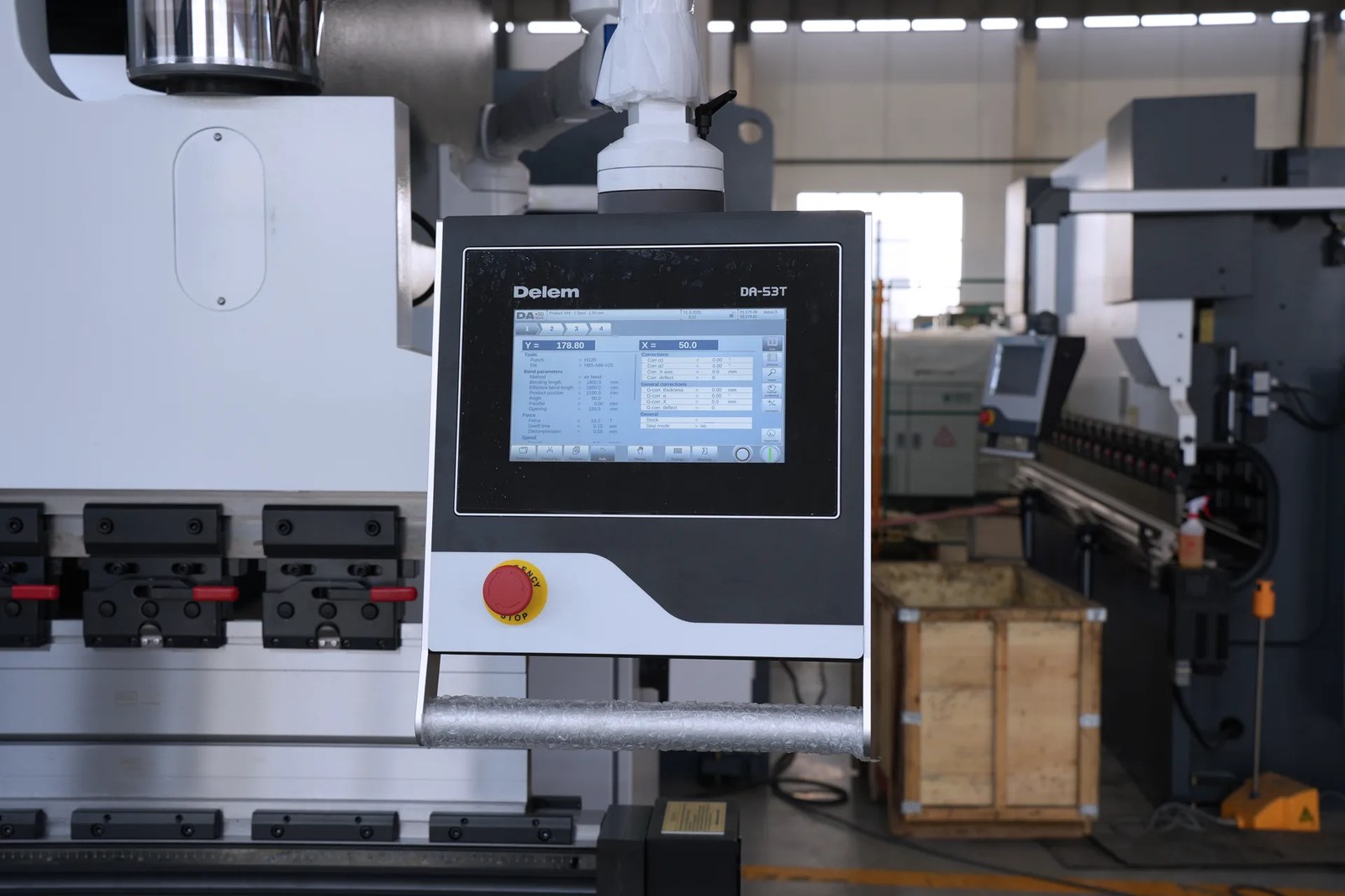

DELEM DA-53T Control​

• 10.1″ high resolution colour TFT
• “Hot-key” touch navigation
• Up to 4 axes (Y1,Y2 + 2 aux. axes)
• Tool / material / product library
• Advanced Y-axis control algorithms for closed-loop as well as open-loop valves.
• CNC Crowning control
• USB memory stick interfacing
• Profile-53TL offline software

Electric Crowning System

• Very precise bending angles
• Europe type dies with 60 mm and 90 mm
• Base can be clamped as well as single dies with 13 mm tang
• Electric crowning with a controller
• Precise positioning and alignment of the crowning table
• Easy and fast usage

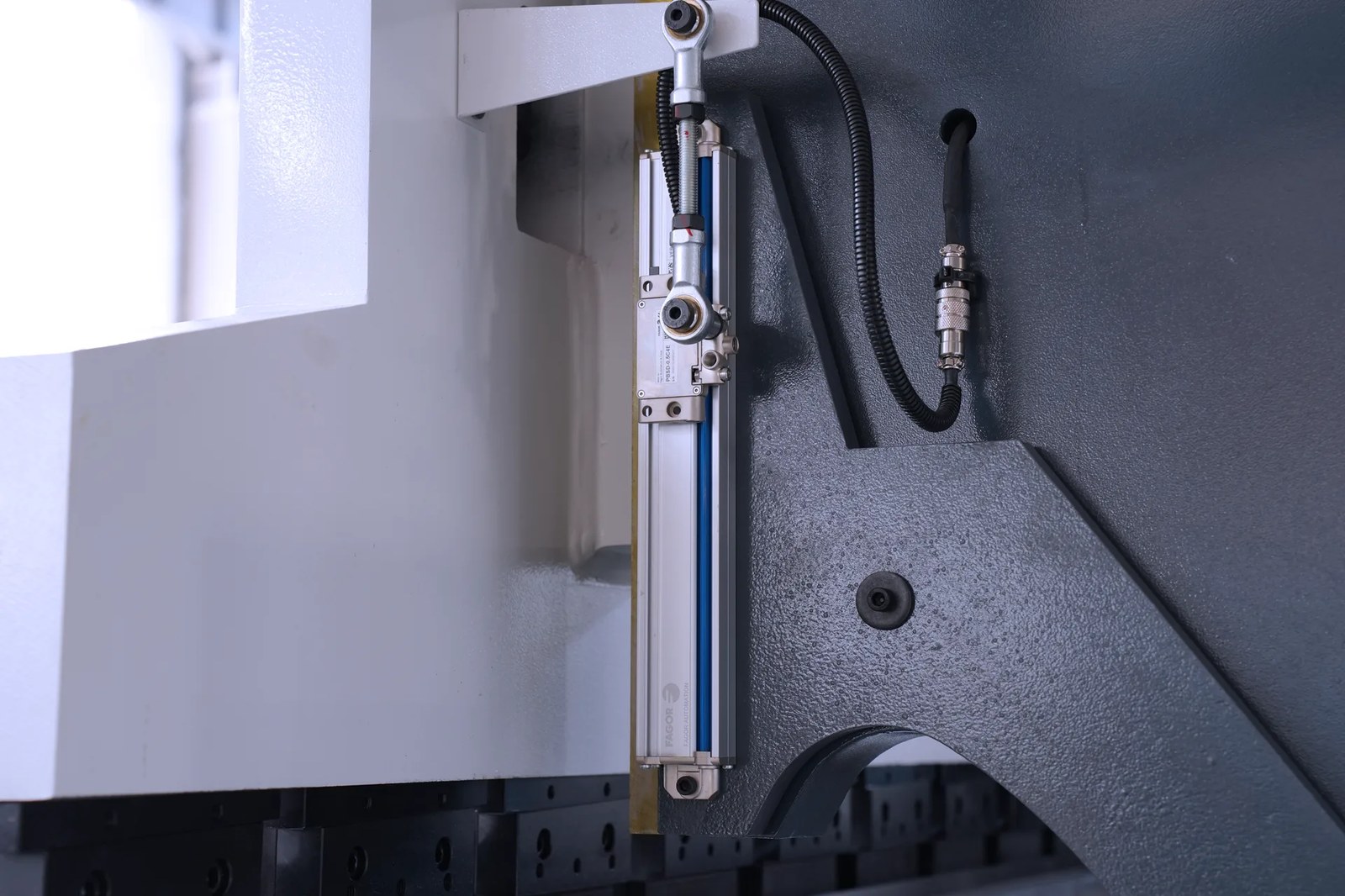

Fagor Grating Ruler

Spain FAGOR provides the controller with feedback on the slider position signal. Using a grating ruler, the CNC controller then modifies the synchronous valve opening size to modify the fuel tank capacity.

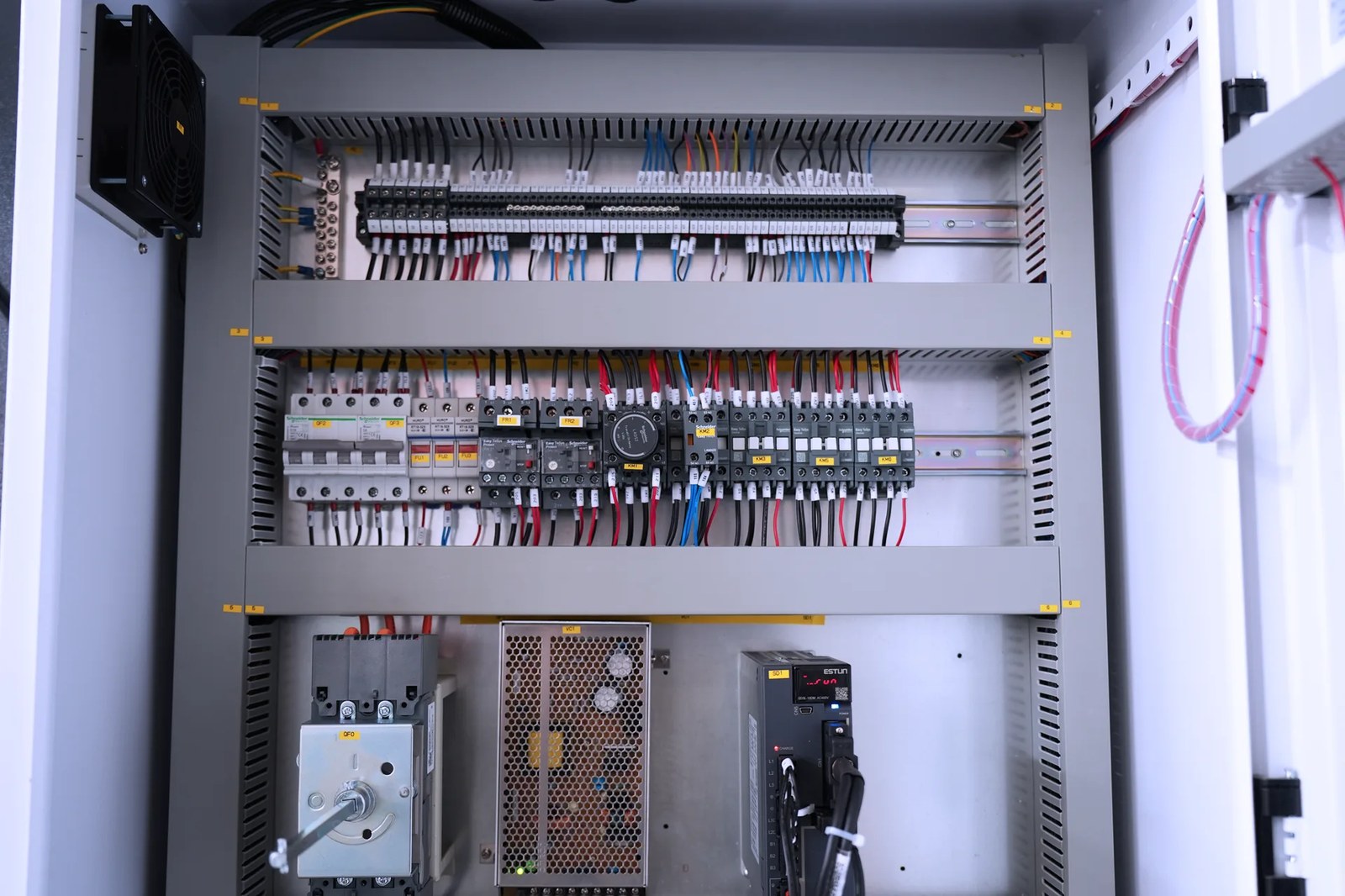

Schneider Electric

Even under unstable electrical conditions, high-quality electric parts can function well, and consumers may readily obtain replacements anywhere in the world.

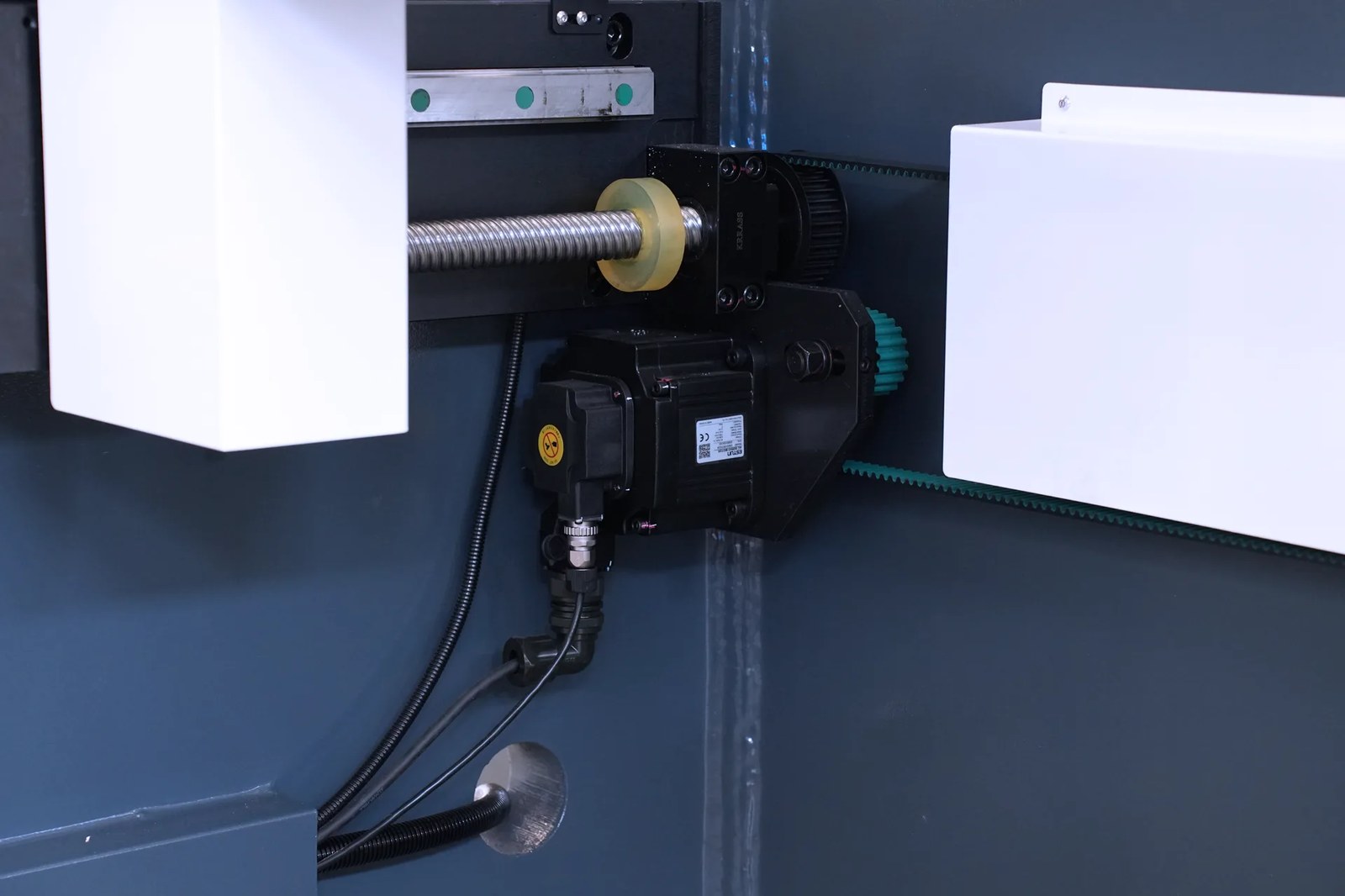

X-axis Servo Motor

In addition, the advantages of servo motors include:

• High reliability: Highly reliable
• High ratio of torque to inertia: Can provide as much as 50% more torque in many applications
• High precision: Can precisely actuate, hold, and speed up positions, torque, and speeds in fractions of seconds

German Siemens Main Motor

The well-known German brand motor prolongs the CNC press brake machine’s service life and maintains a quiet operating environment.

Rexroth Proportional Valve

To guarantee that the CNC press brake machine tool operates with great stability and precision at high speeds, the German Rexroth completely closed-loop electro-hydraulic servo high-frequency synchronous control system is used.

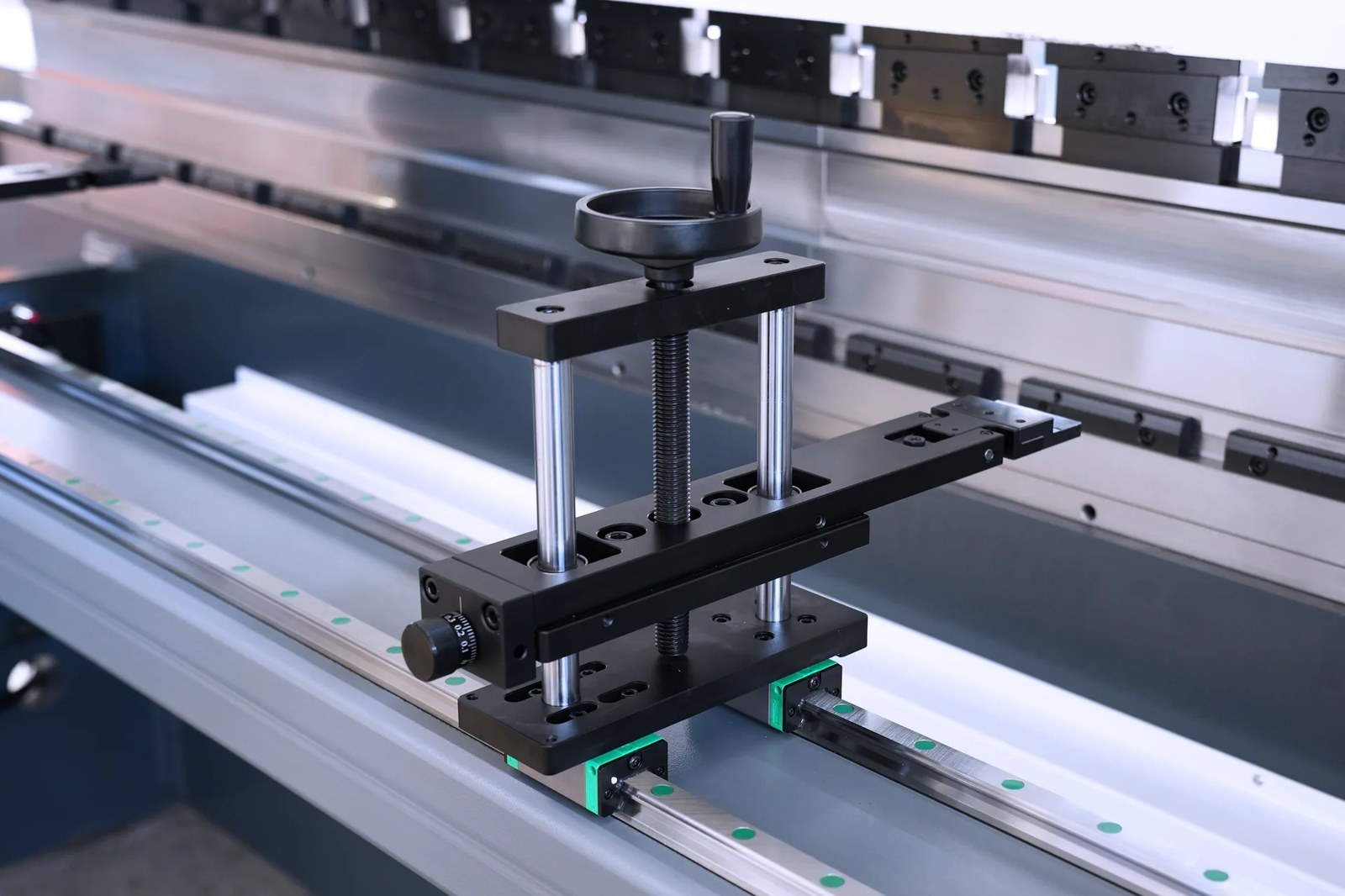

Liftable Backgauge

With a high-precision backgauge, clients may enter the product’s dimensions into the machine and have it positioned precisely with an accuracy of 0.01mm.

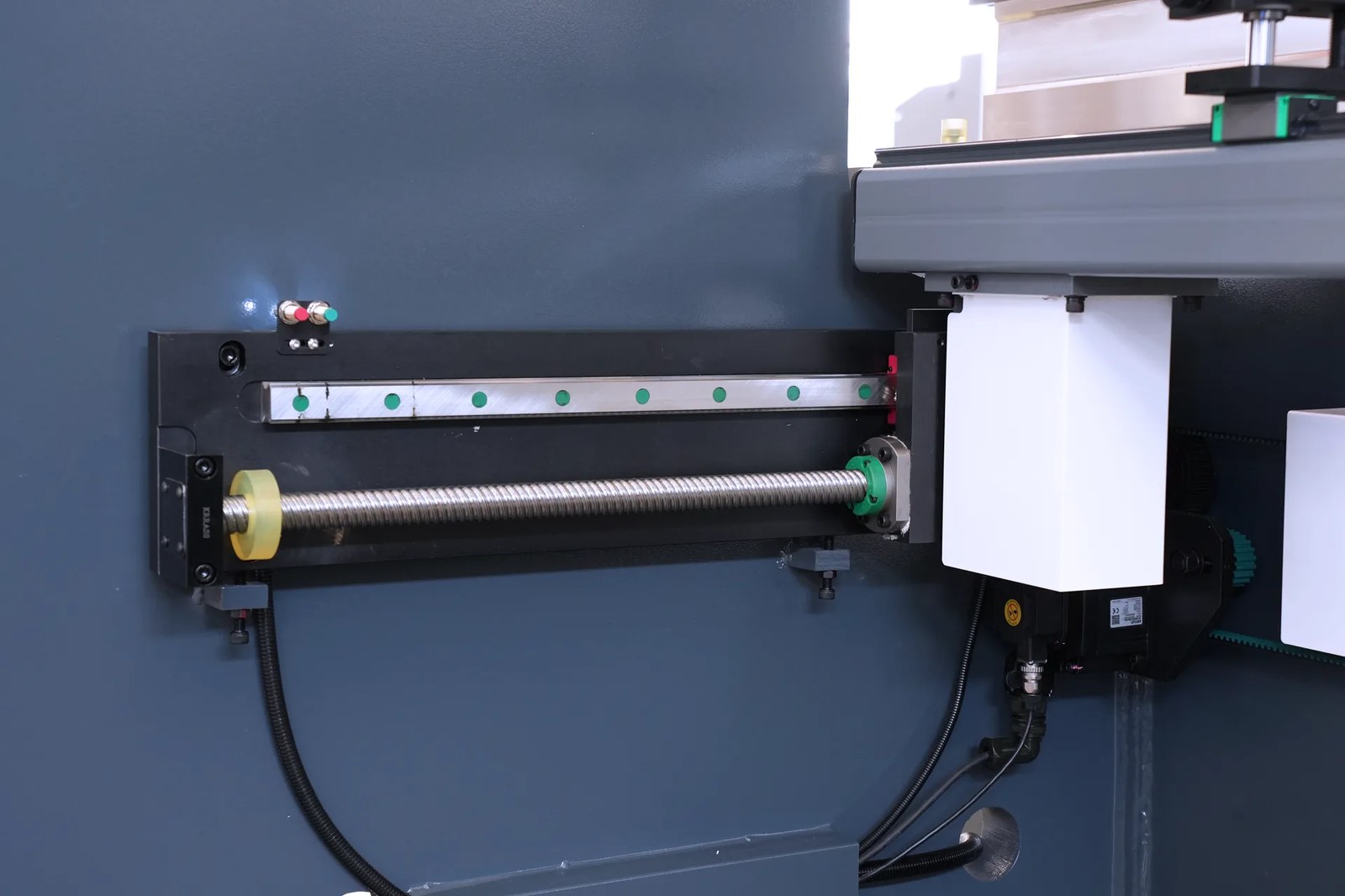

X-axis Guide Rail and Lead Screw

• Hiwin Ball screws and linear guide on X, R-axis
• Axis X speed 500 mm/s
• The backgauge can be manually adjusted for R-axis height
• Mechanical accuracy ± 0.01 mm
• Fingers with double stop and micrometric adjustment

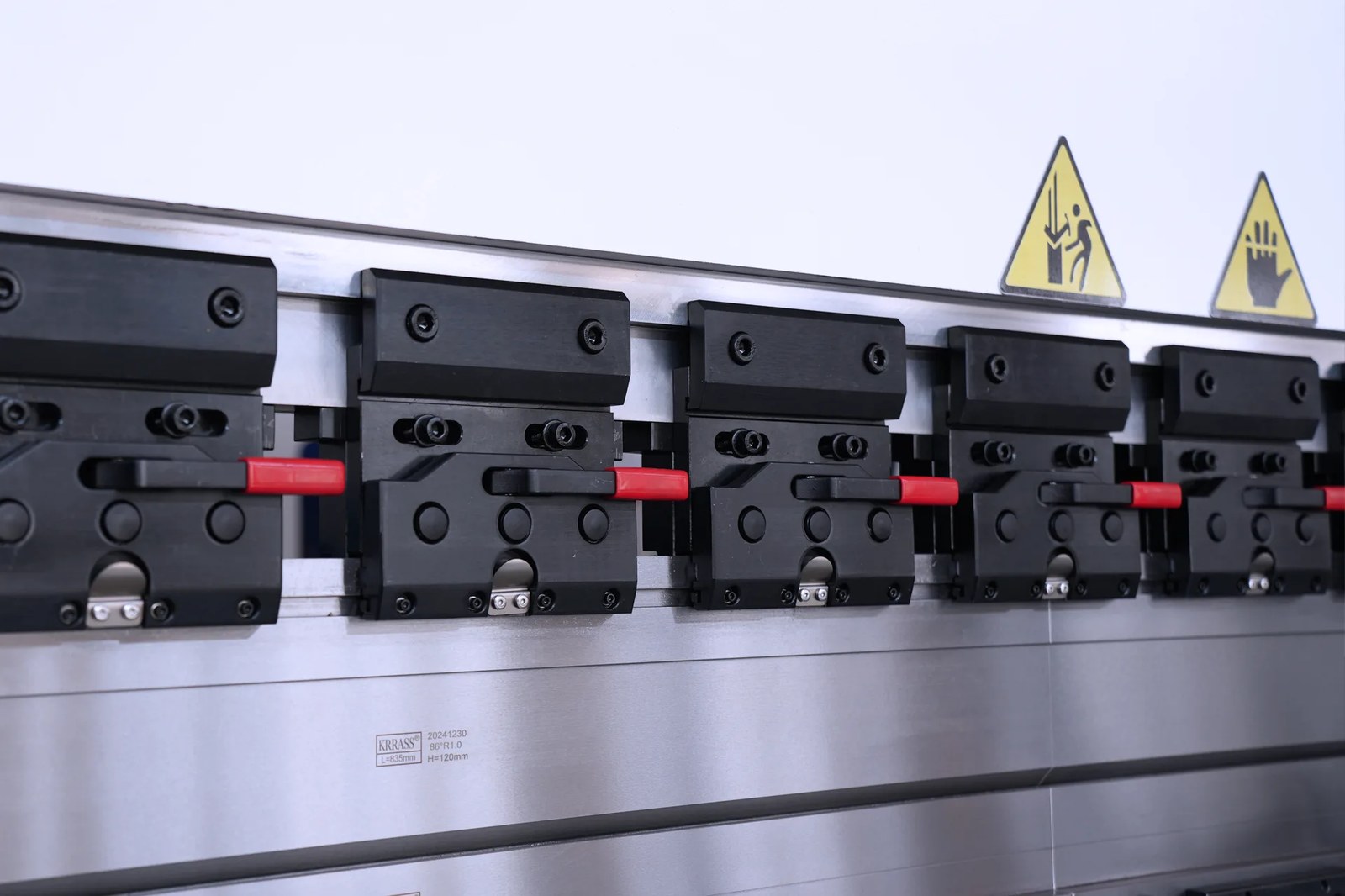

High-precision Quick Mold Change Device

The upper mold may be trimmed to the customer’s specifications and is separated into several gold sizes.

A Single-V concentric mold is used in the bottom mold, which can accommodate customers’ bending of materials of varying thicknesses. Additionally, the mold may be altered to meet the needs of the client. to satisfy clients’ highest demands.

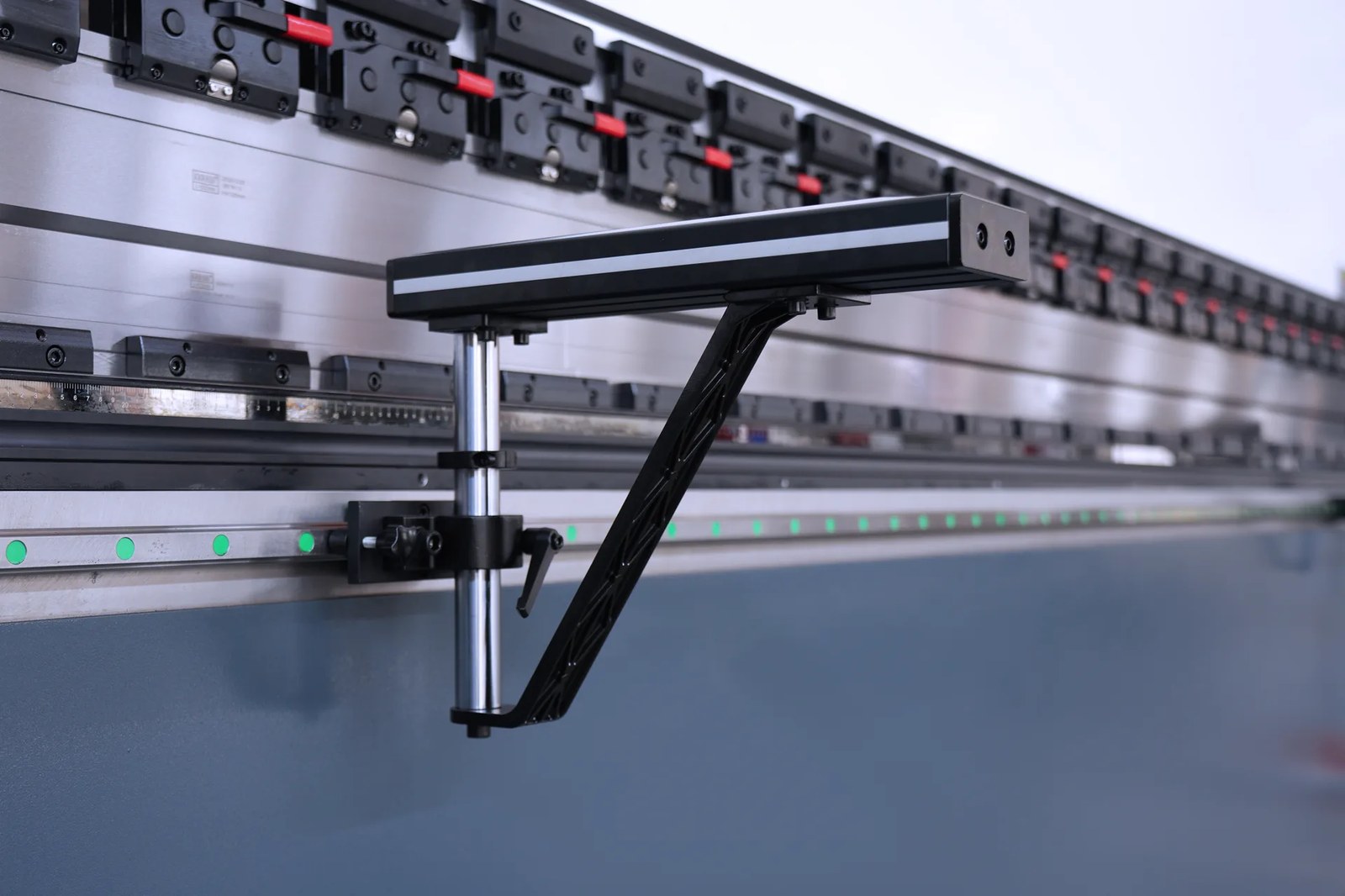

Front Material Support

It is possible to rotate and raise and lower the front support. It may be quite helpful and lighten your load when you wish to bend larger metal sheets.

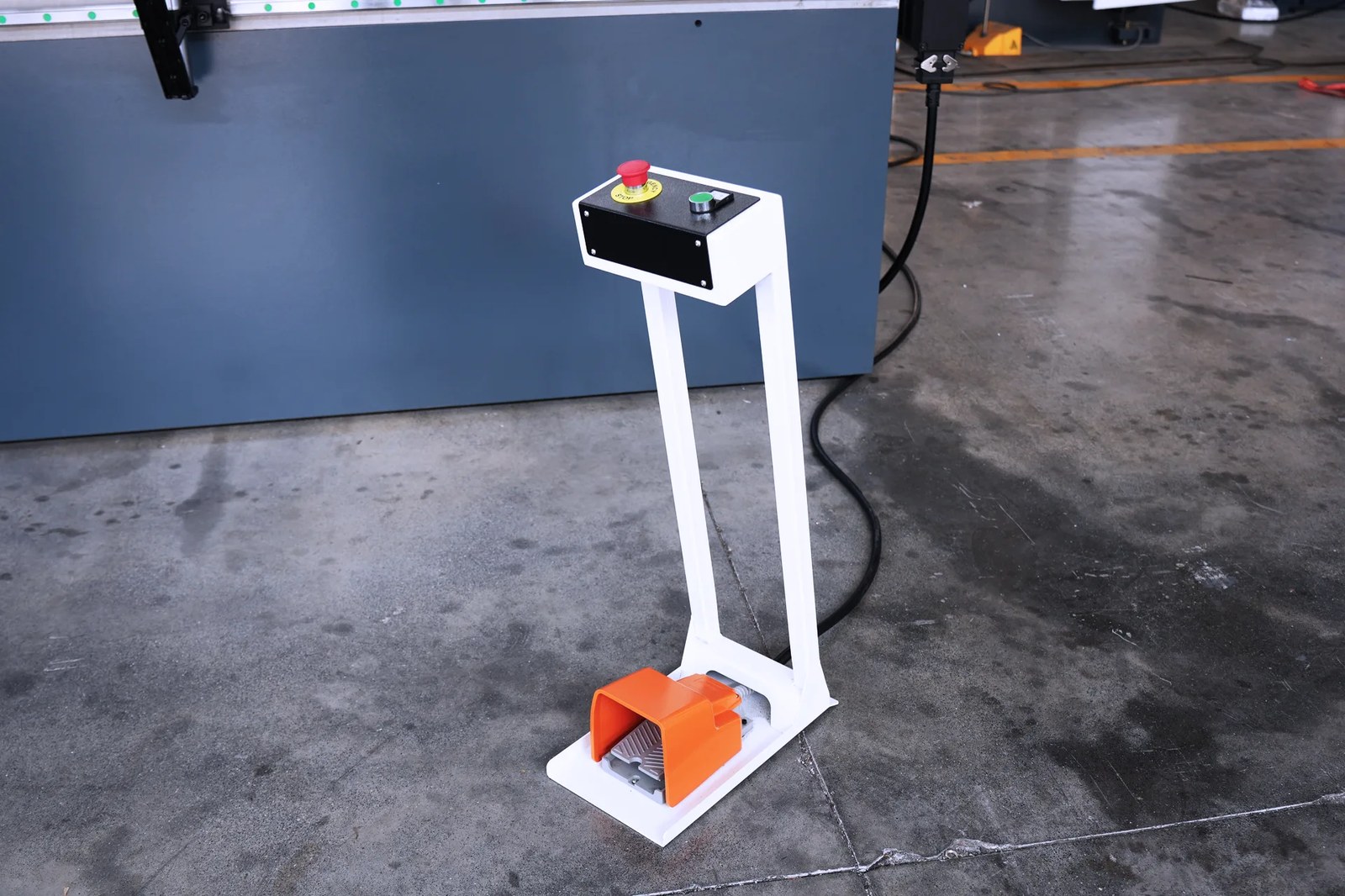

South Korea KACON Foot Switch

South Korea brand foot switch ismovableand can stop the machineanytime by theemergency button.

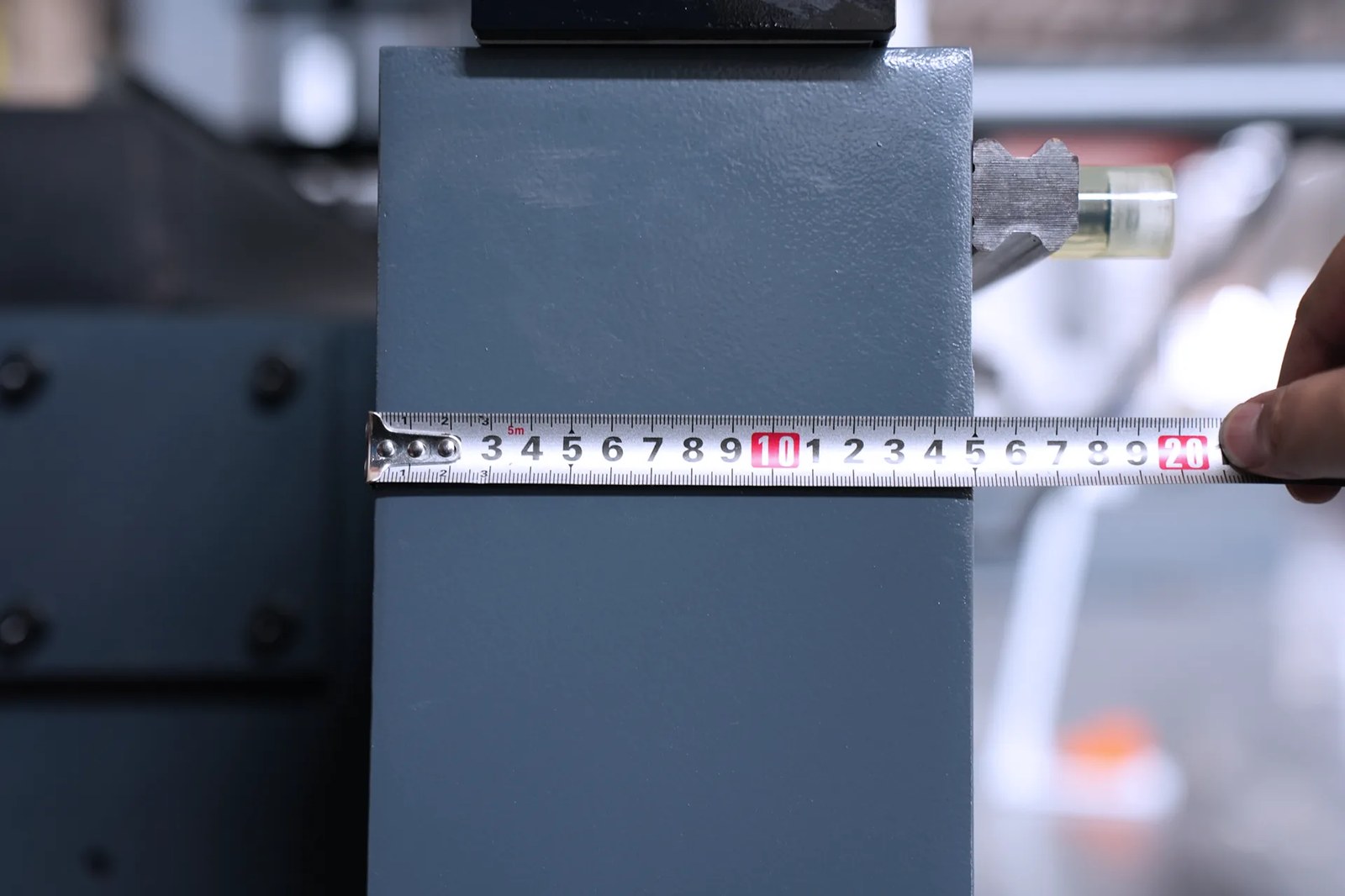

Thickness of workbench (150mm)

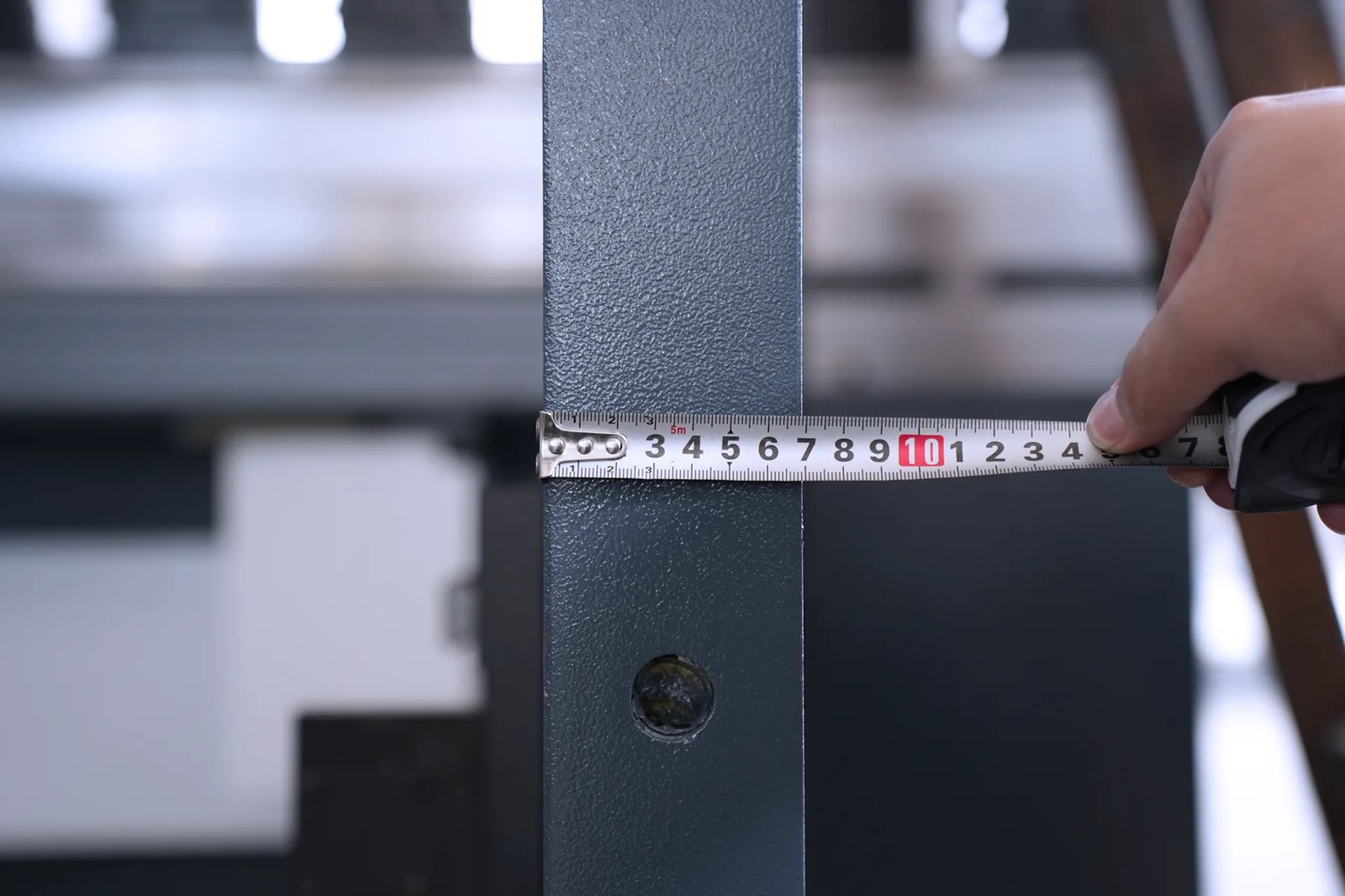

Thickness of side panel (70mm)

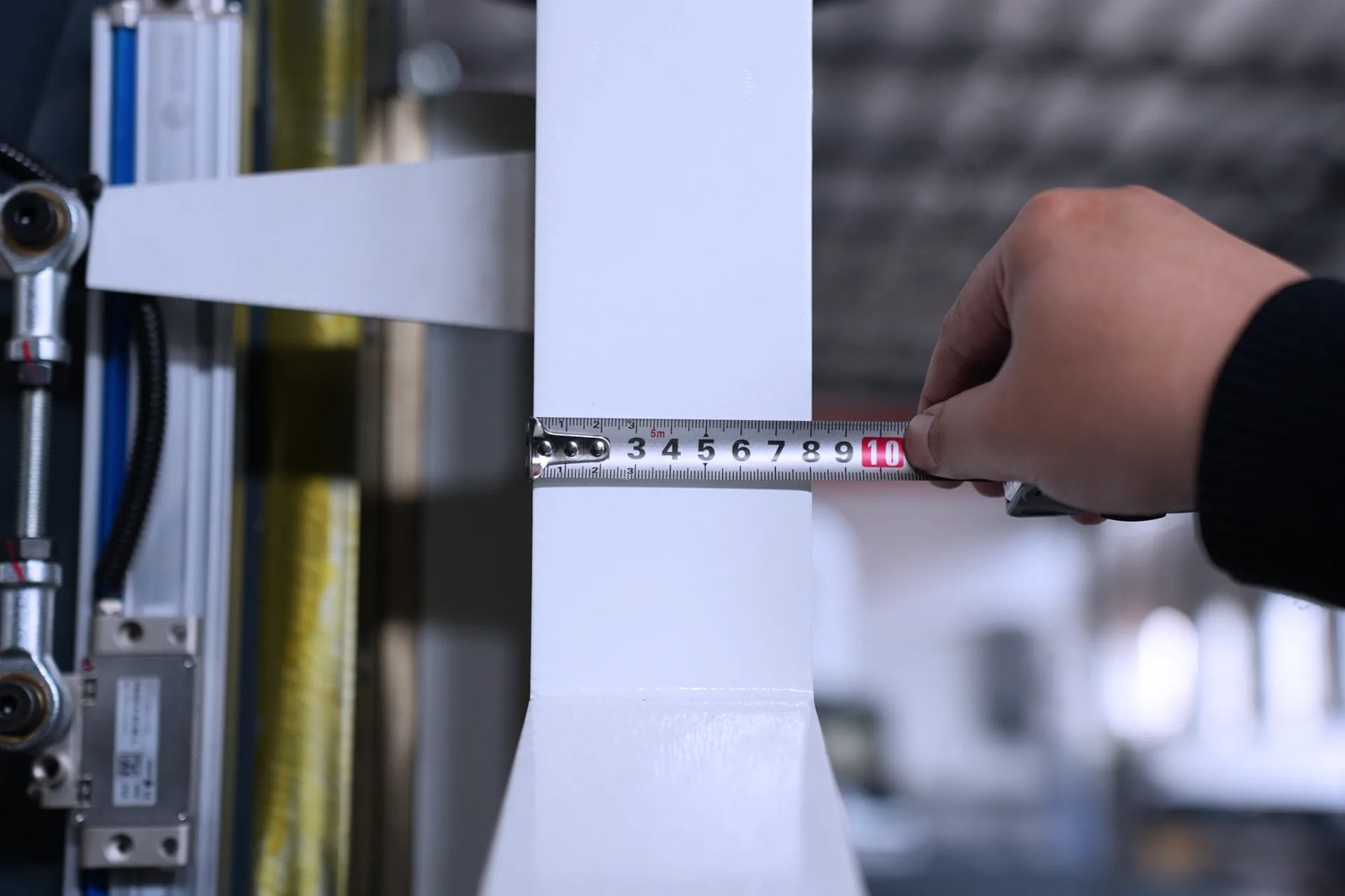

Thickness of slider (80mm)

Tooling (Optional)

Standard tooling

Non-Standard tooling

Gooseneck tooling

Double-V Concentric Mold

Four-V Concentric Mold

Multi-V Mold
