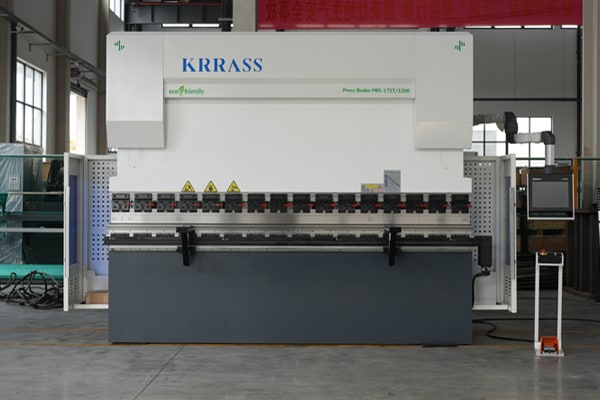

2025 New Hybrid CNC Press Brake, 175Ton Sheet Metal Press Brake, DELEM DA58T 2D Controller

Technologyies

Bending Pressure:	1750KN
Bending Length:	3200mm
CNC Control Axes:	Y1+Y2+X+R+W Crowning
Main Motor:	13.2KW
Operating Voltage:	380V 50Hz
CNC System:	DA-58T
Length* Width* Height:	4050mm * 1800mm * 2730mm

Configurations

Main Feature

The 175Ton Sheet Metal Press Brake with DA-58T Controller with its easy-to-use control unit, rigid body frame, flawless design, high efficiency, multiple tool usage solutions, top CE safety standards, and a suitable price range make it the best-in-class world leader. It is ideal for bend-sensitive, energy-efficient solutions.

• Simple and solid Hydraulic Press Brake
• Work area can be customized and all types of tool clamping can be installed
• Tailored-made Hydraulic Press Brake

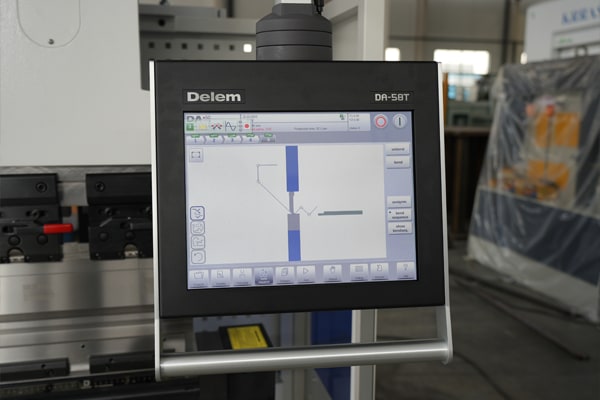

DELEM DA-58T Control

• 15″ high resolution colour TFT
• 2D graphical touch screen programming
• Up to 4 axes (Y1, Y2 + 2 aux. axes)
• Bend sequence calculation
• Advanced Y-axis control algorithms for closed-loop as well as open-loop valves.
• CNC Crowning control
• USB memory stick interfacing
• Profile-58TL offline software

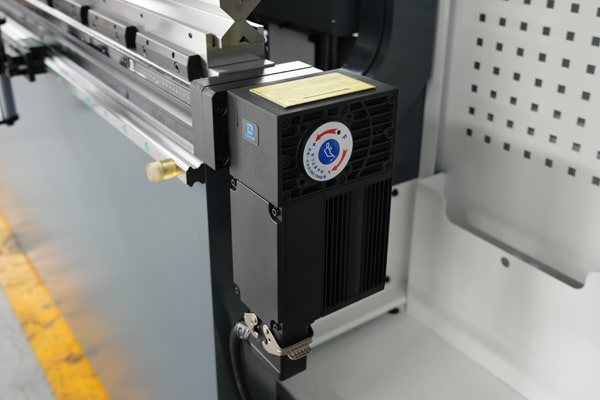

Electric Crowning System

• Very precise bending angles
• Europe type dies with 60 mm and 90 mm
• Base can be clamped as well as single dies with 13 mm tang
• Electric crowning with a controller
• Precise positioning and alignment of the crowning table
• Easy and fast usage

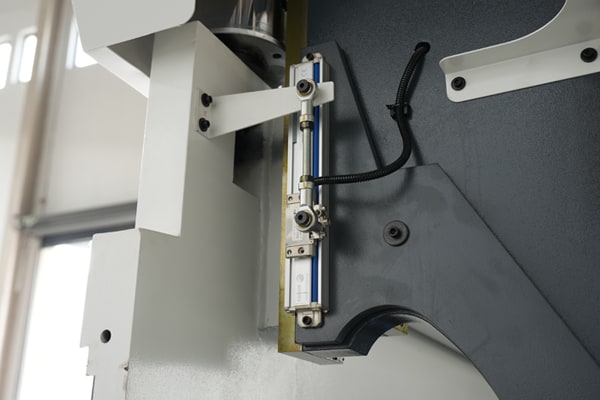

Fagor Grating Ruler

Slider position signal is feedbacked to controller by Spain FAGOR Grating ruler , then the CNC controller adjusts the amount of fuel tank by changing the synchronous valve opening size.

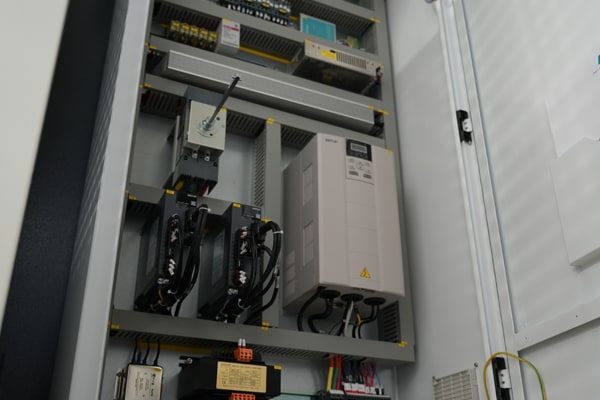

Schneider Electric

High quality electric parts can perform well even the electricity is not stable and customers can easily get the replacement anywhere in the word.

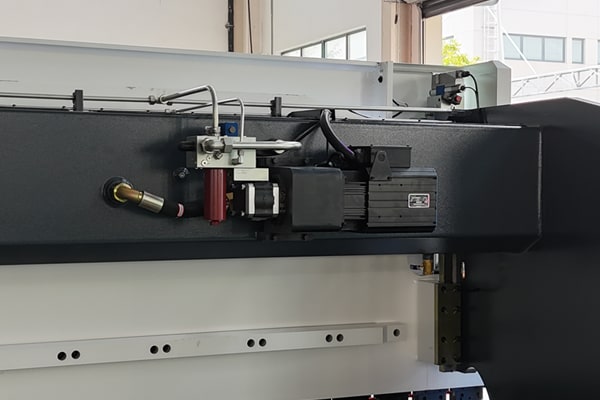

Hybrid ECO System

The Hybrid ECO system is an innovative servo drive for the 175Ton Sheet Metal Press Brake, and thanks to thebrushless motor, we can precisely control the movement of the ram using aminimum amount of oil and energy.

American FIRST oil pump, low noise, long life.

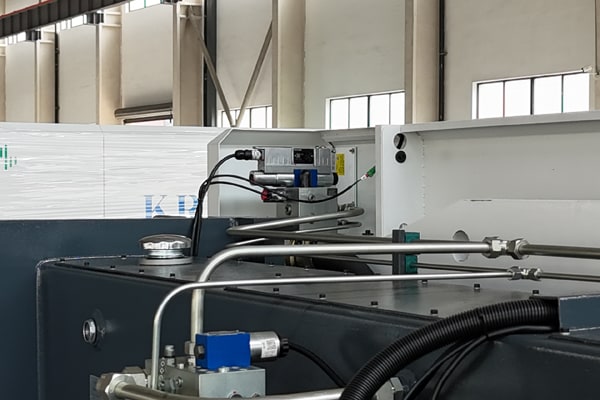

Rexroth Proportional Valve

The German Rexroth fully closed-loop electro-hydraulic servo high-frequency synchronous control system is adopted to ensure that the Hybrid CNC Press Brake tool has high stability and high precision in the process of high-speed operation.

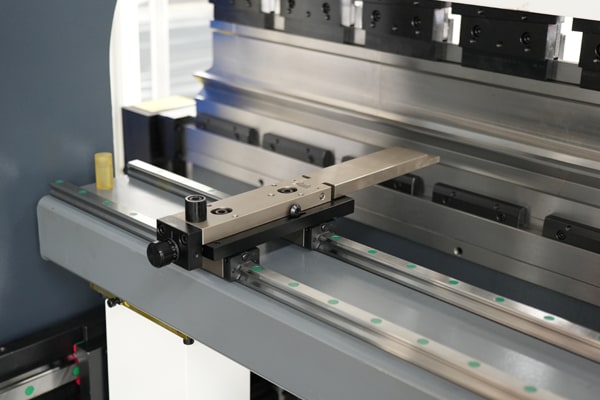

Sheet Metal Press Brake 2-Axis CNC BackGauge with X, R-Axis

• Hiwin Ball screws and linear guide on X, R-axis
• Axis X speed 500 mm/s
• Manual Z1, Z2-axis with HIWIN linear guide
• Mechanical accuracy ± 0.01 mm
• Fingers with double stop and micrometric adjustment

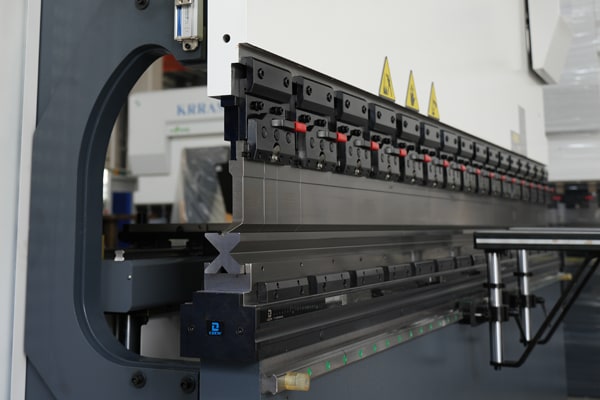

High-precision Quick Mold Change Device

The upper mold is divided into different gold sizes and can also be cut according to customer requirements.

The lower mold adopts a Single-V concentric mold, which can adapt to customers’ bending of materials with different thicknesses. The mold can also be modified according to customer requirements. To meet the best needs of customers.

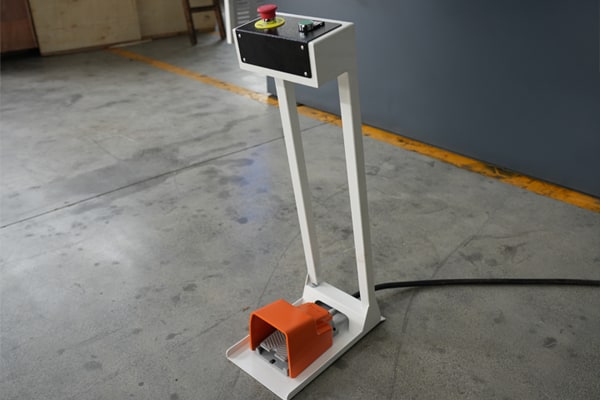

South Korea KACON Foot Switch

South Korea brand foot switch is movableand can stop the 175Ton Sheet Metal Press Brake anytime by theemergency button.

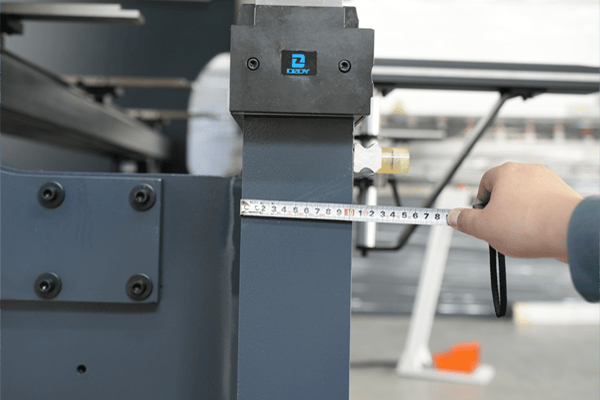

Thickness of workbench (100mm)

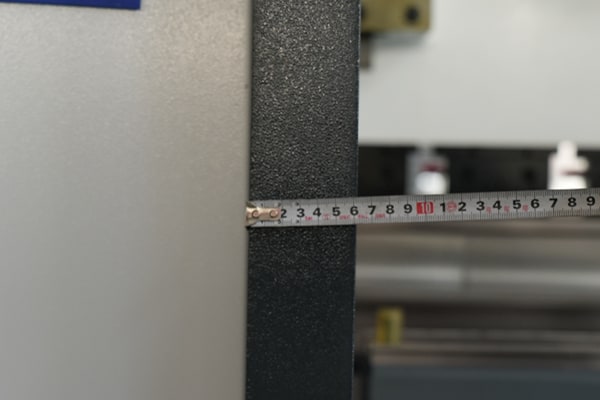

Thickness of side panel (60mm)

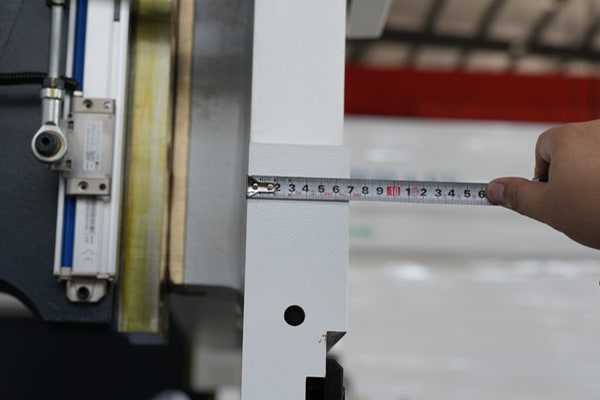

Thickness of slider (70mm)

Tooling (Optional)

Standard tooling

Non-Standard tooling

Gooseneck tooling

Double-V Concentric Mold

Four-V Concentric Mold

Multi-V Mold
