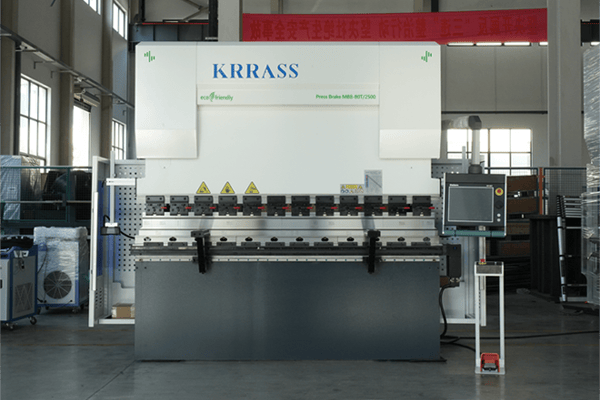

MB8-80T2500 DELEM DA66T 6+1 Axis CNC Press Brake, Sheet Metal Bending Machine

Technologyies

Bending Pressure:	800KN
Bending Length:	2500mm
CNC Control Axes:	Y1+Y2+X+R+Z1+Z2+W Crowning
Main Motor:	7.5KW
Operating Voltage:	380V 50Hz
CNC System:	DA-66T
Length* Width* Height:	3220mm * 1780mm * 2650mm

Configurations

Main Feature

The 80Ton CNC Press Brake with DA-66T 3D Controller with its easy-to-use control unit, rigid body frame, flawless design, high efficiency, multiple tool usage solutions, top CE safety standards, and a suitable price range make it the best-in-class world leader. It is ideal for bend-sensitive, energy-efficient solutions.

• Simple and solid Sheet Metal Bending Machine
• Work area can be customized and all types of tool clamping can be installed
• Tailored-made Sheet Metal Bending Machine

DELEM DA-66T Control

• 2D graphical touch screen programming mode
• 17″ high resolution colour TFT
• 3D graphics acceleration
• Colour LCD display
• 1280 x 1024 pixels, 16 bit colour
• Full touch screen control (IR-touch)
• Sensor bending & correction interface Profile-TL offline software
• Full Windows application suite

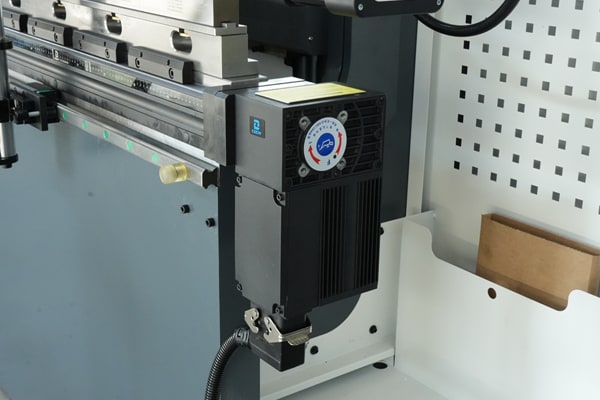

Electric Crowning System

• Very precise bending angles
• Europe type dies with 60 mm and 90 mm
• Base can be clamped as well as single dies with 13 mm tang
• Electric crowning with a controller
• Precise positioning and alignment of the crowning table
• Easy and fast usage

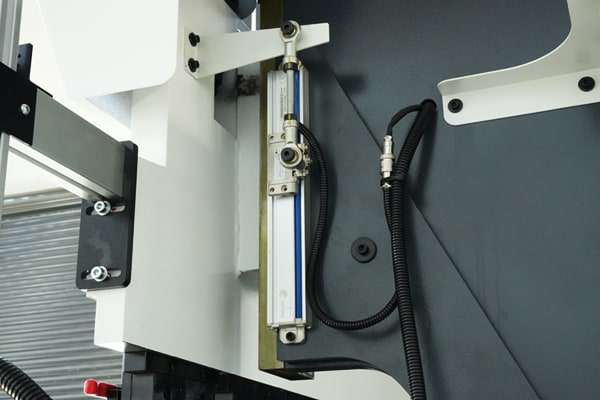

Fagor Grating Ruler

Slider position signal is feedbacked to controller by Spain FAGOR Grating ruler , then the CNC controller adjusts the amount of fuel tank by changing the synchronous valve opening size.

Schneider Electric

High quality electric parts can perform well even the electricity is not stable and customers can easily get the replacement anywhere in the word.

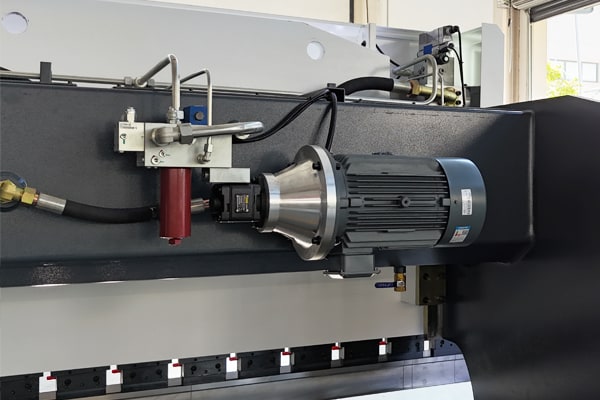

German Siemens Main Motor

The German famous brand motor increases the service life of the 80Ton CNC Press Brake and keeps the Sheet Metal Bending Machine working in a low-noise environment.

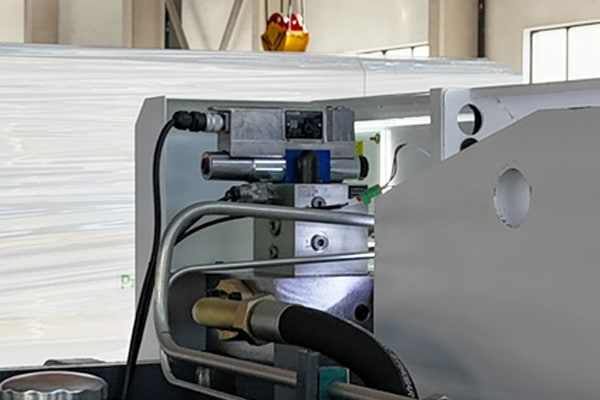

Rexroth Proportional Valve

The German Rexroth fully closed-loop electro-hydraulic servo high-frequency synchronous control system is adopted to ensure that the machine tool has high stability and high precision in the process of high-speed operation.

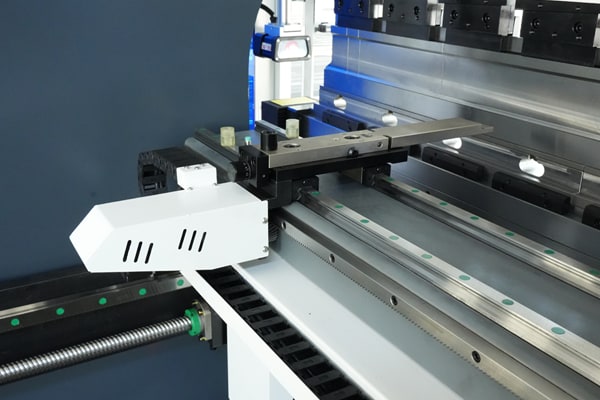

Sheet Metal Press Brake 4-Axis CNC BackGauge with X, R, Z1, Z2-Axis

• Hiwin Ball screws and linear guide on X, R-axis
• Axis X speed 500 mm/s
• Automatic Z1, Z2-axis with HIWIN linear guide
• Mechanical accuracy ± 0.01 mm
• Fingers with double stop and micrometric adjustment

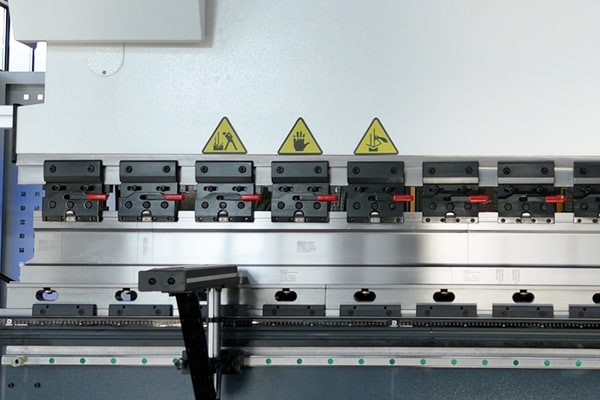

High-precision Quick Mold Change Device

The upper mold is divided into different gold sizes and can also be cut according to customer requirements.

The lower mold adopts a Single-V concentric mold, which can adapt to customers’ bending of materials with different thicknesses. The mold can also be modified according to customer requirements. To meet the best needs of customers.

MSD laser protection device (optional)

The MSD Laser Protection Device is a protective eyewear that shields the eyes from laser radiation. The device works by blocking the harmful laser radiation while still allowing for visibility. This makes it possible for people to work safely with the 80Ton CNC Press Brake in environments where laser radiation is present.

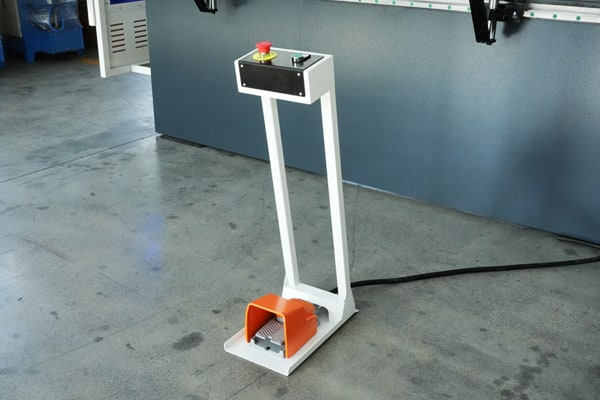

South Korea KACON Foot Switch

South Korea brand foot switch is movableand can stop the 80Ton CNC Press Brake anytime by theemergency button.

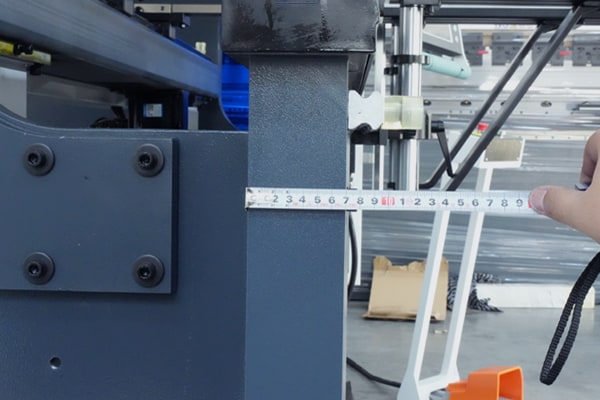

Thickness of workbench (70mm)

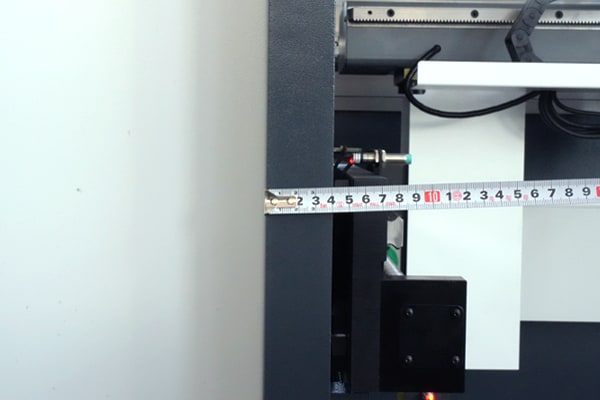

Thickness of side panel (40mm)

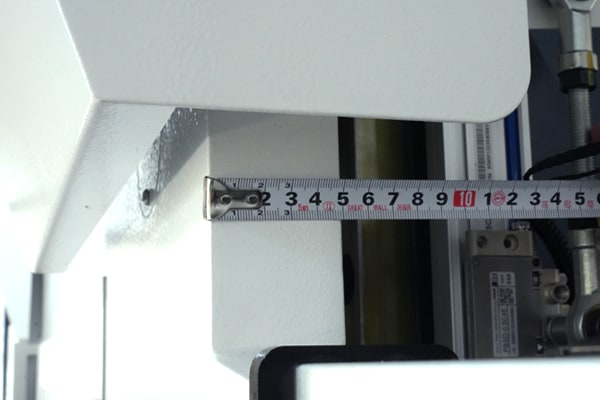

Thickness of slider (50mm)

Tooling (Optional)

Standard tooling

Non-Standard tooling

Gooseneck tooling

Double-V Concentric Mold

Four-V Concentric Mold

Multi-V Mold
