70Ton Pure Electric Press Brake for Sale, EPP-70T2500 DA69S 6+1 Pure Electric Press Brake

Technologyies

Bending Pressure:	700KN
Bending Length:	2500mm
CNC Control Axes:	Y1+Y2+X+R+Z1+Z2+W Crowning
Main Motor:	2 X 21KW
Operating Voltage:	380V 50Hz
CNC System:	DA-69S
Length* Width* Height:	2990mm * 1610mm * 2545mm

Configurations

Main Feature

The EPP Pure Electric Press Brake delivers outstanding performance. Featuring an easy-to-use control unit, rigid body frame, flawless design, and exceptional efficiency. With multiple tooling solutions, top CE safety standards, and a competitive price range, it stands as a best-in-class leader. It is the ideal choice for high-precision, eco-friendly, and energy-efficient bending solutions. Fast, clean, and solid Servo-Electric Press Brake. The work area can be fully customized, and all types of tool clamping can be installed. Tailor-made Pure Electric Press Brake.

DELEM DA-69S Control​

• 3D and 2D graphical touch screen programming mode
• Accurate 3D machine visualization in simulation and production
• 24″ widescreen high resolution colour TFT
• Embedded real-time Linux operating system
• Delem Modusys compatibility (module scalability and adaptivity)
• USB, peripheral interfacing, and Industry 4.0 connectivity
• User specific application support with integrated OEM-panel
• Sensor bending & correction interface
• Profile-S3D offline software

Electric Crowning System

Low worktable has an automatic crowning compensation uint; compensation amount is automatically set up by CNC system, with guarantee a same bending angel on full length.

The worktable adopts the particular design, reducing the crowning distortion amount of lower tool effectively.

GIVI Magnetic Linear Encoders

Equipped with high-precision GIVI Magnetic Linear Encoders, the machine captures the exact ram position and frame deformation in real-time. Immune to oil, dust, and industrial vibrations, these encoders deliver flawless feedback to the CNC control, ensuring consistent, high-precision bending results across all material types and thicknesses.

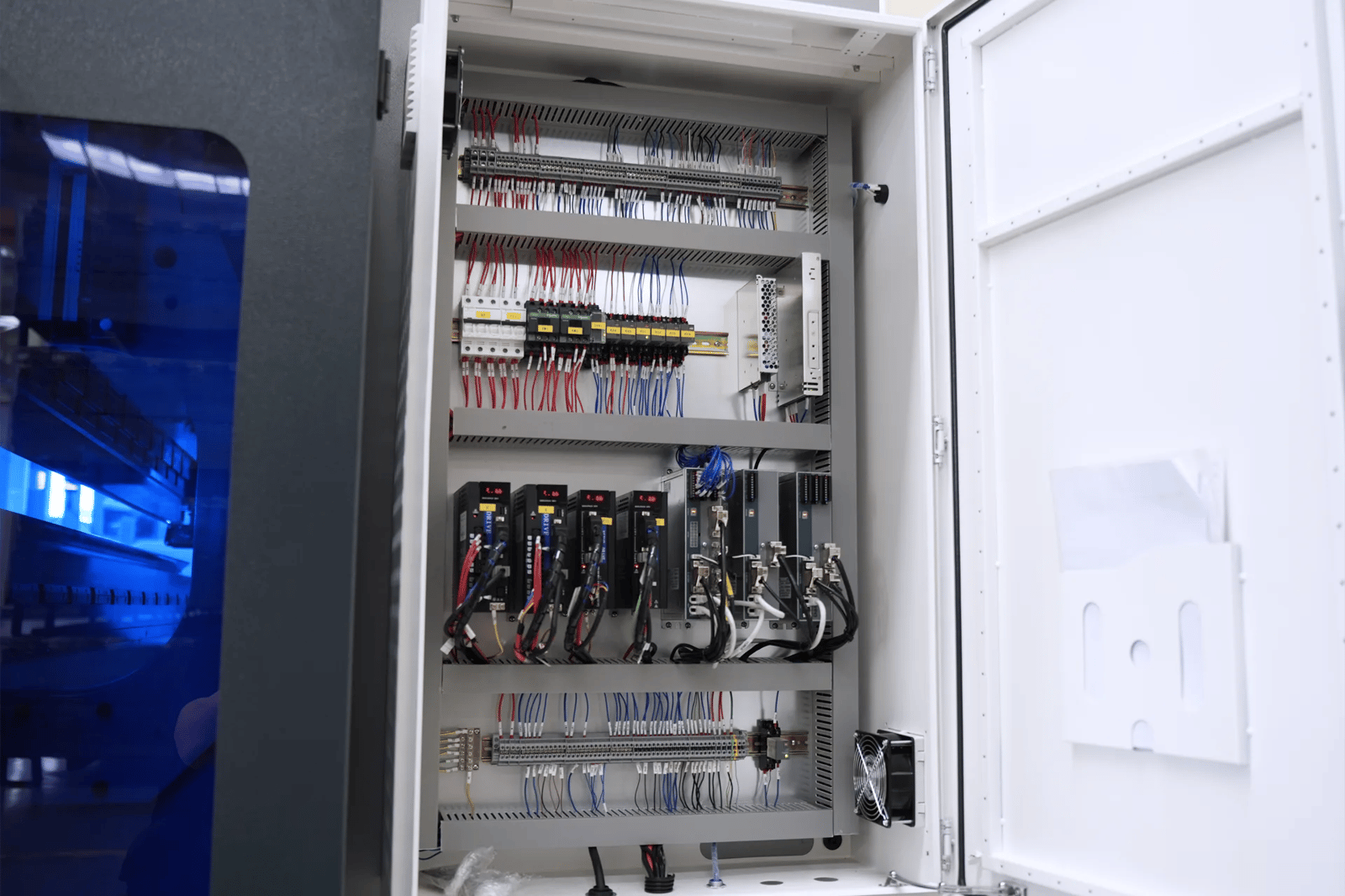

Schneider Electric

The main electrical cabinet is fully equipped with premium components from globally renowned brand Schneider Electric, ensuring world-class reliability and stable machine operation. Known for their exceptional durability, these high-quality electrical parts safeguard the system against voltage fluctuations, short circuits, and electrical overloads. Furthermore, Schneider’s extensive global distribution network guarantees easy access to standard replacement parts worldwide, significantly minimizing potential downtime and ensuring continuous, safe production.

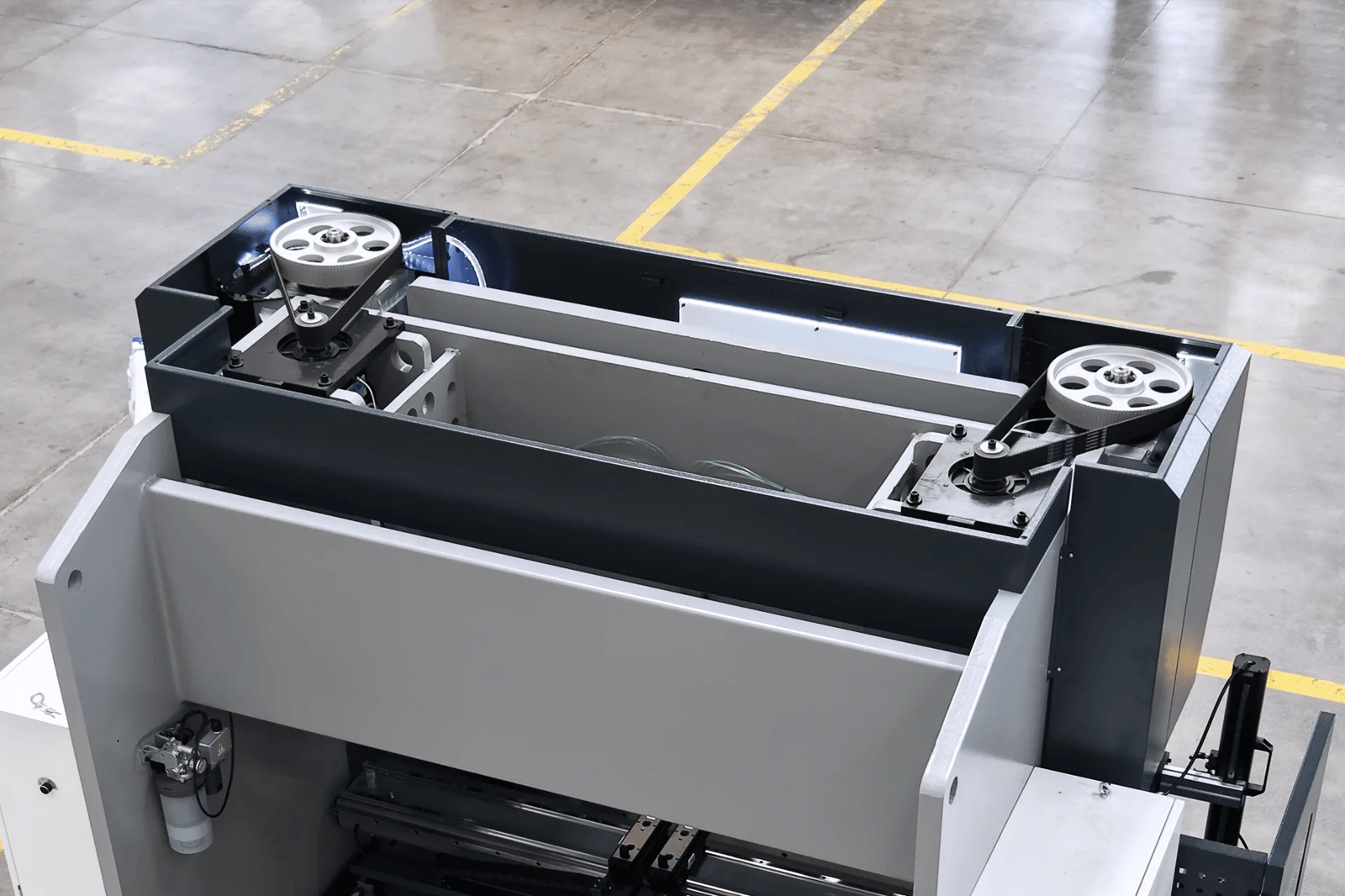

Techmation Dual Servo Drive

The Techmation Dual Servo Drive is the highly efficient powerhouse behind the pure electric bending technology. It provides independent, ultra-fast, and precise control over the Y1 and Y2 axes, ensuring flawless ram synchronization and absolute positioning accuracy. Unlike traditional hydraulic systems, these advanced servo drives consume electrical power only when the machine is actively bending, drastically reducing energy consumption and operational costs. With rapid acceleration and deceleration capabilities, the Techmation system delivers faster cycle times, whisper-quiet operation, and zero thermal drift for consistent, high-volume production.

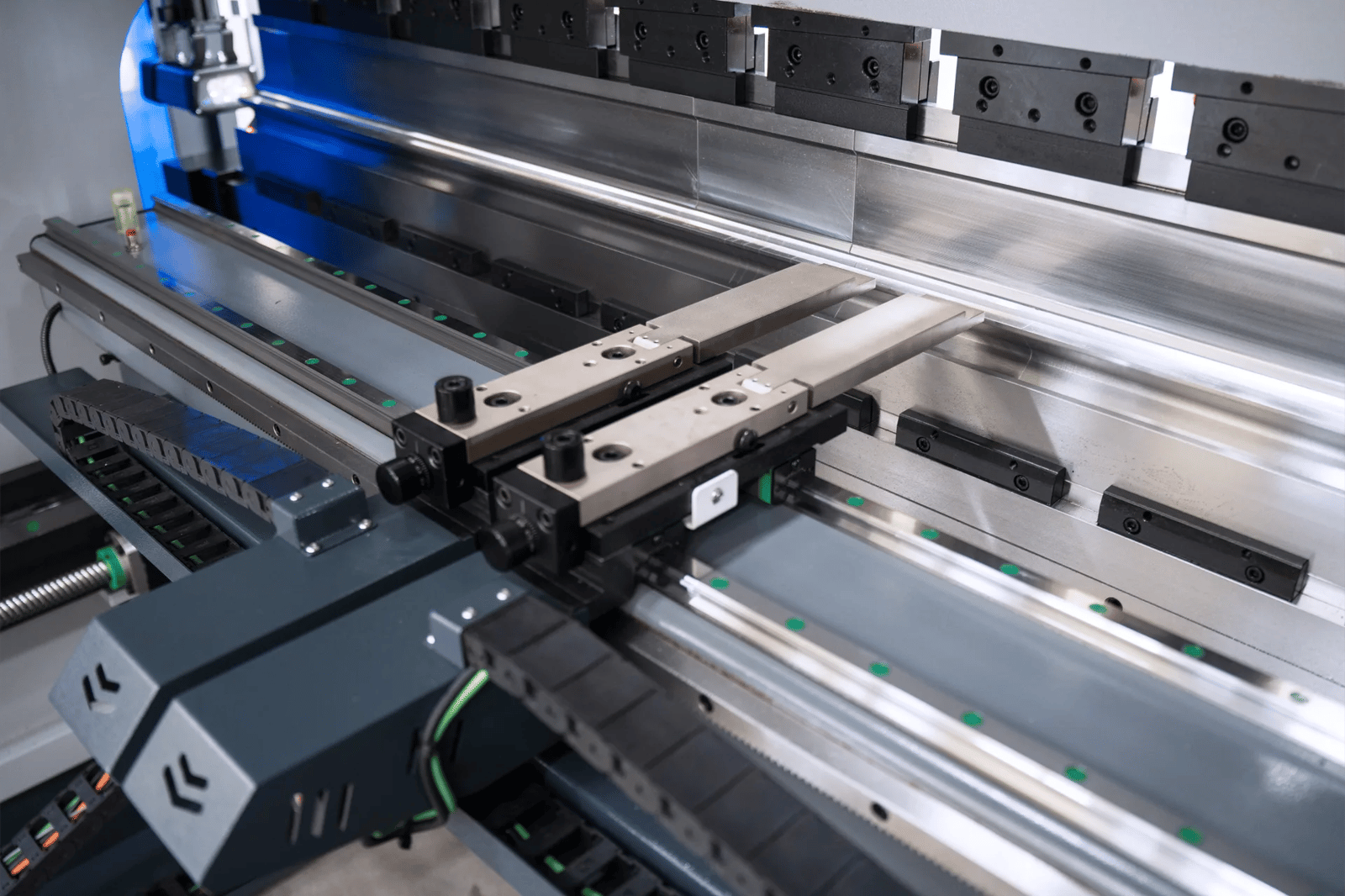

4-Axis Backgauge with X, Z1, Z2, R-Axis

• Hiwin Ball screws and linear guide on X, R-axis
• Axis X speed 500 mm/s
• Automatic Z1, Z2-axis with HIWIN linear guide
• Mechanical accuracy ± 0.01 mm
• Fingers with double stop and micrometric adjustment

DSP Laser Protection

The DSP Laser Protection system provides maximum operator safety without compromising machine productivity. Utilizing advanced optical laser technology, it continuously monitors the bending zone to effectively prevent finger and hand injuries. This system allows the ram to maintain high approach speeds down to a minimal distance from the material (mute point), significantly reducing cycle times while strictly complying with CE EN12622 safety standards.

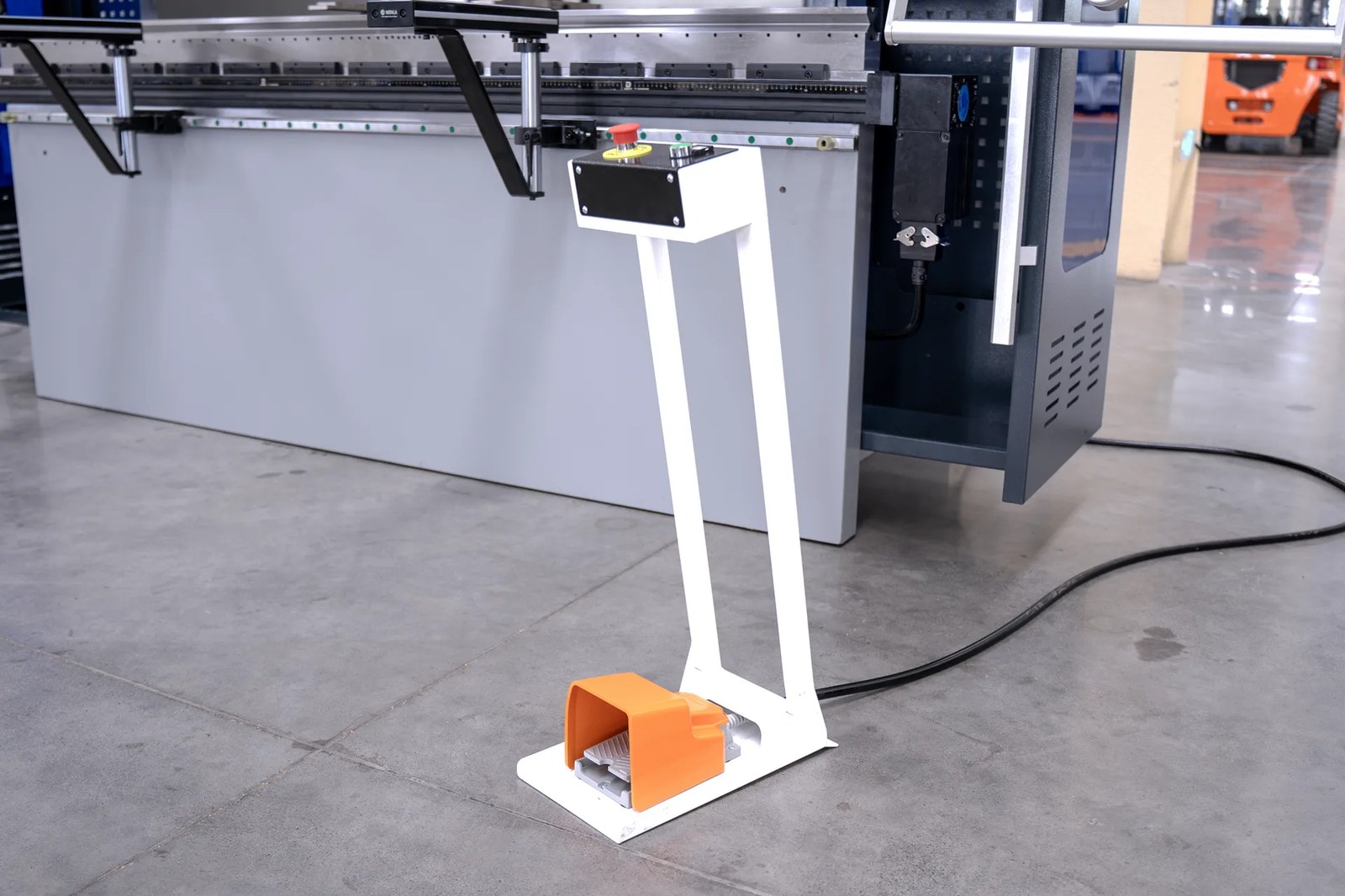

South Korea KACON Foot Switch

The South Korea KACON Foot Switch is an industrial-grade, heavy-duty pedal designed for secure, ergonomic, and highly responsive machine operation. Equipped with a robust protective shield and an anti-slip surface to prevent accidental triggering, it ensures the highest level of operator safety. Its optimized dual-pedal design allows the operator to precisely control the ram’s movement with minimal foot fatigue, delivering exceptionally reliable performance during long, continuous bending shifts.

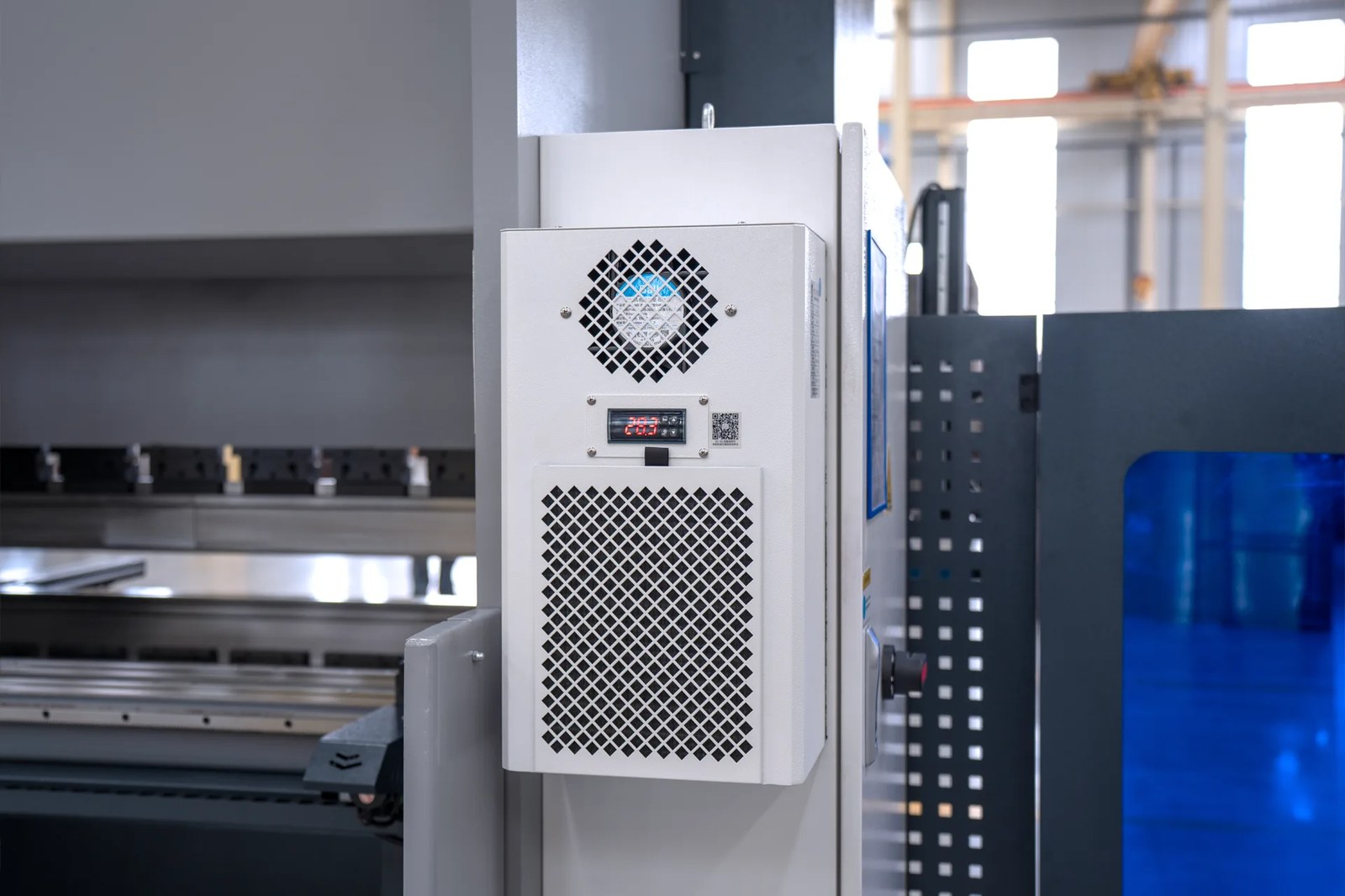

Electrical cabinet air conditioner

Designed specifically for demanding industrial environments, the integrated electrical cabinet air conditioner ensures optimal operating temperatures for all sensitive electronic components. By actively cooling the CNC controller, servo drives, and internal circuitry, it effectively prevents overheating and thermal degradation. Its closed-loop cooling system also seals out harmful industrial dust, oil mist, and moisture, guaranteeing uninterrupted performance, maximum reliability, and an extended lifespan for the machine’s core electrical system.

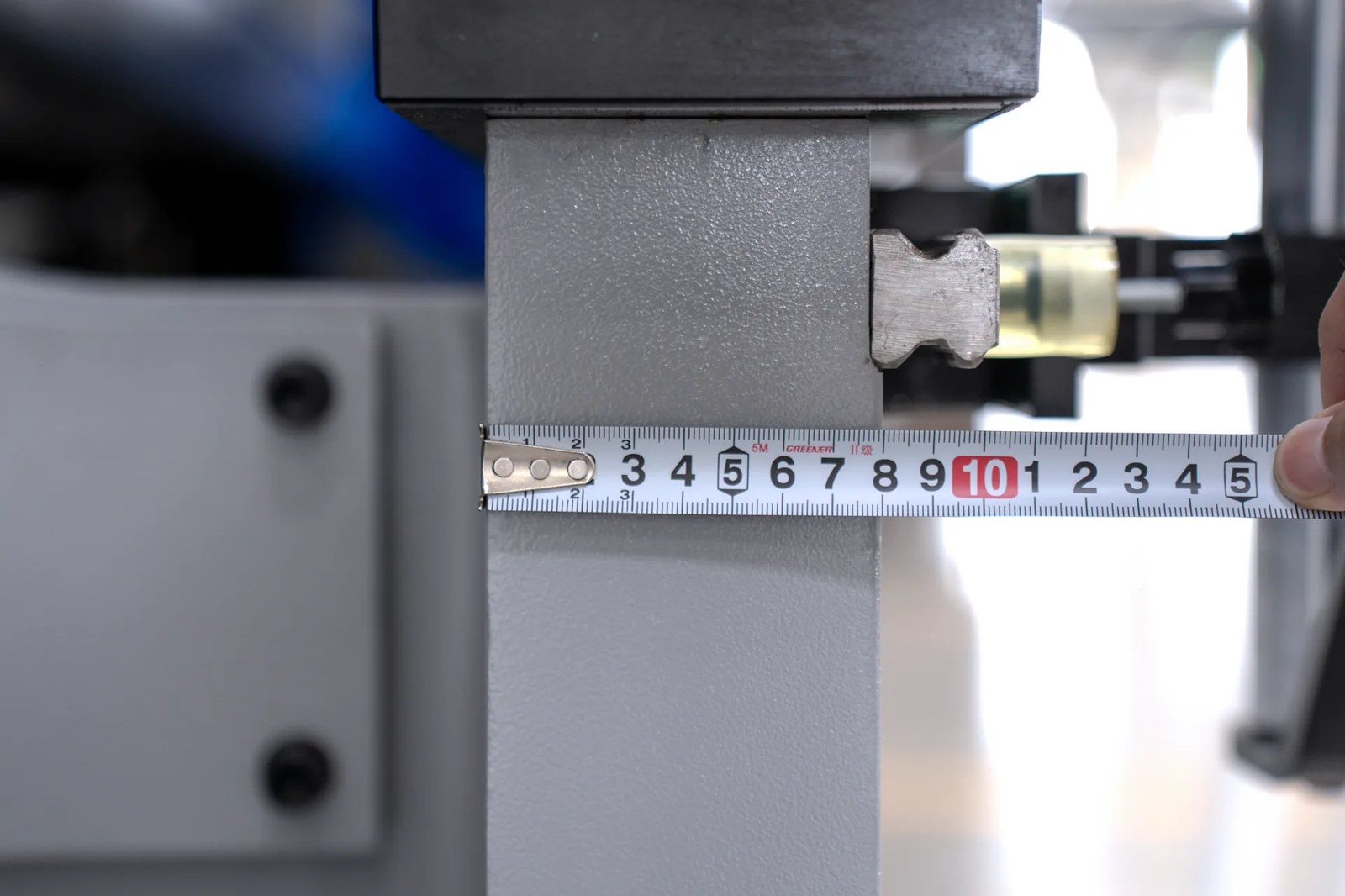

Thickness of workbench (80mm)

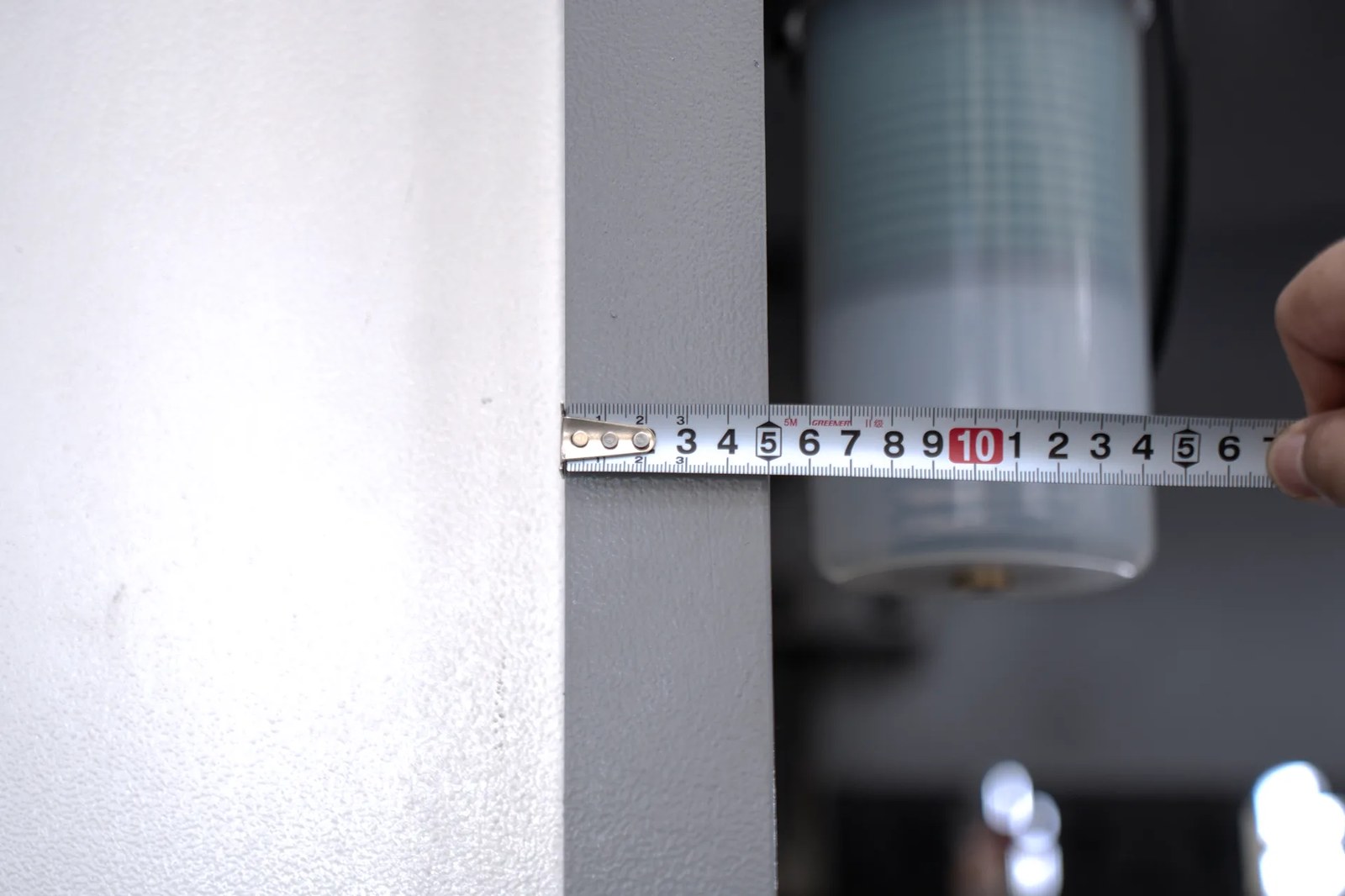

Thickness of side panel (50mm)

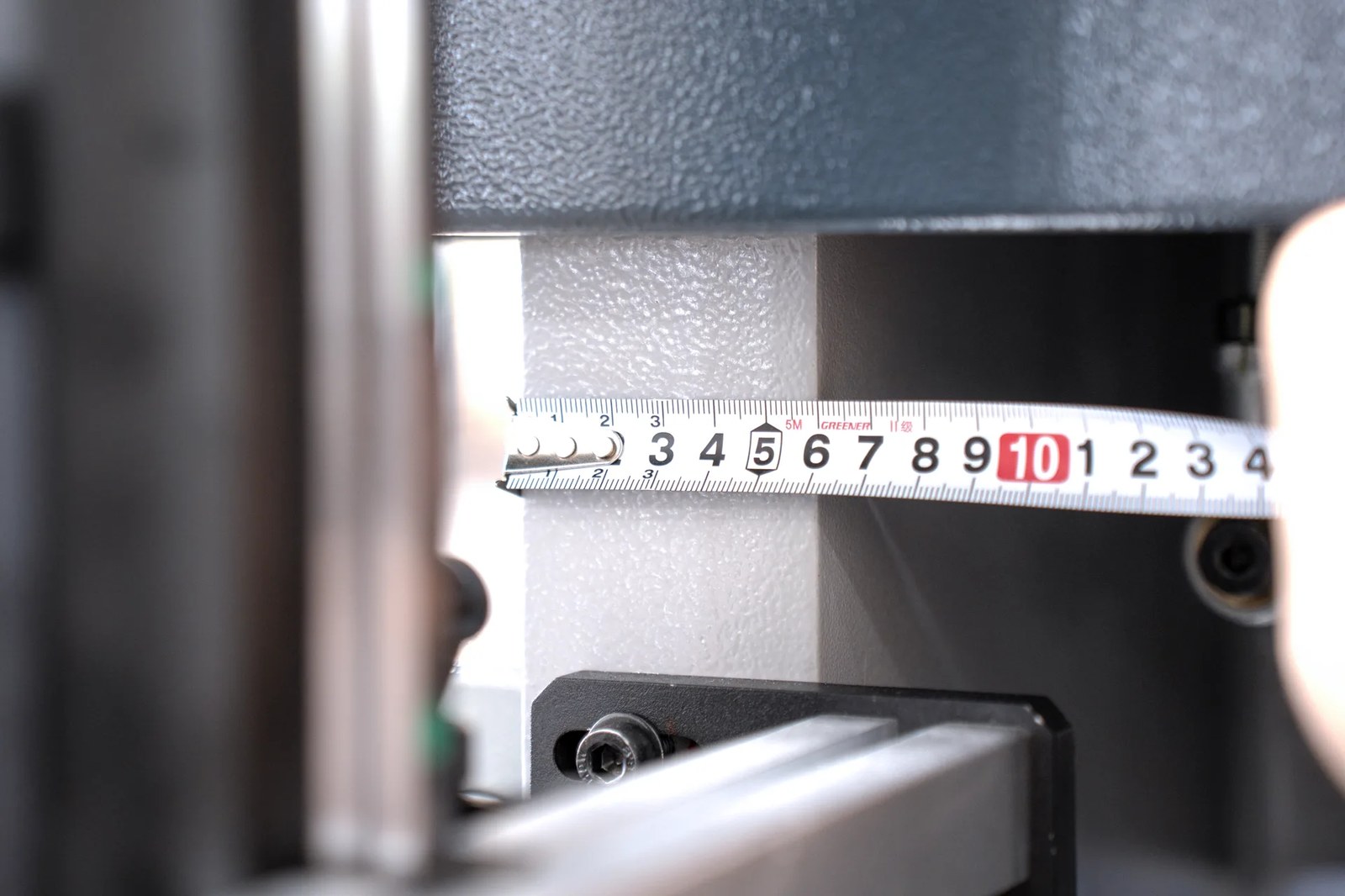

Thickness of slider (60mm)

Tooling (Optional)

Standard tooling

Non-Standard tooling

Gooseneck tooling

Double-V Concentric Mold

Four-V Concentric Mold

Multi-V Mold
