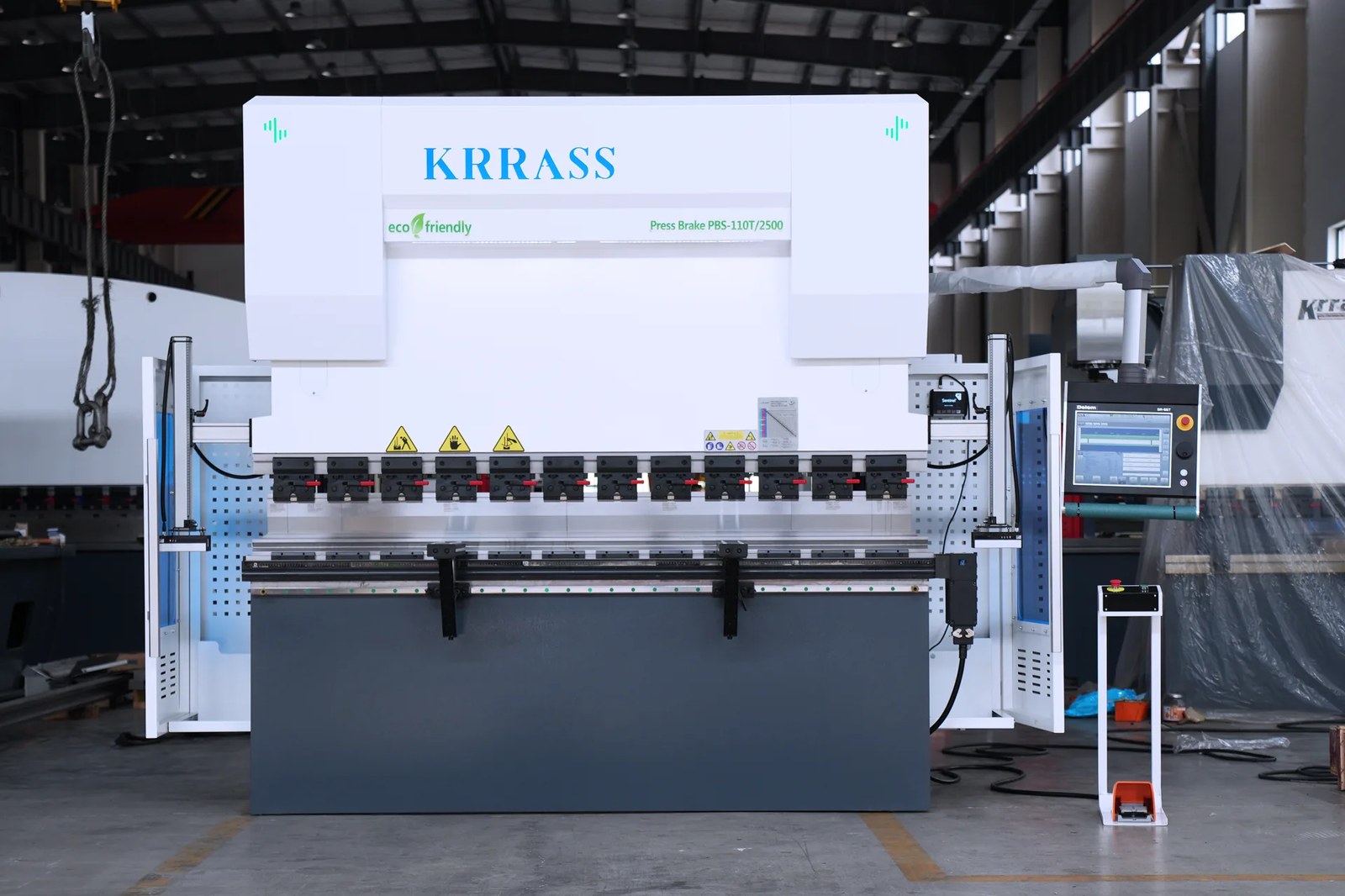

DELEM DA66T Press Brake Machine Price, PBS-110T2500 DA66T 6+1 Axis

Technologyies

Bending Pressure:	1100KN
Bending Length:	2500mm
CNC Control Axes:	Y1+Y2+X+R+Z1+Z2+W Crowning
Main Motor:	8.7KW
Operating Voltage:	380V 50Hz
CNC System:	DA-66T
Length* Width* Height:	3240mm * 1780mm * 2680mm

Configurations

Main Feature

The Press Brake Machine Price is very satisfactory, It has an easy to use control unit, rigid body frame, flawless design, high efficiency, multiple tool usage solutions, top CE safety standards, and a suitable price range make it the best-in-class world leader. It is ideal for bend-sensitive, energy-efficient solutions.

• Simple and solid Hydraulic Press Brake
• Work area can be customized and all types of tool clamping can be installed
• Tailored-made Hydraulic Press Brake

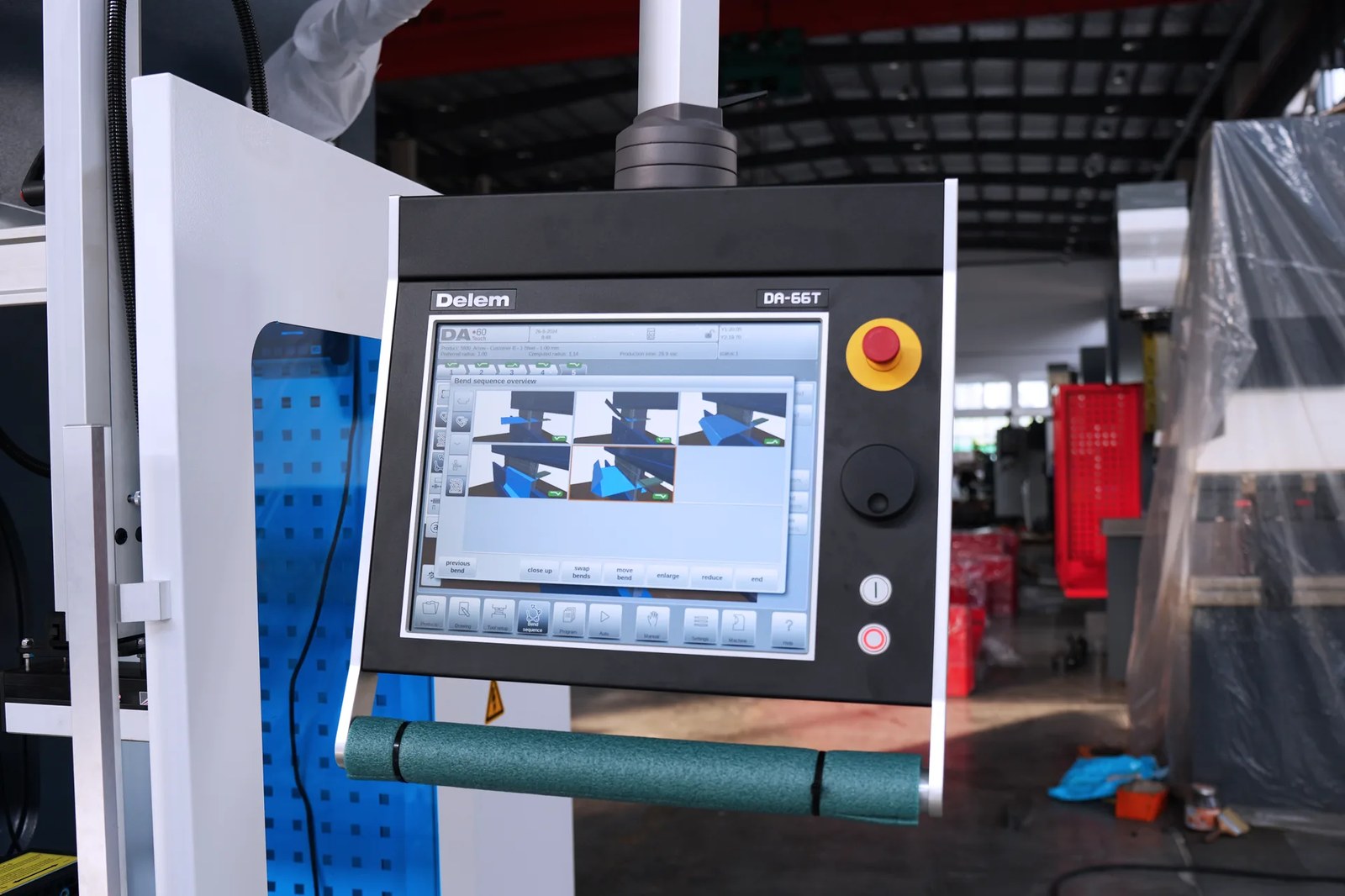

DELEM DA-66T Control

• 2D graphical touch screen programming mode
• 17″ high resolution colour TFT
• 3D graphics acceleration
• Colour LCD display
• 1280 x 1024 pixels, 16 bit colour
• Full touch screen control (IR-touch)
• Sensor bending & correction interface Profile-TL offline software
• Full Windows application suite

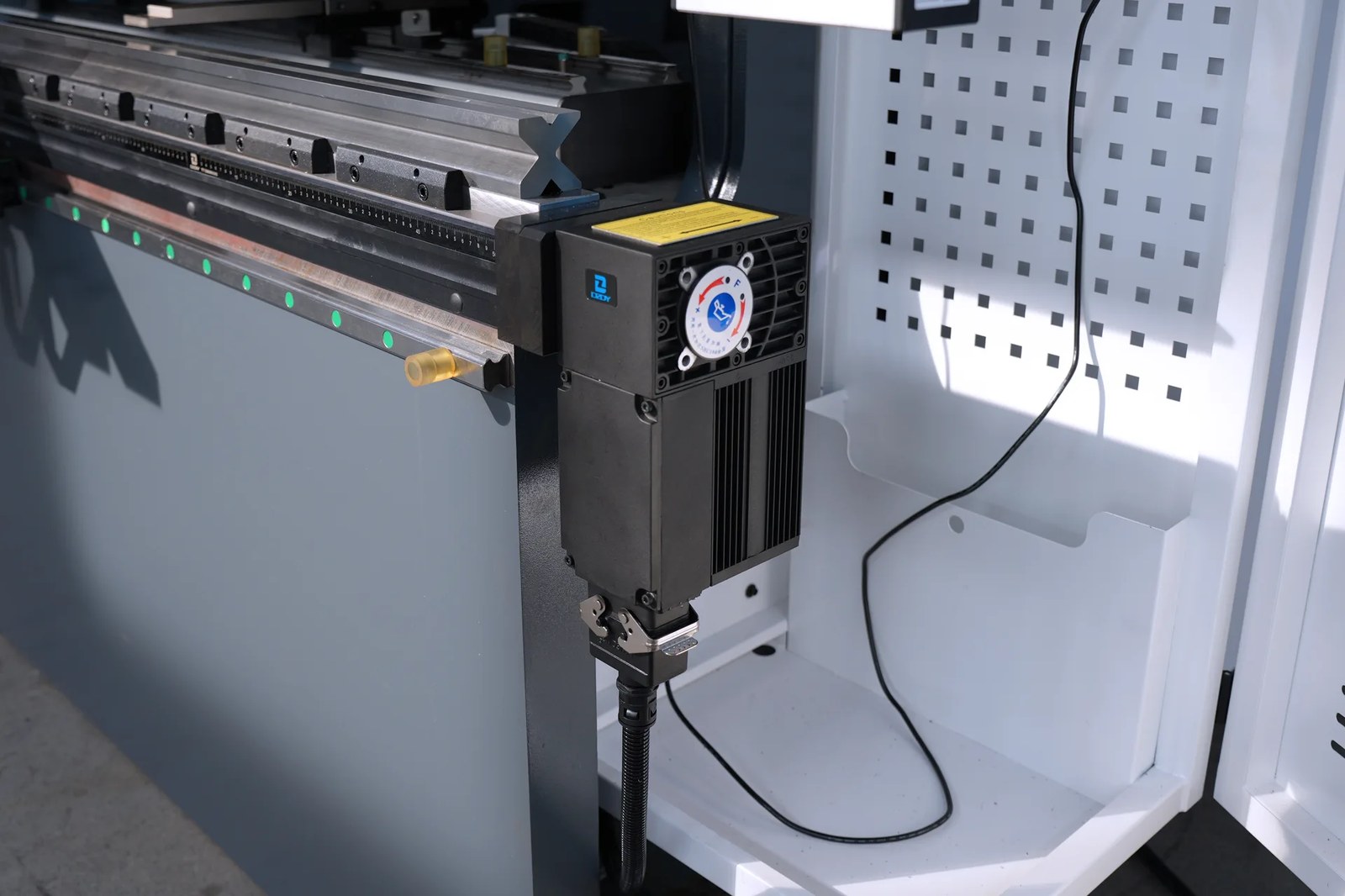

Electric Crowning System

Low worktable has an automatic crowning compensation uint; compensation amount is automatically set up by CNC system, with guarantee a same bending angel on full length.

The worktable adopts the particular design, reducing the crowning distortion amount of lower tool effectively.

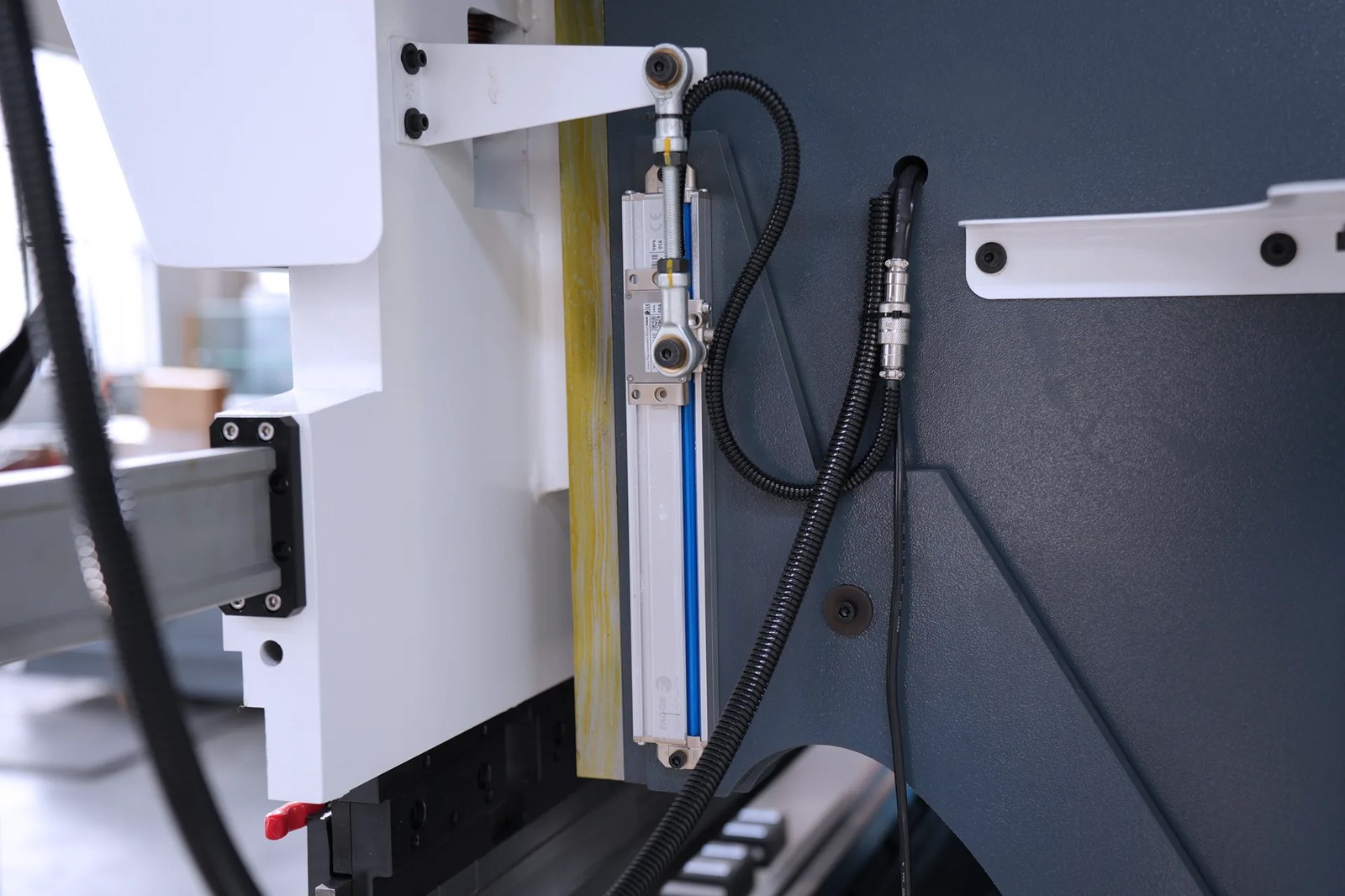

Fagor Grating Ruler

Fagor grating ruler can accurately measure the small deformation caused by bending force of machine tool,then feedback compensation, to ensure the bending accuracy of plates of any thickness and materia.

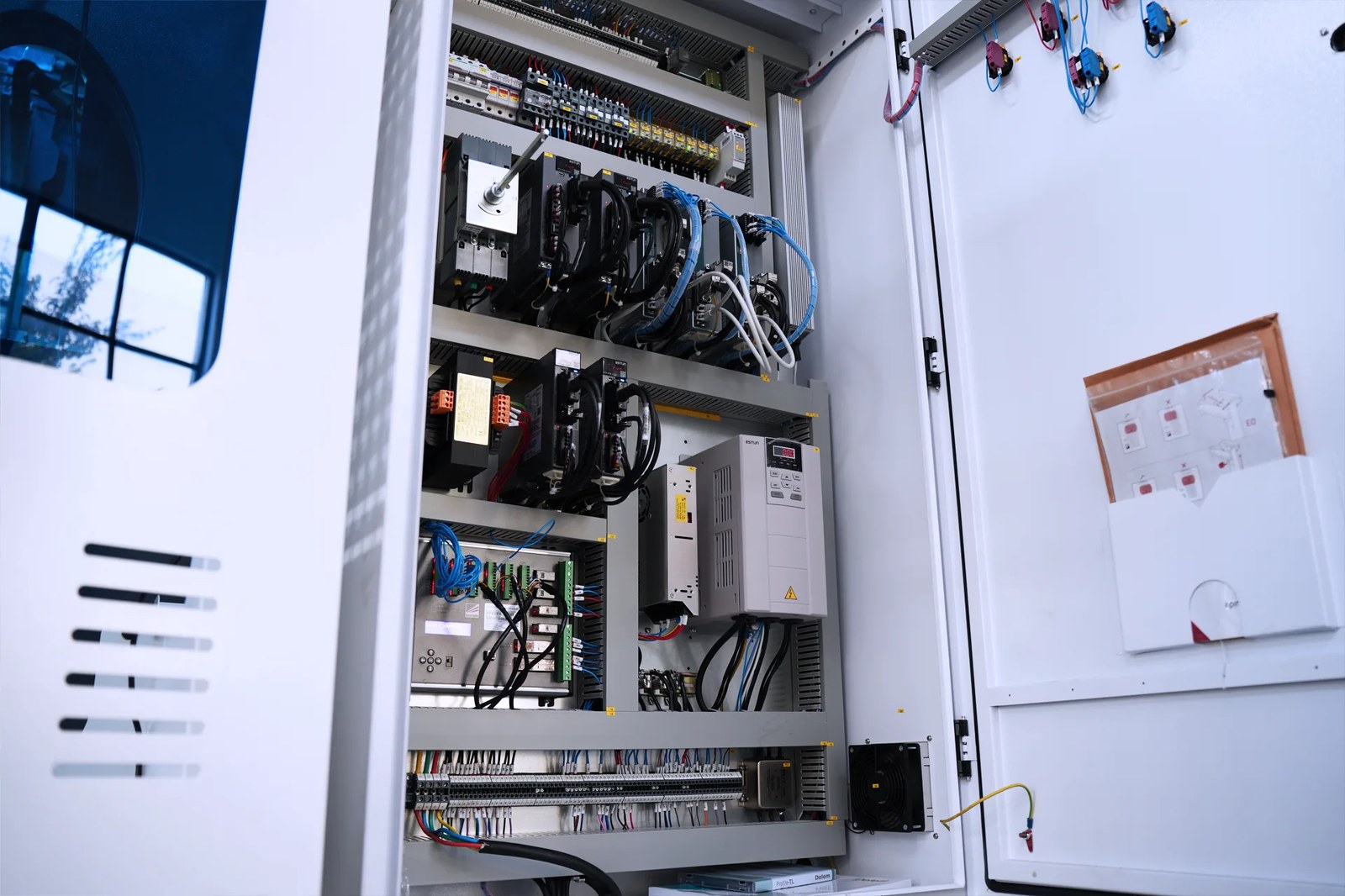

Schneider Electric

High quality electric parts can perform well even the electricity is not stable and customers can easily get the replacement anywhere in the word.

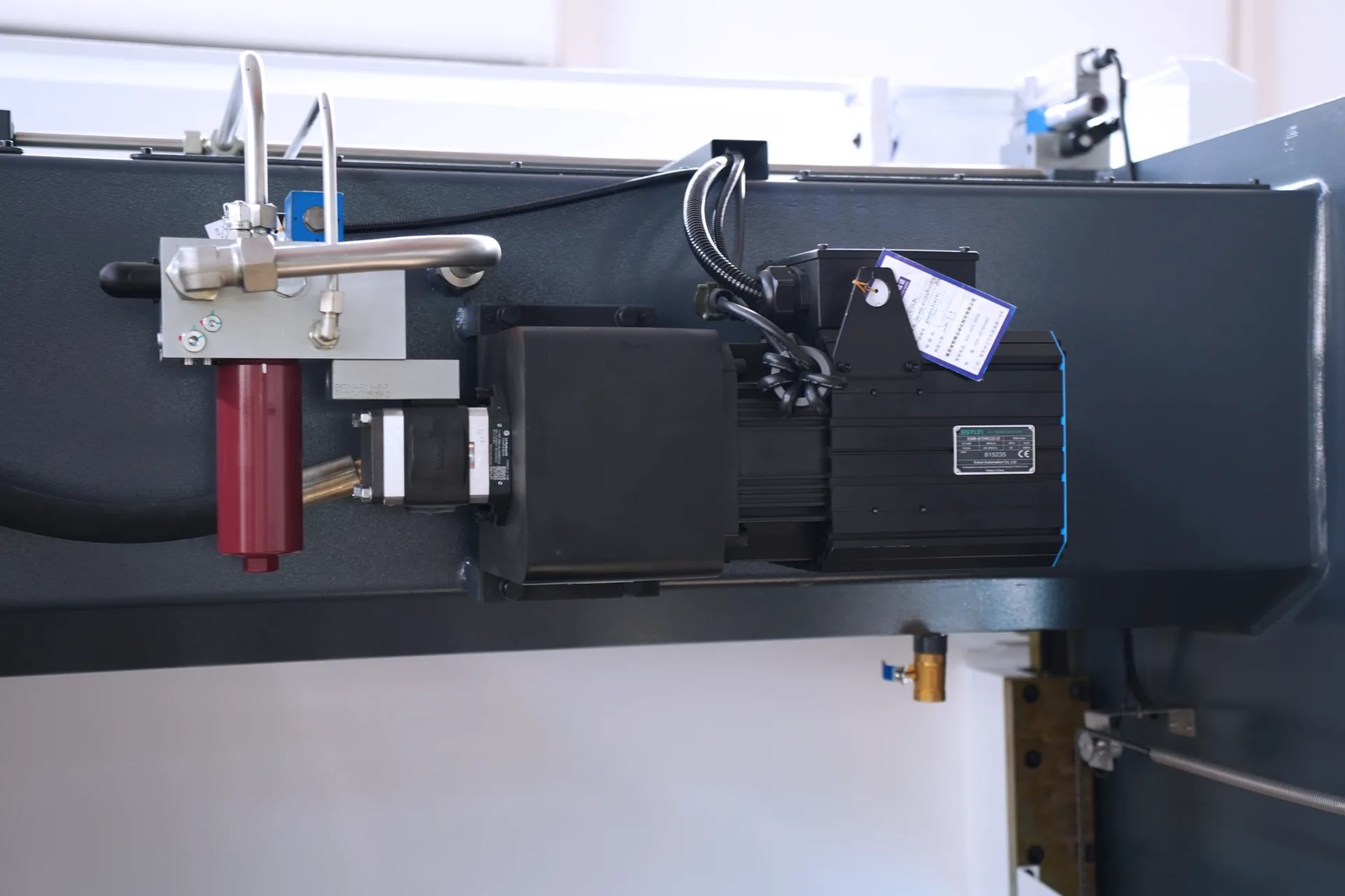

Estun Servo Main Motor

The Estun servo main motor greatly reduces the power consumption when the press brake is working, increases the service life of the machine, and keeps the machine working in a lower noise environment, which is green and environmentally friendly.

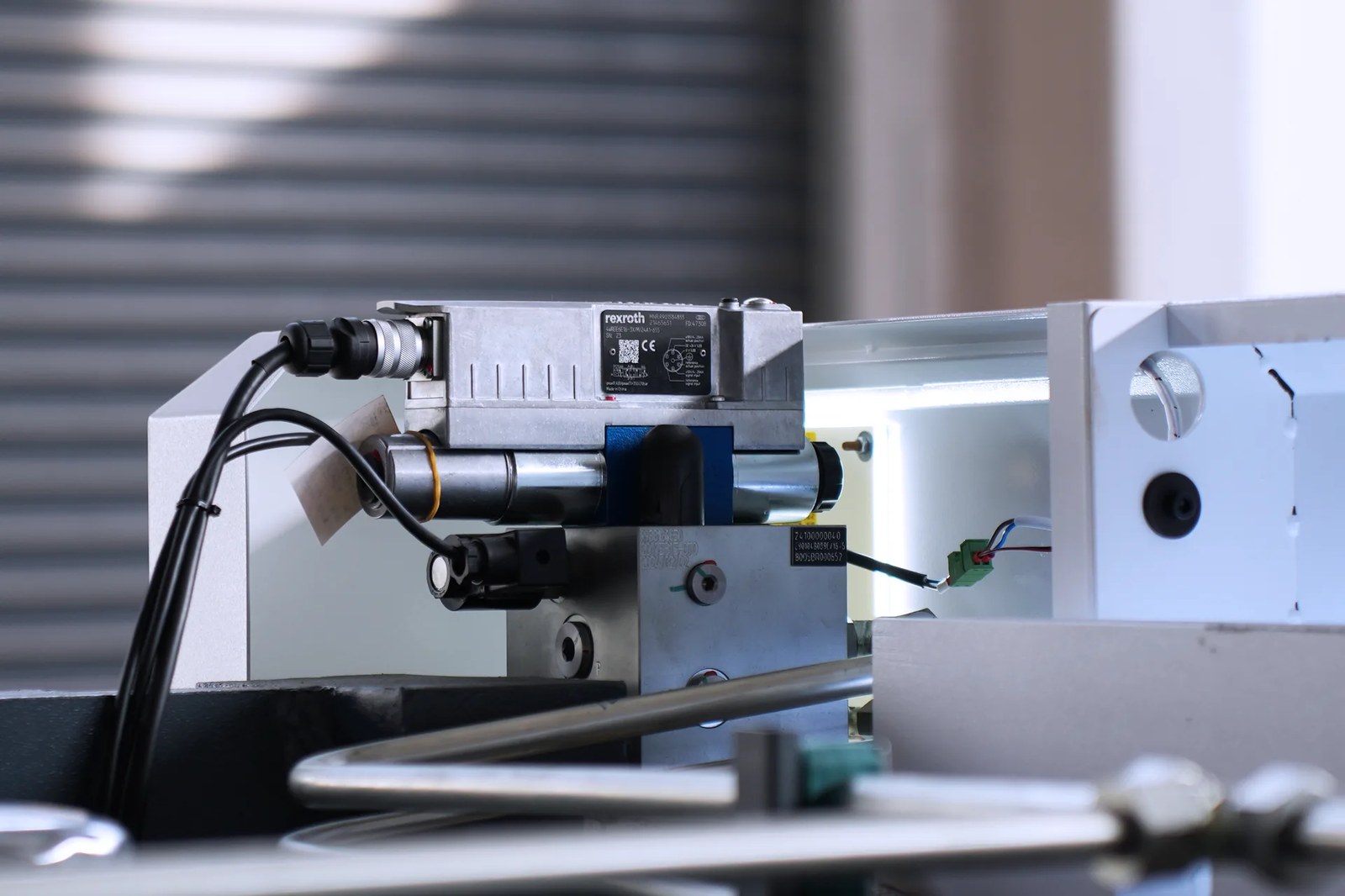

Rexroth Proportional Valve

The German Rexroth fully closed-loop electro-hydraulic servo high-frequency synchronous control system is adopted to ensure that the CNC press brake machine tool has high stability and high precision in the process of high-speed operation.

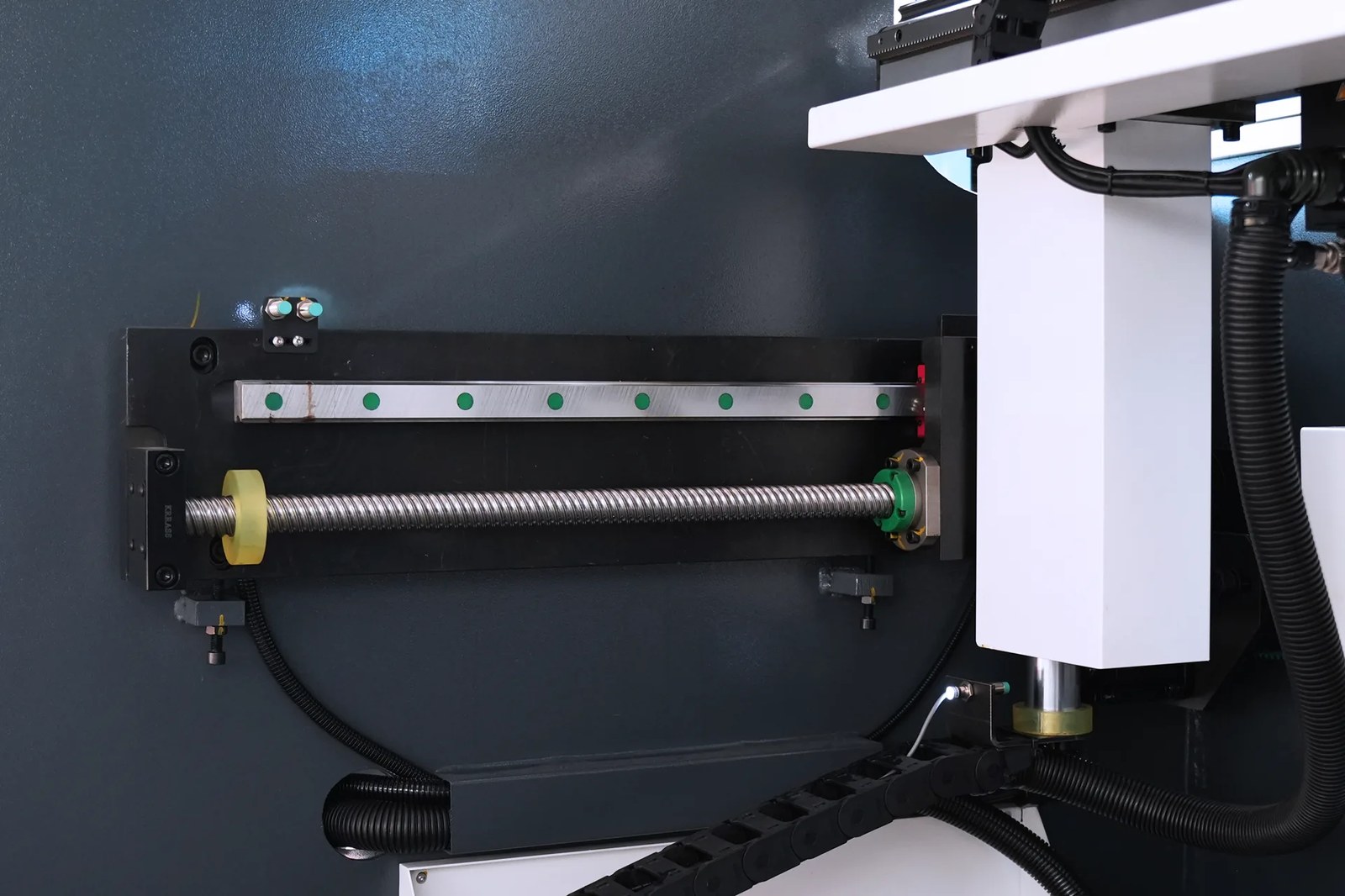

X-axis Ball Screw Linear Guide

• Precision: Ball screws offer enhanced precision, reduced energy consumption, and lower maintenance requirements.
• Responsiveness: Ball screws deliver exceptionally smooth motion.
• Friction: Ball screws rely on recirculating balls to reduce friction instead of lubricants.

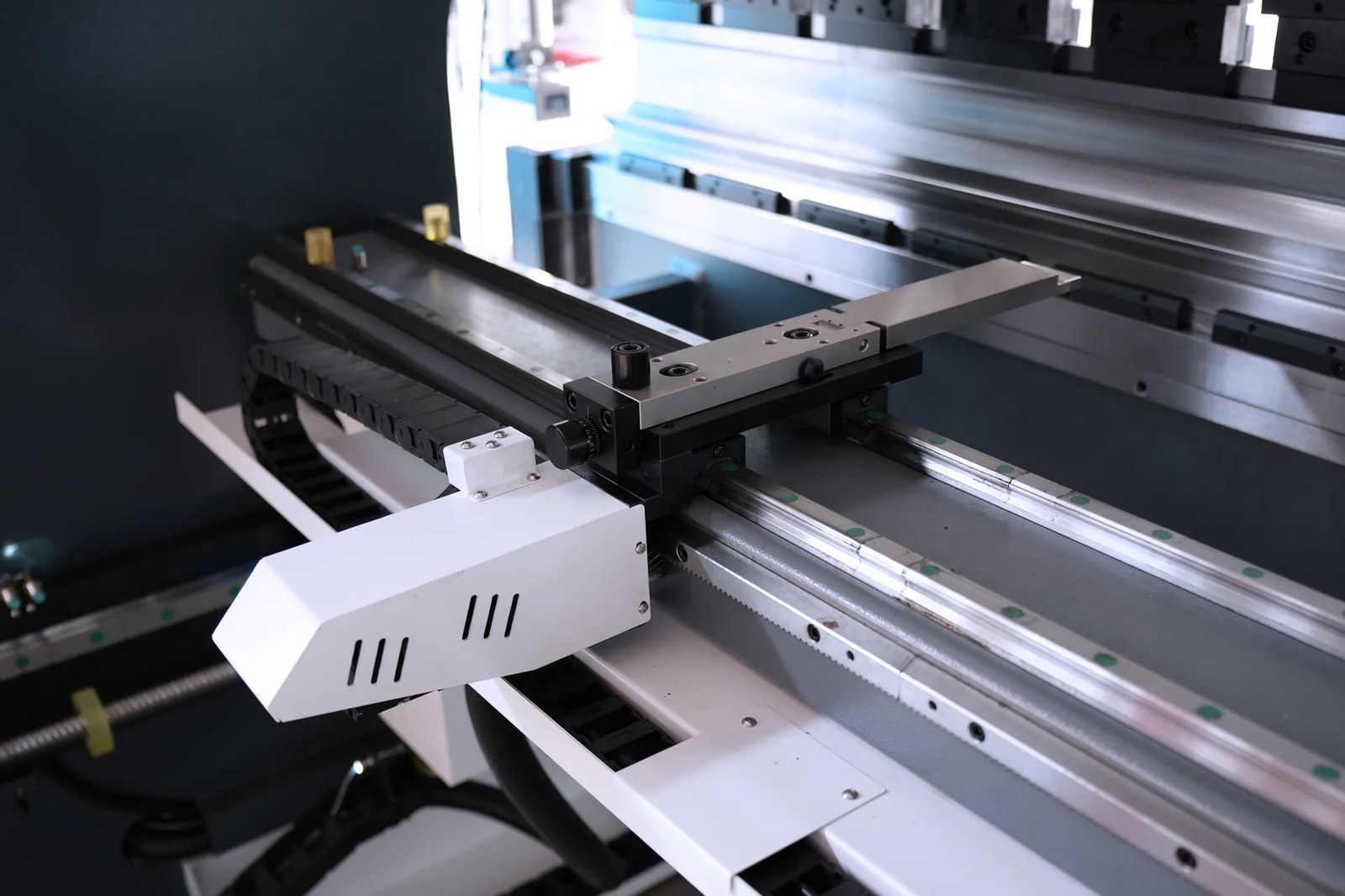

Back Finger Stoper

High-precision backstop means that customers can input the size into the system according to the product’s dimensions, and it can be positioned accurately with an accuracy of 0.01mm.

X axis adopts ball screw and linear quide, ensure high synchronization accuracy and very long life. Widened and extended custom stop fingers, Finger support frame with double linear guide, Meet your reguirements.

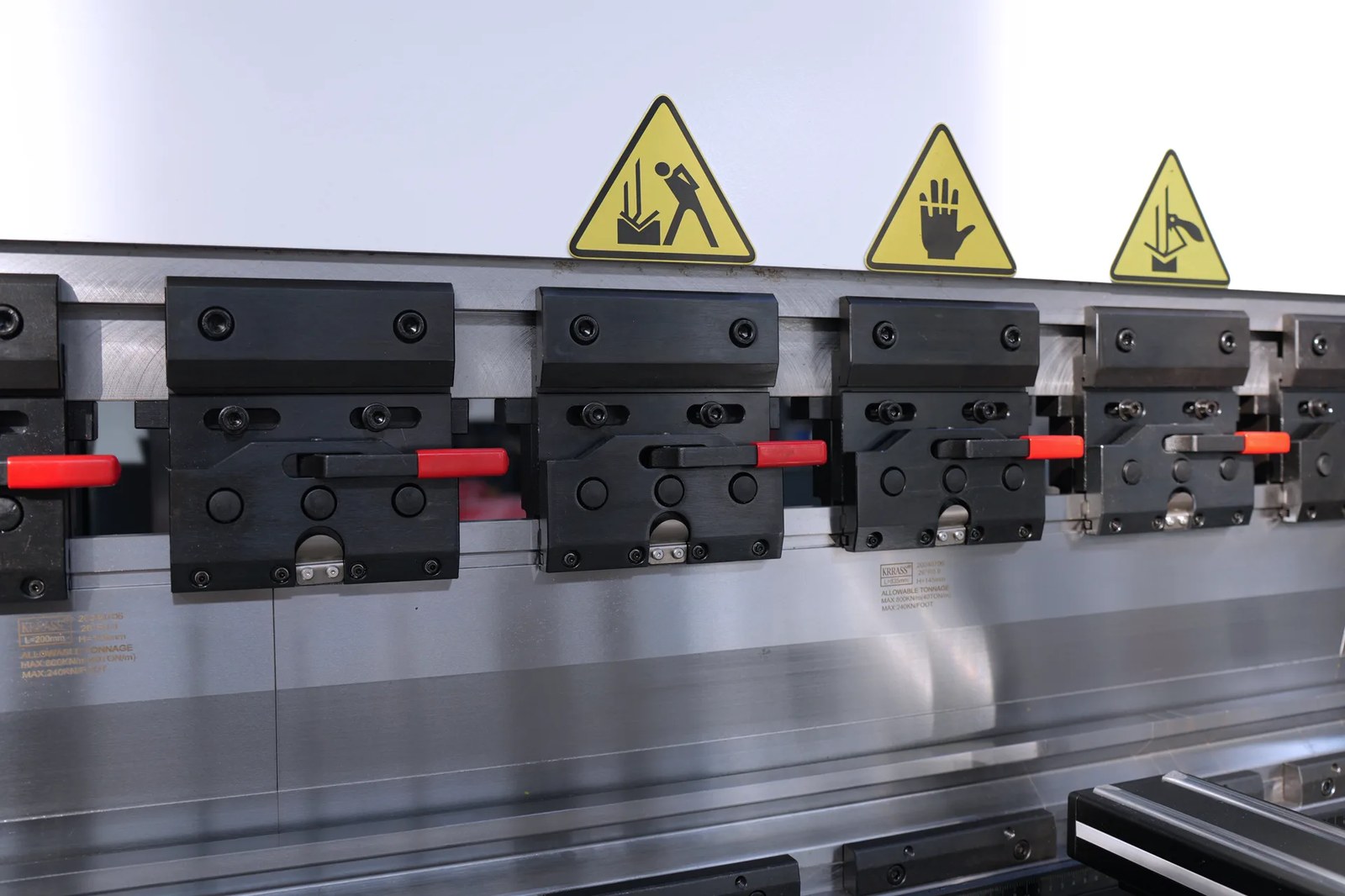

Precision Quick Clamping Device

It is convenient to quickly clamp the upper die, reduce labor intensity and improve production efficiency. The utility model has the advantages of high precision, easy clamping, no loosening, no tool dropping, etc.

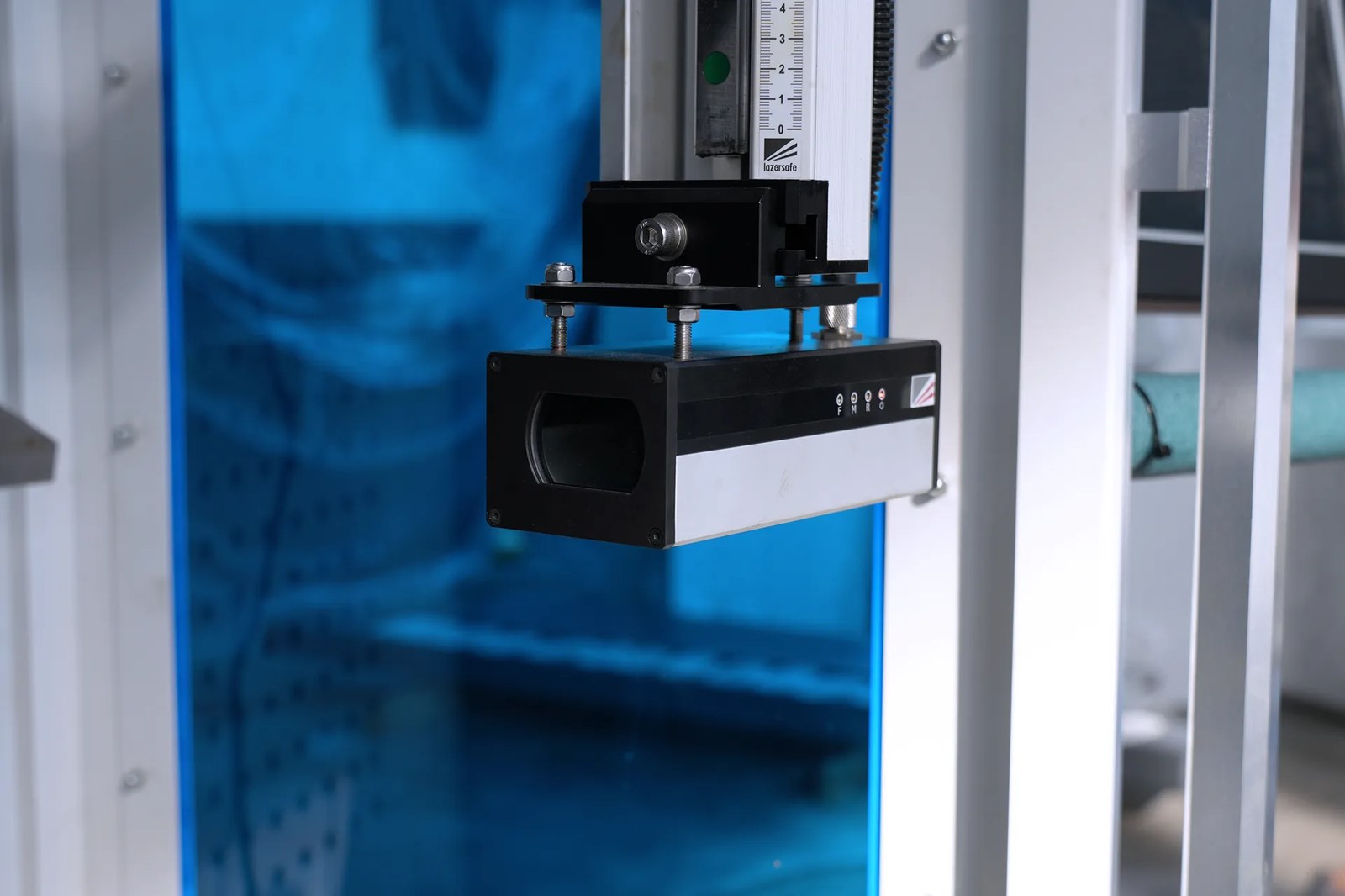

Laser Safety Protection System (optional)

Equipped with laser safety protection system to ensure efficient production and the personal safety of operators.

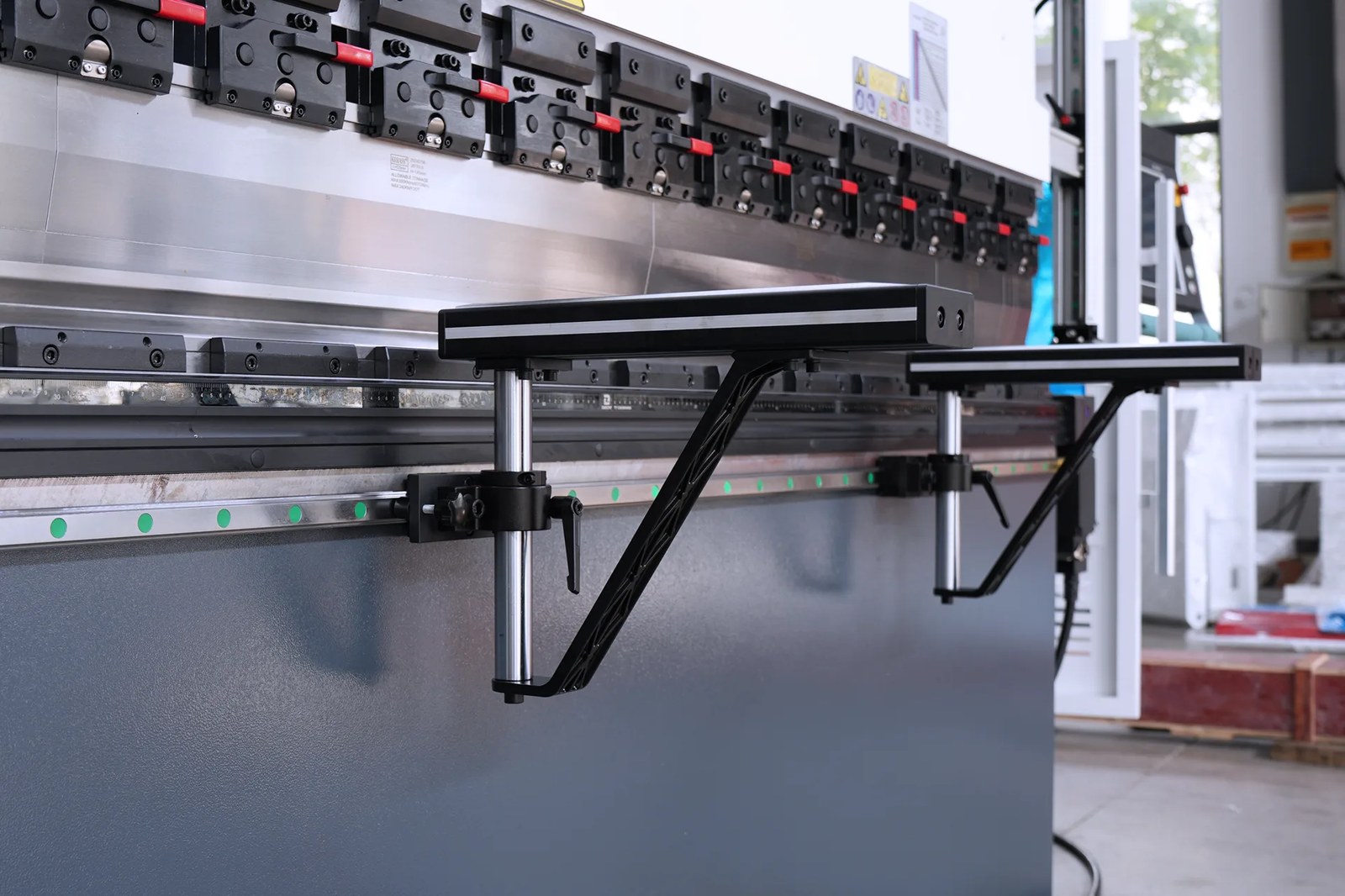

Front Material Support

The front material support can be lifted and lowered freely. When you need to bend larger metal sheets, it can effectively assist in reducing your workload.

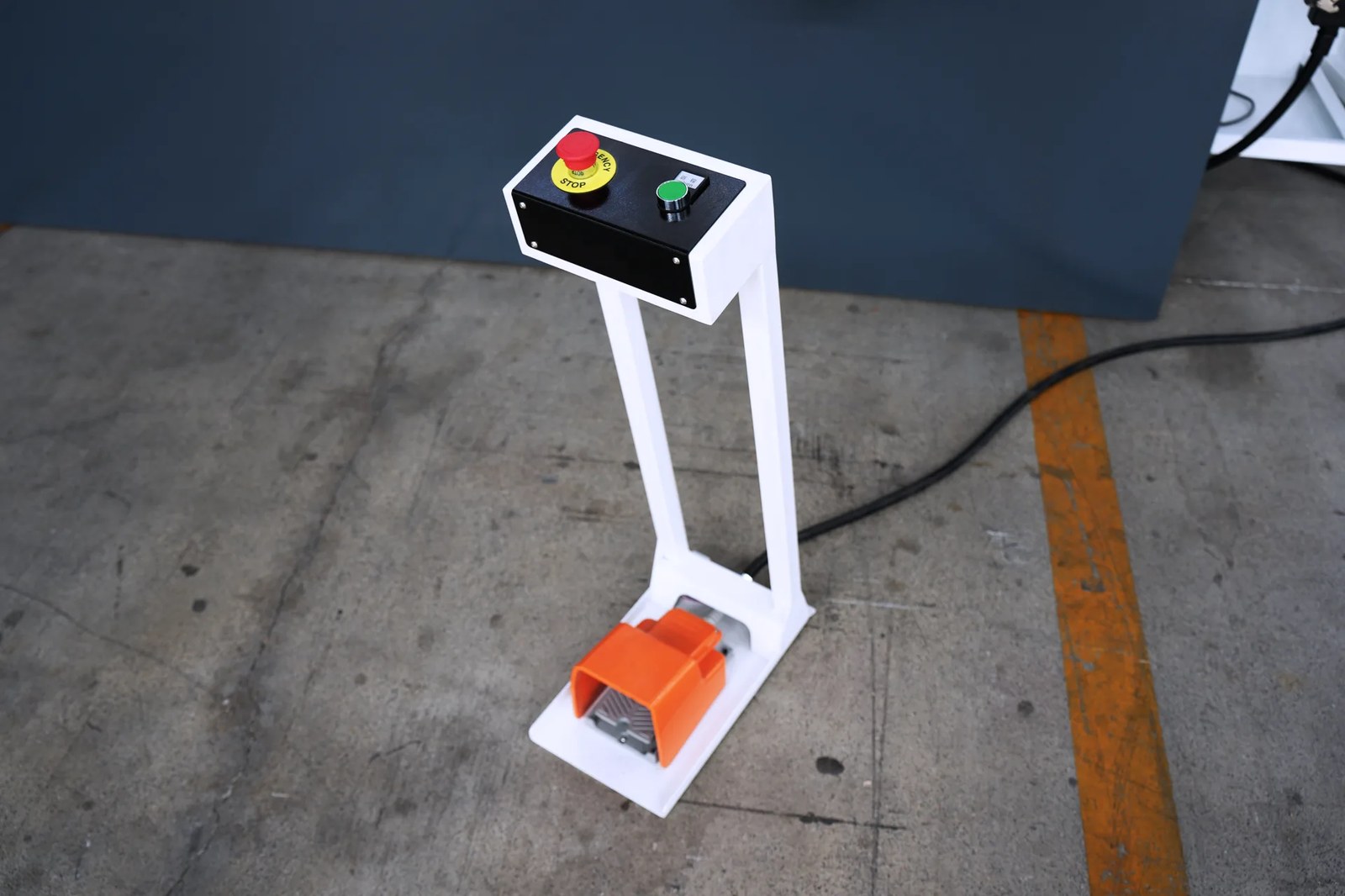

South Korea KACON Foot Switch

South Korea brand foot switch is movableand can stop the Press Brake Machine anytime by theemergency button.

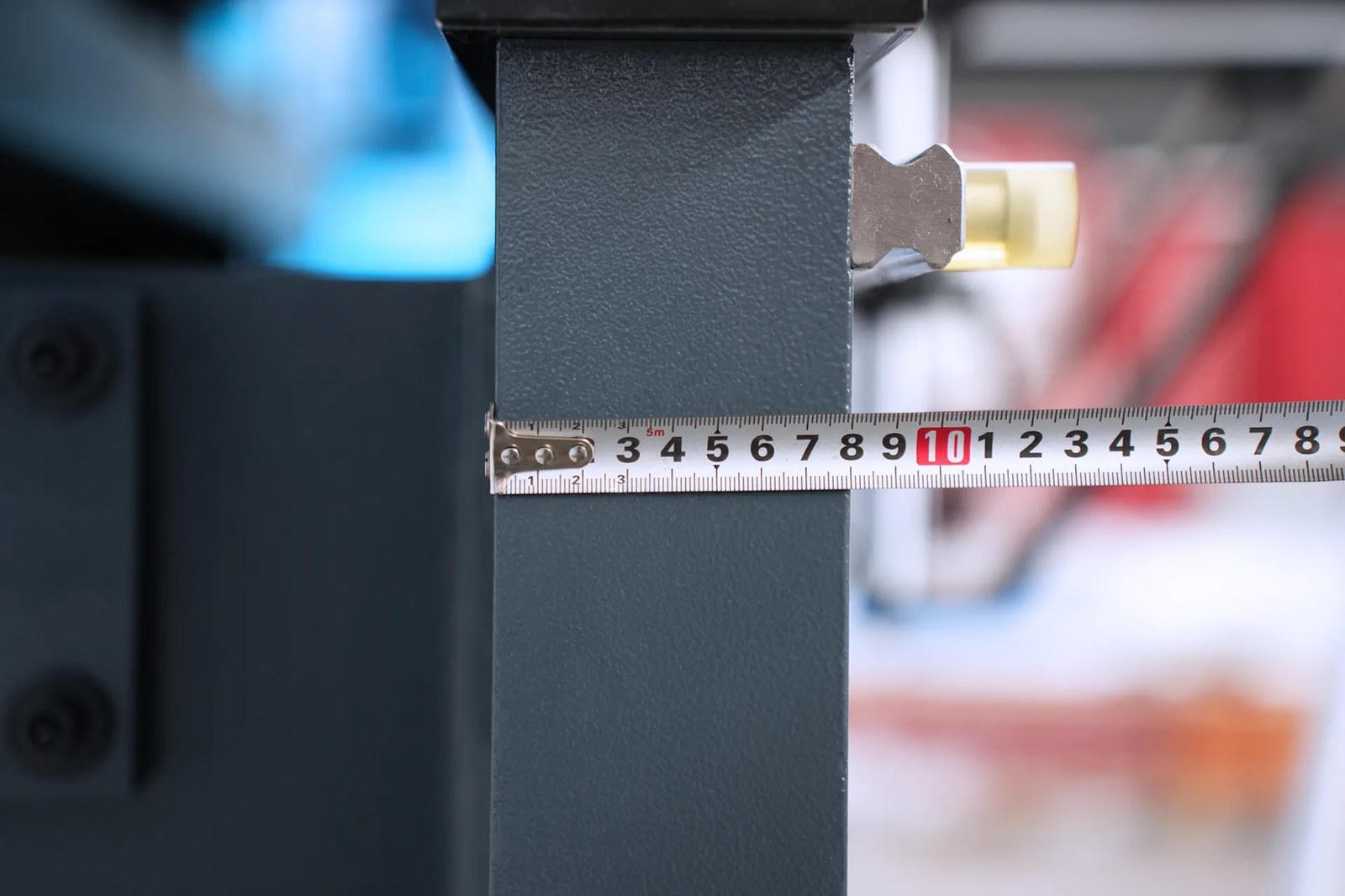

Thickness of workbench (80mm)

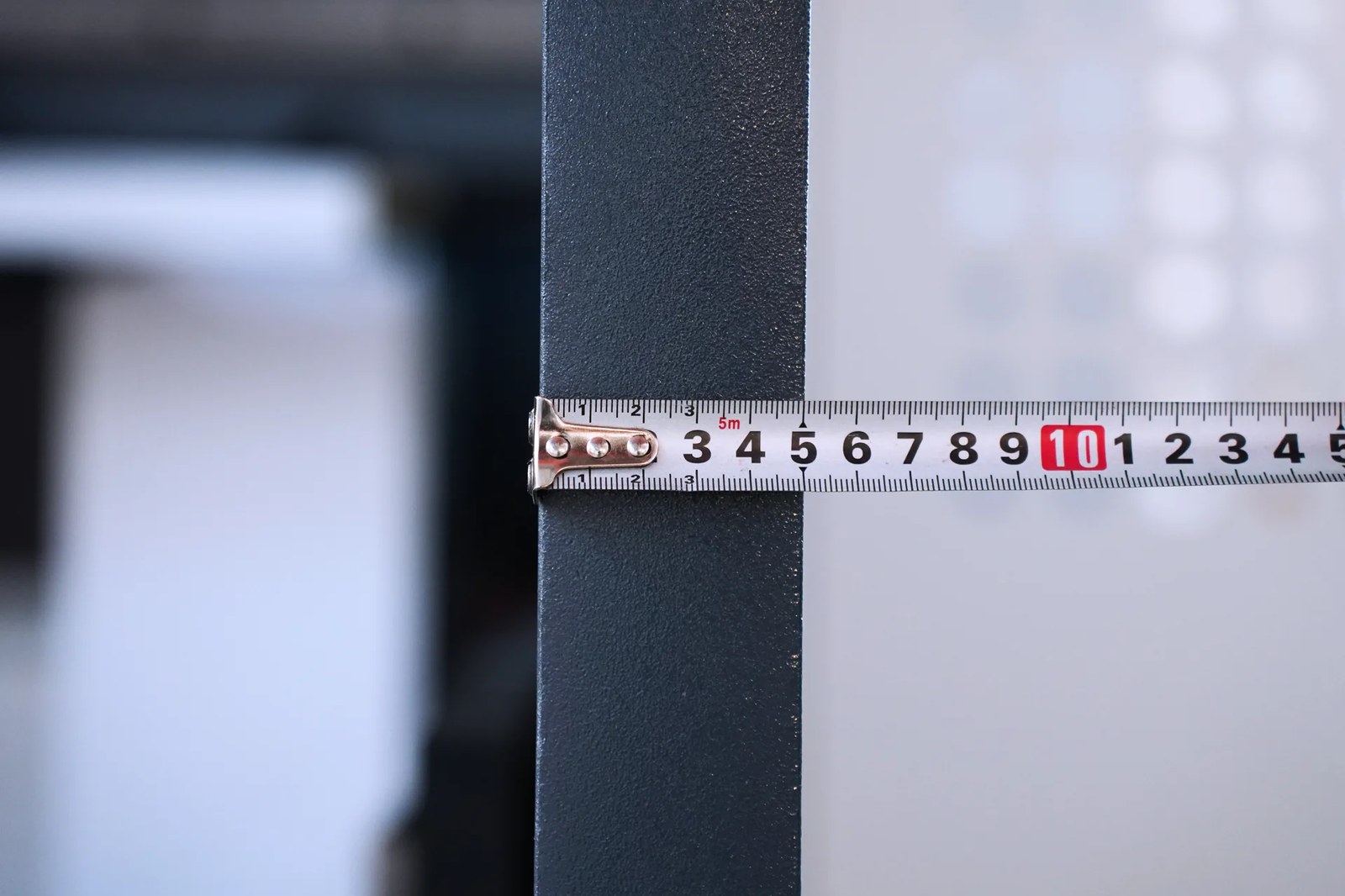

Thickness of side panel (50mm)

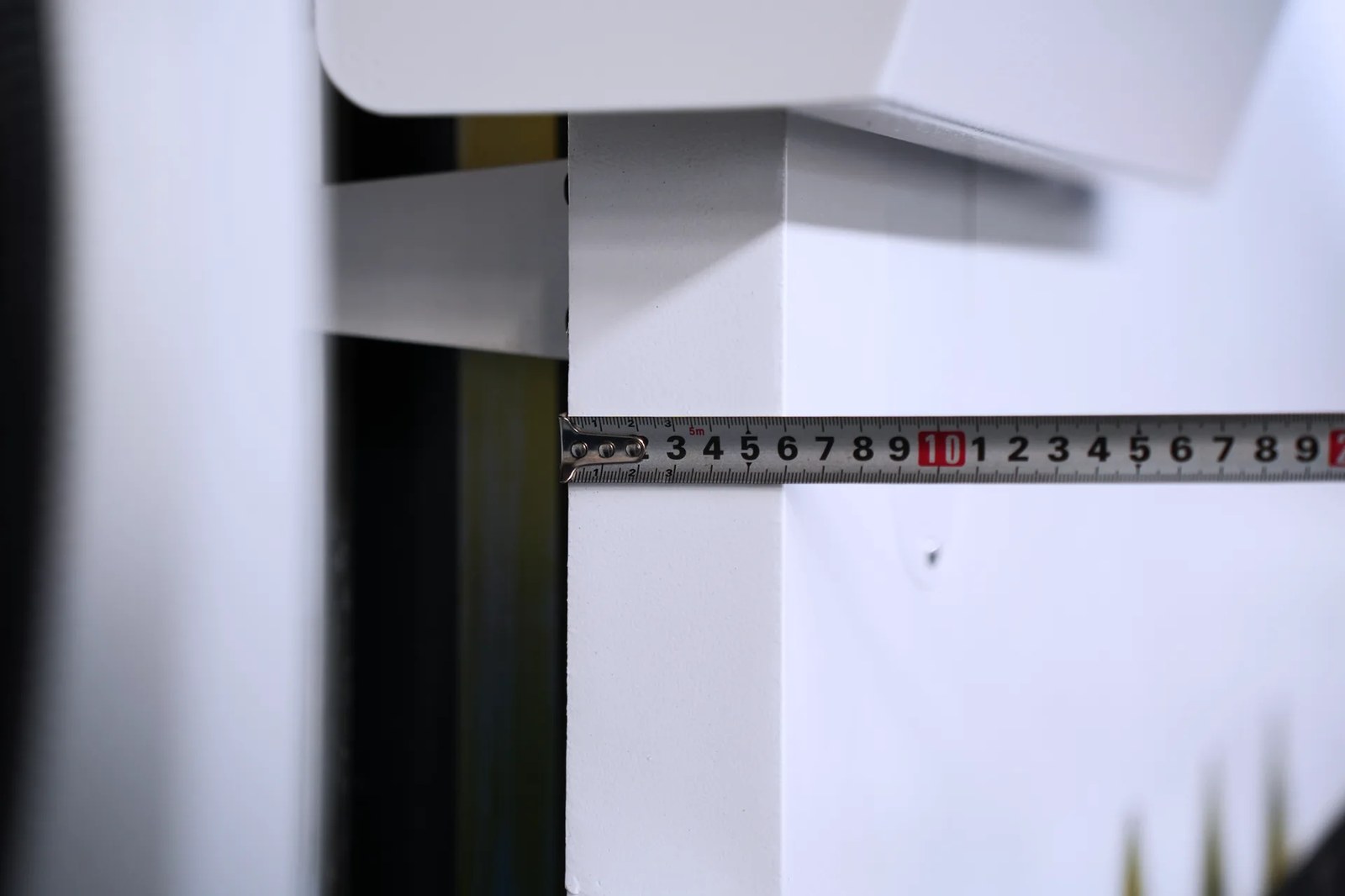

Thickness of slider (60mm)

Tooling (Optional)

Standard tooling

Non-Standard tooling

Gooseneck tooling

Double-V Concentric Mold

Four-V Concentric Mold

Multi-V Mold
