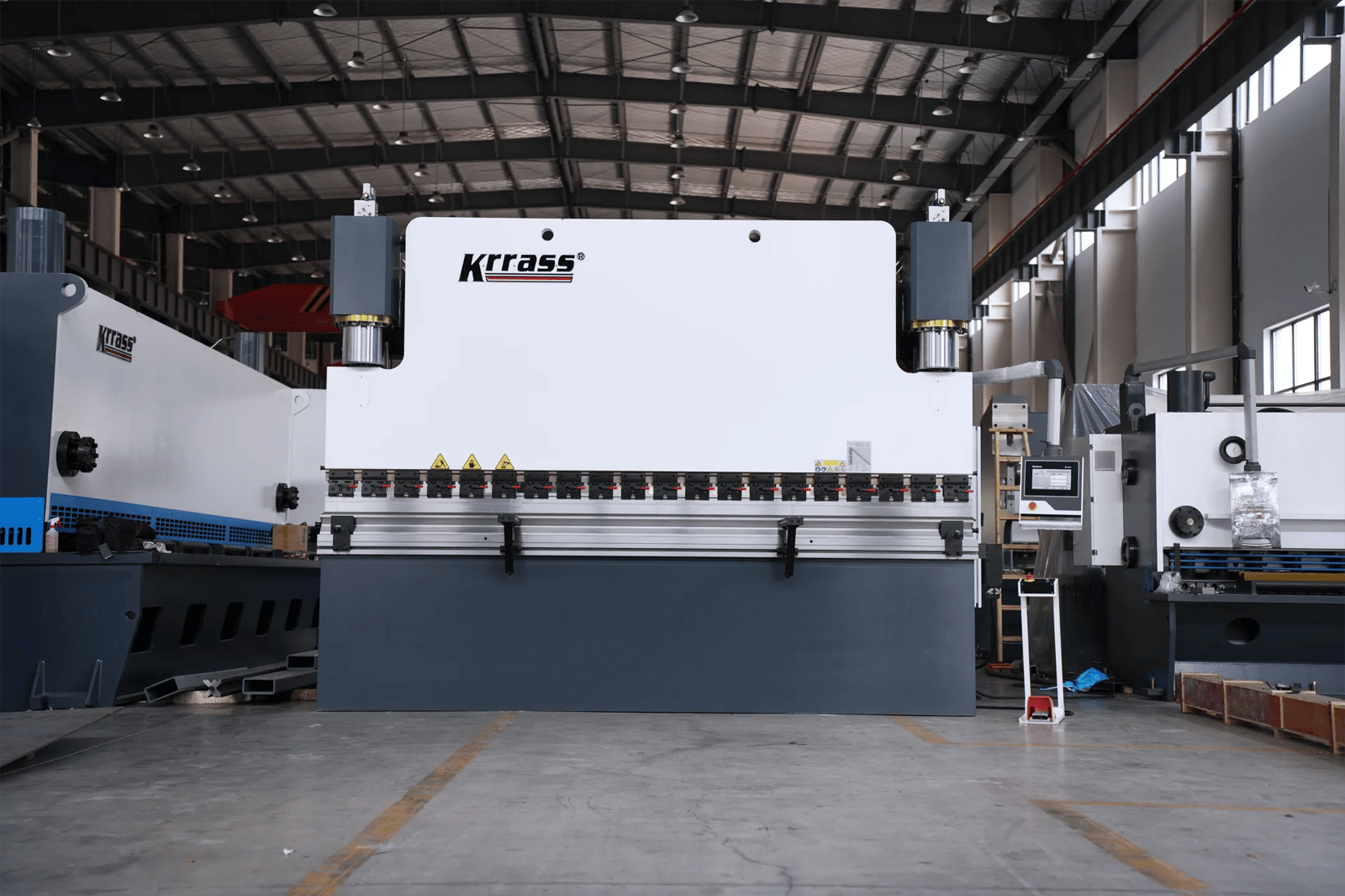

320Ton Press Brake Machine for Sale, MB8-320T4000 DA53T 4+1 Sheet Metal Press Brake price

Technologyies

Bending Pressure:	3200KN
Bending Length:	4000mm
CNC Control Axes:	Y1+Y2+X+W Crowning
Main Motor:	22KW
Operating Voltage:	380V/220V 50HZ/60Hz
CNC System:	DA-53T
Length* Width* Height:	4500mm * 1700mm * 3350mm

Configurations

Main Feature

320Ton Press Brake Machine for Sale with DA-53T Controller with its easy-to-use control unit, rigid body frame, flawless design, high efficiency, multiple tool usage solutions, top CE safety standards, and a suitable price range make it the best-in-class world leader. It is ideal for bend-sensitive, energy-efficient solutions.

• Simple and solid Hydraulic Press Brake
• Work area can be customized and all types of tool clamping can be installed
• Tailored-made Hydraulic Press Brake

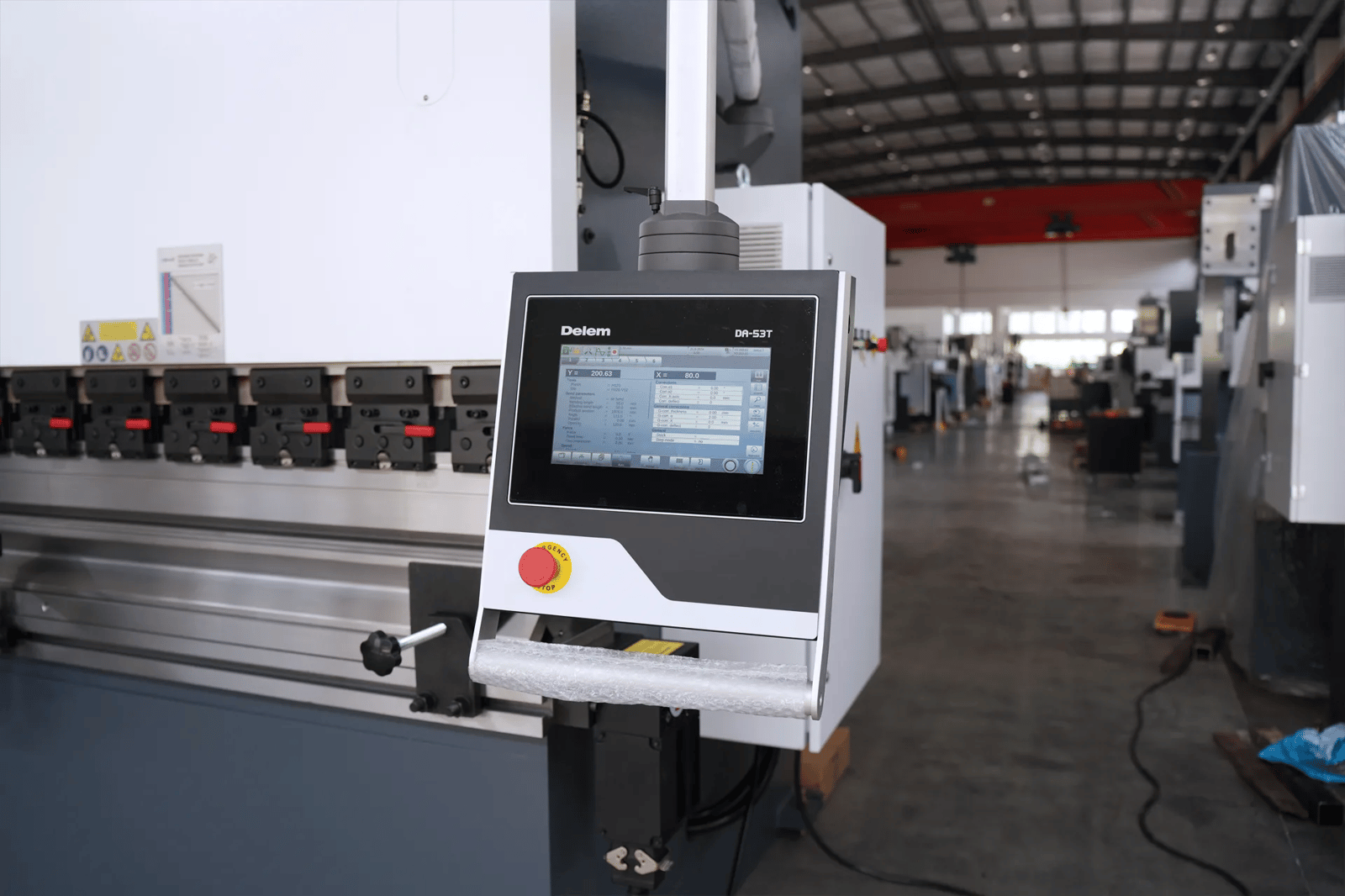

DELEM DA-53T Control​

• 10.1″ high resolution colour TFT
• “Hot-key” touch navigation
• Up to 4 axes (Y1,Y2 + 2 aux. axes)
• Tool / material / product library
• Advanced Y-axis control algorithms for closed-loop as well as open-loop valves.
• CNC Crowning control
• USB memory stick interfacing
• Profile-53TL offline software

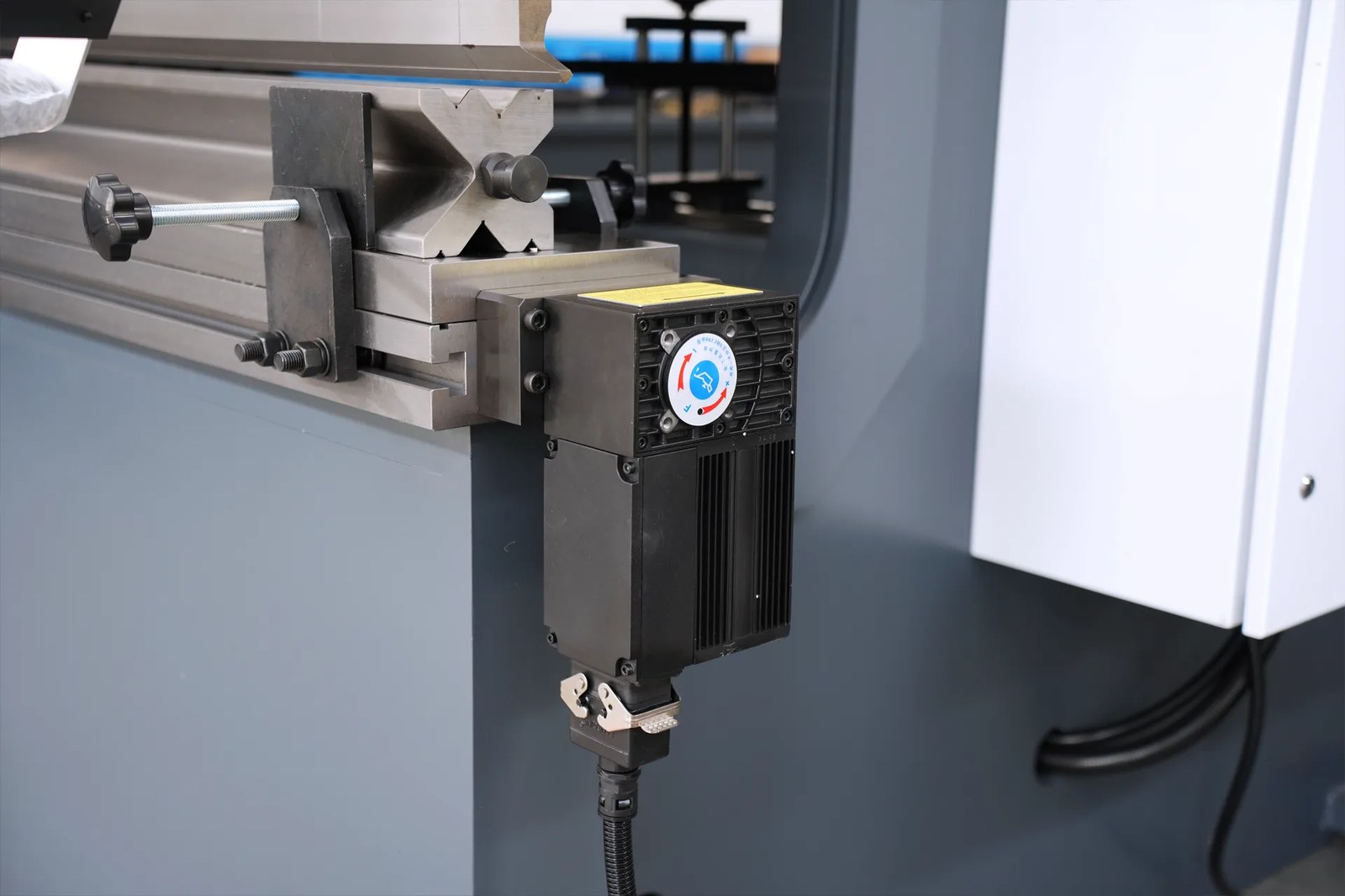

Electric Crowning System

• Very precise bending angles
• Europe type dies with 60 mm and 90 mm
• Base can be clamped as well as single dies with 13 mm tang
• Electric crowning with a controller
• Precise positioning and alignment of the crowning table
• Easy and fast usage

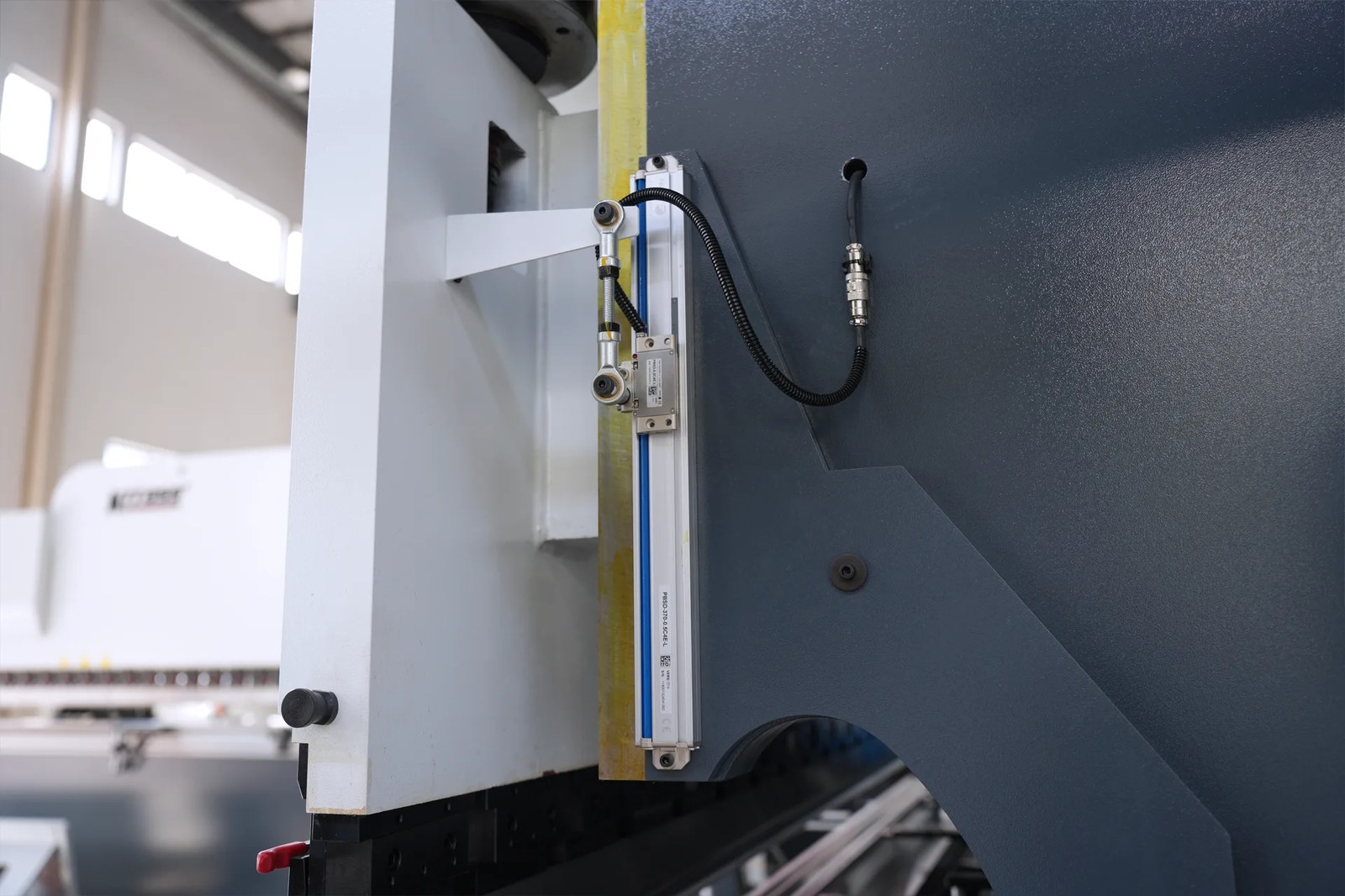

Fagor Grating Ruler

Slider position signal is feedbacked to controller by Spain FAGOR Grating ruler , then the CNC controller adjusts the amount of fuel tank by changing the synchronous valve opening size.

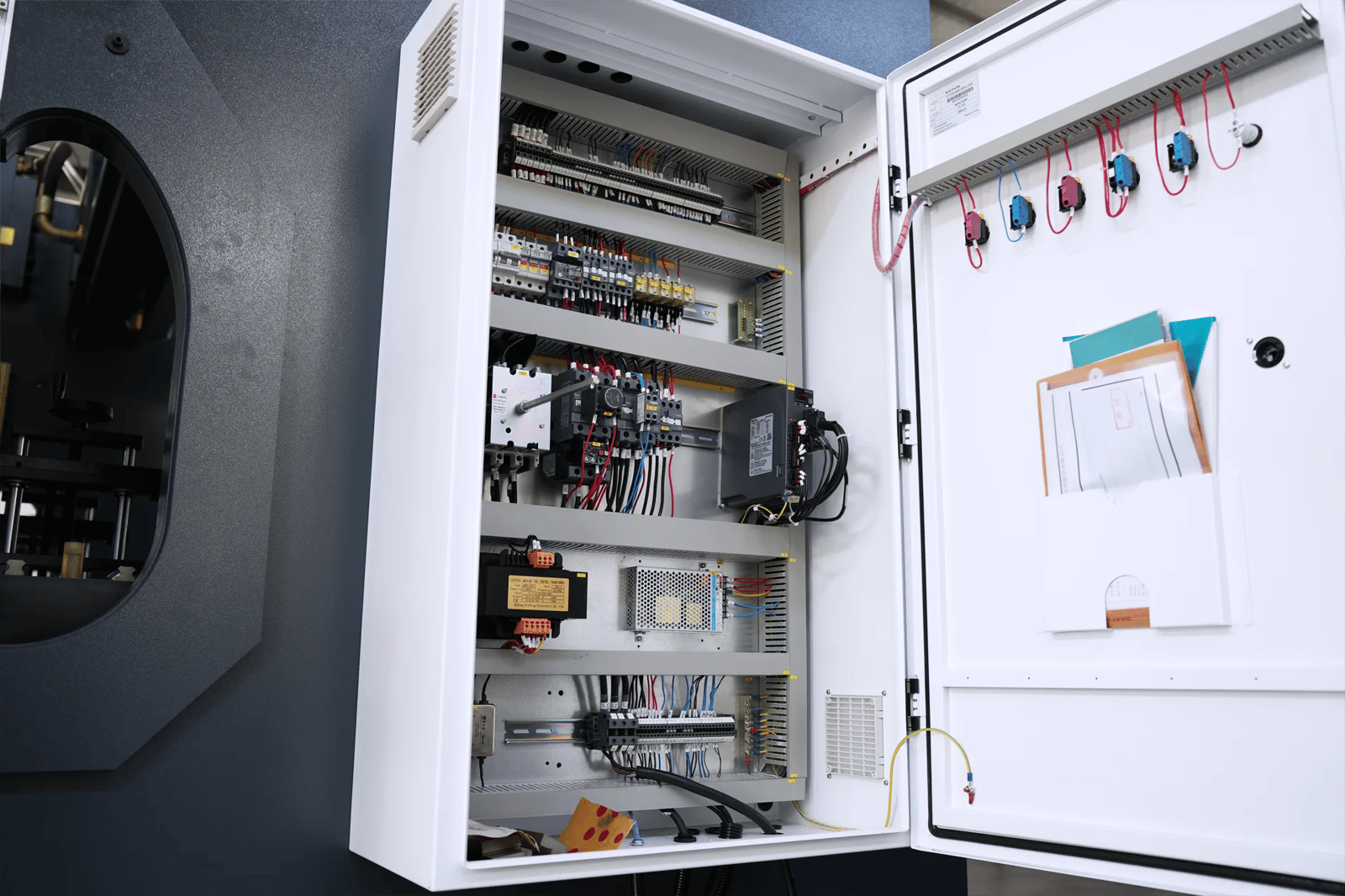

Schneider Electric

High quality electric parts can perform well even the electricity is not stable and customers can easily get the replacement anywhere in the word.

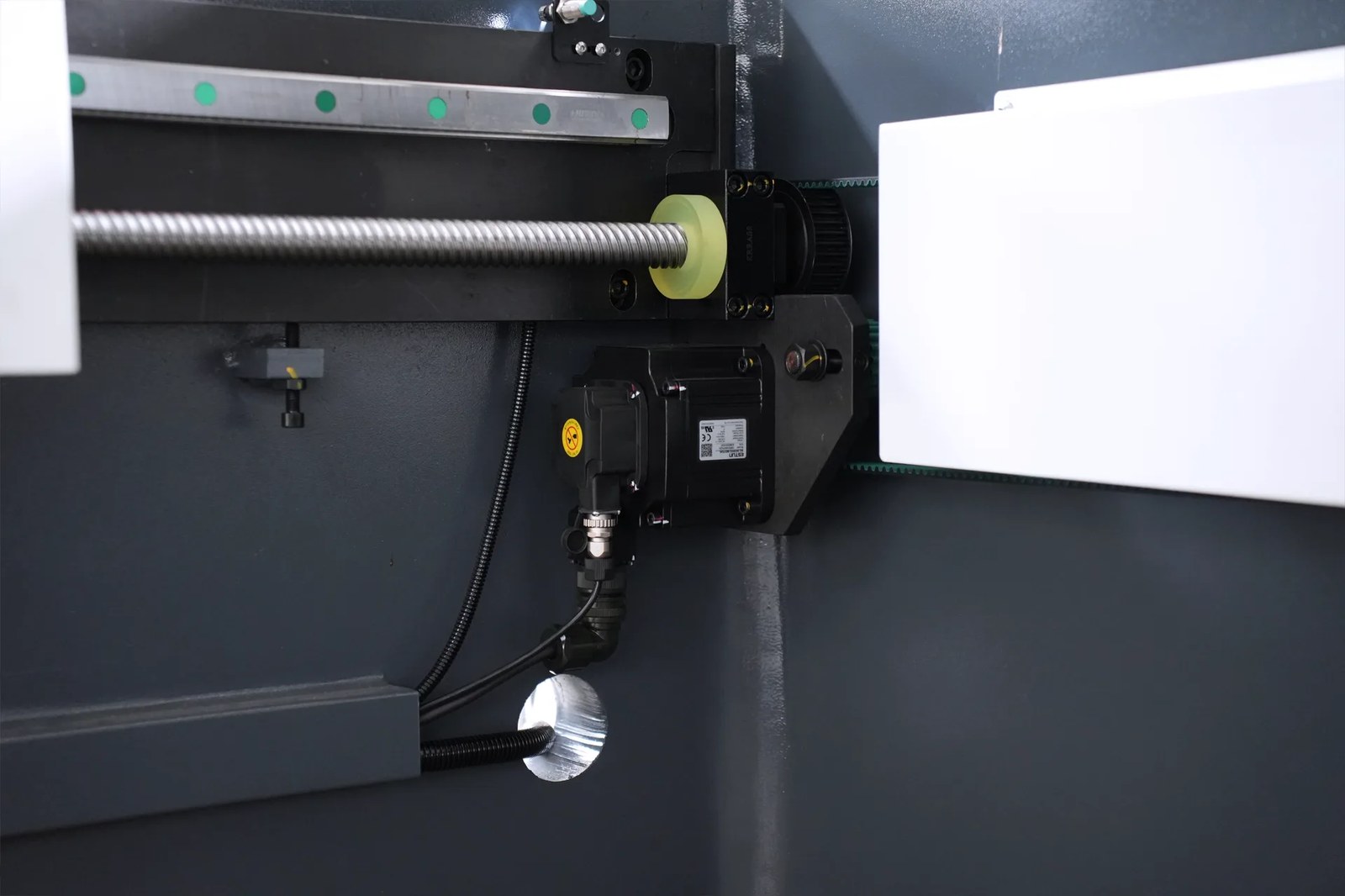

X-axis Servo Motor

In addition, the advantages of servo motors include:

• High reliability: Highly reliable
• High ratio of torque to inertia: Can provide as much as 50% more torque in many applications
• High precision: Can precisely actuate, hold, and speed up positions, torque, and speeds in fractions of seconds

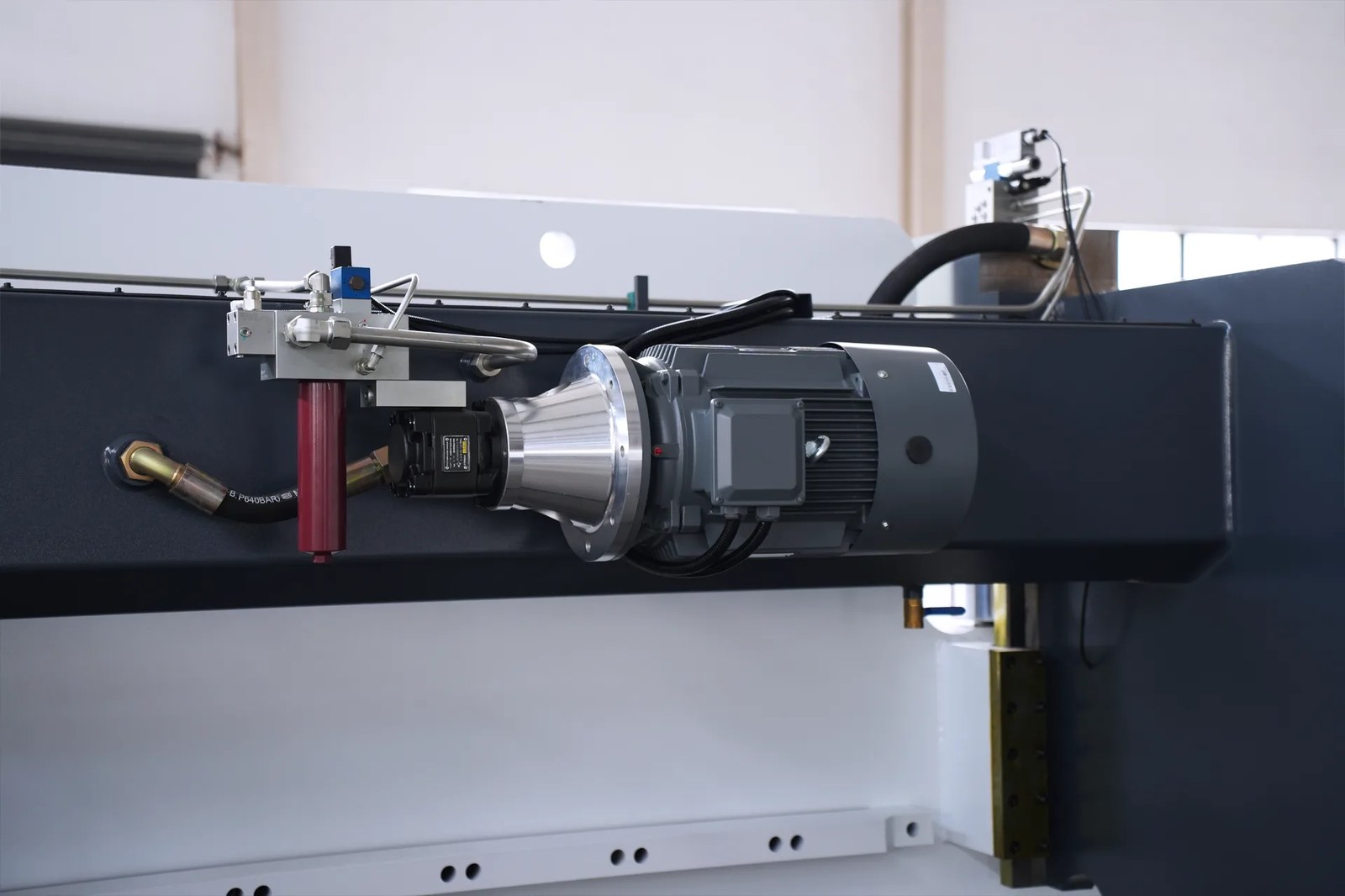

German Siemens Main Motor

The German famous brand motor increases the service life of the machine and keeps the machine working in a low-noise environment.

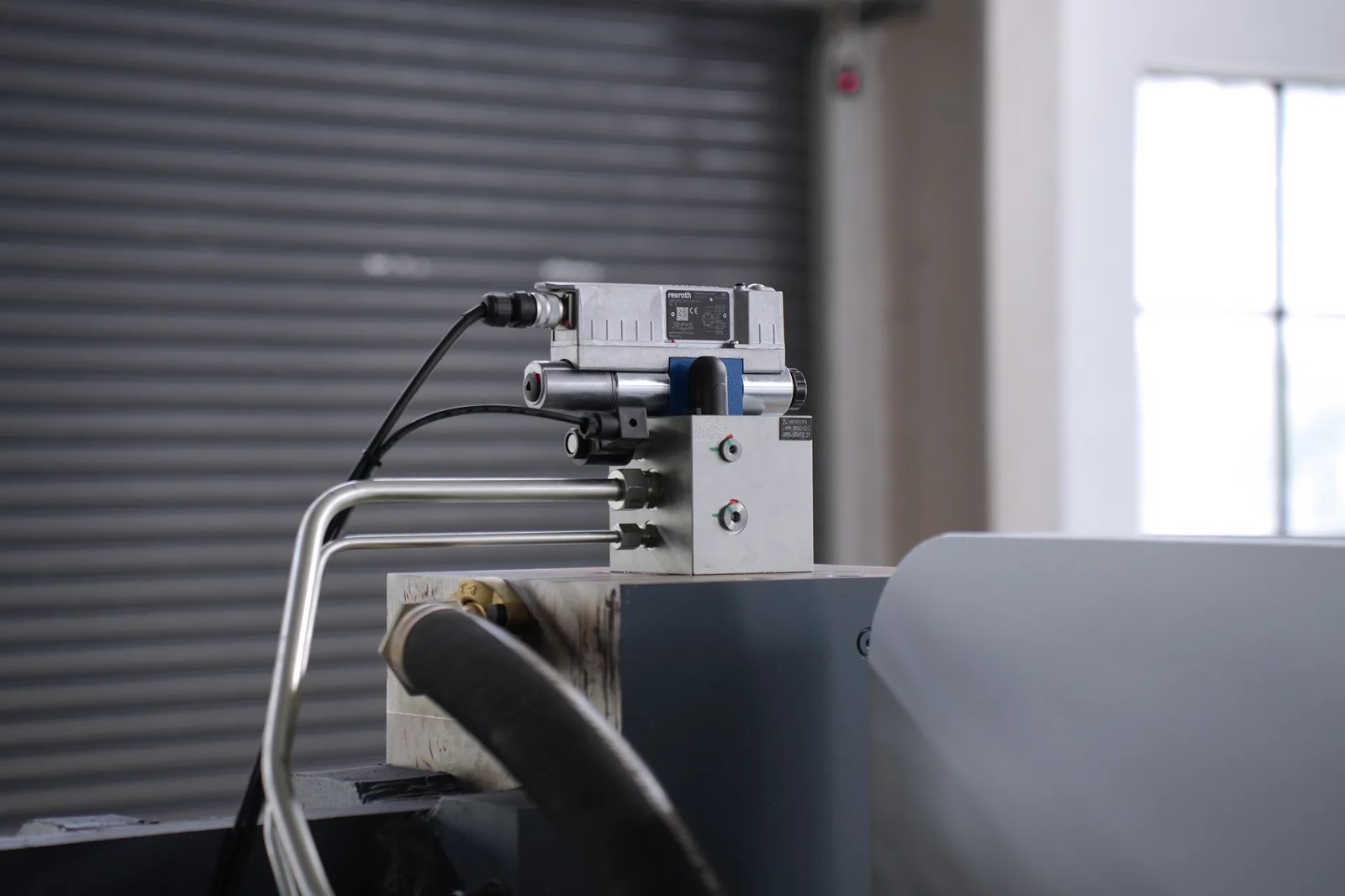

Rexroth Proportional Valve

The German Rexroth fully closed-loop electro-hydraulic servo high-frequency synchronous control system is adopted to ensure that the machine tool has high stability and high precision in the process of high-speed operation.

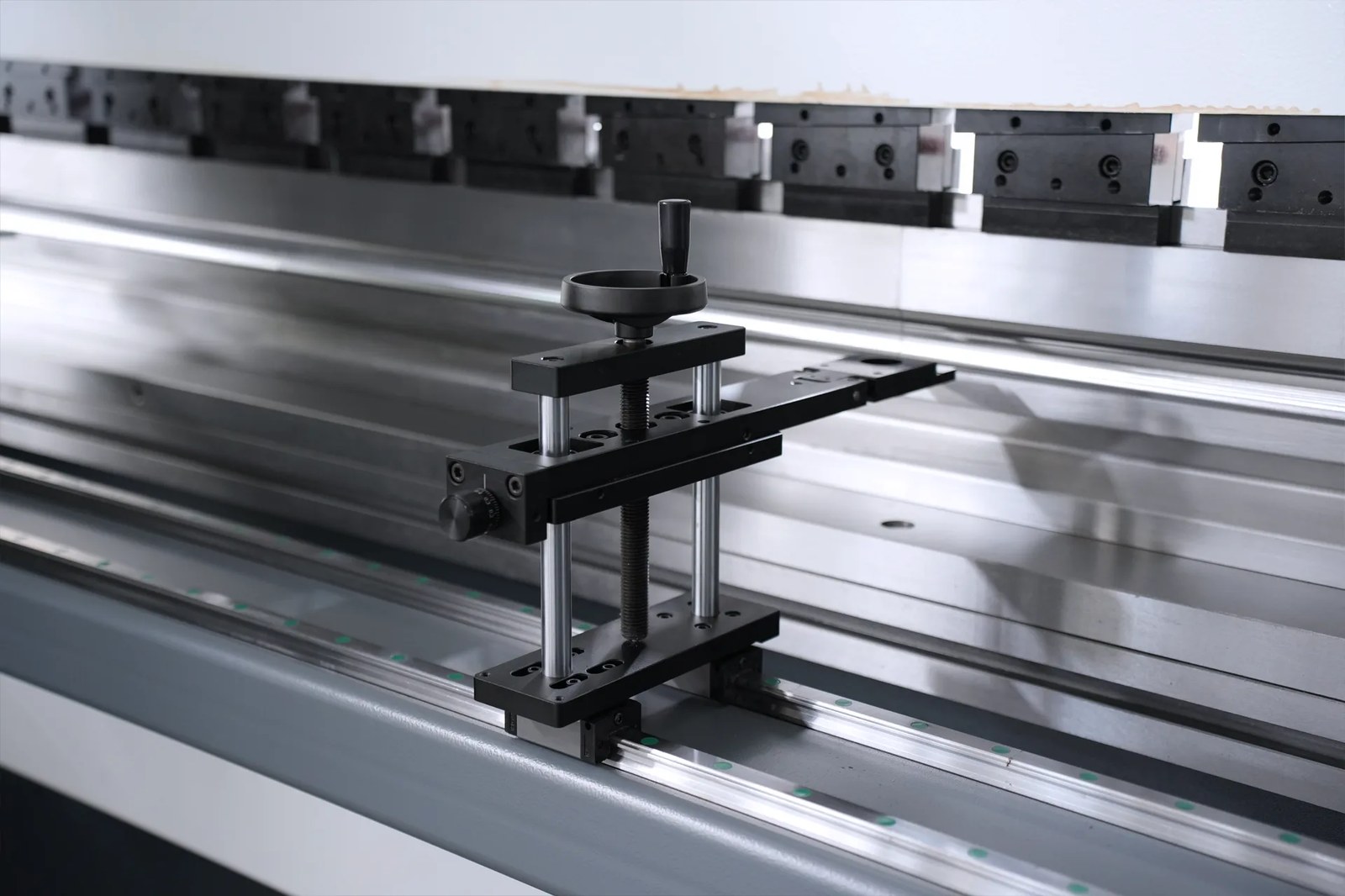

Liftable Backgauge

High-precision backstop means that customers can input the size into the system according to the product’s dimensions, and it can be positioned accurately with an accuracy of 0.01mm.

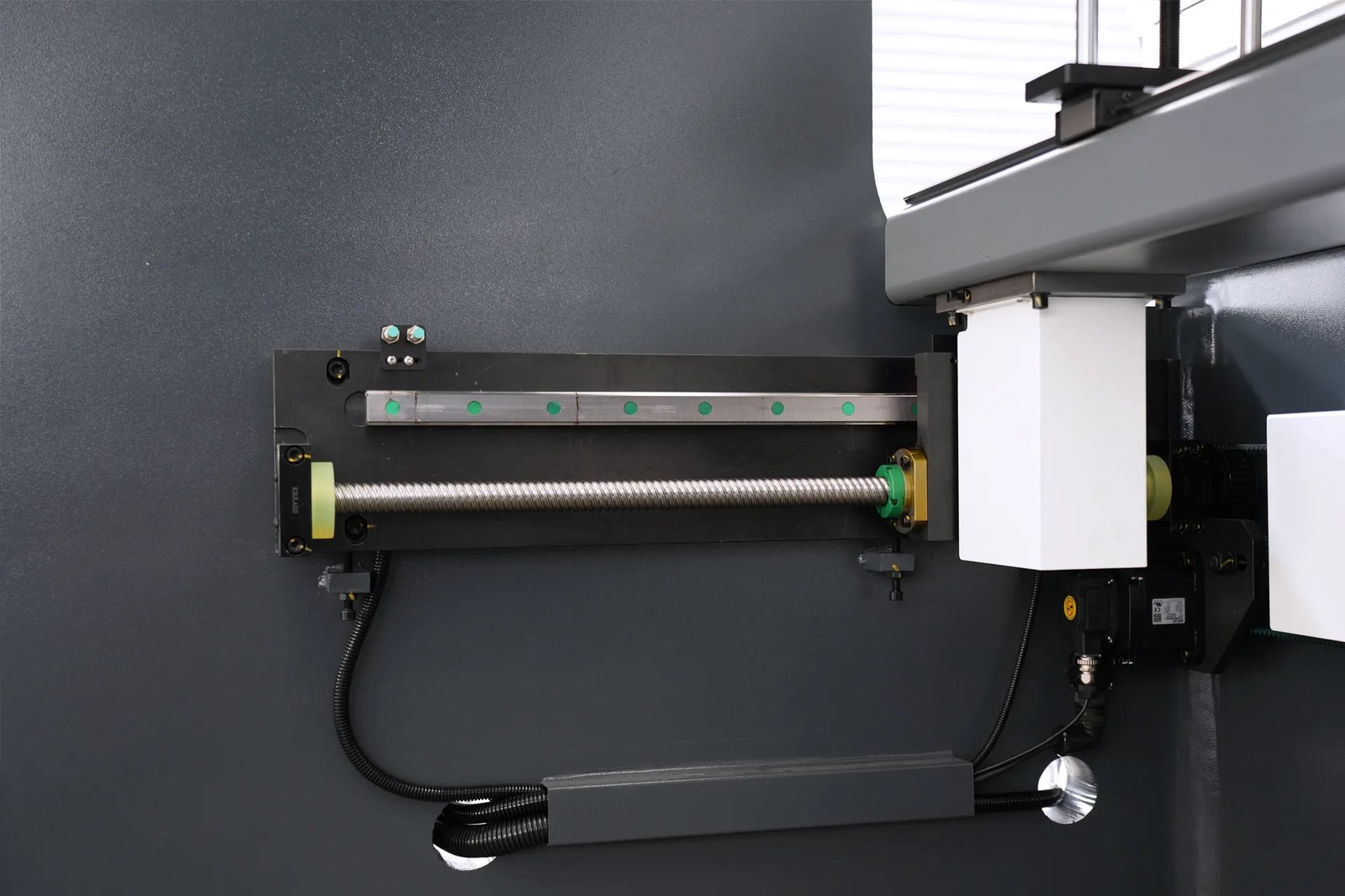

X-axis Guide Rail and Lead Screw

• Hiwin Ball screws and linear guide on X, R-axis
• Axis X speed 500 mm/s
• The backgauge can be manually adjusted for R-axis height
• Mechanical accuracy ± 0.01 mm
• Fingers with double stop and micrometric adjustment

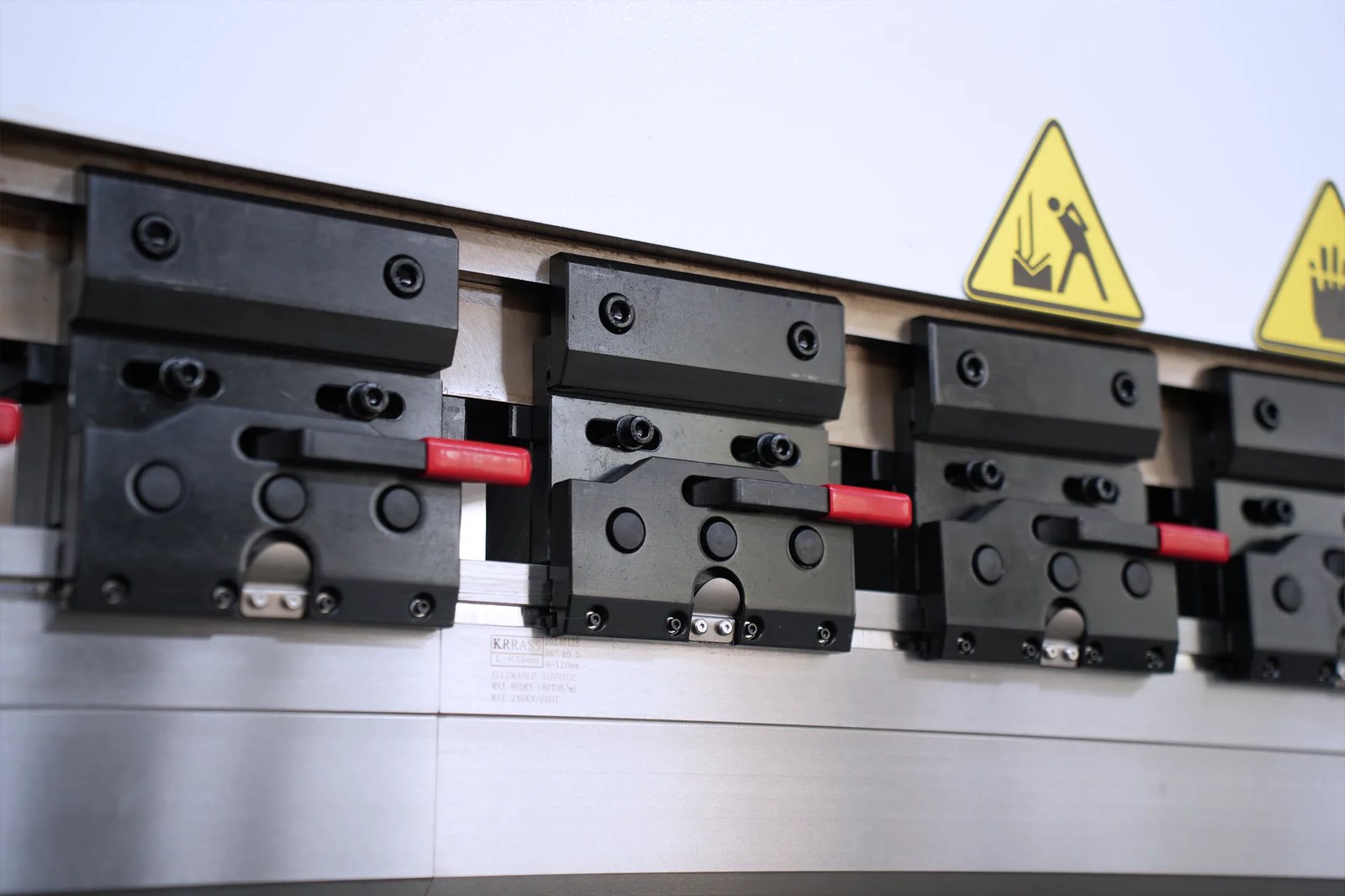

High-precision Quick Mold Change Device

The upper mold is divided into different gold sizes and can also be cut according to customer requirements.

The lower mold adopts a Single-V concentric mold, which can adapt to customers’ bending of materials with different thicknesses. The mold can also be modified according to customer requirements. To meet the best needs of customers.

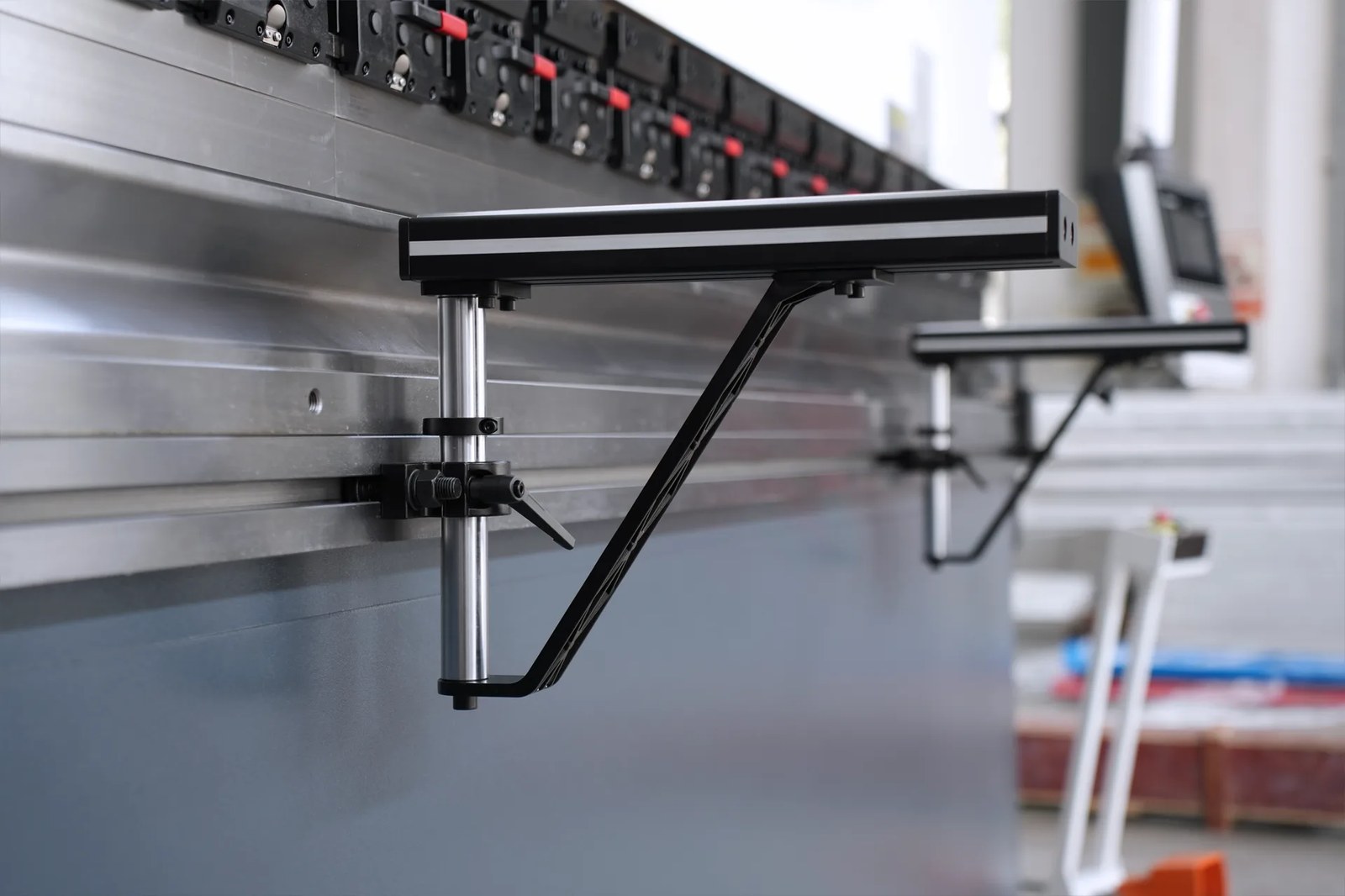

Front Material Support

The front support can be raised and lowered and rotated. When you want to bend larger metal sheets, it can effectively help you and reduce your burden.

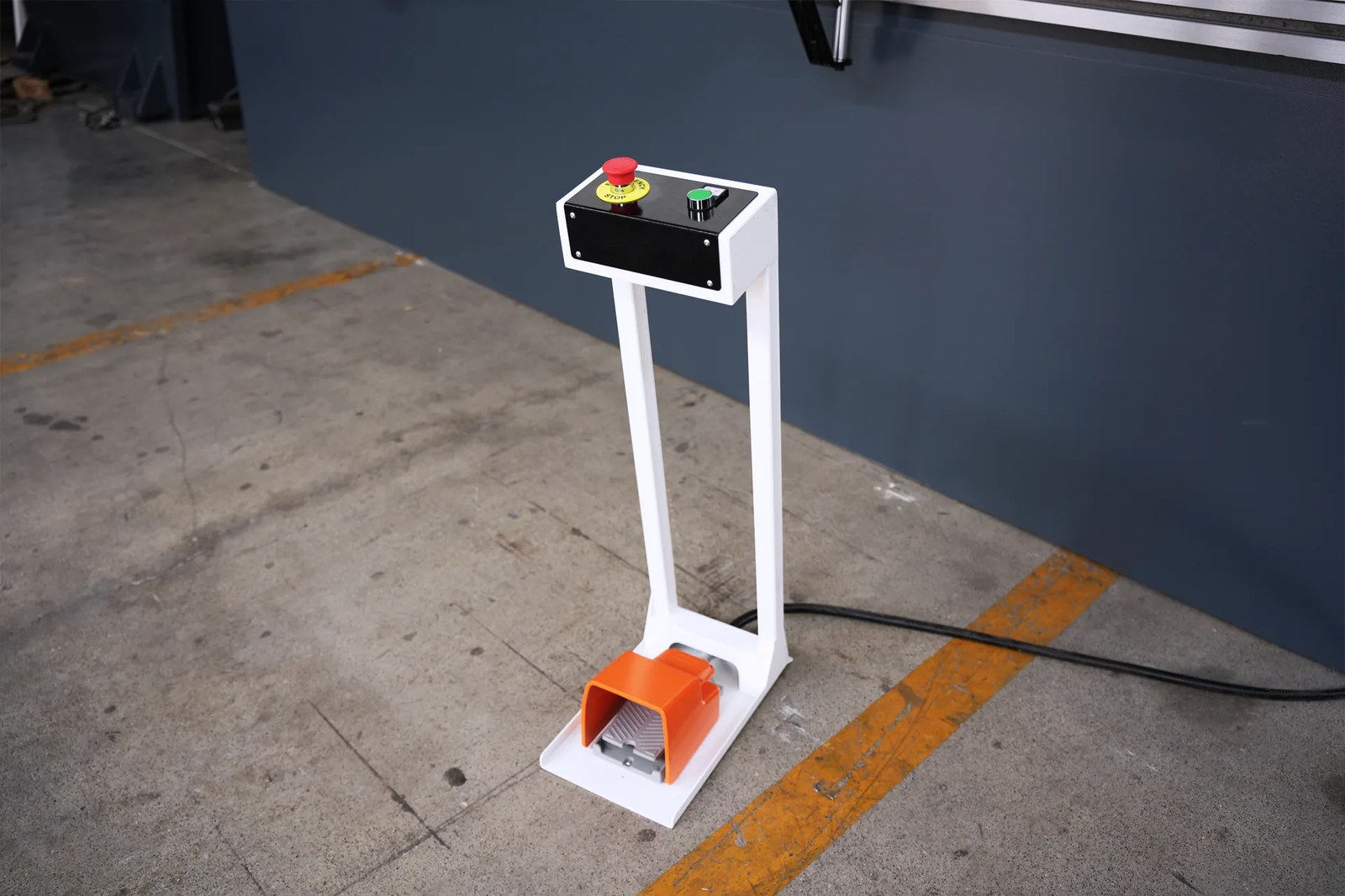

South Korea KACON Foot Switch

South Korea brand foot switch is movableand can stop the machine anytime by theemergency button.

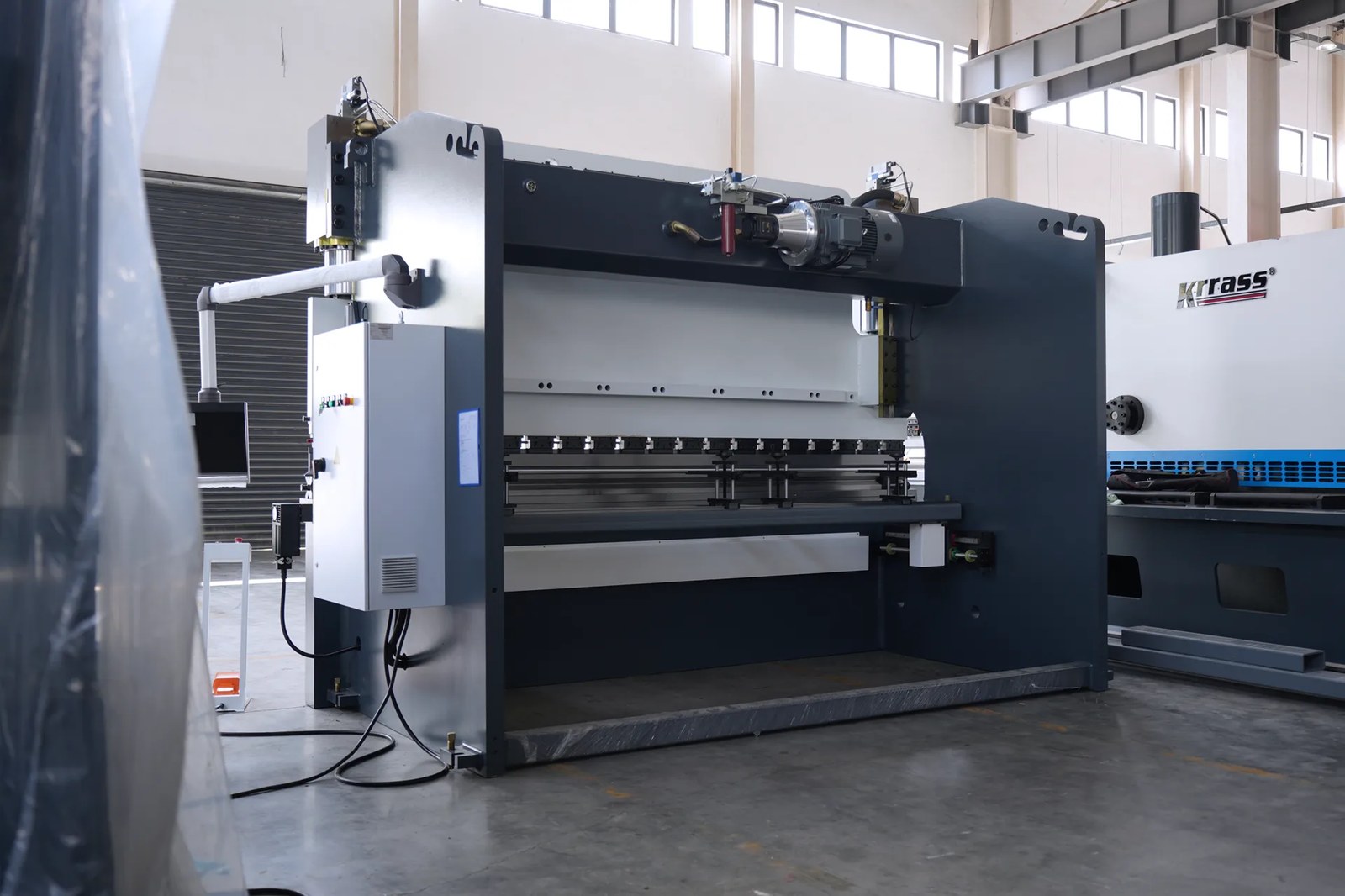

Back Of The Fuselage

The whole machine has a clean and neat structure design, regular lines and is easy to operate, making it an ideal choice for bending metal sheets.

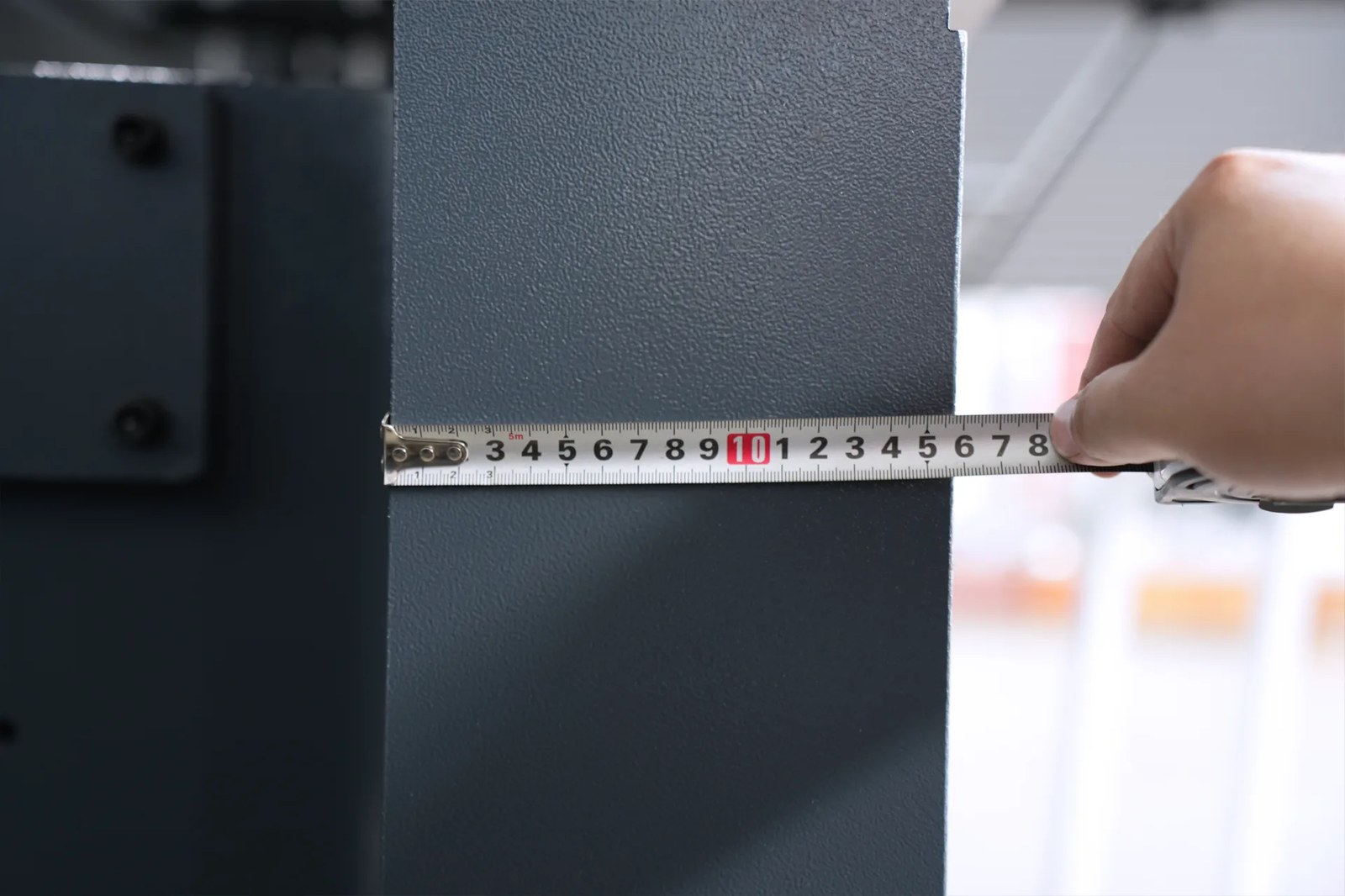

Thickness of workbench (160mm)

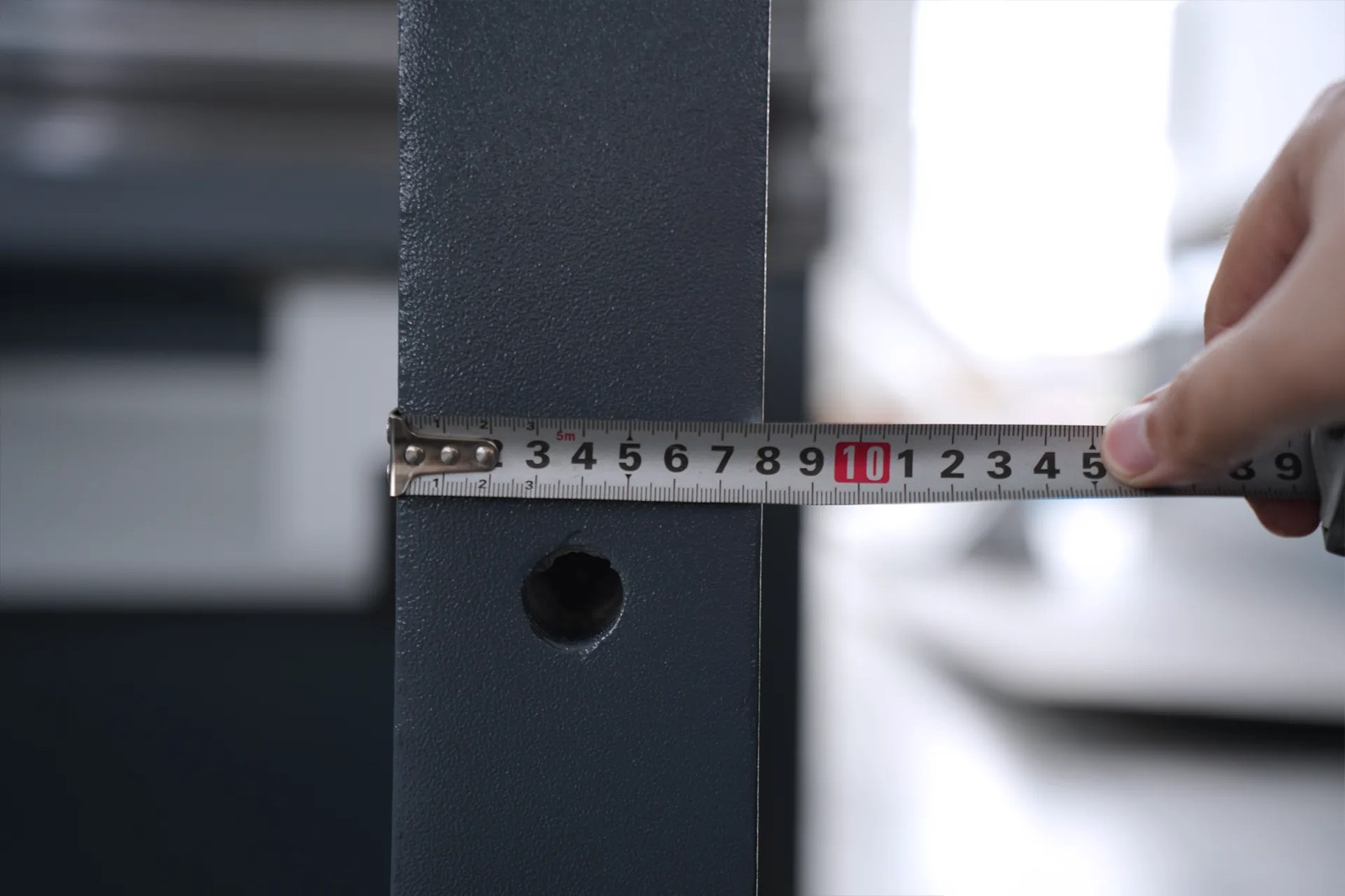

Thickness of side panel (80mm)

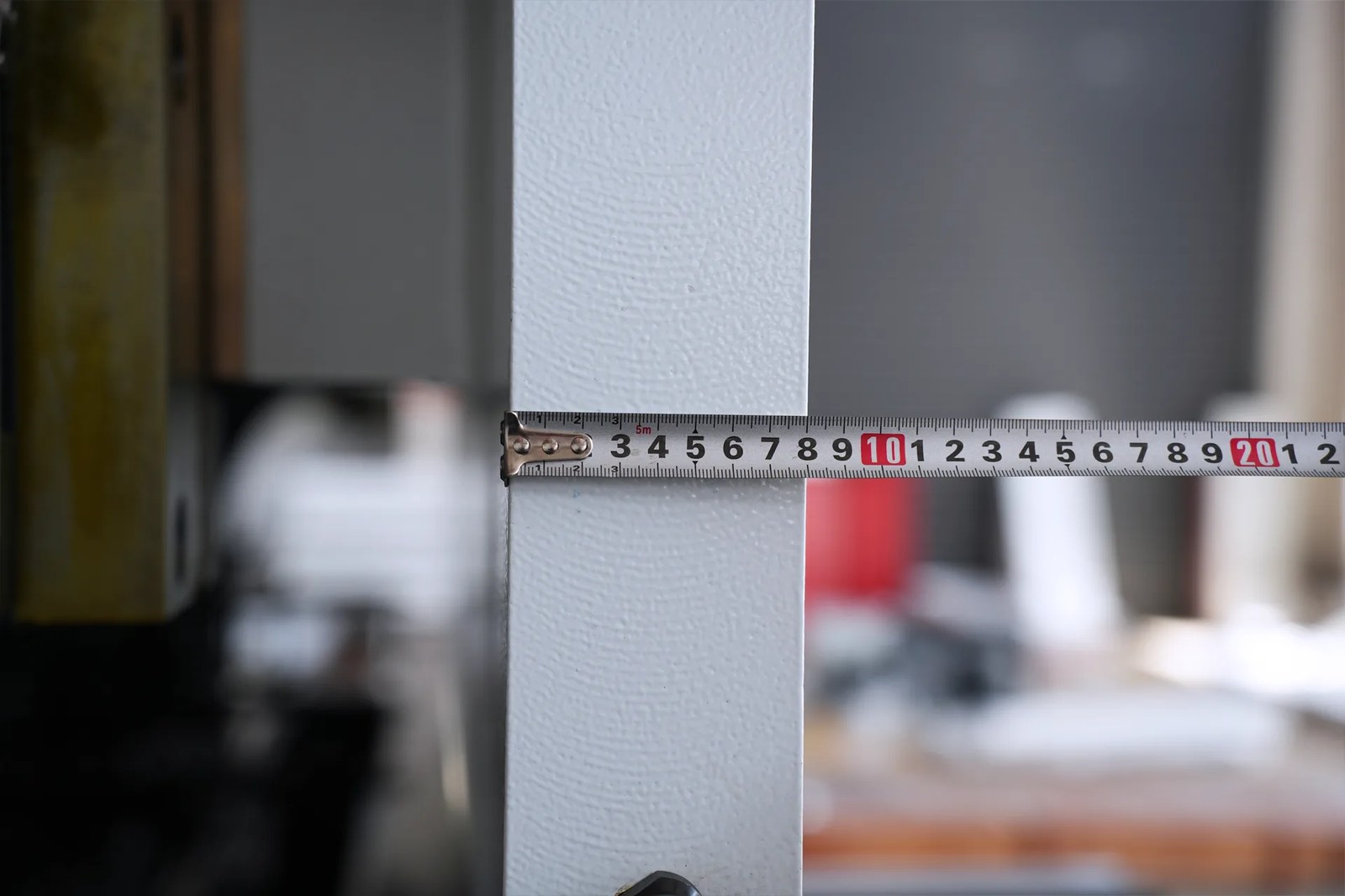

Thickness of slider (80mm)

Tooling (Optional)

Standard tooling

Non-Standard tooling

Gooseneck tooling

Double-V Concentric Mold

Four-V Concentric Mold

Multi-V Mold
