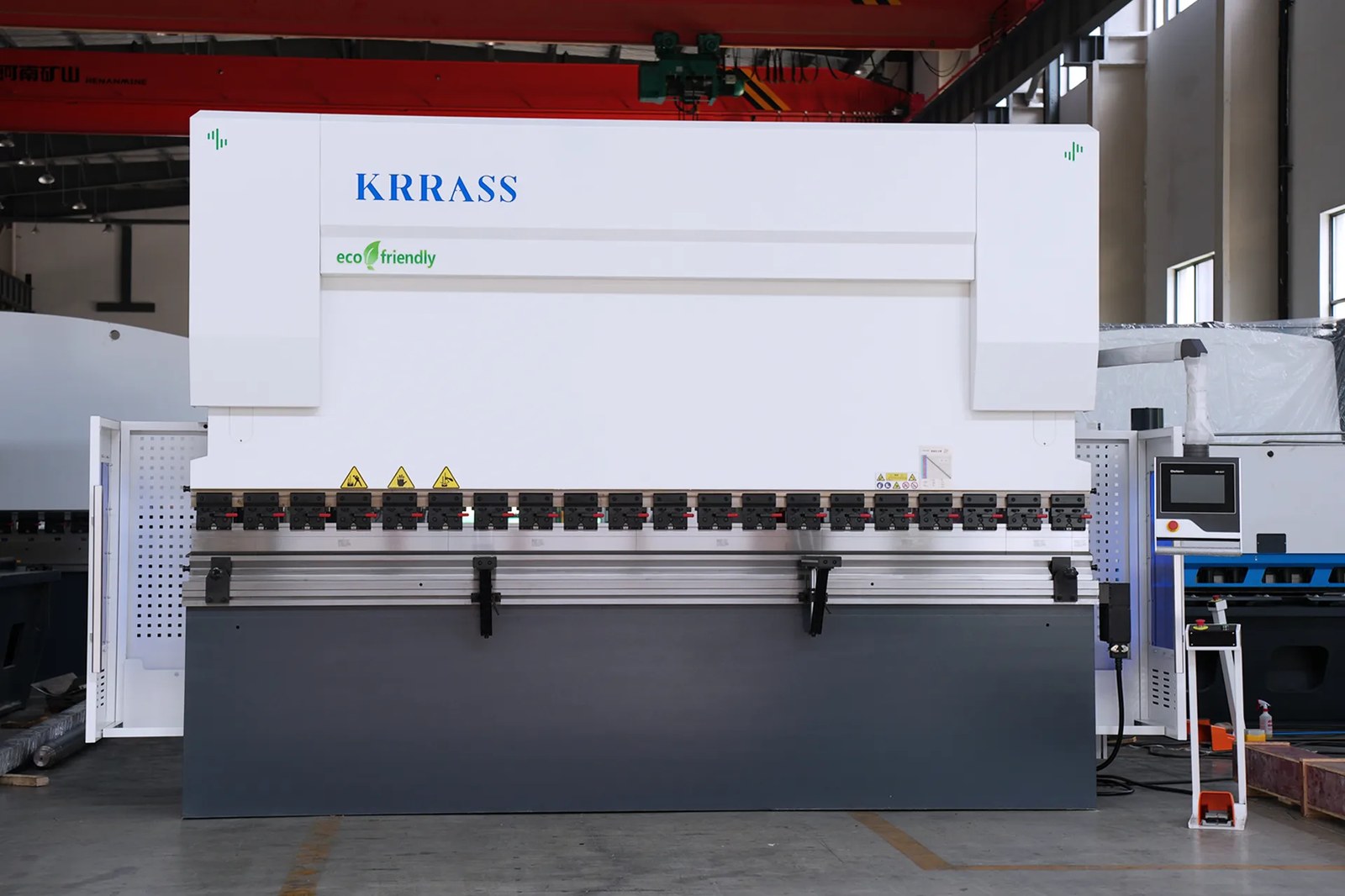

250Ton Hybrid Press Brake for Sale, PBE-250T4000 DA53T 4+1 Hybrid Press Brake Machine

Technologyies

Bending Pressure:	2500KN
Bending Length:	4000mm
CNC Control Axes:	Y1+Y2+X+R+W Crowning
Main Motor:	2 X 5.5KW
Operating Voltage:	380V 50Hz
CNC System:	DA-53T
Length* Width* Height:	4650mm * 1920mm * 2975mm

Configurations

Main Feature

The Hybrid Press Brake Machine is very satisfactory, It has an easy to use control unit, rigid body frame, flawless design, high efficiency, multiple tool usage solutions, top CE safety standards, and a suitable price range make it the best-in-class world leader. It is ideal for bend-sensitive, energy-efficient solutions.

• Simple and solid Hydraulic Press Brake
• Work area can be customized and all types of tool clamping can be installed
• Tailored-made Hydraulic Press Brake

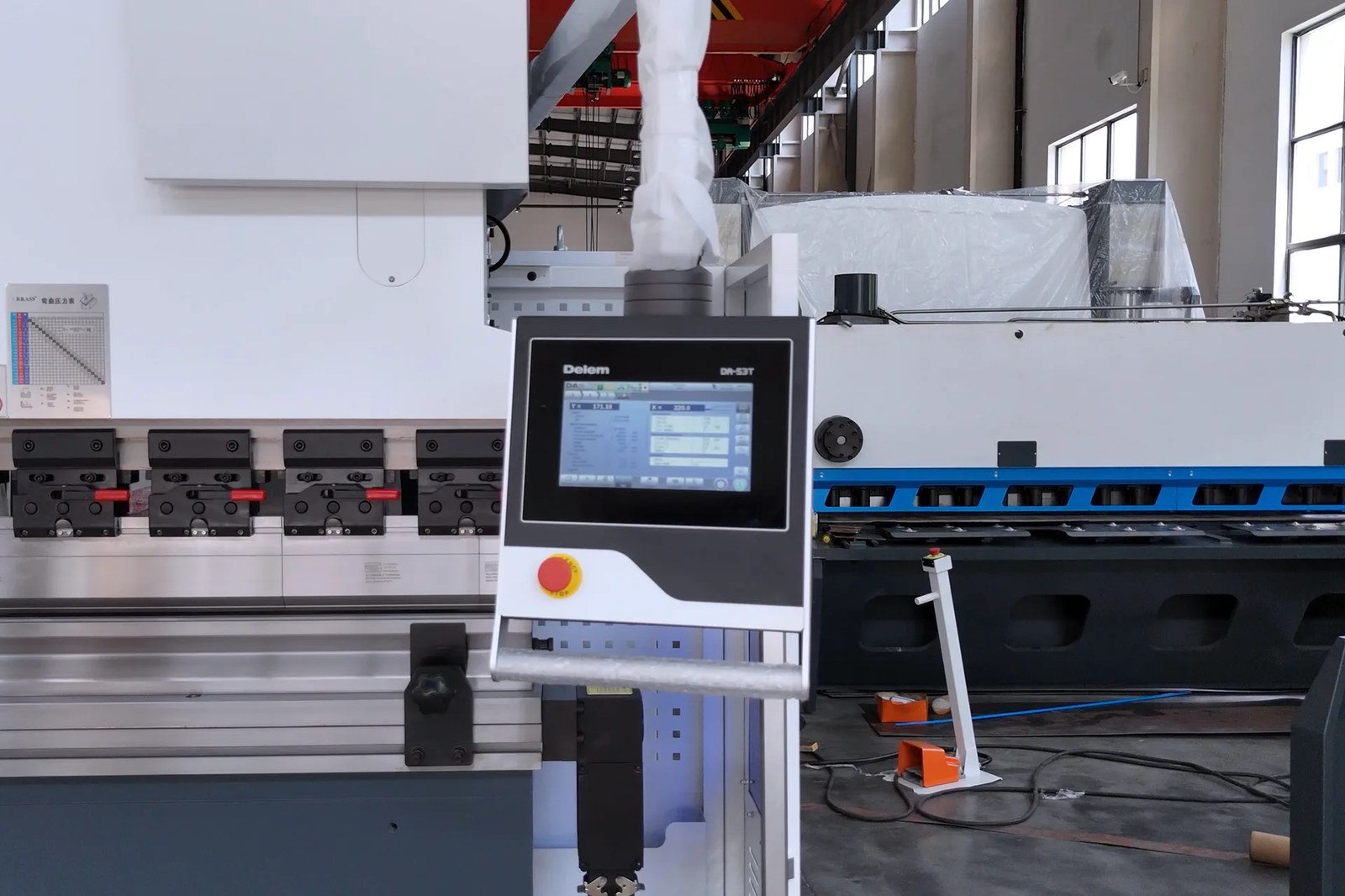

DELEM DA-53T Control​

• 10.1″ high resolution colour TFT
• “Hot-key” touch navigation
• Up to 4 axes (Y1,Y2 + 2 aux. axes)
• Tool / material / product library
• Advanced Y-axis control algorithms for closed-loop as well as open-loop valves.
• CNC Crowning control
• USB memory stick interfacing
• Profile-53TL offline software

Electric Crowning System

Low worktable has an automatic crowning compensation uint; compensation amount is automatically set up by CNC system, with guarantee a same bending angel on full length.

The worktable adopts the particular design, reducing the crowning distortion amount of lower tool effectively.

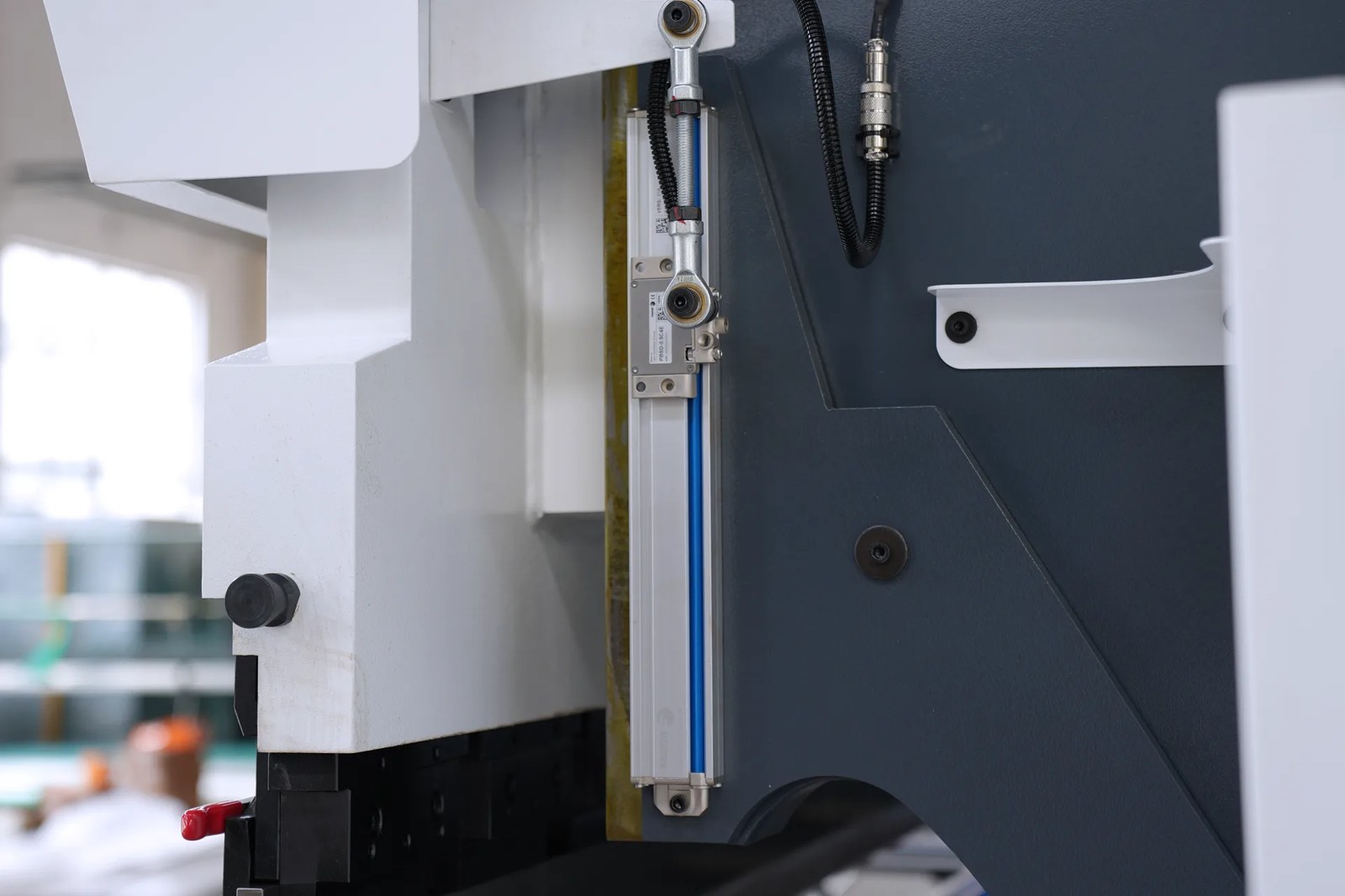

Fagor Grating Ruler

Fagor grating ruler can accurately measure the small deformation caused by bending force of machine tool,then feedback compensation, to ensure the bending accuracy of plates of any thickness and materia.

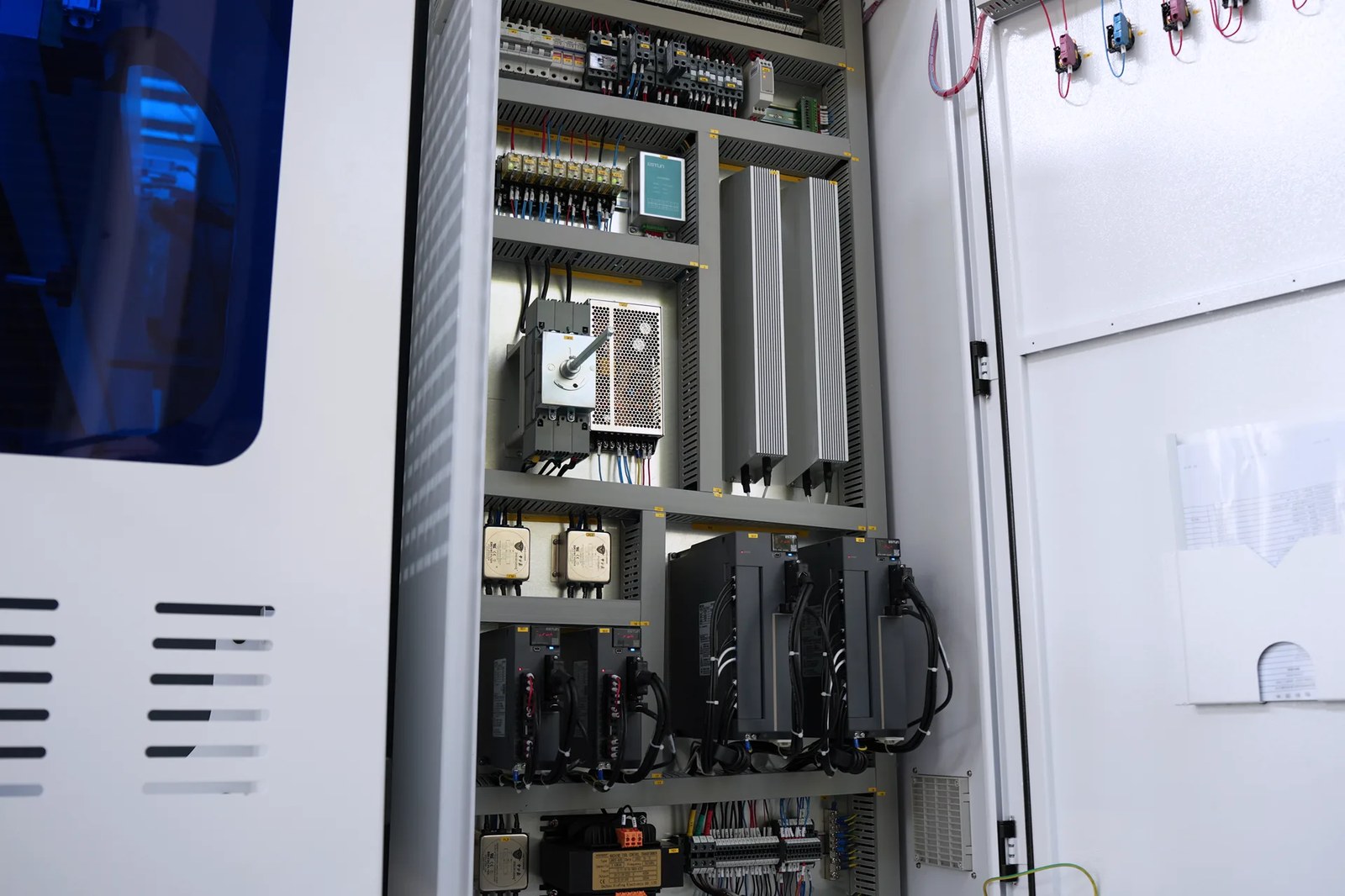

Schneider Electric

High quality electric parts can perform well even the electricity is not stable and customers can easily get the replacement anywhere in the word.

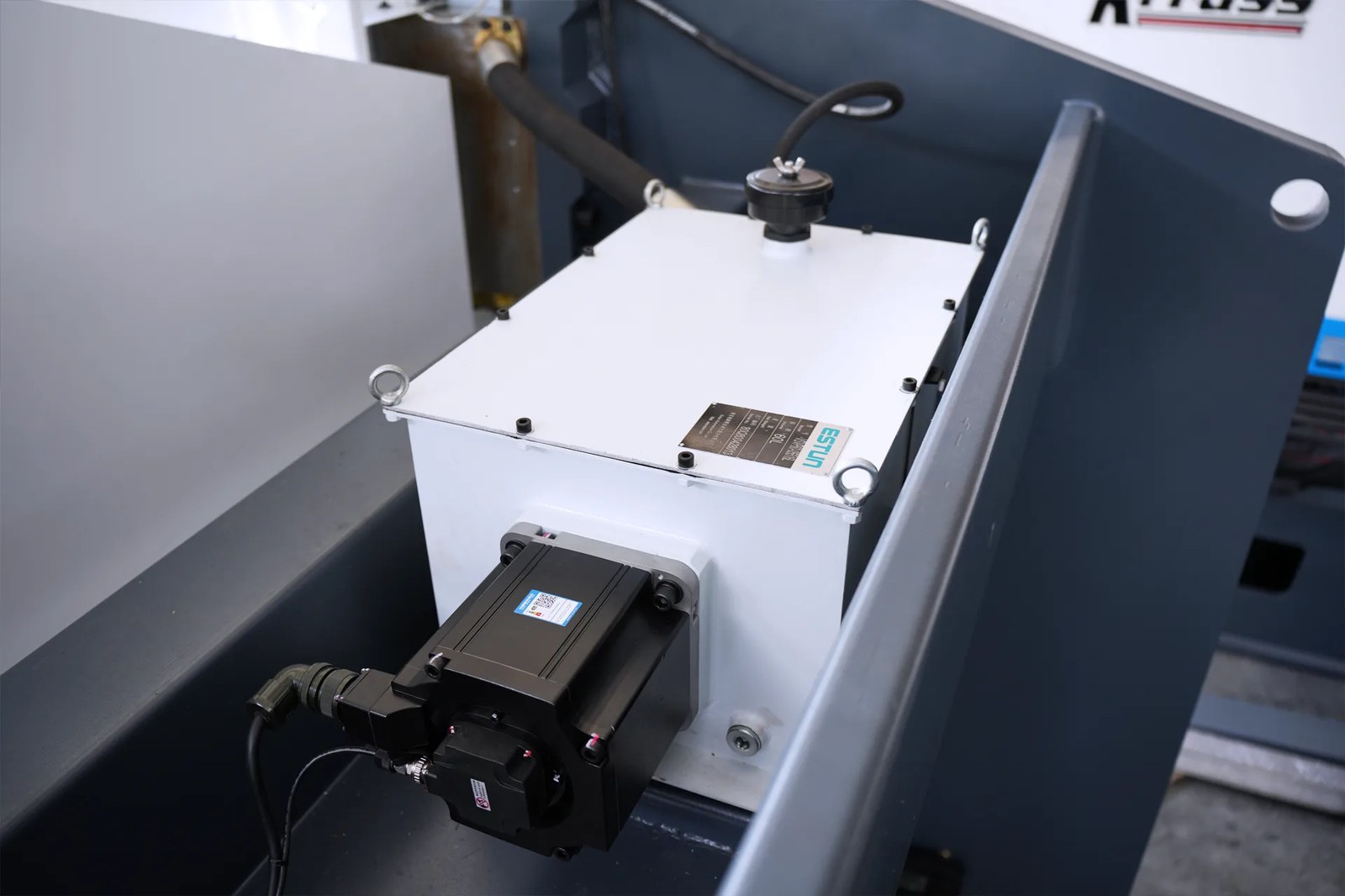

ePrAX® Hybrid Servo System

The ePrAX® control hybrid system is an innovative servo drive for Hybrid Press Brakes, and thanks to the brushless motor, we can precisely control the movement of the ram using a minimum amount of oil and energy.

Improving energy efficiency of up to 73 % compared to conventional systems.

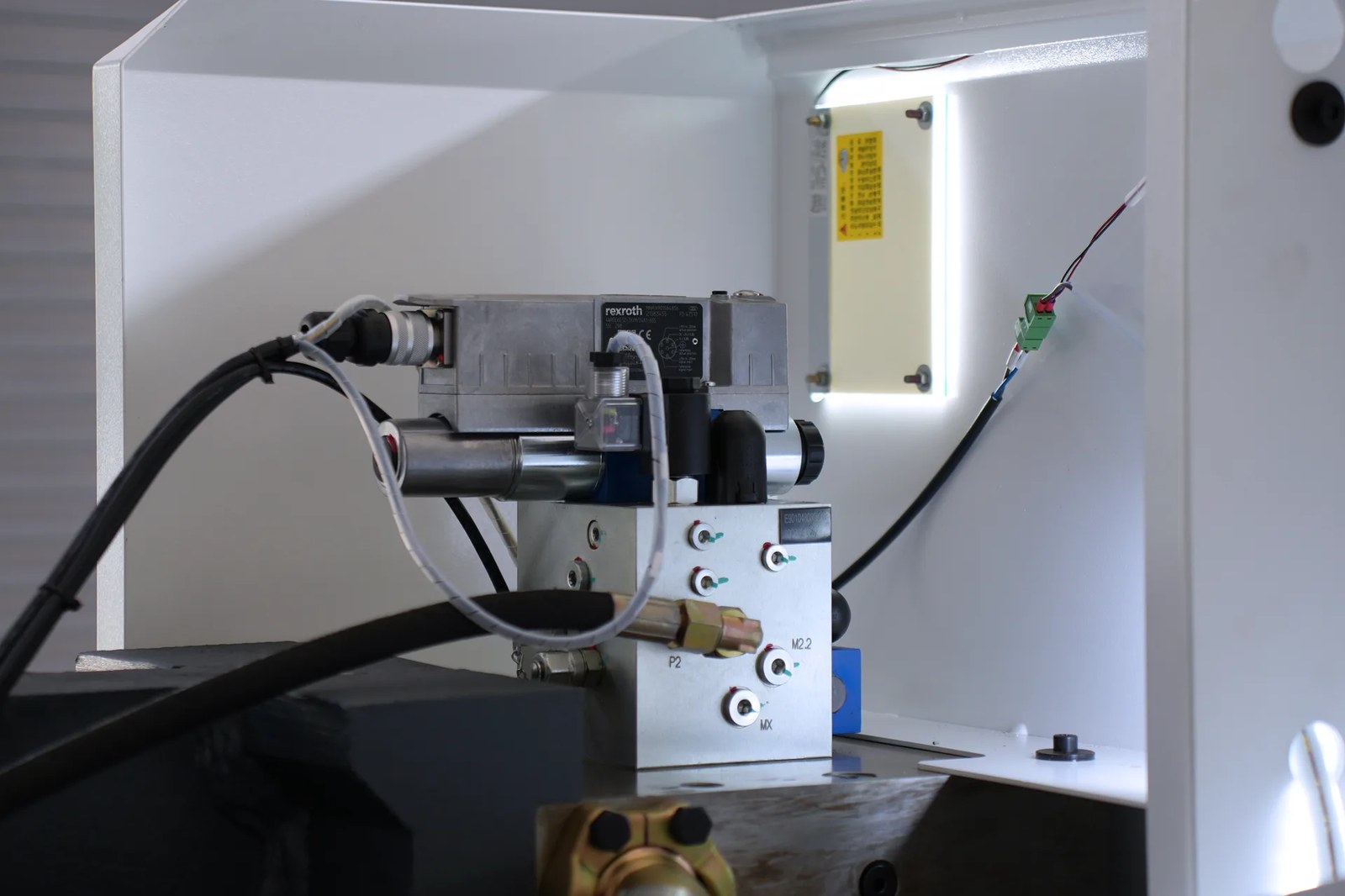

Rexroth Proportional Valve

The German Rexroth fully closed-loop electro-hydraulic servo high-frequency synchronous control system is adopted to ensure that the CNC press brake machine tool has high stability and high precision in the process of high-speed operation.

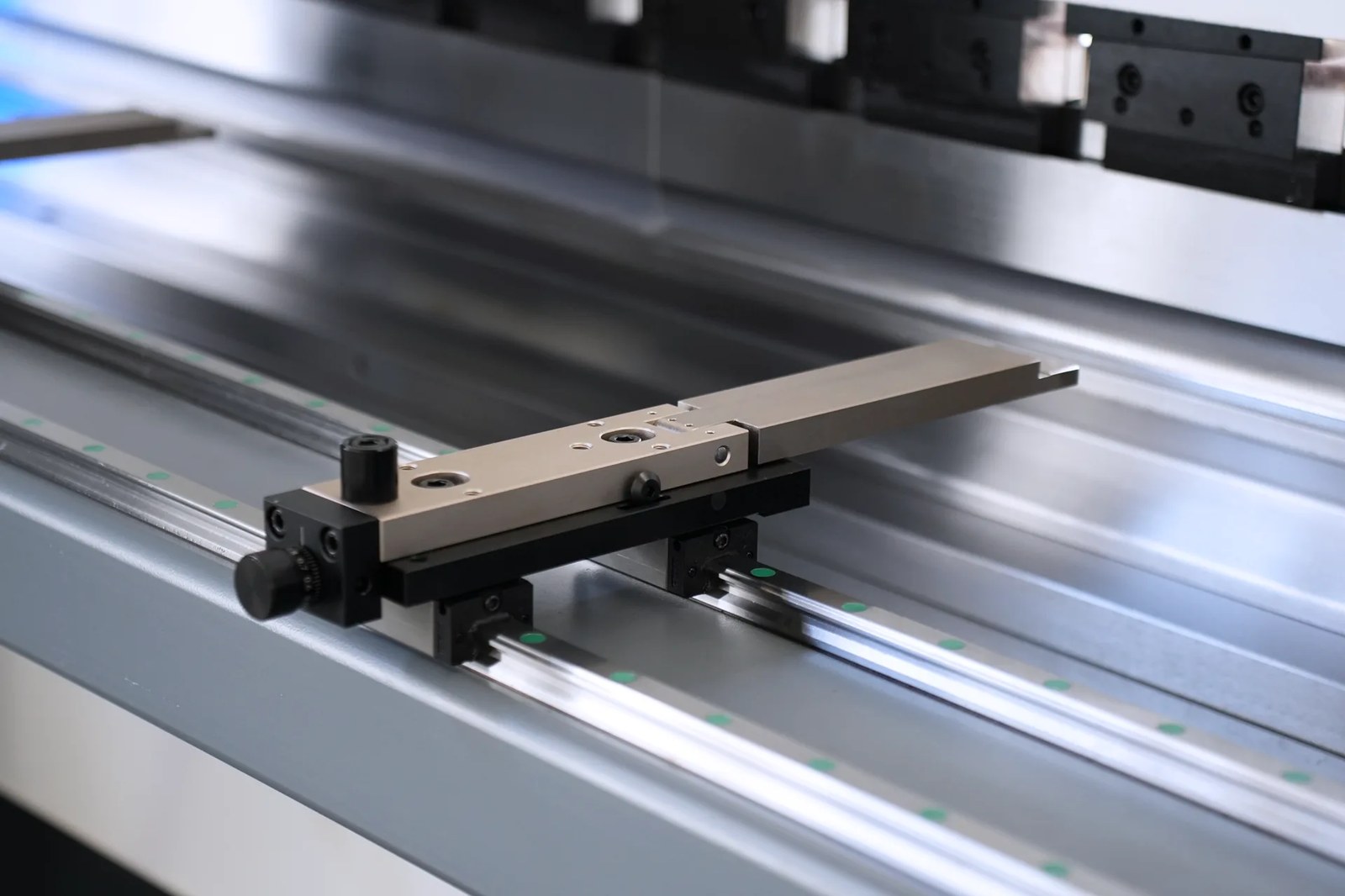

2-Axis Backgauge with X, R-Axis

• Hiwin Ball screws and linear guide on X, R-axis
• Axis X speed 500 mm/s
• Manual Z1, Z2-axis with HIWIN linear guide
• Mechanical accuracy ± 0.01 mm
• Fingers with double stop and micrometric adjustment

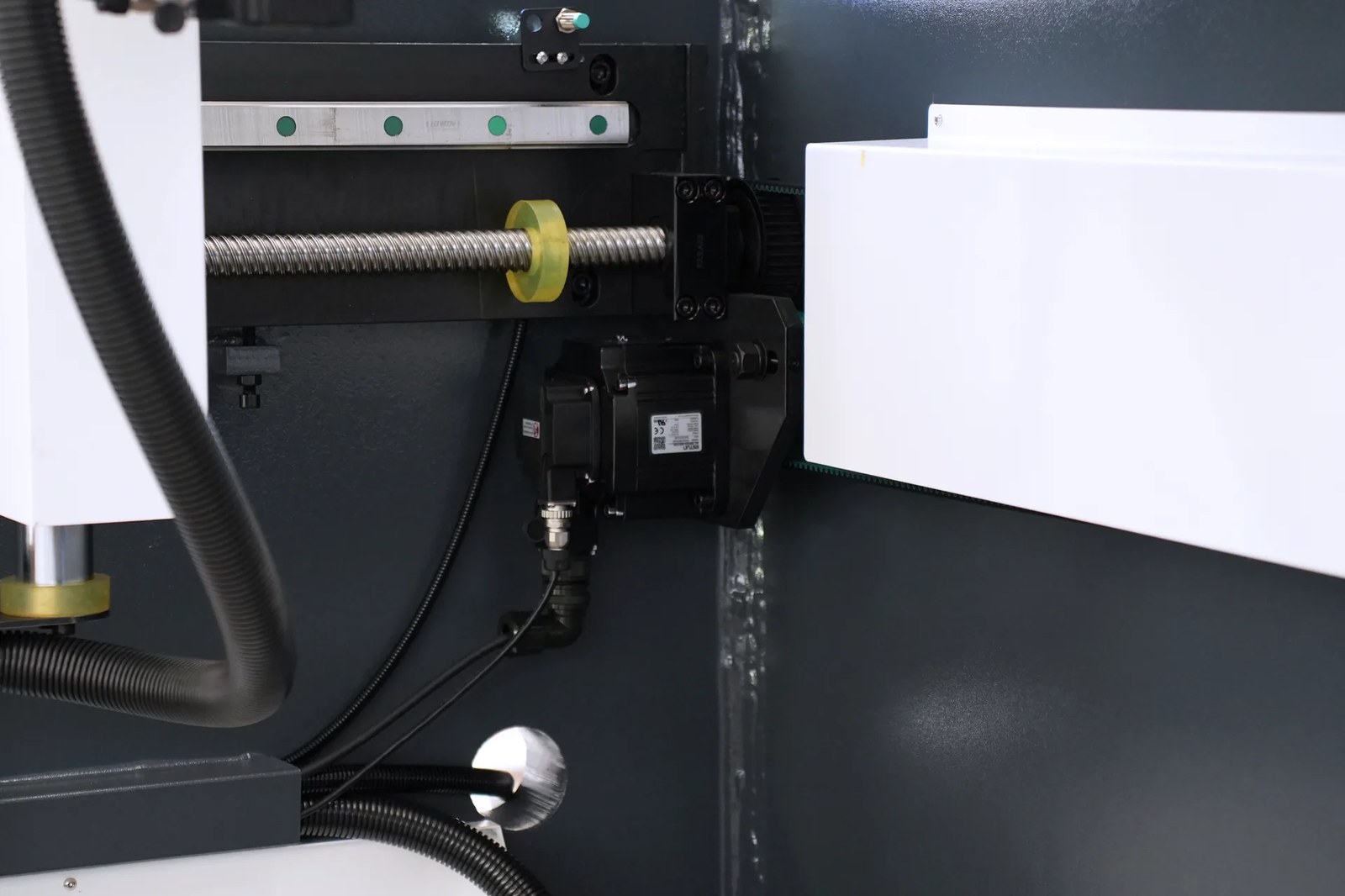

X-axis Servo Motor

In addition, the advantages of servo motors include:

• High precision: Can precisely actuate, hold, and speed up positions, torque, and speeds in fractions of seconds
• High reliability: Highly reliable
• High ratio of torque to inertia: Can provide as much as 50% more torque in many applications

R-axis Servo Motor

Servo motors have several advantages, including:

• High efficiency: Can approach 90% at light loads
• High output power: Relative to their size and weight
• Closed-loop control: Ensures greater accuracy
• Quiet operation: Little sound noise
• High reliability: Highly reliable
• High ratio of torque to inertia: Can provide as much as 50% more torque in many applications
• High precision: Can precisely actuate, hold, and speed up positions, torque, and speeds in fractions of seconds

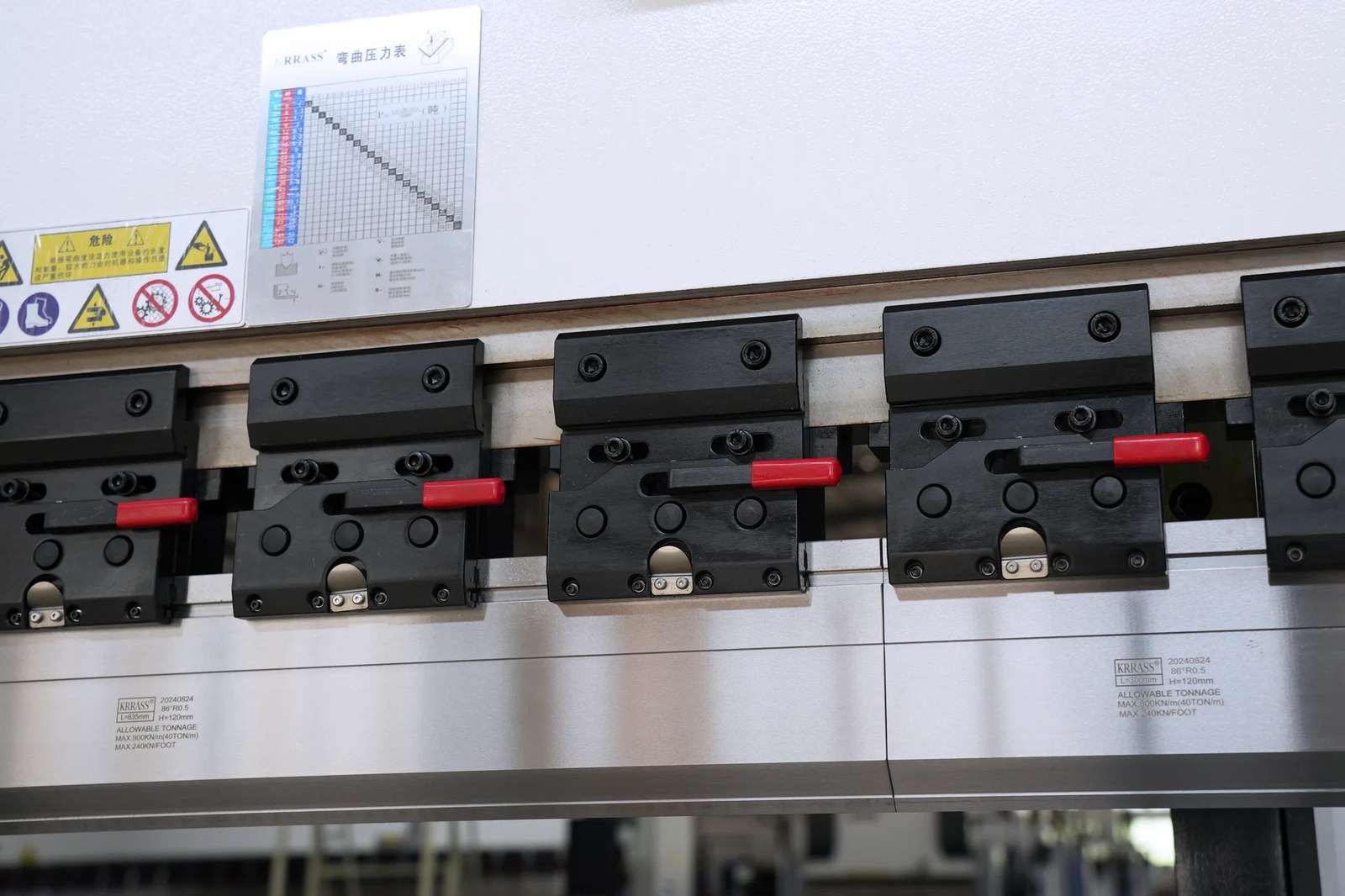

Precision Quick Clamping Device

It is convenient to quickly clamp the upper die, reduce labor intensity and improve production efficiency. The utility model has the advantages of high precision, easy clamping, no loosening, no tool dropping, etc.

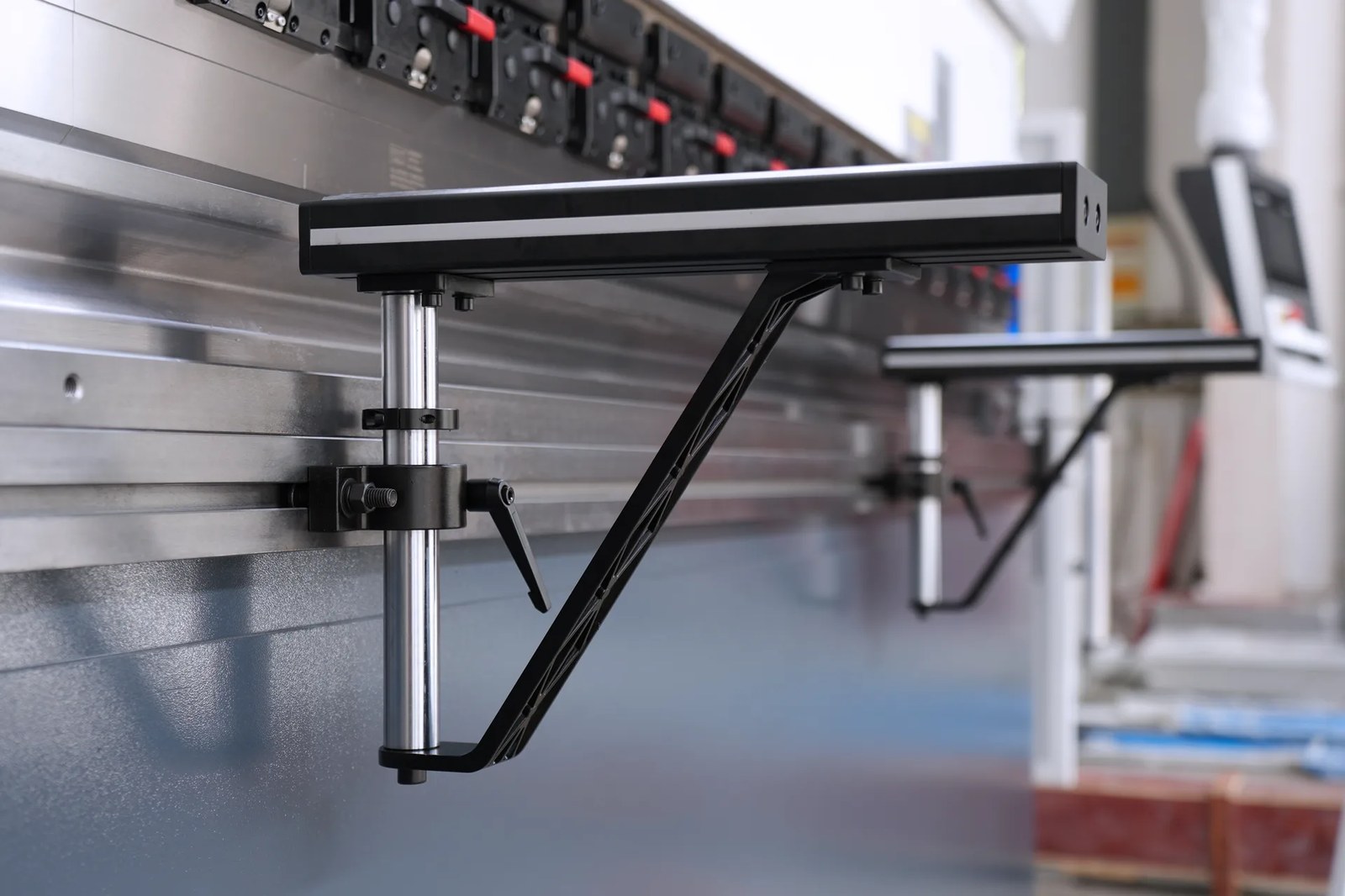

Front Material Support

The front material support can be lifted and lowered freely. When you need to bend larger metal sheets, it can effectively assist in reducing your workload.

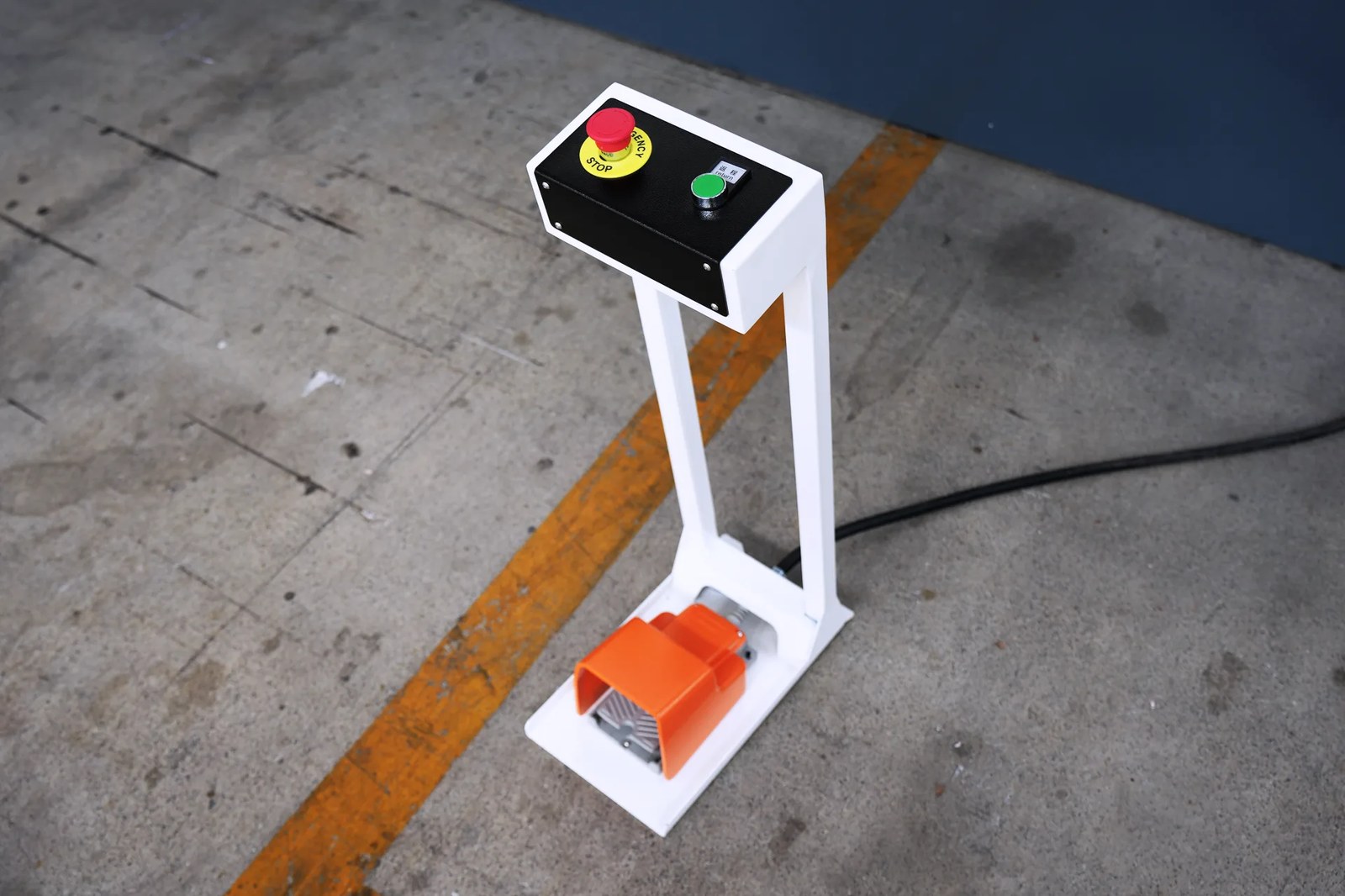

South Korea KACON Foot Switch

South Korea brand foot switch is movableand can stop the Press Brake Machine anytime by theemergency button.

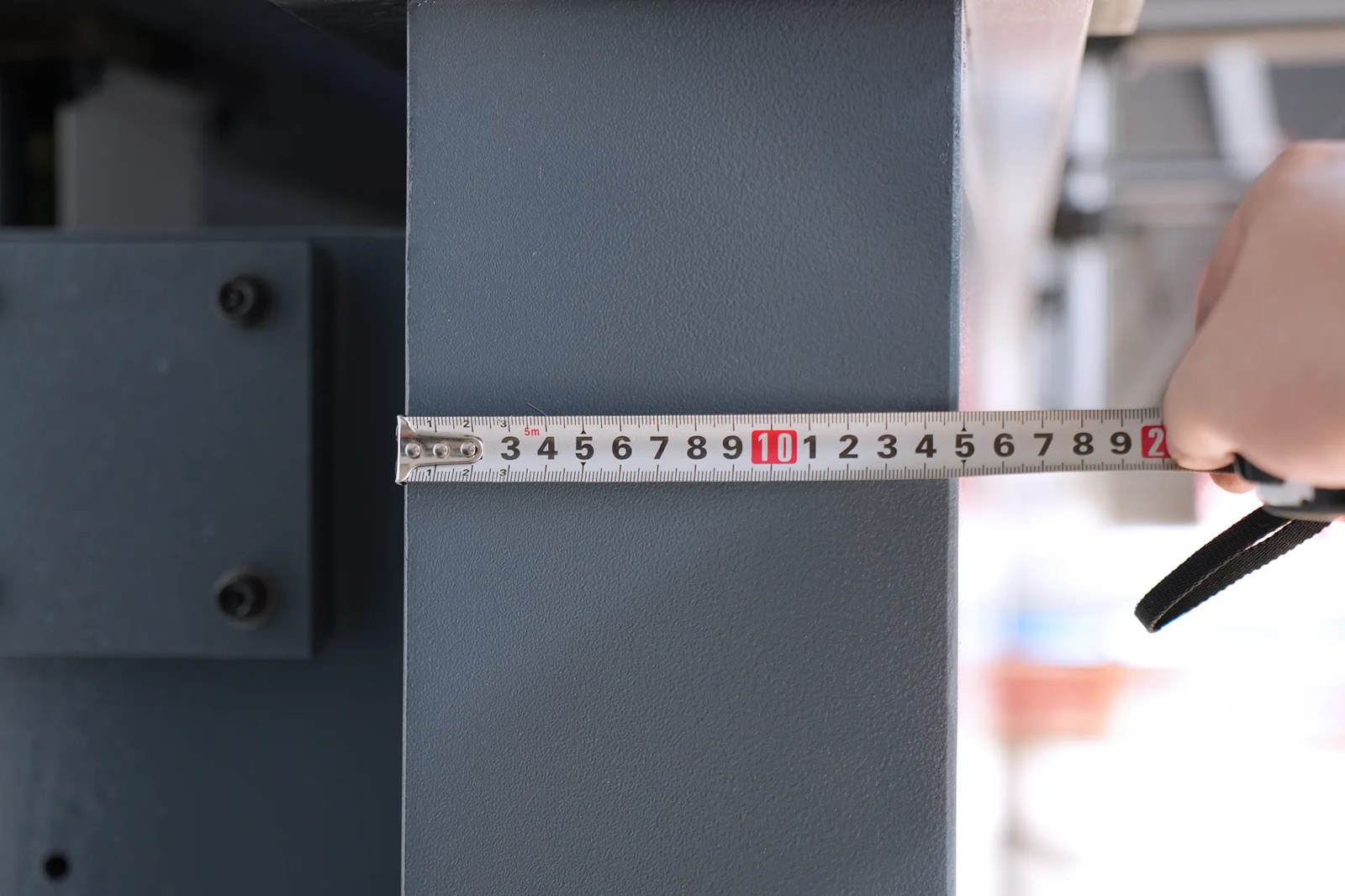

Thickness of workbench (150mm)

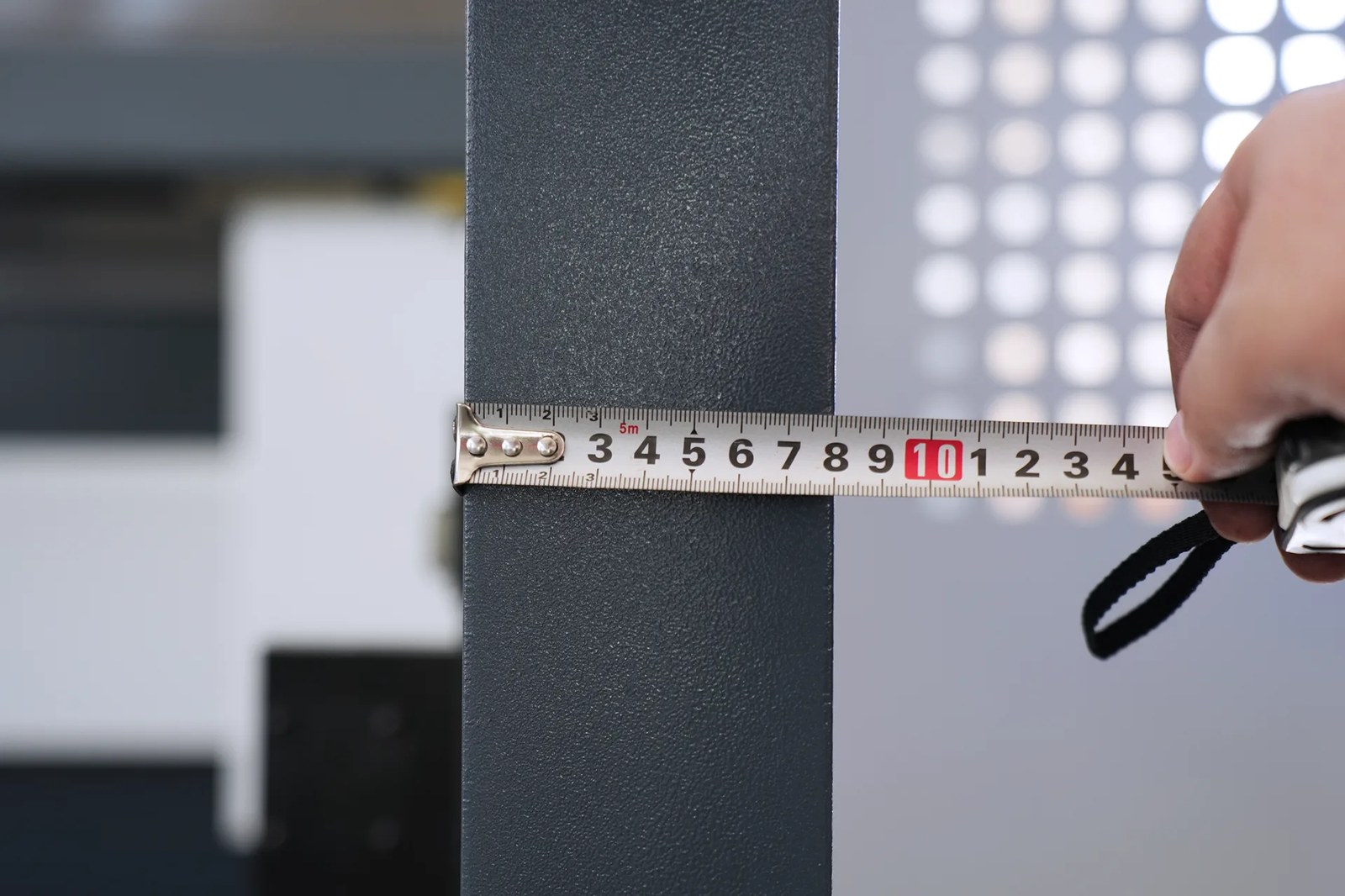

Thickness of side panel (80mm)

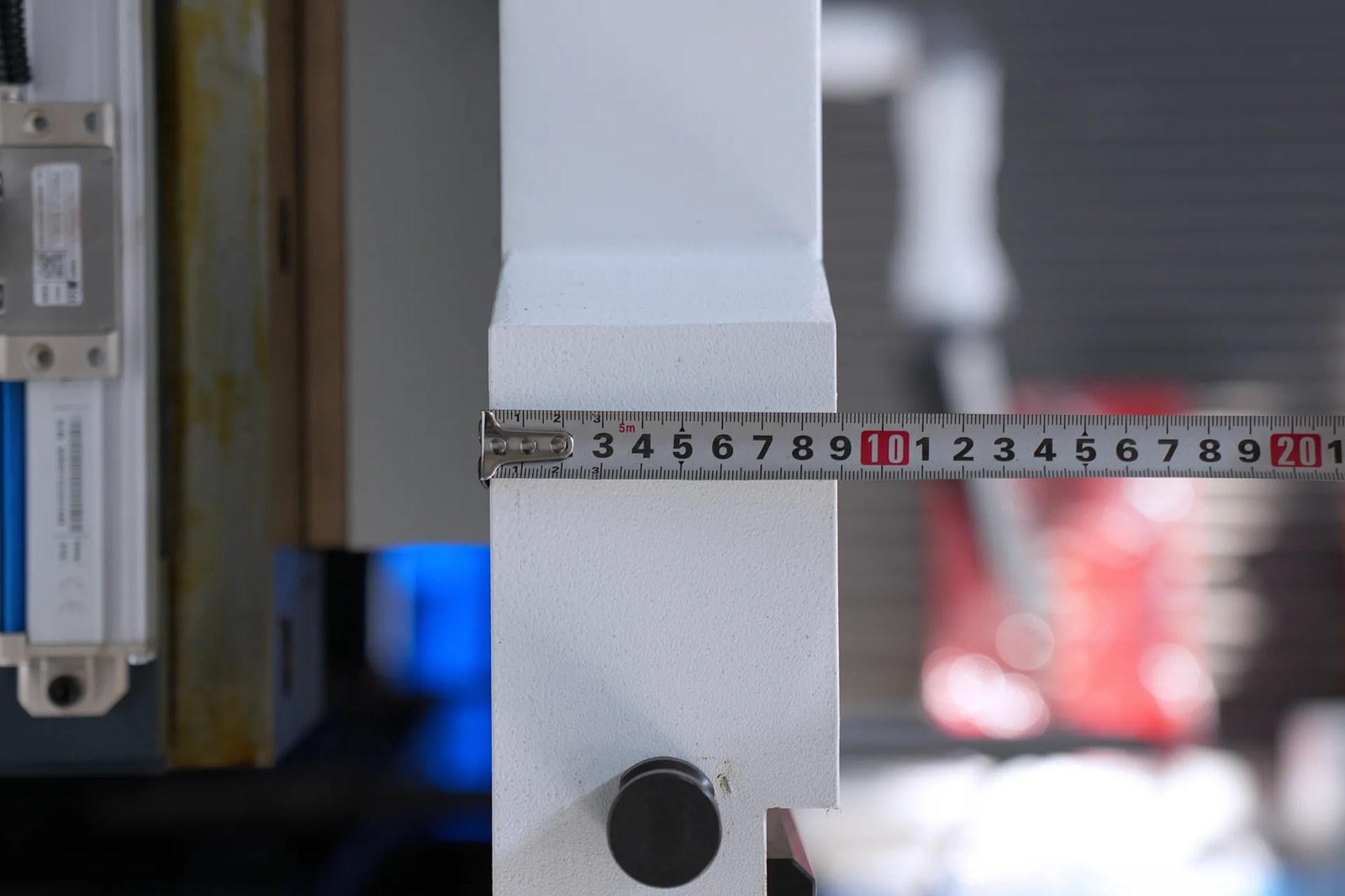

Thickness of slider (90mm)

Tooling (Optional)

Standard tooling

Non-Standard tooling

Gooseneck tooling

Double-V Concentric Mold

Four-V Concentric Mold

Multi-V Mold
