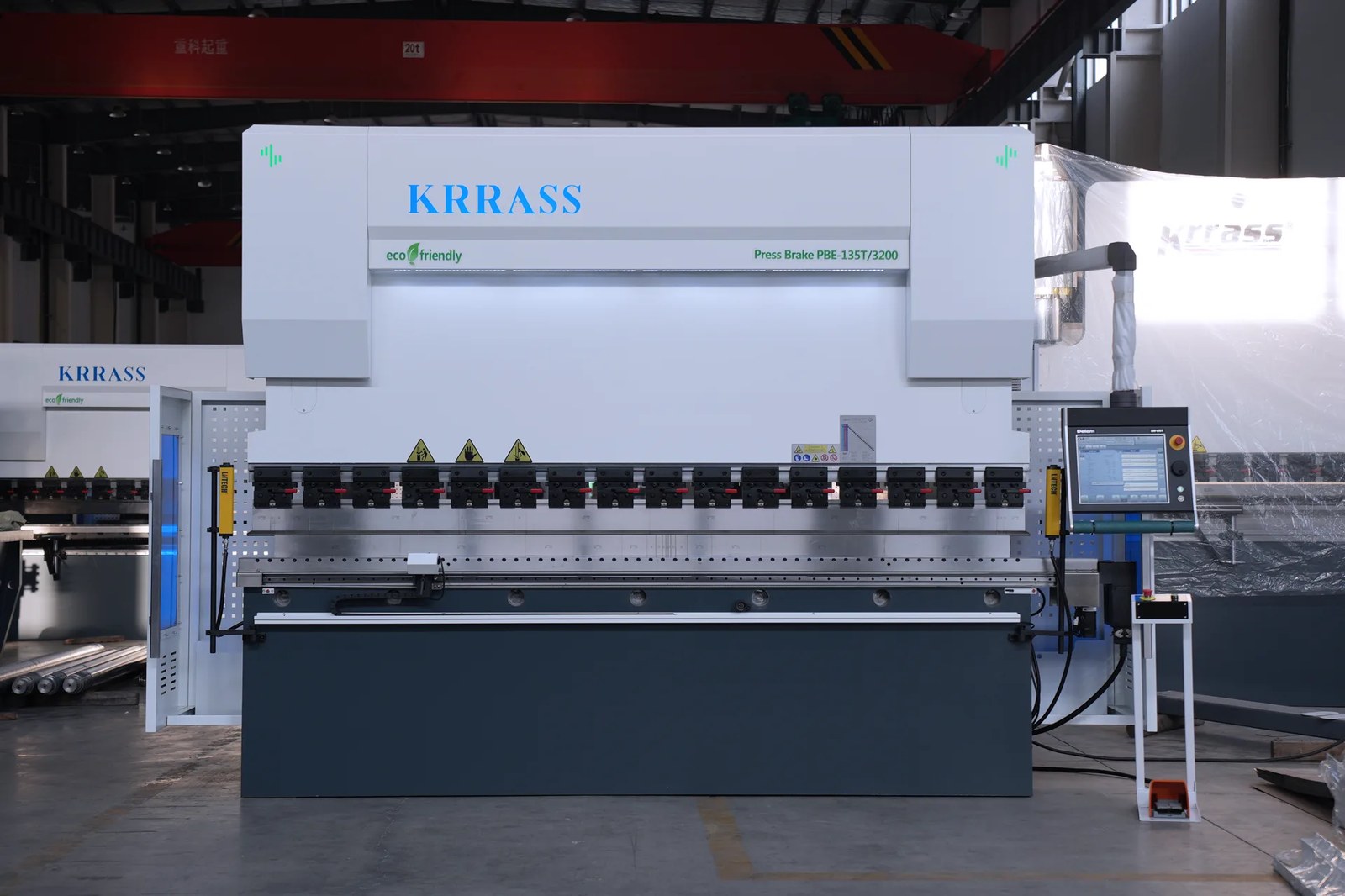

135Ton Hybrid Press Brake for Sale, PBE-135T3200 DA69T 8+1 Hybrid Press Brake Machine
135Ton Hybrid Press Brake for Sale, PBE-135T3200 DA69T 8+1 Hybrid Press Brake Machine, China Hybrid Press Brake Machine
Engineering details
Configuration
Explore the key specifications, components, and available options designed to support different materials, processes, and production requirements.
Technologyies
| Bending Pressure: | 1350KN |
| Bending Length: | 3200mm |
| CNC Control Axes: | Y1+Y2+X1+X2+R1+R2+W Crowning |
| Main Motor: | 2 X 4.4KW |
| Operating Voltage: | 380V 50Hz |
| CNC System: | DA-69T |
| Length* Width* Height: | 3710mm * 1670mm * 2720mm |
Configurations
Main Feature
The Hybrid Press Brake Machine is very satisfactory, It has an easy to use control unit, rigid body frame, flawless design, high efficiency, multiple tool usage solutions, top CE safety standards, and a suitable price range make it the best-in-class world leader. It is ideal for bend-sensitive, energy-efficient solutions.
- Simple and solid Hydraulic Press Brake
- Work area can be customized and all types of tool clamping can be installed
- Tailored-made Hydraulic Press Brake

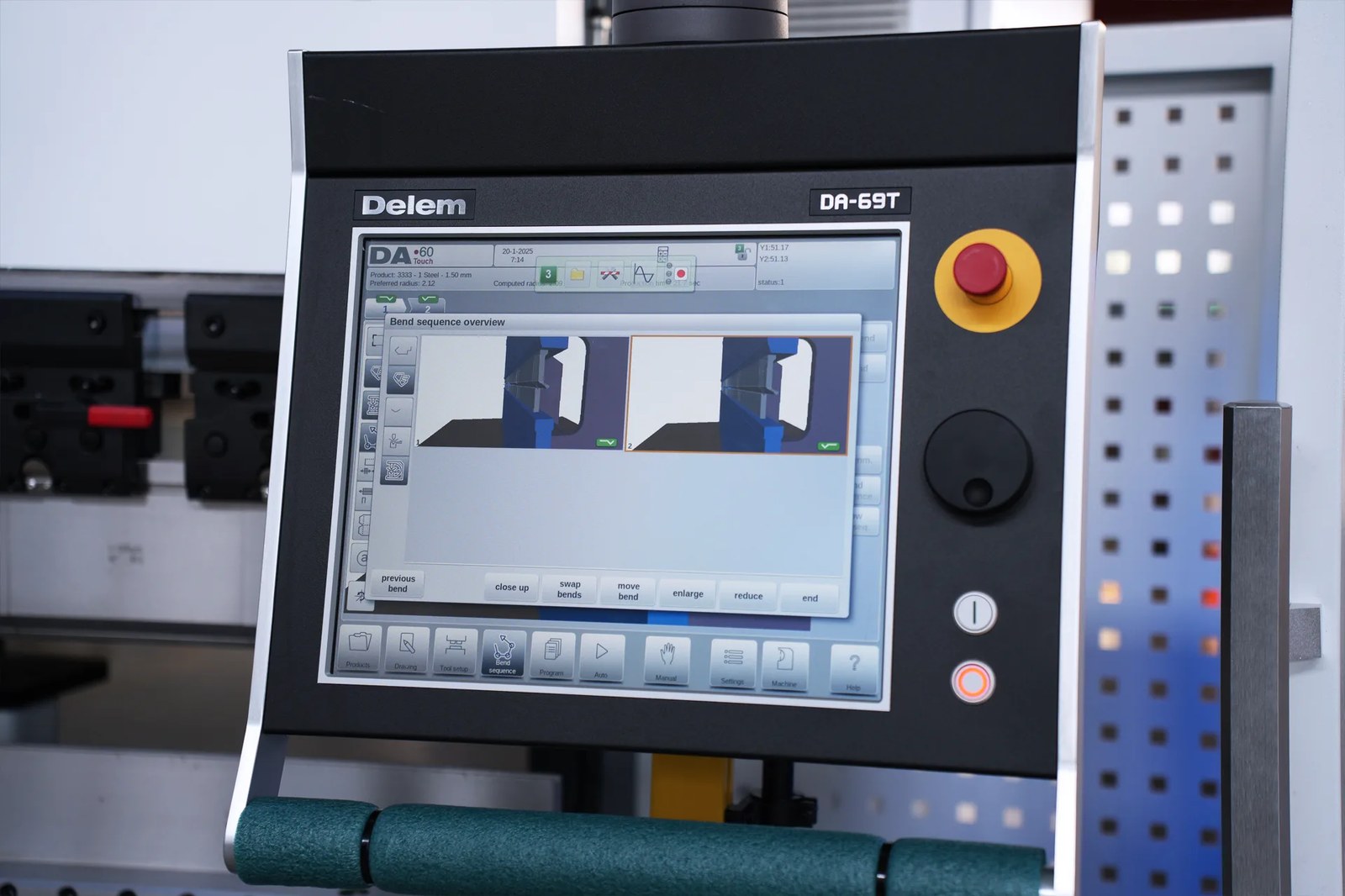

DELEM DA-69T Control
- 3D and 2D graphical touch screen programming mode
- 3D visualisation in simulation and production
- 17″ high resolution colour TFT
- Full Windows application suite
- Delem Modusys compatibility (module scalability and adaptivity)
- USB, peripheral interfacing
- User specific application support within the control’s multitasking environment
- Sensor bending & correction interface
- Profile-T3D offline software

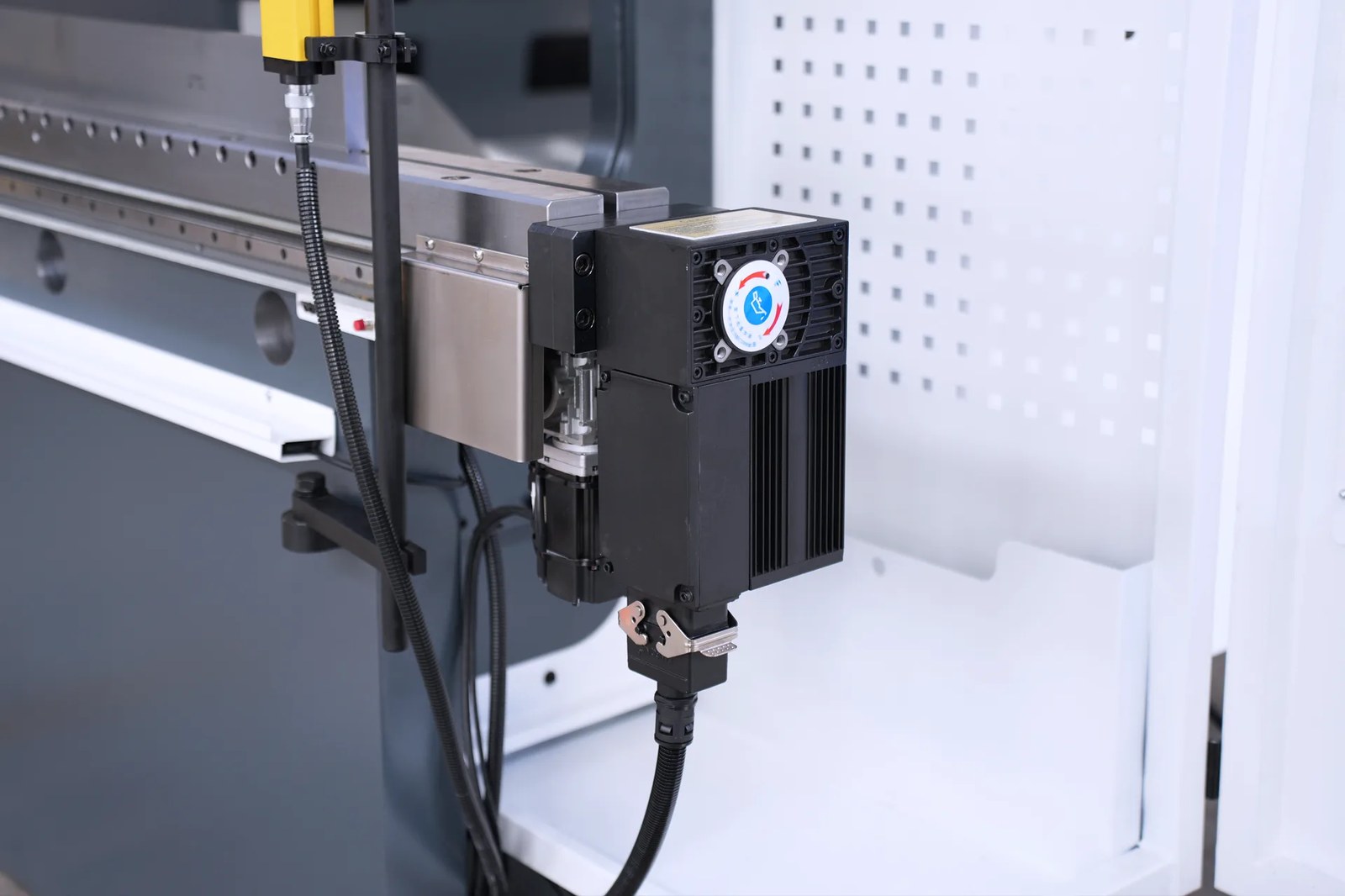

Electric Crowning System
Low worktable has an automatic crowning compensation uint; compensation amount is automatically set up by CNC system, with guarantee a same bending angel on full length.
The worktable adopts the particular design, reducing the crowning distortion amount of lower tool effectively.

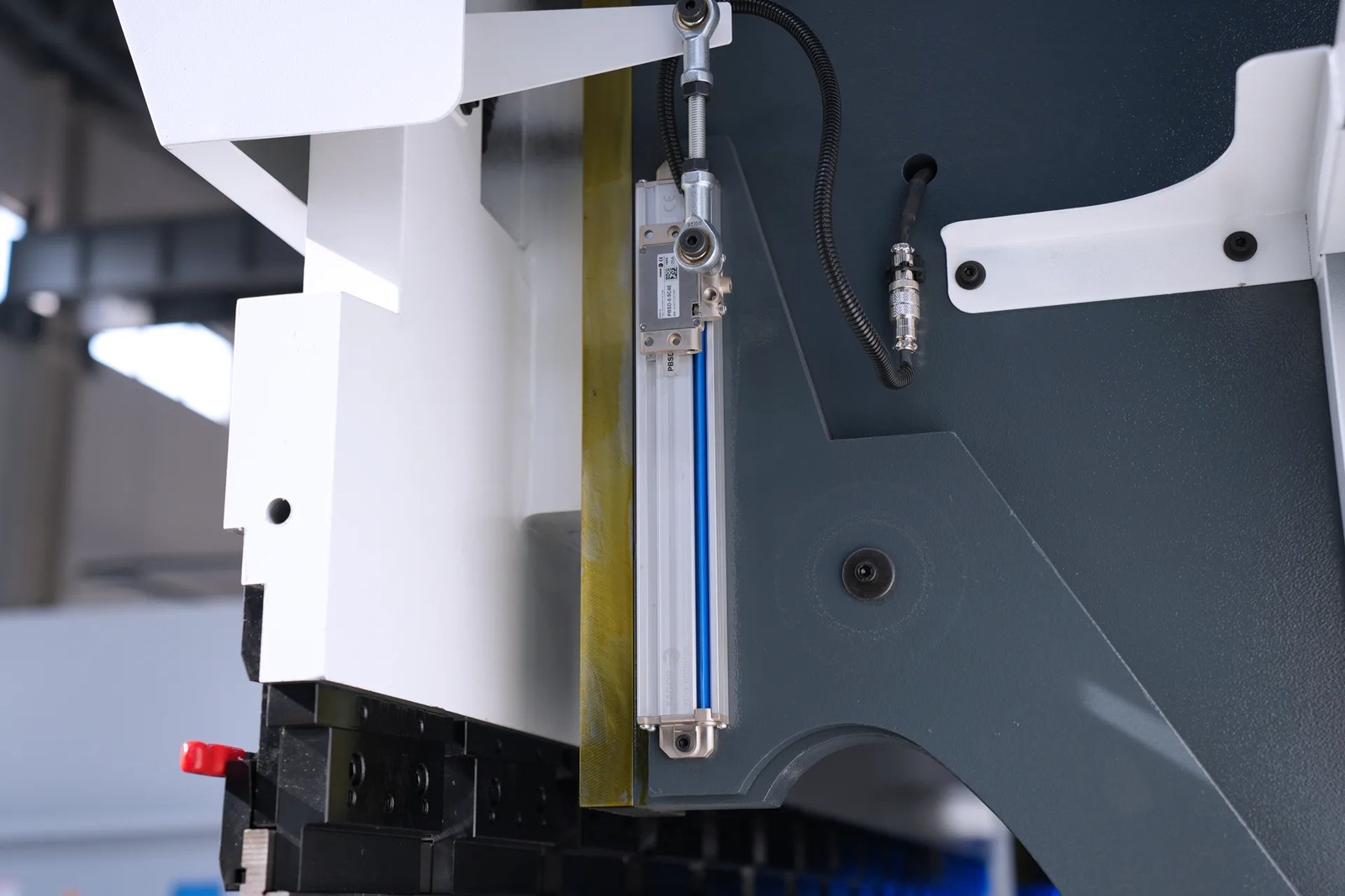

Fagor Grating Ruler
Fagor grating ruler can accurately measure the small deformation caused by bending force of machine tool,then feedback compensation, to ensure the bending accuracy of plates of any thickness and materia.

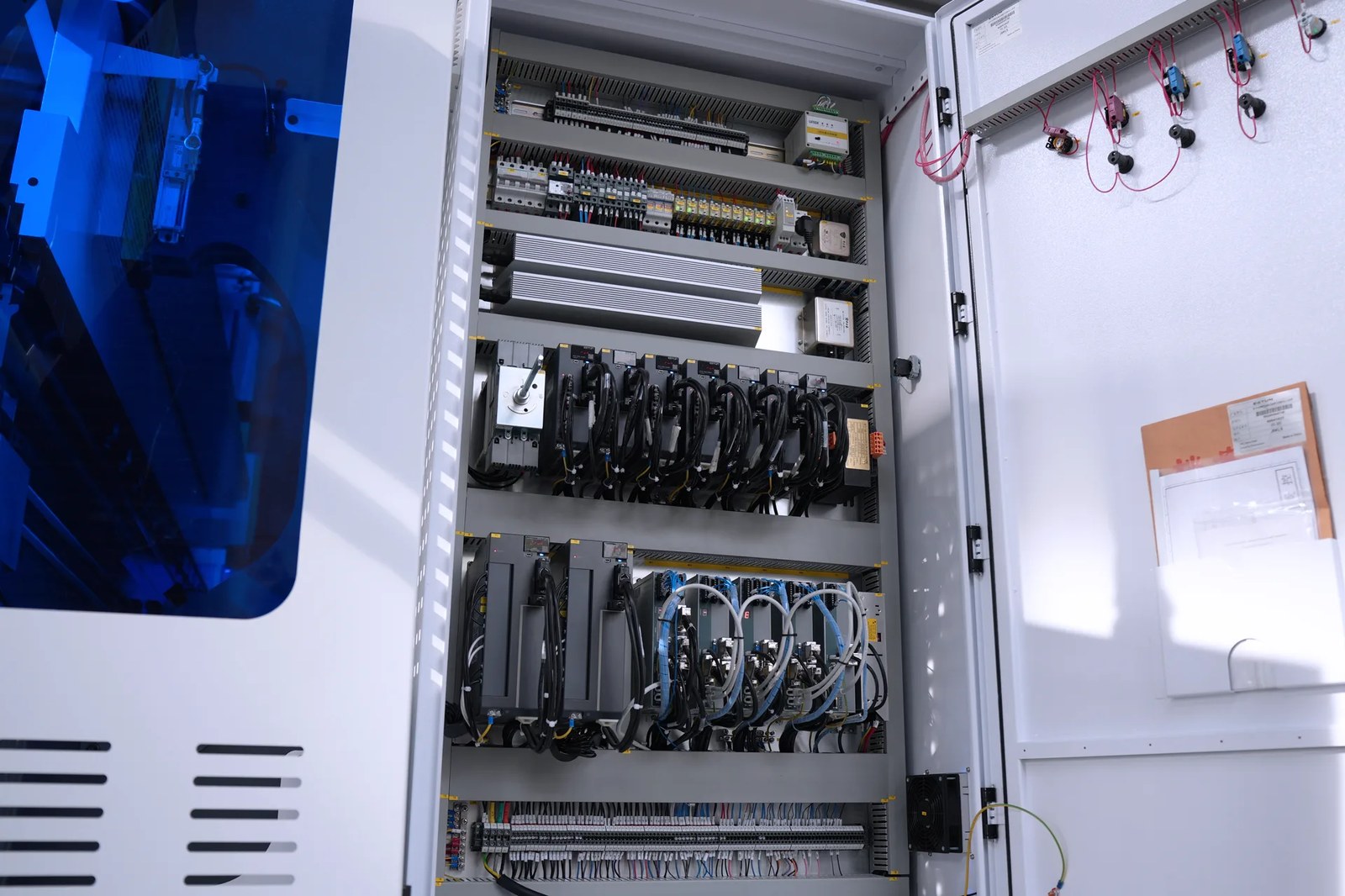

Schneider Electric
High quality electric parts can perform well even the electricity is not stable and customers can easily get the replacement anywhere in the word.
ePrAX® Hybrid Servo System
The ePrAX® control hybrid system is an innovative servo drive for Hybrid Press Brakes, and thanks to the brushless motor, we can precisely control the movement of the ram using a minimum amount of oil and energy.
Improving energy efficiency of up to 73 % compared to conventional systems.

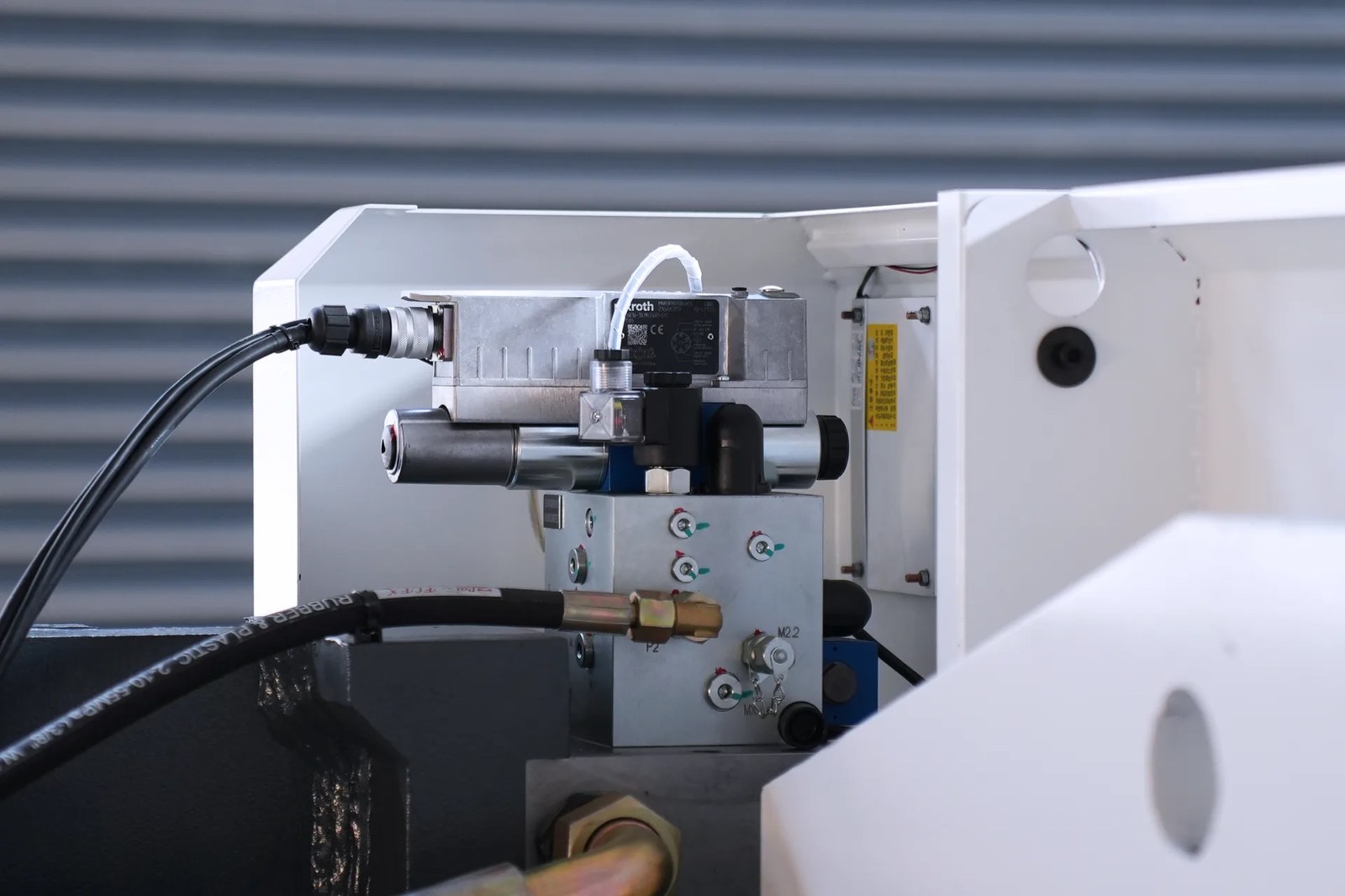

Rexroth Proportional Valve
The German Rexroth fully closed-loop electro-hydraulic servo high-frequency synchronous control system is adopted to ensure that the CNC press brake machine tool has high stability and high precision in the process of high-speed operation.

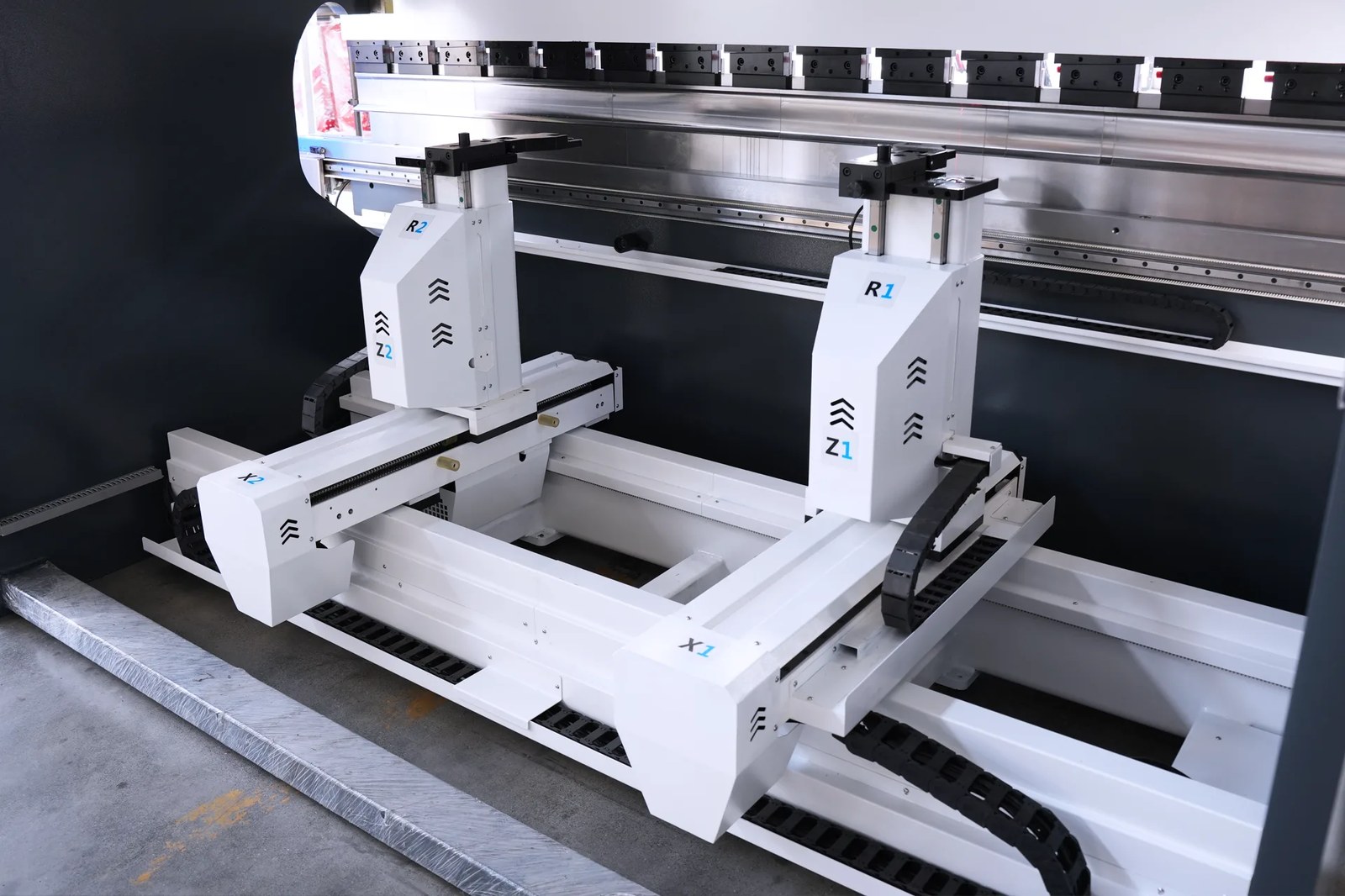

6-Axis Backgauge with X1, X2, Z1, Z2, R1, R2-Axis
- Hiwin Ball screws and linear guide on X, R-axis
- Axis X speed 500 mm/s
- Automatic Z1, Z2-axis with HIWIN linear guide
- Mechanical accuracy ± 0.01 mm
- Fingers with double stop and micrometric adjustment

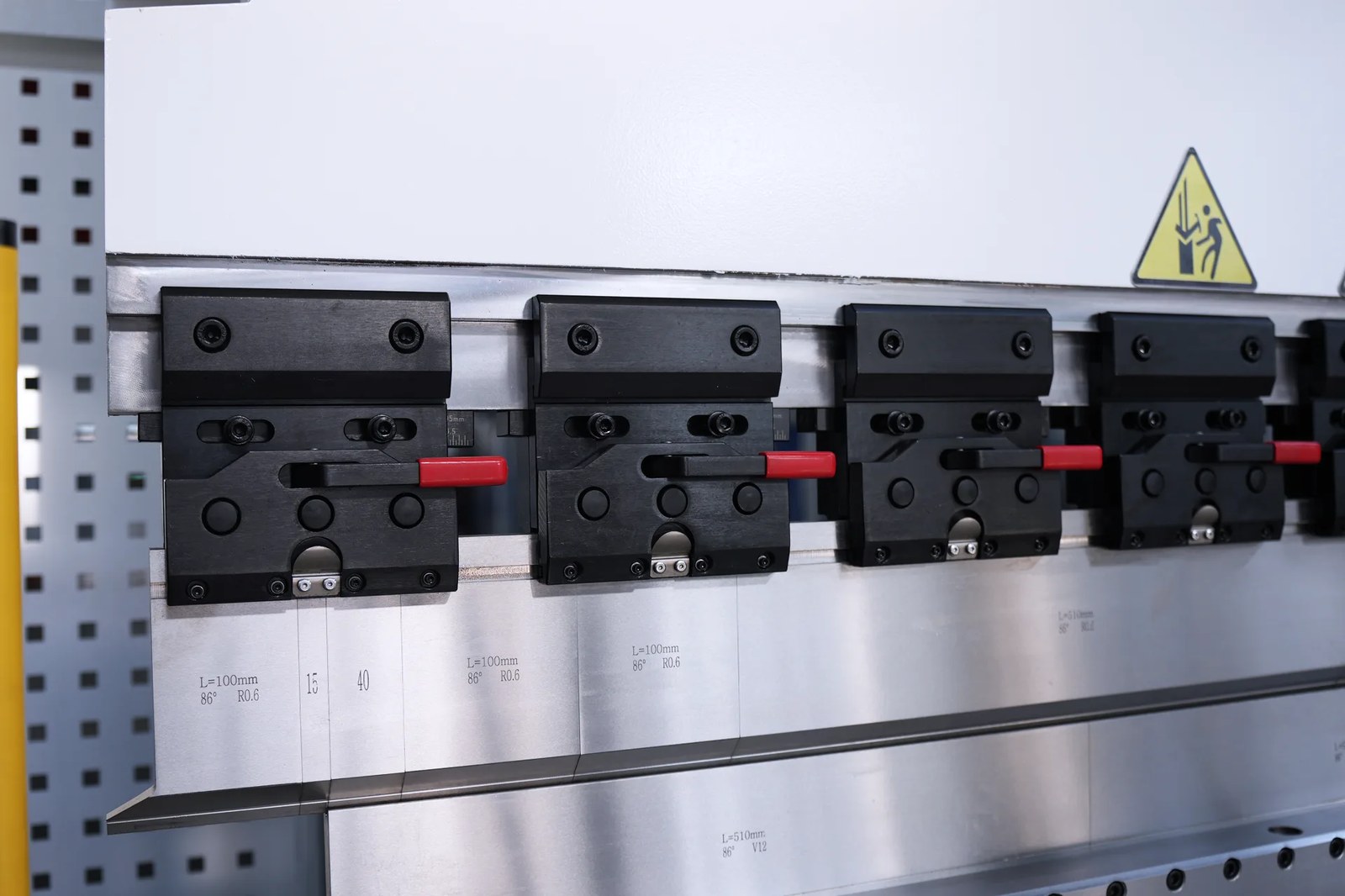

Precision Quick Clamping Device
It is convenient to quickly clamp the upper die, reduce labor intensity and improve production efficiency. The utility model has the advantages of high precision, easy clamping, no loosening, no tool dropping, etc.
LaserCheck Bending Angle Measurement System (Optional)
The Laser Check manufactured by Data M Engineering, is a bend angle measurement and correction system by means of a laser beam. The device is made of a laser and a camera on both sides of the bending line. Detection is carried out in this way for CNC press brake – Press Brake machine!

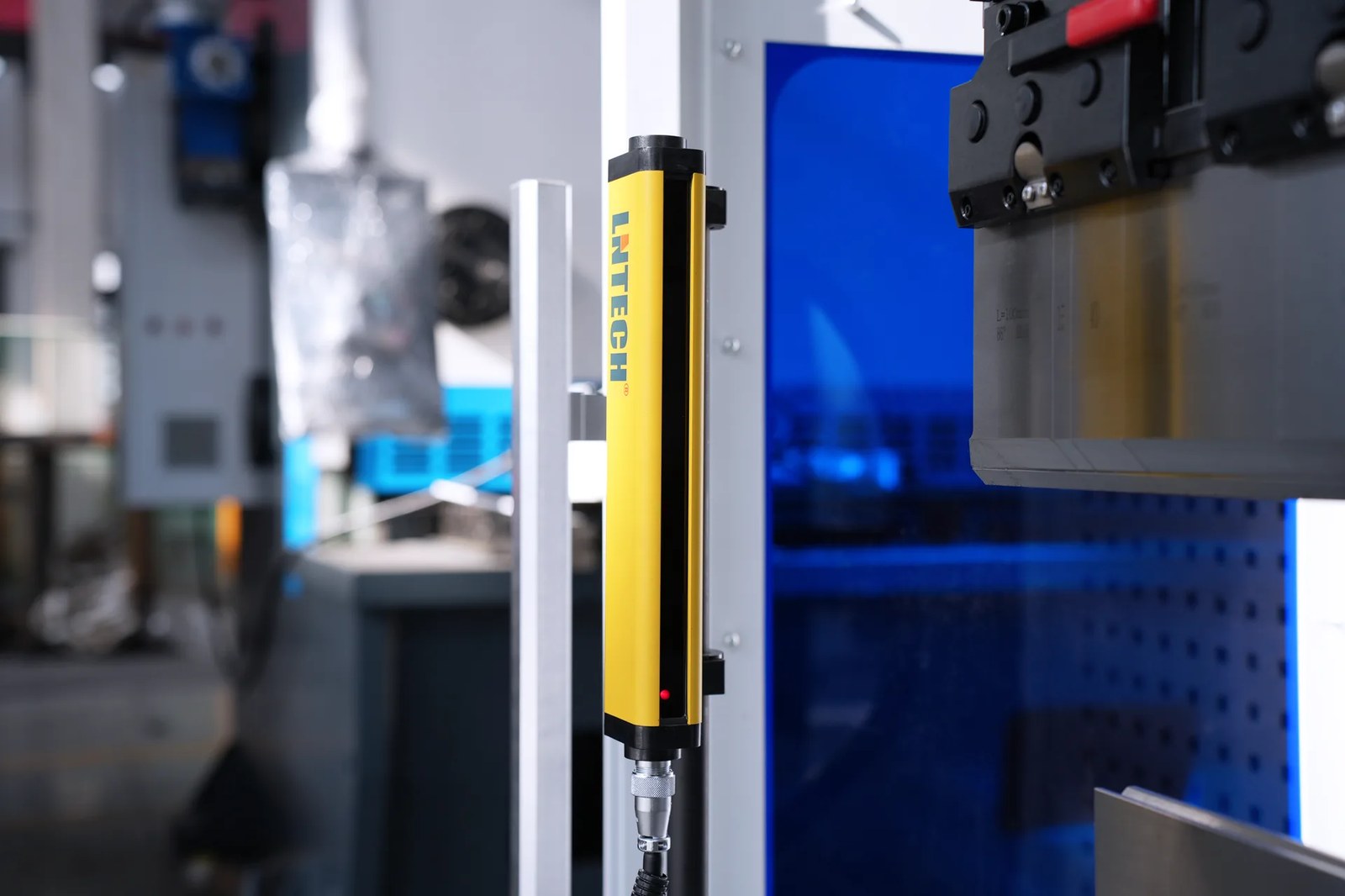

Photoelectric safety protection system (Optional)
The 135Ton Hybrid Press Brake is equipped with photoelectric safety protection systems at the front and rear to ensure efficient production and the personal safety of operators.

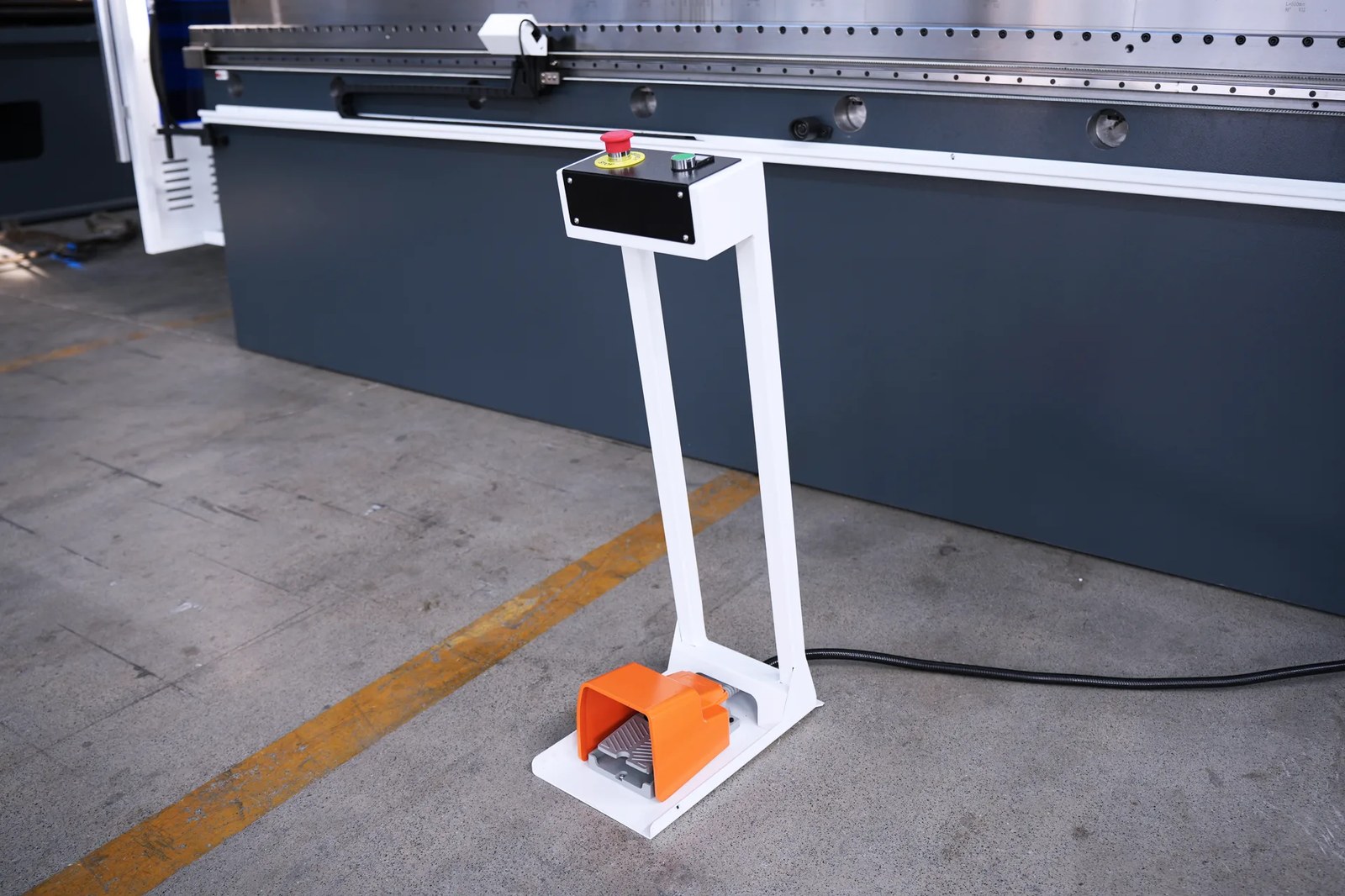

South Korea KACON Foot Switch
South Korea brand foot switch is movableand can stop the Press Brake Machine anytime by theemergency button.

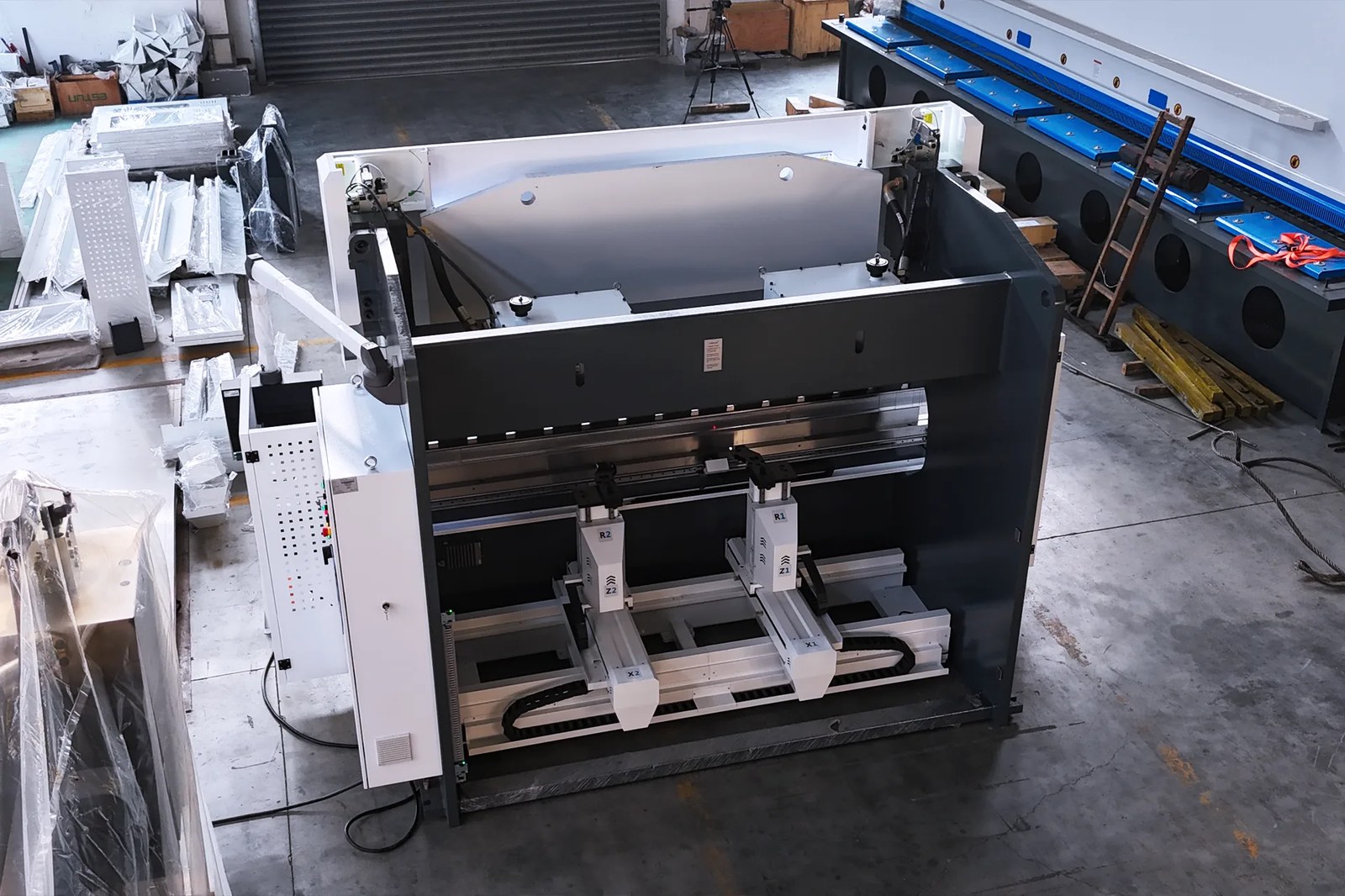

Back of The Fuselage
The whole of the Hybrid bending machine has a clean and neat structure design, regular lines and is easy to operate, making it an ideal choice for bending metal sheets.

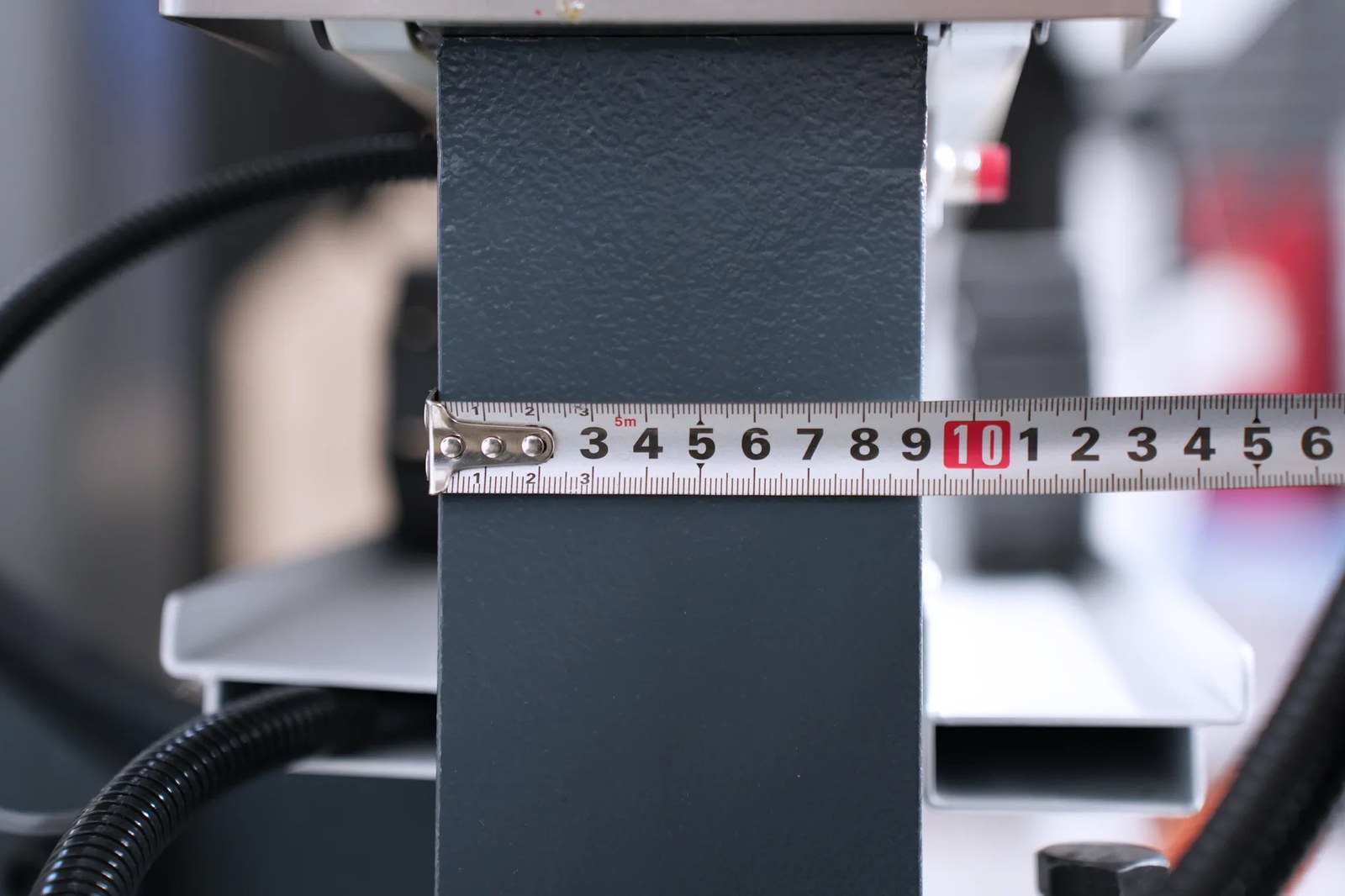

Thickness of workbench (90mm)

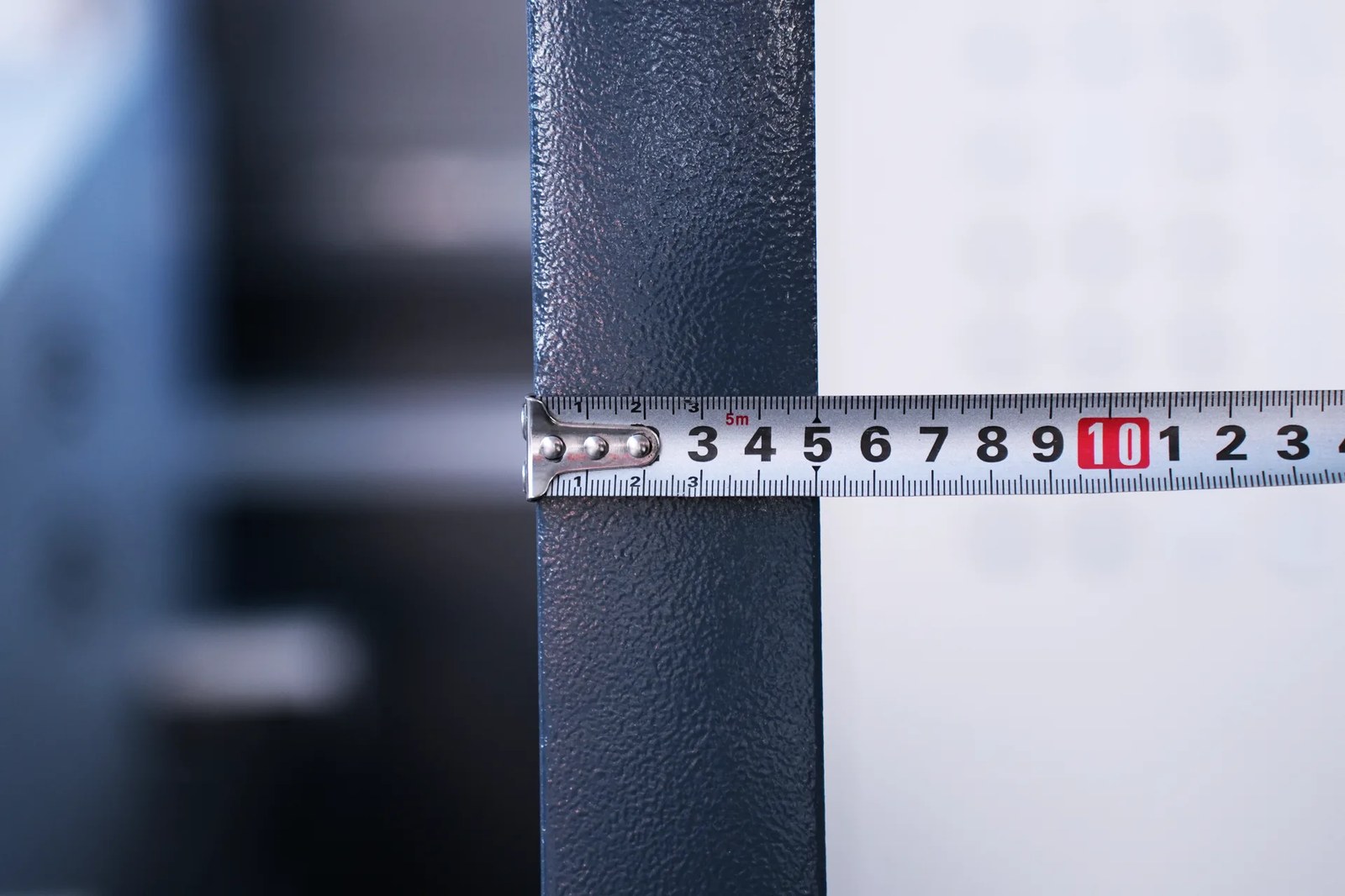

Thickness of side panel (50mm)

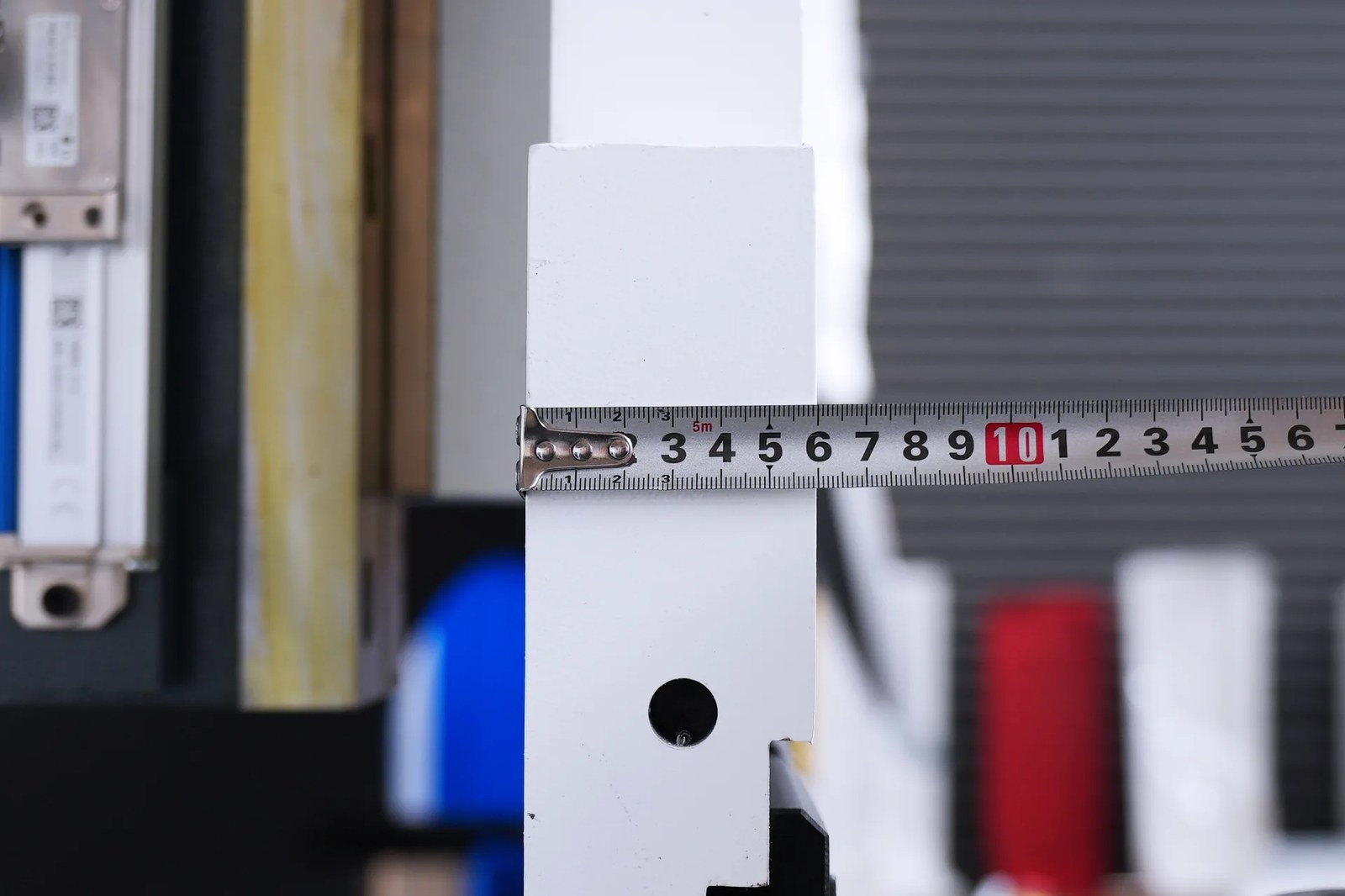

Thickness of slider (60mm)
Tooling (Optional)
Standard tooling
Non-Standard tooling
Gooseneck tooling
Double-V Concentric Mold
Four-V Concentric Mold
Multi-V Mold
