CNC Bending Machine, 110Ton Sheet Metal Bending Machine, Best Bending Machine Brand

Technologyies

Bending Pressure:	1100KN
Bending Length:	2500mm
CNC Control Axes:	Y1+Y2+X+R+W Crowning
Main Motor:	7.5KW
Operating Voltage:	380V 50Hz
CNC System:	DA-53T
Length* Width* Height:	3030mm * 1780mm * 2680mm

Configurations

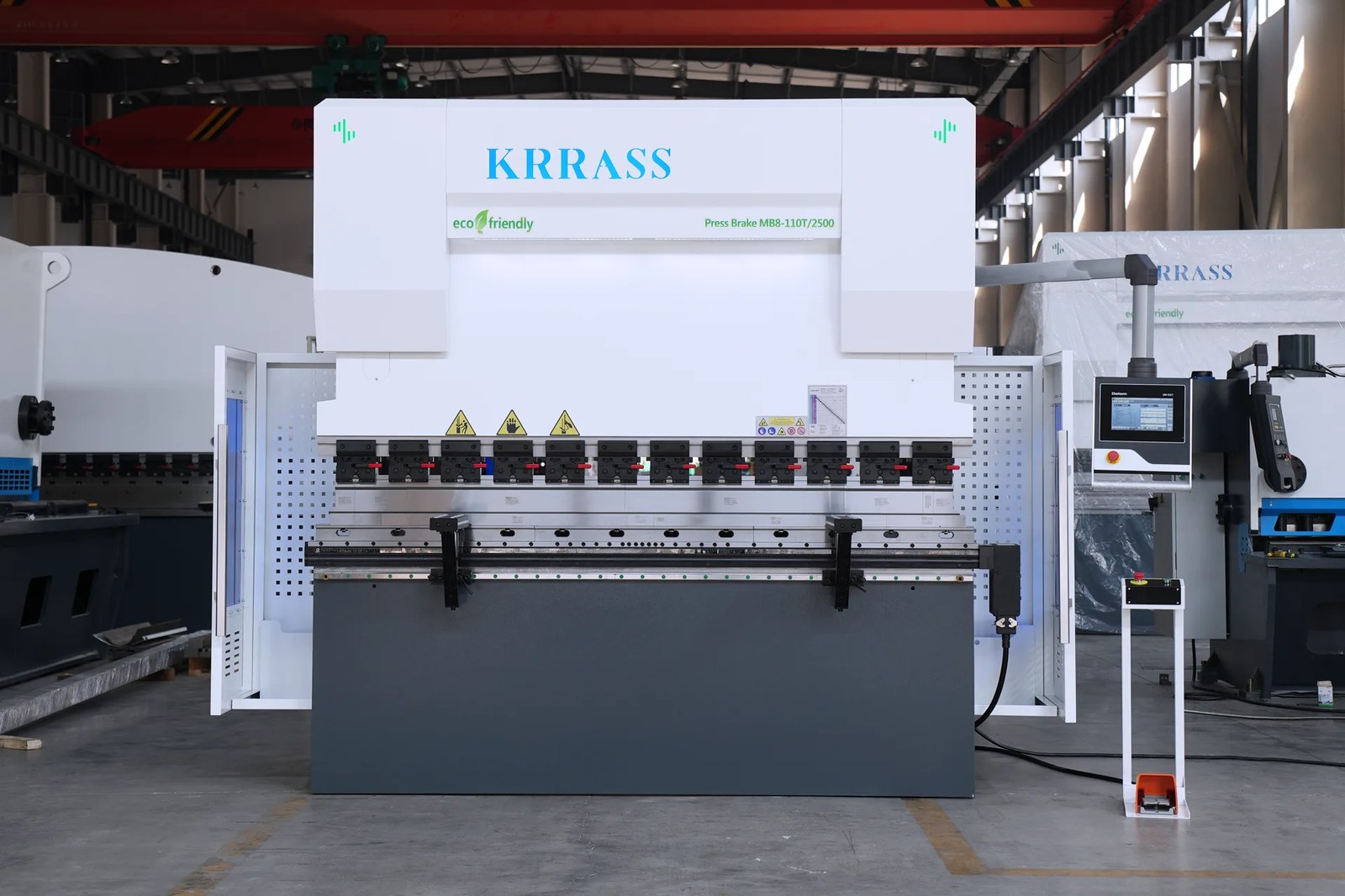

Main Feature of the 110Ton CNC Bending Machine

The 110Ton CNC Bending Machine with DA-53T Controller with its easy-to-use control unit, rigid body frame, flawless design, high efficiency, multiple tool usage solutions, top CE safety standards, and a suitable price range make it the best-in-class world leader. It is ideal for bend-sensitive, energy-efficient solutions.

• Simple and solid the 110Ton CNC Bending Machine
• Work area can be customized and all types of tool clamping can be installed
• Tailored-made the best bending machine

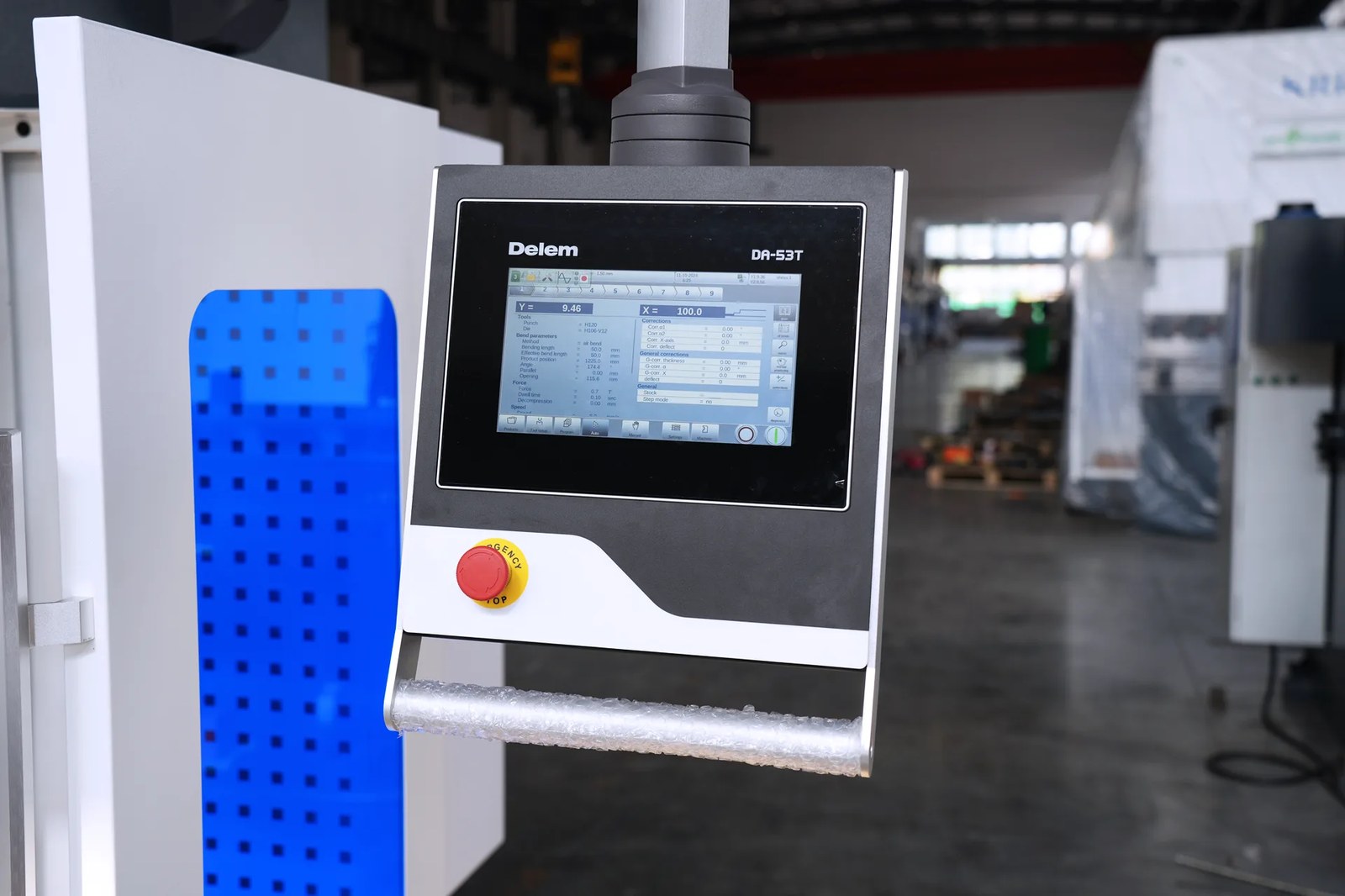

DELEM DA-53T Control​

• 10.1″ high resolution colour TFT
• “Hot-key” touch navigation
• Up to 4 axes (Y1,Y2 + 2 aux. axes)
• Tool / material / product library
• Advanced Y-axis control algorithms for closed-loop as well as open-loop valves.
• CNC Crowning control
• USB memory stick interfacing
• Profile-53TL offline software

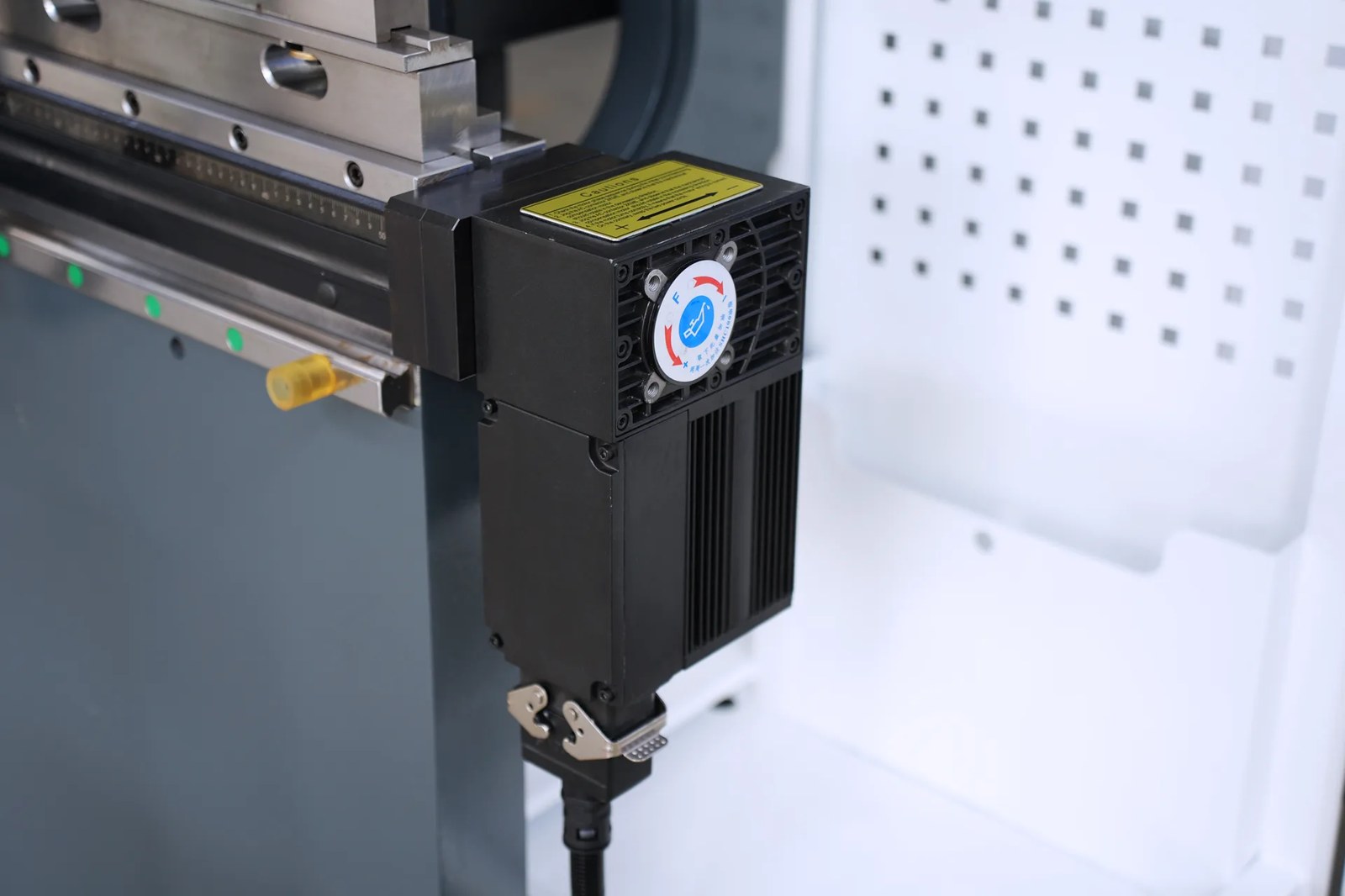

Electric Crowning System

Low worktable has an automatic crowning compensation uint; compensation amount is automatically set up by CNC system, with guarantee a same bending angel on full length.

The worktable adopts the particular design, reducing the crowning distortion amount of lower tool effectively.

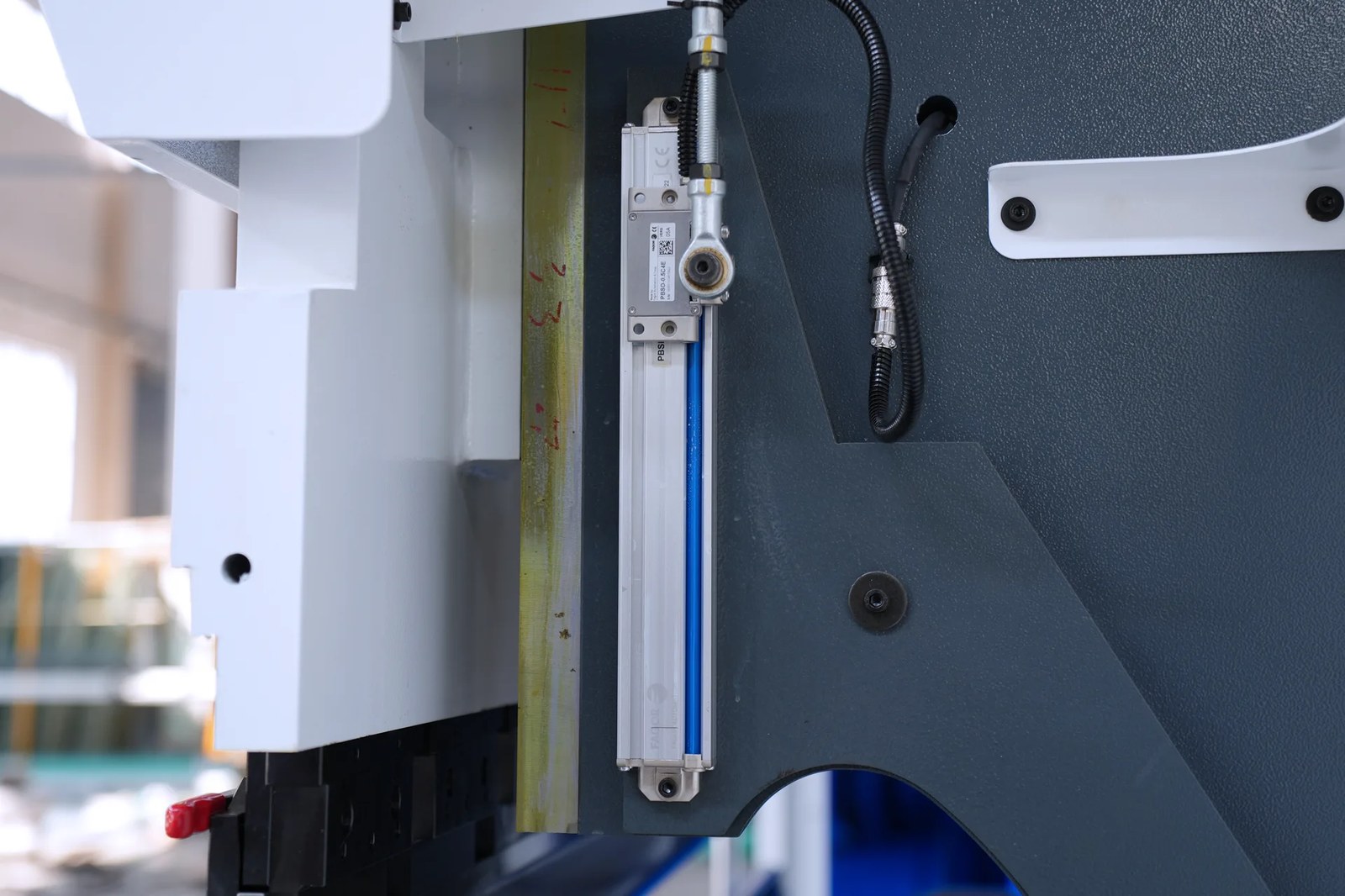

Fagor Grating Ruler

Fagor grating ruler can accurately measure the small deformation caused by bending force of machine tool,then feedback compensation, to ensure the bending accuracy of plates of any thickness and materia.

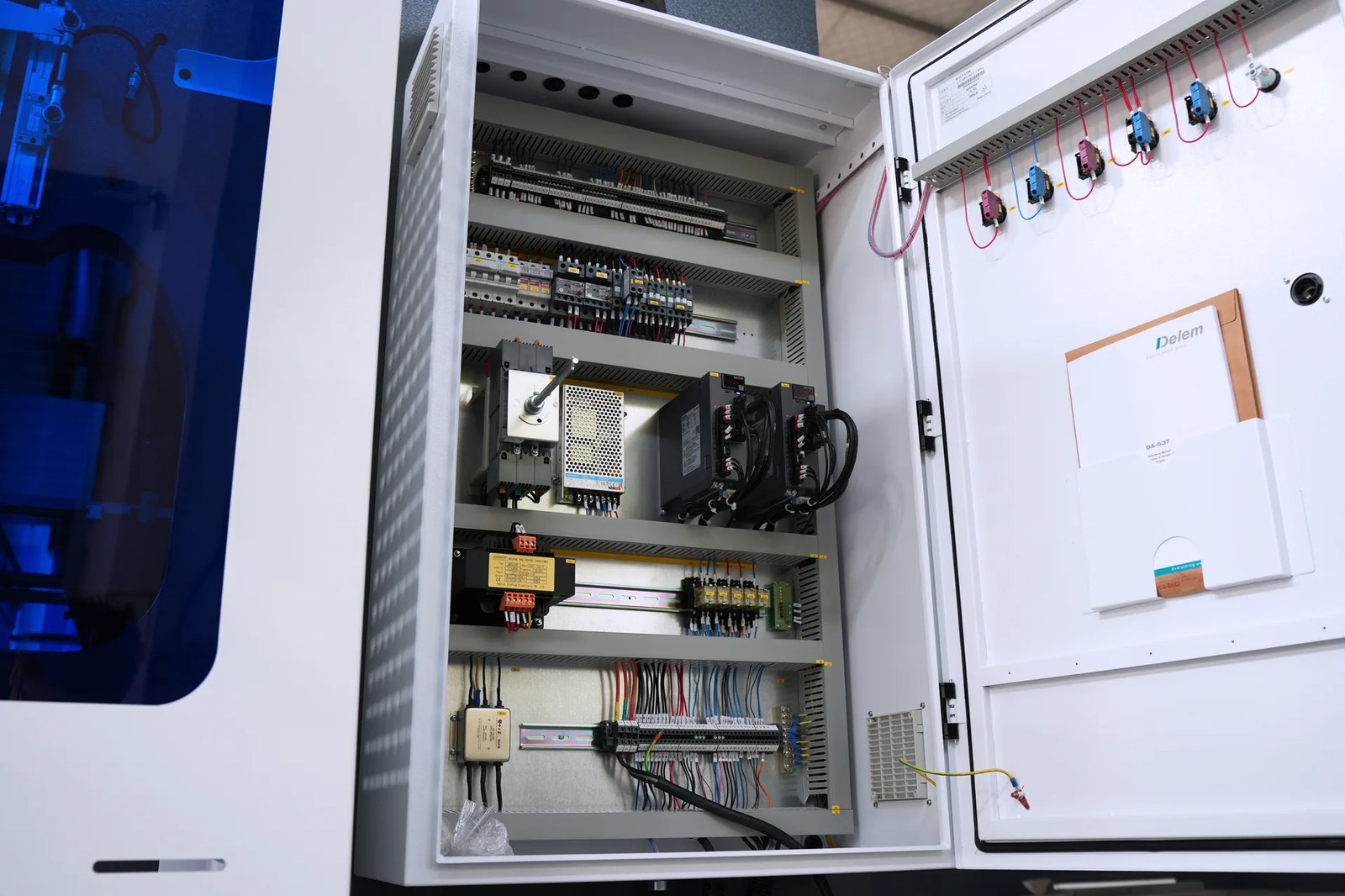

Schneider Electric

High quality electric parts can perform well even the electricity is not stable and customers can easily get the replacement anywhere in the word.

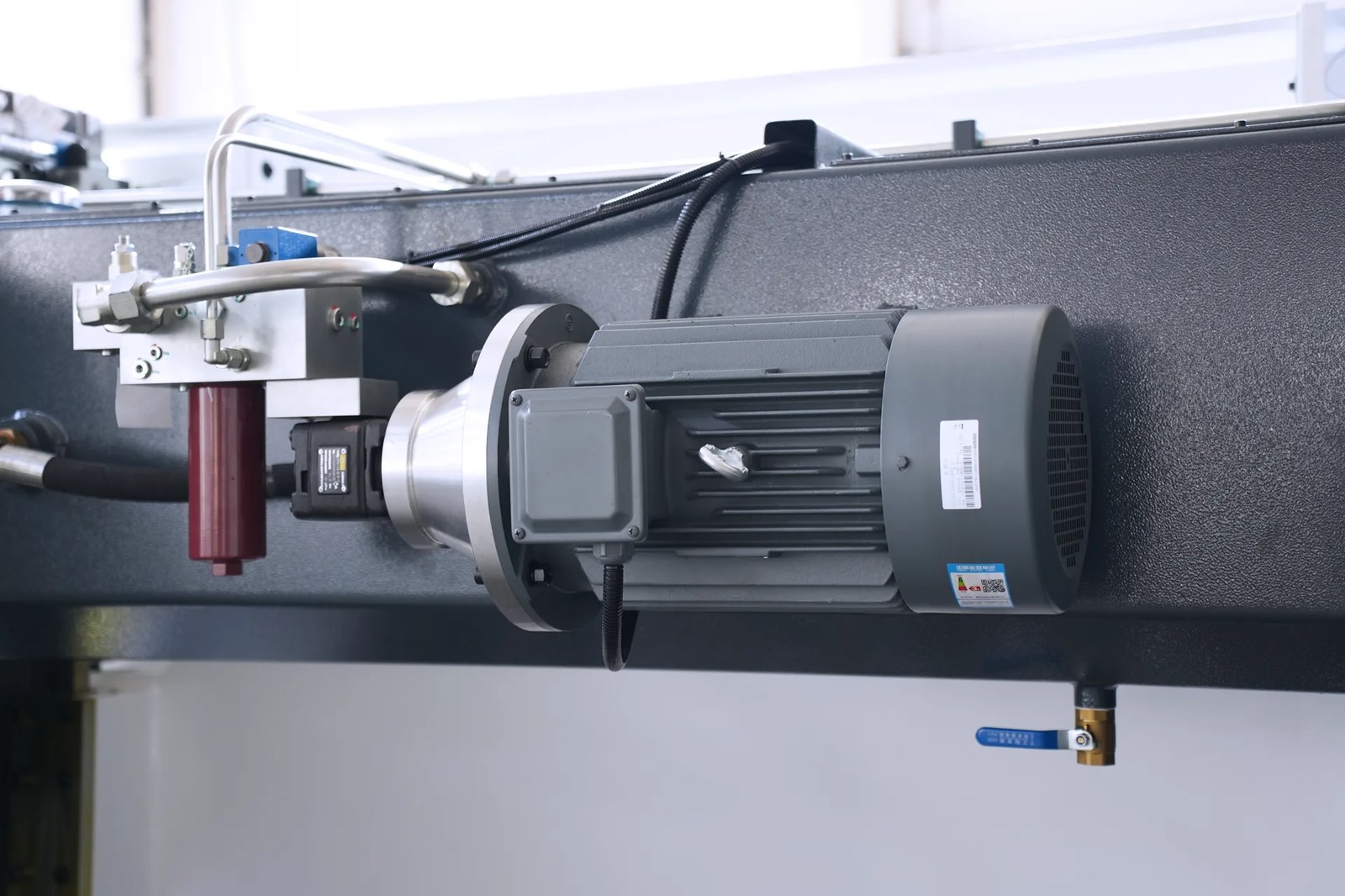

German Siemens Main Motor

The German famous brand motor increases the service life of the 110Ton CNC Bending Machine and keeps the CNC Bending Machine working in a low-noise environment.

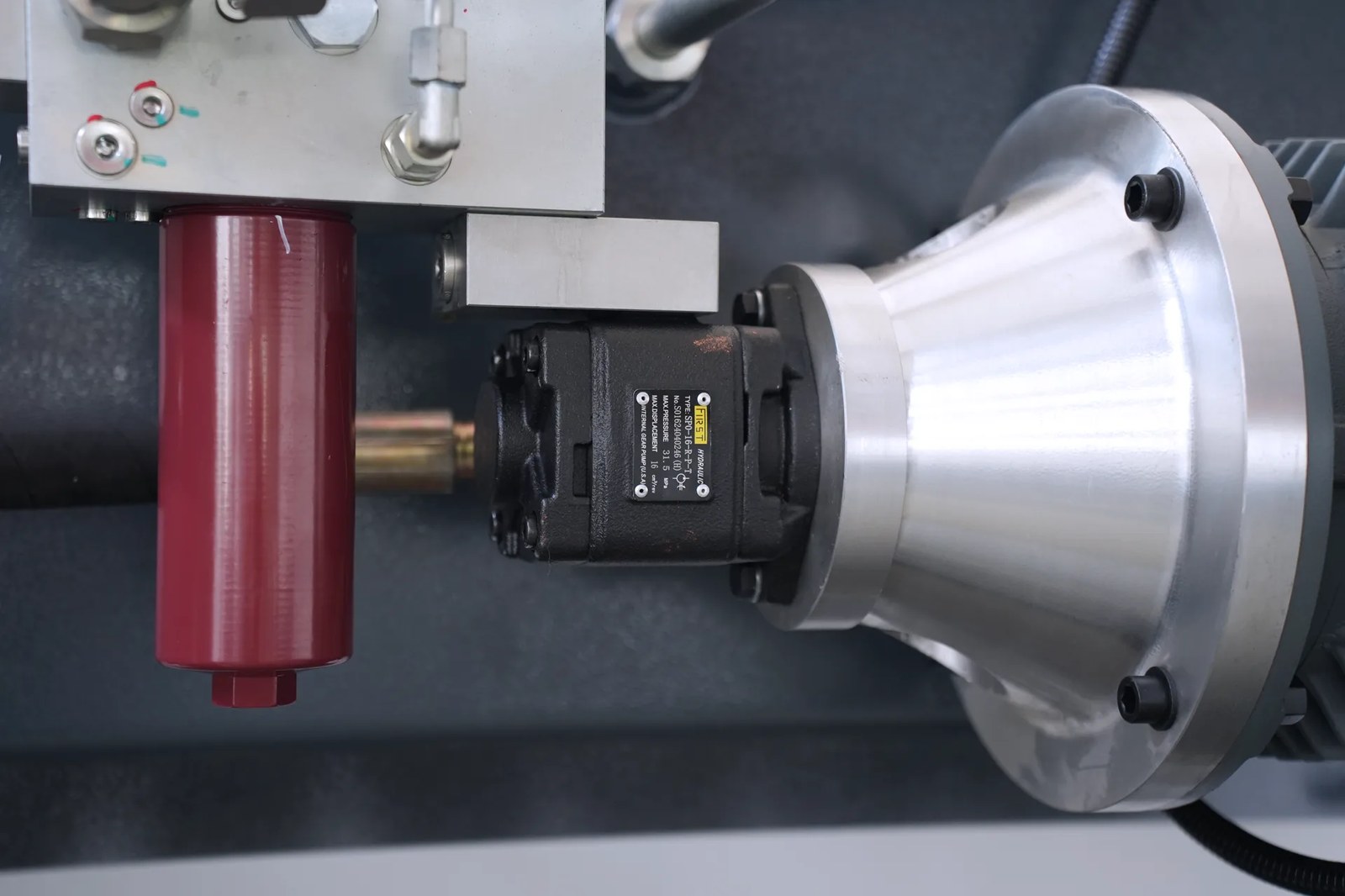

Hydraulic Oil Pump

The oil pump is highly regarded for its exceptional performance, known for its quiet operation and remarkable longevity, making it a reliable choice for various applications.

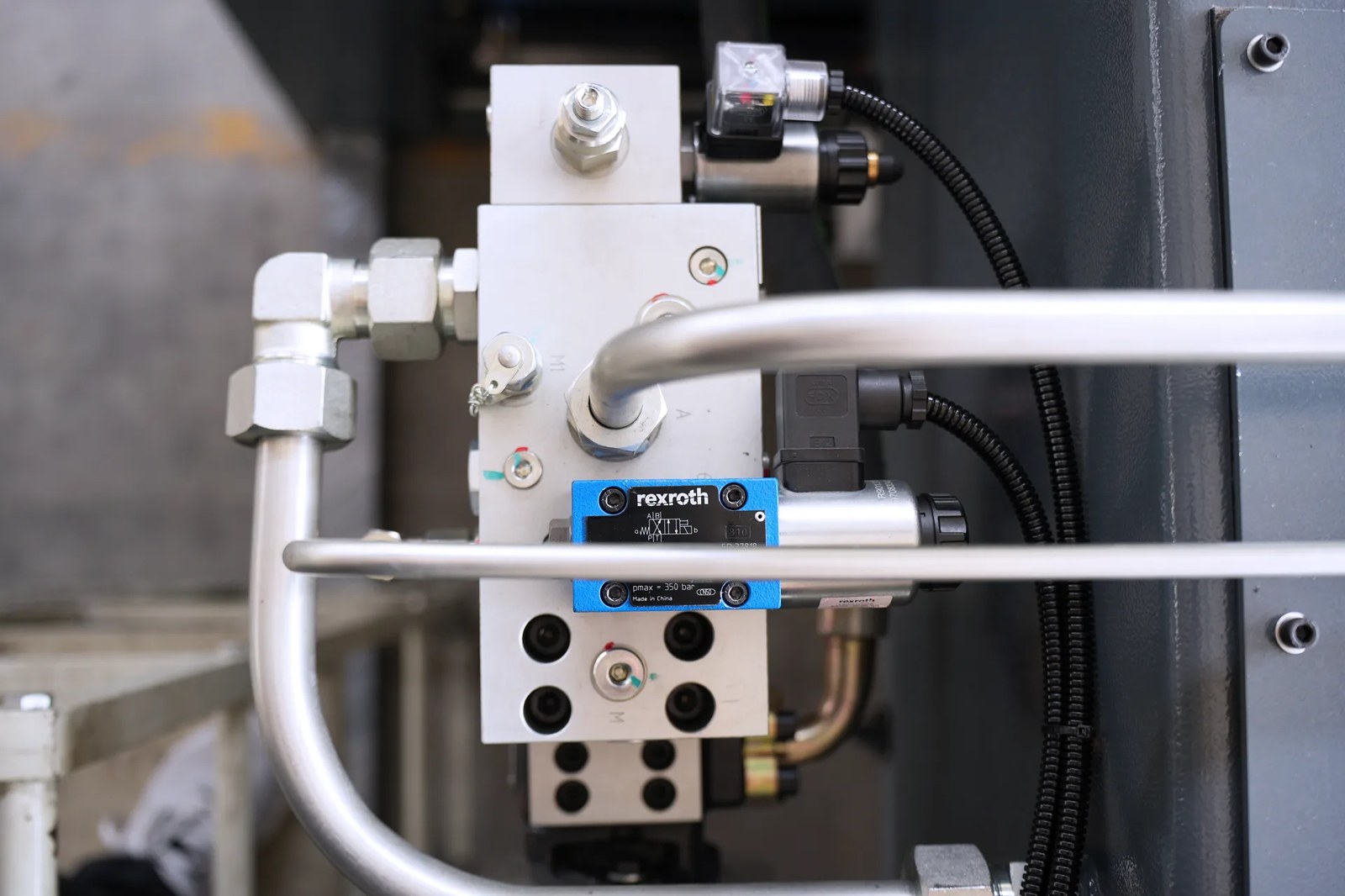

Rexroth Hydraulic Valve

The world famous brand Rexroth, Is a professional hydraulic valve supplier.

The EMB oil pipe joint has a beautiful structure and reduces the possibility of oil leakage.

Rexroth Proportional Valve

The German Rexroth fully closed-loop electro-hydraulic servo high-frequency synchronous control system is adopted to ensure that the CNC Bending Machine tool has high stability and high precision in the process of high-speed operation.

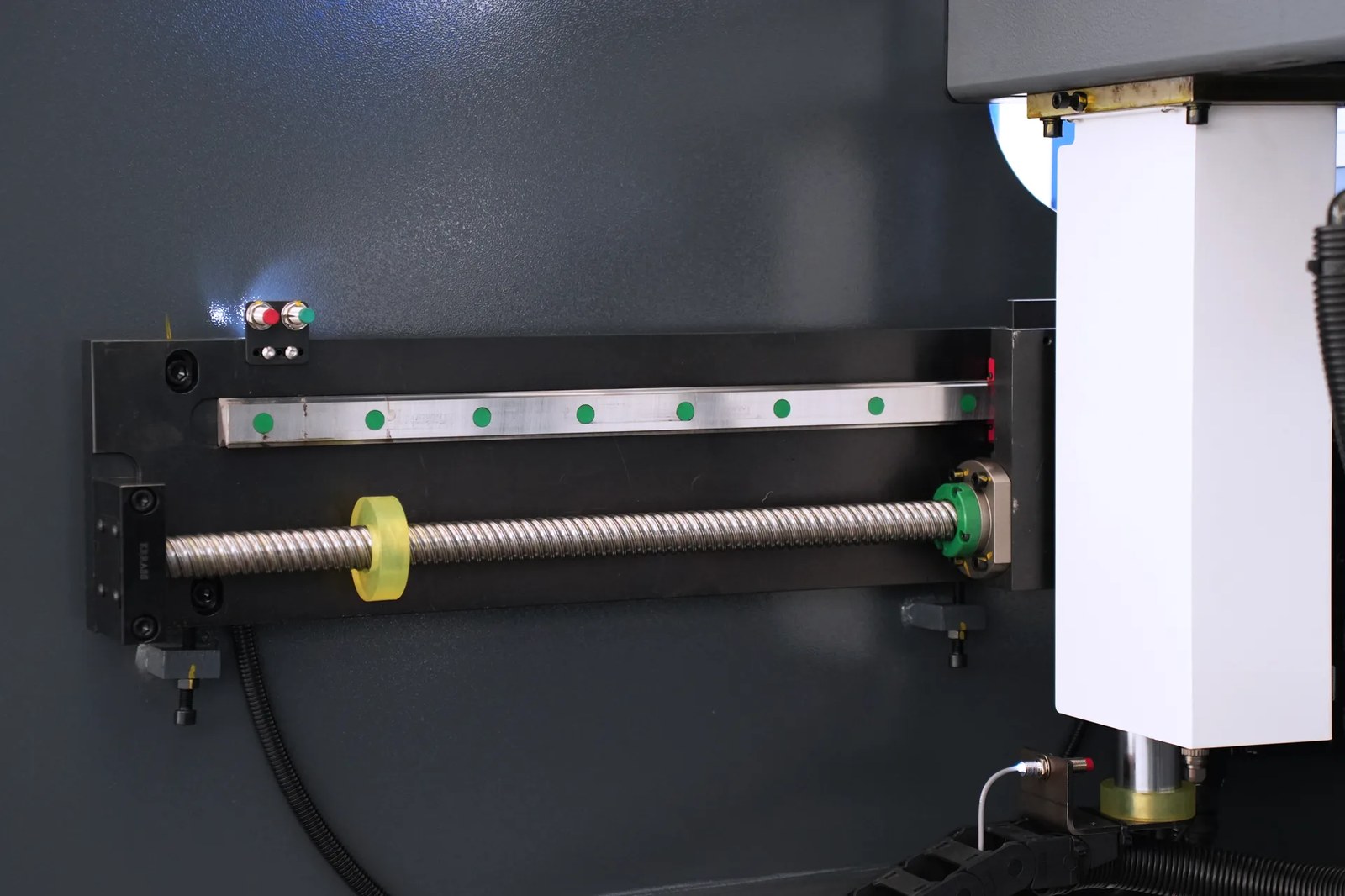

X-axis Ball Screw Linear Guide

• Precision: Ball screws offer enhanced precision, reduced energy consumption, and lower maintenance requirements.
• Responsiveness: Ball screws deliver exceptionally smooth motion.
• Friction: Ball screws rely on recirculating balls to reduce friction instead of lubricants.

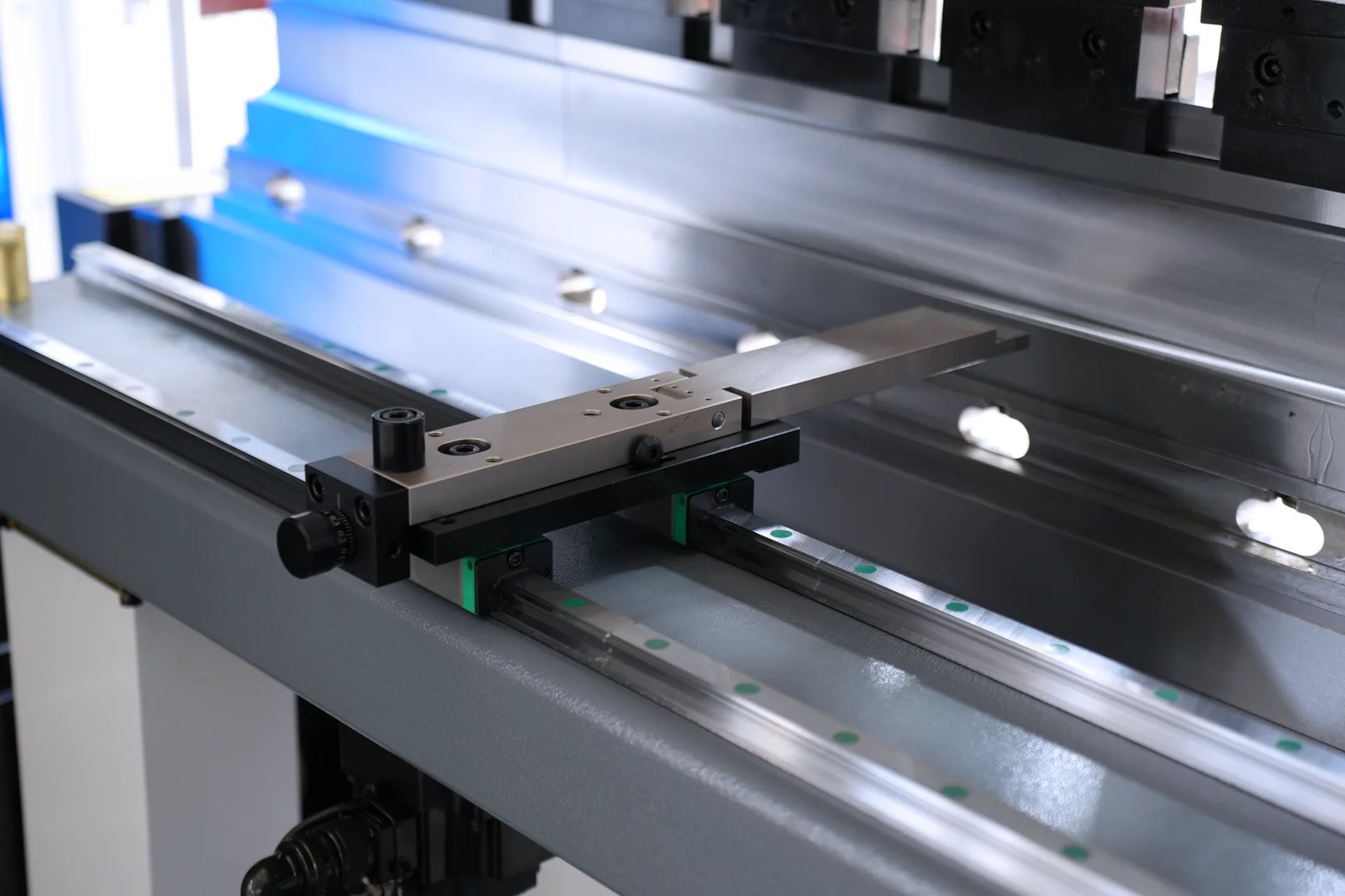

Back Finger Stoper

High-precision backstop means that customers can input the size into the system according to the product’s dimensions, and it can be positioned accurately with an accuracy of 0.01mm.

X axis adopts ball screw and linear quide, ensure high synchronization accuracy and very long life. Widened and extended custom stop fingers, Finger support frame with double linear guide, Meet your reguirements.

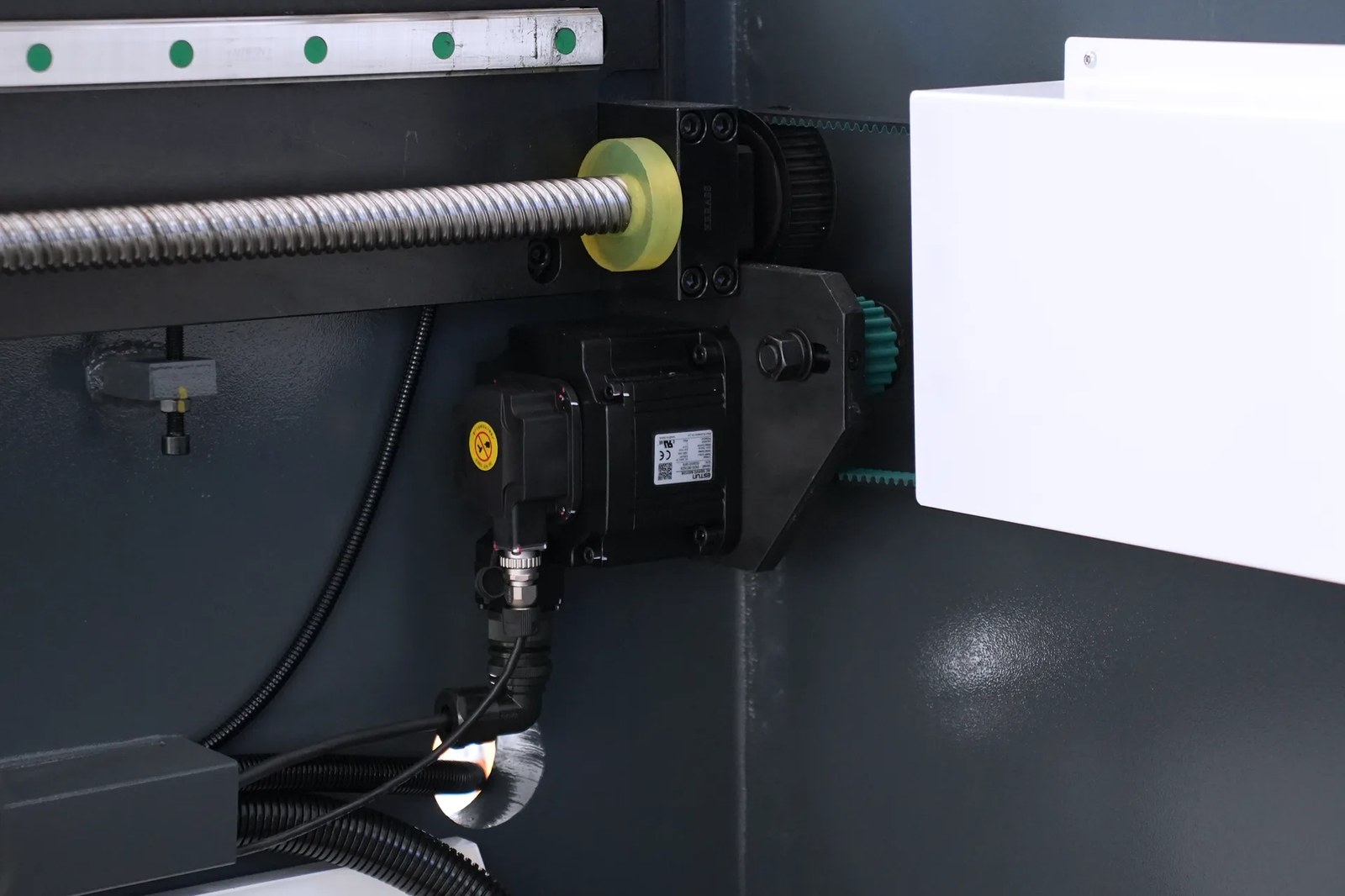

X-axis Servo Motor

In addition, the advantages of servo motors include:

• High ratio of torque to inertia: Can provide as much as 50% more torque in many applications
• High precision: Can precisely actuate, hold, and speed up positions, torque, and speeds in fractions of seconds
• High reliability: Highly reliable

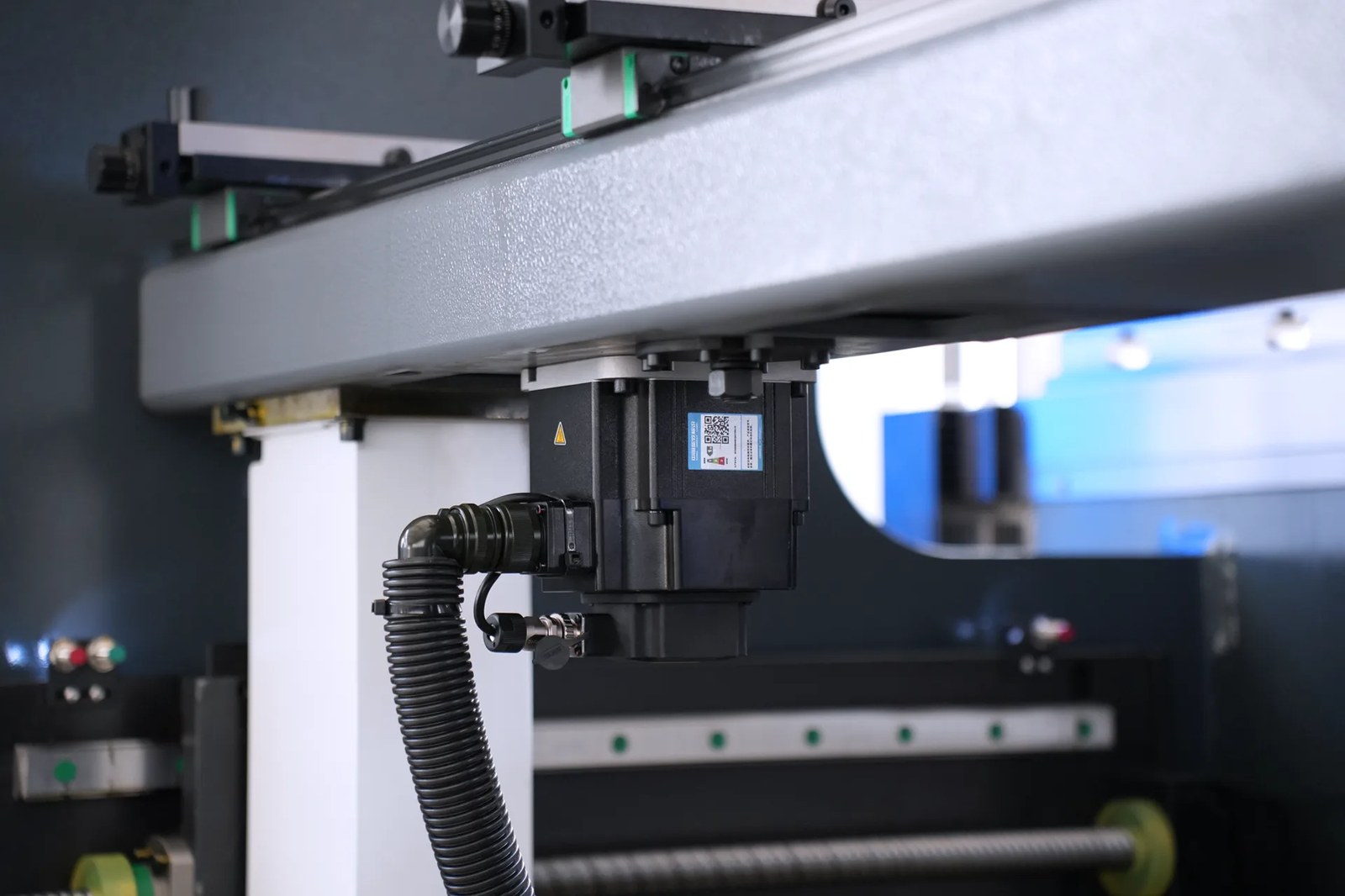

R-axis Servo Motor

Servo motors have several advantages, including:

• High precision: Can precisely actuate, hold, and speed up positions, torque, and speeds in fractions of seconds
• High efficiency: Can approach 90% at light loads
• High output power: Relative to their size and weight
• Closed-loop control: Ensures greater accuracy
• Quiet operation: Little sound noise
• High reliability: Highly reliable
• High ratio of torque to inertia: Can provide as much as 50% more torque in many applications

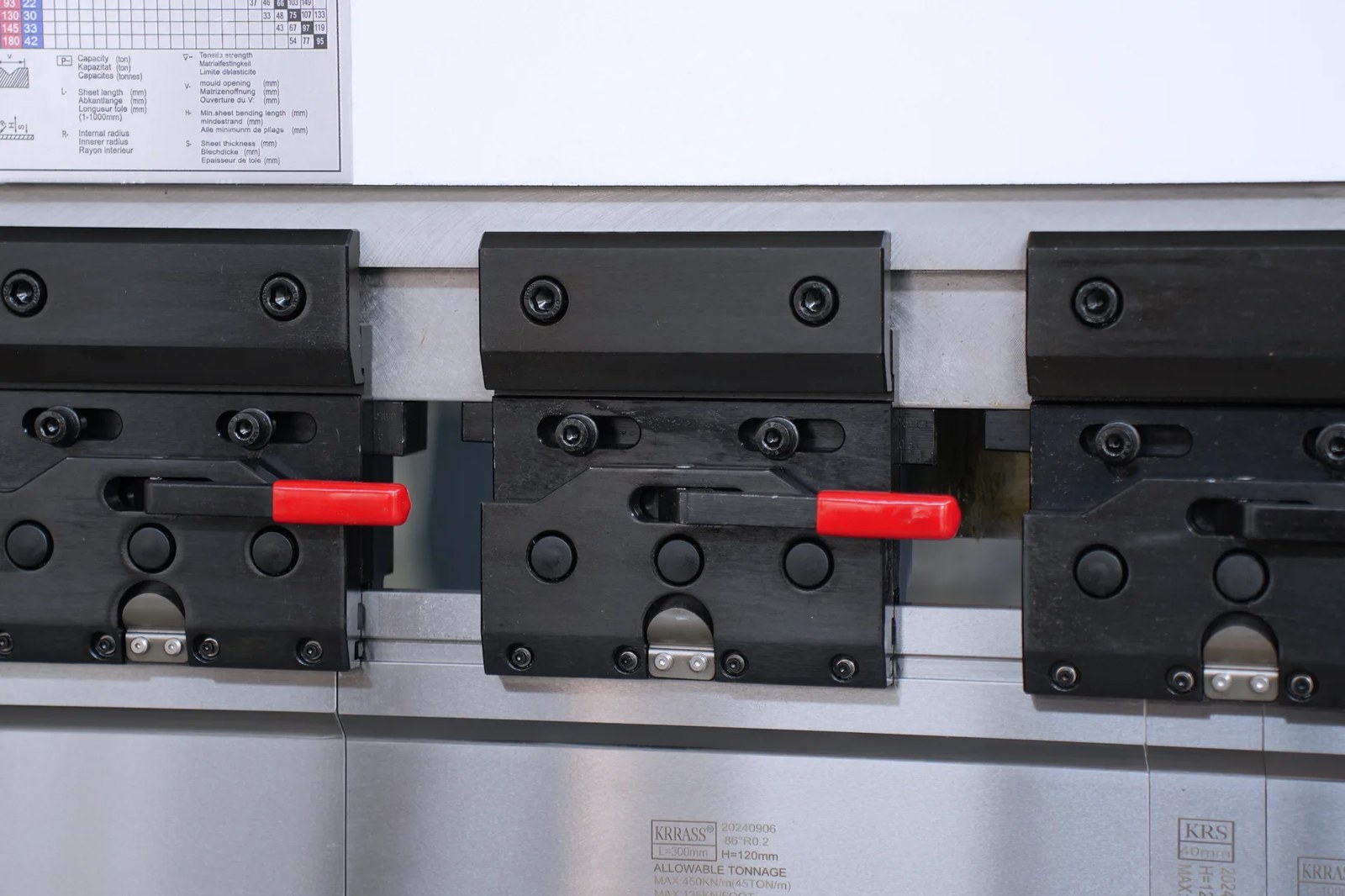

Precision Quick Clamping Device

It is convenient to quickly clamp the upper die, reduce labor intensity and improve production efficiency. The utility model has the advantages of high precision, easy clamping, no loosening, no tool dropping, etc.

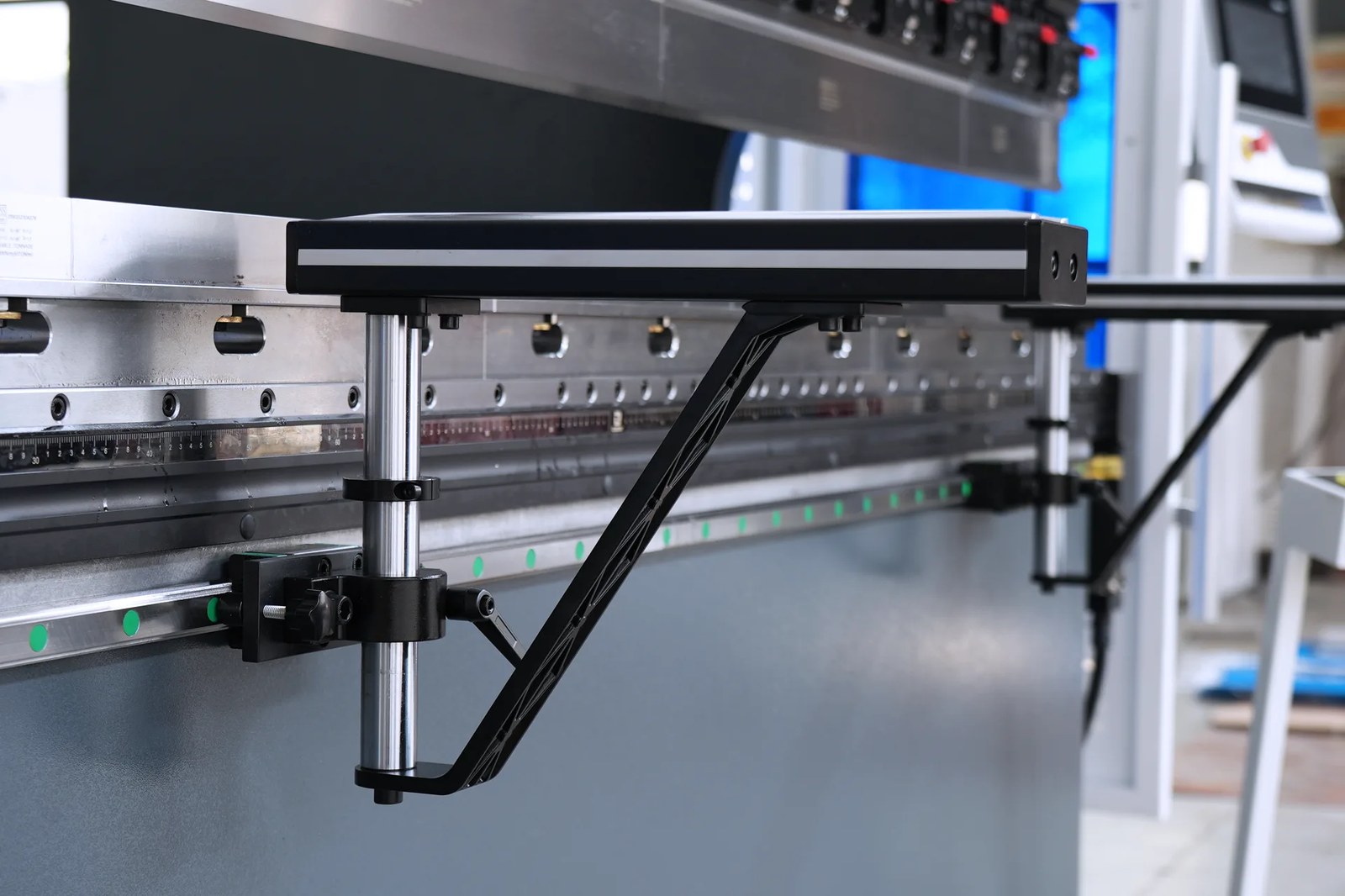

Front Material Support

The front material support can be lifted and lowered freely. When you need to bend larger metal sheets, it can effectively assist in reducing your workload.

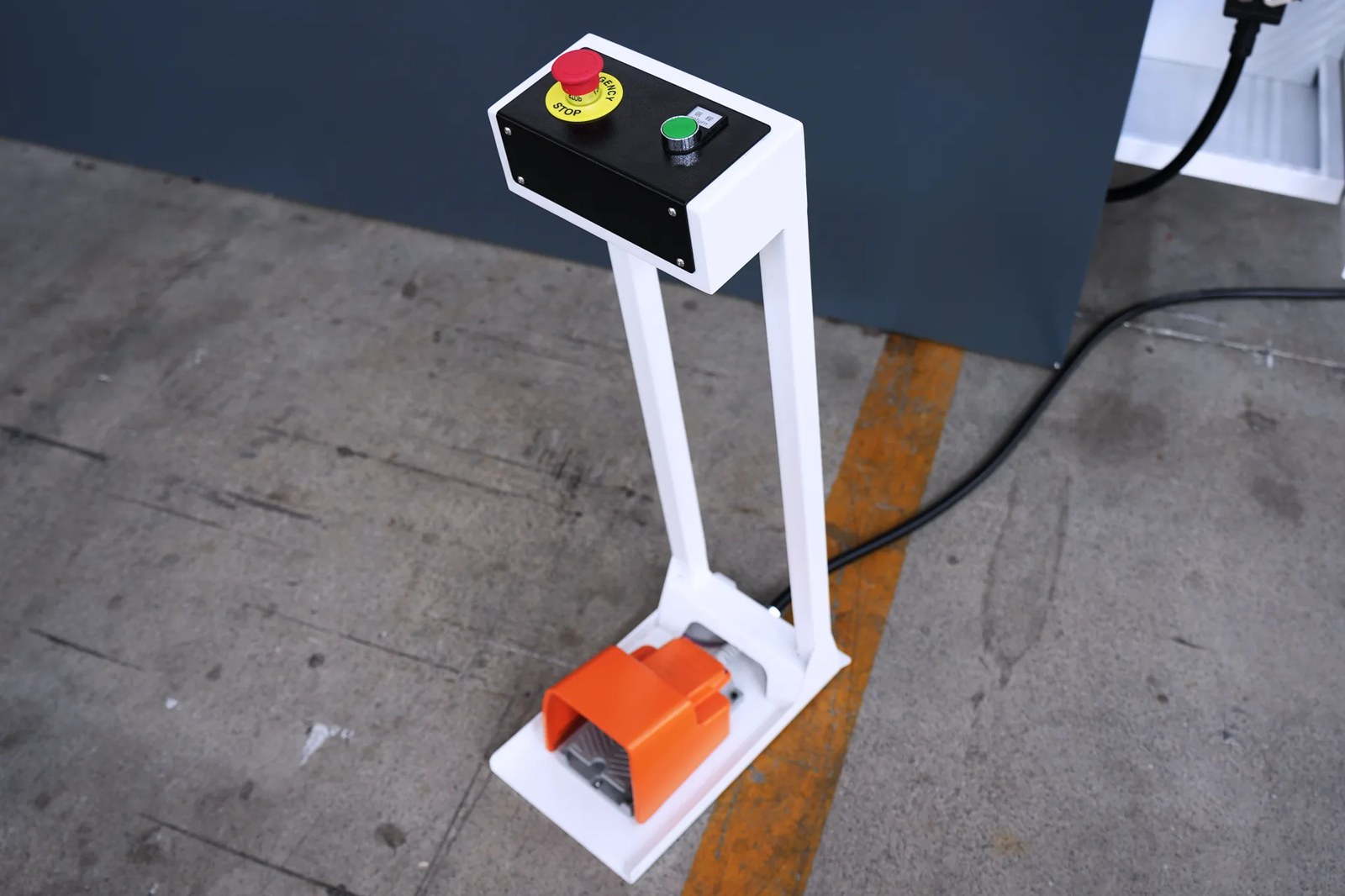

South Korea KACON Foot Switch

South Korea brand foot switch is movableand can stop the CNC bending machine anytime by theemergency button.

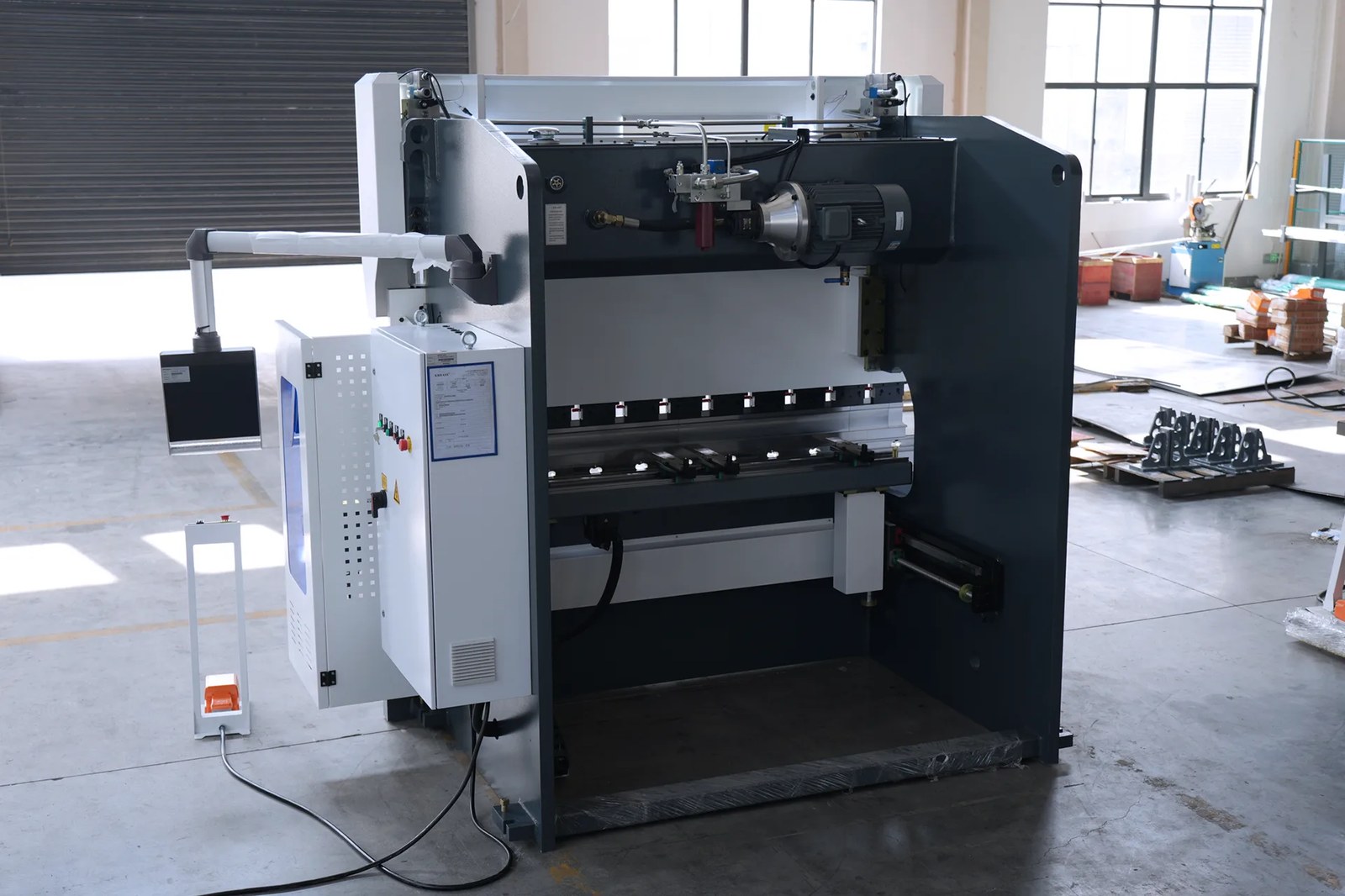

Back of The Fuselage

The whole of the sheet metal bending machine has a clean and neat structure design, regular lines and is easy to operate, making it an ideal choice for bending metal sheets.

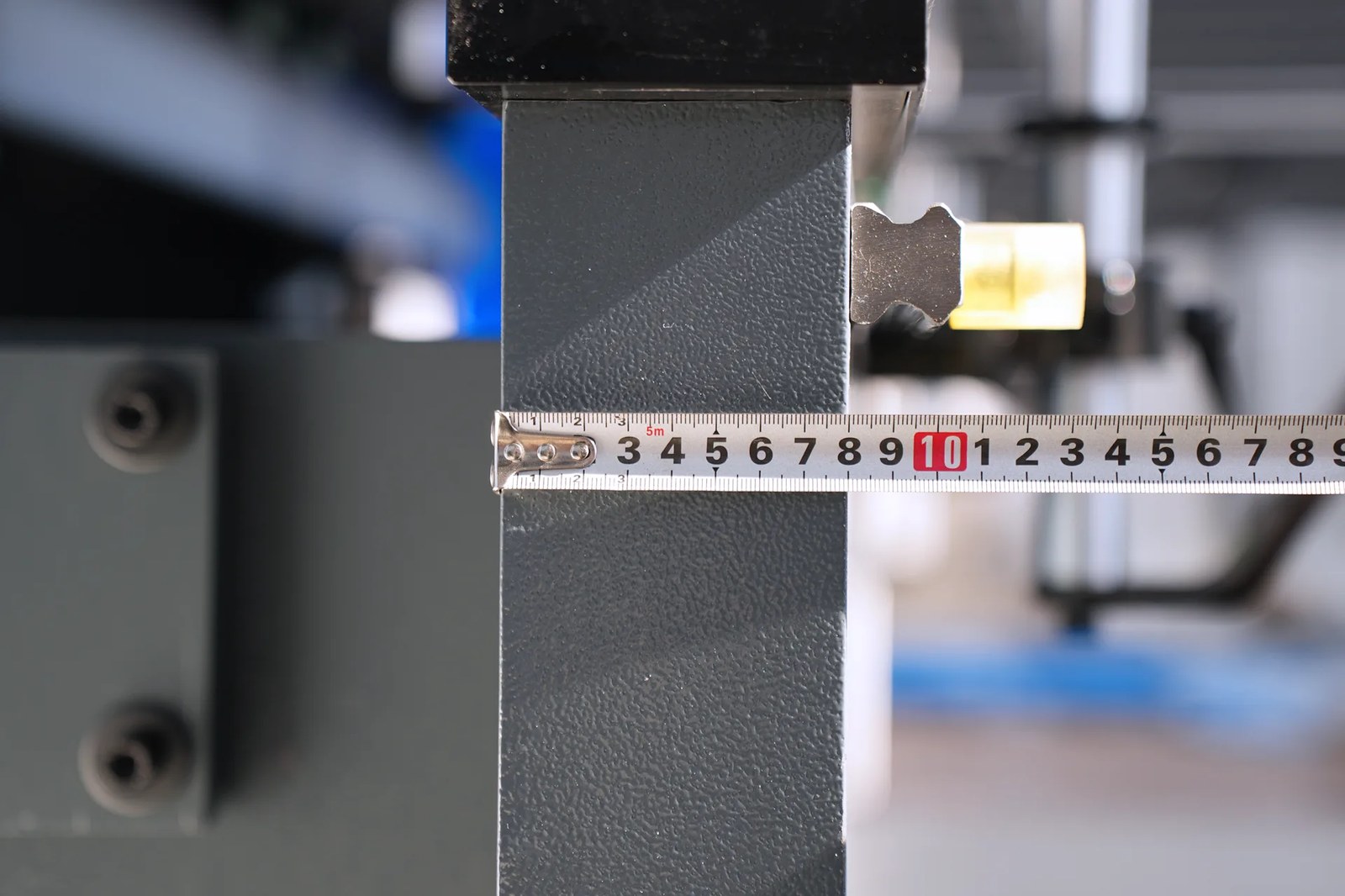

Thickness of workbench (80mm)

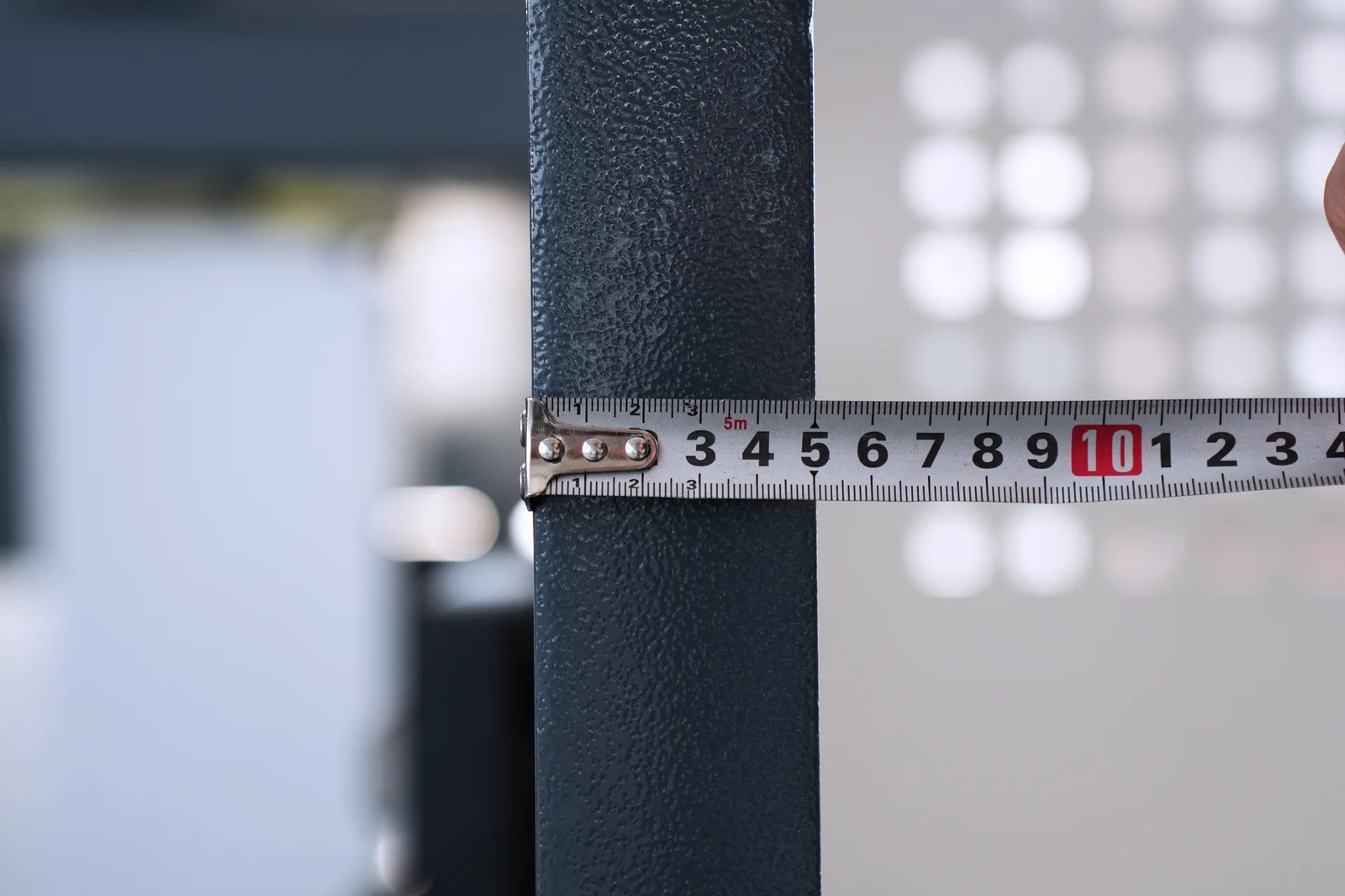

Thickness of side panel (50mm)

Thickness of slider (60mm)

Tooling (Optional)

Standard tooling

Non-Standard tooling

Gooseneck tooling

Double-V Concentric Mold

Four-V Concentric Mold

Multi-V Mold
