Press Brake Buying Guide: 10 Specifications That Matter Most

Every industrial buyer knows the feeling: you open three supplier proposals, place them side by side, and quickly discover that the machines look similar on paper. The tonnage rating sounds right. The bending length covers your largest panels. The controller brand is one you recognize. And yet, experienced production managers will tell you that two machines with nearly identical catalog specifications can behave dramatically differently after six months on the shop floor: one produces consistent angles shift after shift, while the other generates scrap, demands constant adjustment, and leaves operators frustrated.

This is not a coincidence. It is the natural result of comparing press brakes by headline figures alone, rather than understanding the ten specifications that actually govern bending performance. In this guide, we will walk through those ten specifications in detail—not as abstract theory, but as a practical framework you can use to evaluate any machine, from any supplier, in any market. The goal is simple: to help you buy the right press brake once, rather than paying for the wrong one every day.

As part of the KRRASS product philosophy, we build every machine—from the MB8 hydraulic CNC platform to the PBS servo-hydraulic series and the EPP all-electric line—around the principle that specification sheets must reflect real production capability, not marketing optimism. The industry context supports the urgency of this discussion: the global press brakes market was valued at USD 1.8 billion in 2024 and is projected to reach USD 2.1 billion by 2030, growing at a CAGR of 2.9% over the analysis period. In North America alone, the press brake and shears market reached USD 2.2 billion in 2024 and is expected to climb to USD 3.9 billion by 2034 at a CAGR of 6% —with the press brake segment alone generating USD 1.3 billion in 2024 and growing at that same 6% rate. These numbers tell a clear story: metal fabricators worldwide are investing heavily in new bending capacity. The question is whether that investment will deliver the returns you expect.

Below is a summary of the ten specifications that we will explore in this guide. Each one directly influences a different dimension of press brake performance—from daily output to long-term reliability.

Table A: The 10 Specifications at a Glance

Specification	What It Controls	Common Purchasing Error
1. Part Profile	Tonnage, tooling, and machine architecture	Buying a machine before defining production needs
2. Bending Tonnage	Whether you can form the part at all	Confusing total rated tonnage with usable force
3. Load per Meter	Frame safety and deflection control	Ignoring the concentrated-load limit
4. Bending Length	Maximum part width and off-center capability	Assuming rated length equals usable bending length
5. Daylight, Stroke & Throat	Part removal clearance and cycle speed	Buying “big enough” without checking tool-stack height
6. Drive Type	Energy cost, speed, and maintenance profile	Selecting by purchase price instead of total cost of ownership
7. CNC Control & Axes	Programming speed, accuracy, and future flexibility	Choosing a controller for today’s parts without considering tomorrow’s
8. Backgauge System	Flange accuracy and complex-part capability	Overlooking backgauge axes, speed, and repeatability
9. Crowning & Compensation	Angle consistency across the full bend length	Assuming a large frame automatically eliminates deflection
10. Safety & Compliance	Operator protection, legal liability, and market access	Treating safety as optional or checking only for CE marking

How to Use This Guide

This guide is structured so that you can read it sequentially—which we recommend for first-time buyers or anyone replacing an aging machine—or jump directly to the specification that addresses your most pressing concern. Each section includes:

• A plain-language explanation of what the specification means and why it matters.
• Decision-making tables and calculation examples drawn from real shop-floor experience.
• References to independent industry data, standards bodies, and test reports.
• Links to related KRRASS resources where you can explore specific machine configurations in greater depth.

Throughout the guide, we follow one overarching principle: start with the parts, not the machine label. The most profitable press brake purchase is never the one with the biggest tonnage number or the lowest upfront price. It is the machine whose ten core specifications align most precisely with the parts you actually produce every day.

Start with the Parts, Not the Machine Label

Why This Comes First

If you take away only one insight from this entire guide, let it be this: the best press brake selection starts from the workpiece, not from the machine catalog. A common purchasing mistake—one we see in factories across every market we serve—is to begin with a machine name such as “100-ton press brake” or “3200 mm CNC press brake” without first defining the parts that the factory must bend. This approach can lead to a machine that has sufficient nominal tonnage but inadequate open height, generous bending length but poor backgauge suitability, or an attractive controller model but insufficient tooling configurability.

When you start from a machine label, you are essentially letting a marketing category dictate your engineering requirements. When you start from your parts, the engineering drives the purchase, and the marketing label becomes simply a way to describe what you have already determined you need.

Building a Simple Production Profile

Before requesting a quotation, buyers should collect a simple production profile. It does not need to be exhaustive—often one or two pages of notes is sufficient—but it must capture the variables that govern bending physics. The following table, adapted from our comprehensive press brake comparison guide, provides a practical framework for converting part requirements into machine requirements.

Table 1.1: From Part Requirements to Machine Specifications

Buyer Question	Why It Matters	What to Prepare Before Ordering
What materials will be bent most often?	Material strength directly determines required tonnage and influences springback behavior.	Identify your primary materials: mild steel, stainless steel (304, 316), aluminum, galvanized sheet. Record tensile strength if available.
What is the normal thickness range?	Thickness has an exponential effect on force requirements (force ∝ thickness²).	Document your minimum, typical, and maximum thickness values.
What is the longest bend length?	Determines machine frame length and tonnage distribution across the bed.	Measure the maximum bend length and note whether it occurs daily or only occasionally.
What is the shortest flange?	Limits your smallest usable V-die opening and influences tooling selection.	Pull minimum flange dimensions directly from part drawings.
What angle tolerance do you need?	Determines CNC sophistication, crowning requirements, tooling quality, and backgauge axis count.	Specify angle tolerance (e.g., ±0.5°) and flange length tolerance (e.g., ±0.1 mm).
What is your production pattern?	Determines controller level, tool clamping type, and automation value.	Characterize your work as high-mix/low-volume, batch production, or long-run repetitive.
Who will operate the machine?	Determines training requirements, interface language, and safety discipline.	Assess operator experience, language preference, and familiarity with CNC interfaces.

Source: Adapted from KRRASS buyer questionnaire.

The Economic Risk of Skipping This Step

A part-first approach also helps avoid two expensive mistakes: overbuying and underbuying. Not every factory needs the most complex press brake available. A job shop that bends mostly 1.0–3.0 mm mild steel panels has fundamentally different requirements from a structural fabricator working with 8.0–12.0 mm high-strength steel. Buying too much machine ties up capital, consumes excess floor space, and may actually reduce precision on thin-gauge work—because hydraulic valves struggle to meter pressure accurately when operating at low percentages of rated capacity.

At the same time, underbuying can be far more expensive than buying a properly configured machine. When a press brake lacks sufficient open height for your tallest parts, adequate throat depth for your box-forming work, or enough backgauge axes for your complex flanges, operators compensate with workarounds. Each workaround introduces variability. Variability creates scrap, rework, slow setup, and ultimately lost production capacity that far exceeds the cost difference between a marginal machine and a capable one.

Practical rule: Spend at least one day collecting and organizing your production data before you open the first quotation. The time you invest here will save you months of frustration later.

Bending Tonnage — Calculate, Do Not Guess

The Most Visible — and Most Misunderstood — Number in Press Brake Specification

Tonnage is the specification every buyer looks at first. Open any press brake brochure, and the headline will announce something like “200 tons,” “320 tons,” or “1000 tons.” Buyers routinely compare 100-ton, 160-ton, 220-ton, and 320-ton machines as if tonnage alone defines capability. This is understandable: tonnage is quantitative, easy to compare, and feels like a straightforward measure of “power.” The problem is that rated tonnage alone tells you very little about what the machine can actually bend.

Rated tonnage represents only a hydraulic pressure ceiling—the maximum force the cylinders can generate. It does not tell you whether that force can be safely applied to a 300 mm bend, whether the frame will deflect unacceptably under that load, or whether your tooling can withstand the concentrated pressure. In truth, the force required to bend a given part depends simultaneously on five variables: material type and tensile strength, material thickness, bend length, V-die opening width, and bending method (air bending, bottom bending, or coining).

The Physics of Bending Force

For air bending—the most common bending method in modern sheet metal fabrication—a widely used engineering formula provides the theoretical bending force. The most widely recognized metric model in the sheet-metal industry is:

P = (650 × S² × L) / V × (σ_b / 450)

Where:

• P = Total bending force (kN)
• S = Sheet thickness (mm)
• L = Bend length (m)
• V = V-die opening width (mm)
• σ_b = Material tensile strength (N/mm² or MPa)

The most critical insight hidden in this formula is the exponential effect of thickness: when sheet thickness doubles, the required tonnage quadruples, not doubles. This is why a seemingly small increase in material thickness—say, from 3 mm to 4 mm—can push a machine that was comfortably within capacity into overload territory.

Practical Tonnage Estimation Table

The following table translates the formula into actionable reference values for mild steel air bending. Use it as a starting point, then apply the material correction factors in Table 2.2.

Table 2.1: Estimated Tonnage per Meter for Mild Steel Air Bending (kN/m)

Thickness (mm)	V = 8×S (kN/m)	V = 10×S (kN/m)	V = 12×S (kN/m)
1.0	81	65	54
1.5	183	146	122
2.0	325	260	217
3.0	731	585	488
4.0	1,300	1,040	867
5.0	2,031	1,625	1,354
6.0	2,925	2,340	1,950
8.0	5,200	4,160	3,467
10.0	8,125	6,500	5,417
12.0	—	9,360	7,800

Notes: Values calculated for mild steel (σ_b = 450 MPa) using the formula P = (650 × S² × L) / V. Multiply by material correction factor for other materials. Values assume standard 1-meter bend length. Multiply by actual bend length in meters for total force. For full-length bending, use V = 8×S as a practical minimum; for tighter-radius work, consult tooling manufacturer charts. Independent air bend force charts are available from tooling manufacturers such as Wilson Tool.

Table 2.2: Material Correction Factors

Material	Typical Tensile Strength (σ_b)	Correction Multiplier	Recommended V-Die Rule	Engineering Note
Mild Steel (Q235, A36, S275)	400–450 MPa	1.0 (base)	V = 8 × S	Standard condition; most versatile.
Stainless Steel (SS304, SS316)	650–700 MPa	1.5–1.6	V = 10–12 × S	High springback; wider V-opening recommended to avoid cracking.
Aluminum Alloy (5052, 6061)	210–310 MPa	0.5–0.7	V = 6–8 × S	Soft material; watch for galling on tooling.
High-Strength Steel (S690, Hardox)	700–900 MPa	1.6–2.0	V = 10–14 × S	Extreme springback; may require coining or bottom bending.

Source: Material correction factors adapted from industry-standard bending reference data.

Worked Example: From Part to Tonnage

Suppose a factory needs to bend 3 mm mild steel (σ_b = 450 MPa) across a 2,500 mm bend length using a 24 mm V-die opening (V = 8 × S). A reference chart shows approximately 21 tons per meter for this combination. For a 2,500 mm bend: 21 tons/m × 2.5 m = 52.5 tons.

With a recommended 20% safety margin to account for material variations, tooling tolerances, and hydraulic system efficiency: 52.5 tons × 1.2 ≈ 63 tons. A buyer specifying a 63-ton press brake would be well within a safe operating range for this application—provided the machine’s load-per-meter rating also supports this bending length (see Specification #3).

If the same factory later introduces 3 mm stainless steel (σ_b ≈ 670 MPa, correction factor 1.5), the required force jumps to approximately 79 tons—a 50% increase simply from switching materials. This is the kind of detail that a headline tonnage number obscures.

The Hidden Trap: Oversizing Can Hurt Precision

A less obvious risk is that oversizing tonnage can degrade precision on thin-gauge work. When a 200-ton press brake is asked to bend 16-gauge steel requiring only 10 tons of force, the machine operates at roughly 5% of its rated capacity. At such low percentages, hydraulic valves struggle to meter pressure precisely. The result is angle inconsistency, unpredictable springback, and increased scrap rates.

This is why KRRASS offers multiple press brake platforms at overlapping tonnage ranges but with different drive characteristics and control philosophies. Our MB8 hydraulic CNC series provides the broadest tonnage spectrum for general-purpose work, while our EPP electric press brake achieves its highest precision in the thin-to-medium gauge range where traditional hydraulics struggle with resolution. The right choice depends on your part profile—not on which machine has the bigger number on the brochure cover.

Load per Meter — The Limit That Actually Protects Your Machine

Why Total Tonnage Is Not Enough

Even after calculating the correct tonnage for your parts, there is a second, less visible specification that governs whether your machine can safely deliver that force: load per meter (also expressed as tons per foot or kN per meter). This is the maximum concentrated force the frame and bed can withstand without permanent deformation.

Every press brake has a load-per-meter limit that is lower than its total tonnage rating. Ignoring this distinction—and many buyers do—can lead to a machine that appears to have ample total capacity yet suffers frame damage on short, heavy bends.

Consider this scenario: a fabricator needs to bend a 300 mm (12-inch) wide plate that requires 45 tons of force. The shop owns a 250-ton press brake, so the job looks straightforward on paper. But those 45 tons concentrate into just 0.3 meters of bed length—equivalent to 150 tons per meter. If the machine frame is rated for a maximum of 100 tons per meter, the concentrated load exceeds the frame’s elastic limit. The cylinders push, the bed yields, and the resulting microscopic sag permanently degrades the machine’s angle accuracy.

How Load Limits Vary Across the Bed

Press brake frames behave like bridges: they are stiffest near the side housings and most flexible through the center span. Manufacturers therefore specify load limits as a curve or chart, not as a single global value. A machine capable of 50 tons per foot near each side frame might drop to 25 tons per foot at the center of a long bed.

This variation has practical consequences. A bending job that is safe when positioned near the side housings may cause frame distortion when run at the center of the same machine. Some operators compensate by shifting short, heavy bends toward one side where stiffness is greater—but this introduces off-center loading. When most of the force acts on one cylinder, the ram twists, scarring the guideways and shortening the machine’s service life.

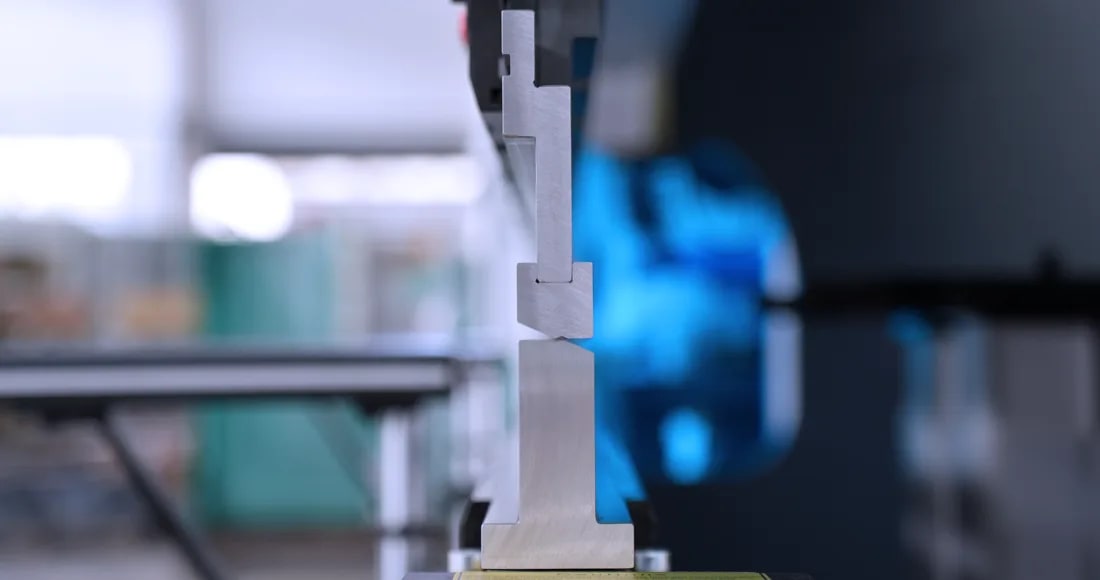

Tooling Limits Often Come First

In many cases, the tooling reaches its load limit before the machine frame does. Precision punches and dies typically tolerate approximately 20–30 tons per foot. Process choice can multiply these stresses dramatically: bottom bending requires approximately four times the air-bending tonnage, and coining may demand ten times more. A job reading 15 tons per foot in air bending can surge to 60 tons per foot in bottom bending—enough to snap a punch tang even though the hydraulic pressure gauge remains below the machine’s total rating.

Surviving such concentrated stress requires heavier tooling that spreads load across a larger cross-section. The geometric compromise is that larger tools consume more daylight clearance between the ram and bed, forcing deeper setups and limiting available stroke.

Table 3.1: Load-per-Meter Decision Checklist

Check	Action	Red Flag
Maximum load per meter	Request the load-limit chart from the manufacturer.	No chart available; only a single global rating.
Short-bend scenarios	Calculate tons-per-meter for your shortest bend length at maximum thickness.	Exceeds the published load-per-meter rating at that bed position.
Tooling load limits	Verify punch and die load ratings in tons per foot.	Using standard tooling for coining or heavy bottom bending.
Off-center loading	Confirm maximum permissible off-center load.	Routinely bending short parts near one end of the bed.
Bed position	Understand how load capacity varies across the bed length.	Assuming the same rating applies at the center as at the side frames.

At KRRASS, our machine frames are designed using SOLIDWORKS 3D modeling and Finite Element Analysis (FEA) to verify load distribution, stress concentration zones, and frame rigidity under maximum tonnage conditions before manufacturing begins. The frame steels are sourced from certified international metallurgical suppliers and undergo thermal stress relief (annealing) after welding to eliminate internal stresses that would otherwise cause the frame to warp over time. These engineering steps—invisible in a standard specification sheet—directly determine whether a machine’s published load-per-meter rating is sustainable across years of production or only valid in a laboratory test.

Bending Length — More Than a Tape-Measure Dimension

Rated Length vs. Usable Length

Bending length is often treated as a simple measurement: a 3,200 mm press brake can bend parts up to 3,200 mm wide. In practice, the full rated bending length is not always fully usable, and the reasons go beyond the distance between the side housings.

The first limitation is frame interference. The distance between the side frames (the “inside distance”) is always less than the nominal bending length. A 3,200 mm press brake might have an inside distance between side frames of approximately 2,600–2,800 mm. Parts that are narrower than the nominal length but wider than the inside distance between columns may require specialized tooling extensions or simply cannot be accommodated.

The second limitation is load distribution. A machine’s tonnage rating is specified for full-length bending. If you are bending a short part, the available tonnage is limited not by the total rating but by the load-per-meter limit discussed in Specification #3.

The third limitation is tooling segmentation. Most press brake tooling is supplied in segmented sections (commonly 10 mm to 100 mm segments) that can be arranged to match the required bend length. The total assembled tooling length may be slightly less than the nominal machine length because of clamping clearances and segment tolerances.

Table 4.1: Bending Length Selection Guide

Typical Part Size	Recommended Bending Length	Machine Series Example (KRRASS)
Up to 1,250 mm	1,600 mm	EPP-35/1350
Up to 2,000 mm	2,500 mm	MB8-100/2500
Up to 2,500 mm	3,200 mm	PBS-160/3200
Up to 3,200 mm	4,000 mm	MB8-220/4000
Up to 5,000 mm	6,000 mm	MB8-320/6000

The Strategic Choice: One Long Machine or Two Medium Machines?

For factories that produce a mix of small and large parts, a recurring strategic question is whether to buy one long press brake or two shorter machines. The answer depends on production volume, workflow, and the frequency of long-part bending.

A single 4,000 mm press brake can handle both large panels and small brackets—but it occupies significant floor space, requires larger tooling sets, and may operate inefficiently when the majority of daily work is short parts. Two 2,000 mm machines, by contrast, allow parallel production: one machine can run high-volume short parts while the other is set up for long panels or complex multi-bend sequences.

The economic calculation should include not just machine purchase price, but also tooling investment (one long machine requires one long tooling set; two shorter machines require two tooling sets), operator allocation (two machines may need two operators or an automated cell), and floor space cost. There is no universal “right” answer—only the answer that matches your production profile.

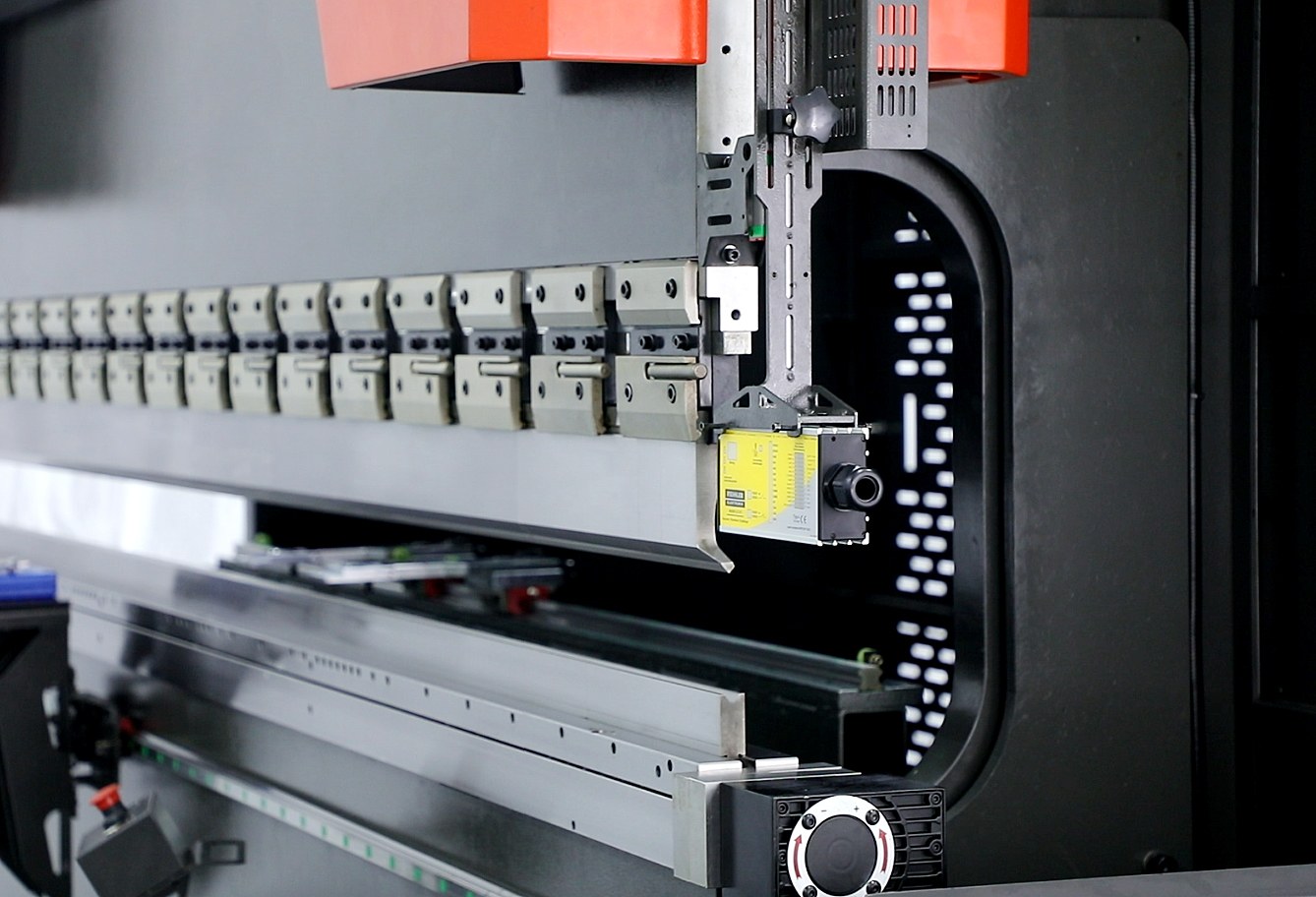

Daylight Clearance, Stroke Length, and Throat Depth

The Open-Height Illusion

A specification sheet may quote 500 mm (20 inches) of daylight —the total distance between the ram and bed with the ram at top dead center—on a 150-ton press brake. This figure creates the impression of generous working space. In reality, daylight is measured before tooling is installed. Add a 150 mm (6-inch) punch, a 100 mm (4-inch) punch holder, and a 75 mm (3-inch) die, and approximately 325 mm (13 inches) of that daylight is consumed before the first part is loaded. What remains—roughly 175 mm (7 inches) —is your actual working clearance.

If your part includes flanges taller than this remaining clearance, you may complete the bend yet find the finished piece trapped under the ram, unable to clear the side frames. The force was sufficient, the bending length was adequate, but the geometry of removal was overlooked.

Tool Geometry: How Boxes and Channels Consume Space

Forming an enclosure or deep channel magnifies this restriction. The first few bends often fit easily, but the last bend must accommodate already-formed flanges swinging around the punch. A part with 150 mm (6-inch) returns requires a tall gooseneck punch with deep throat clearance. Such punches need reinforcement to resist flexing under load, which adds height and steals further daylight. The designer’s trade-off is clear: larger flanges need deeper goosenecks, yet deeper tools reduce available clearance.

Practical rule for box-forming applications: Calculate your required daylight as: punch height + die height + tallest flange height + safety clearance (typically 25–50 mm). Compare this total against the machine’s published open height minus the tool-clamping system thickness. If the numbers are close, consult the manufacturer’s applications engineering team before ordering.

Stroke Length: The Cycle-Time Governor

Daylight defines the space available; stroke defines how much of that space the ram actually travels through during a bending cycle. Many mid-range press brakes advertise generous daylight but offer relatively short stroke. A machine with 500 mm of daylight and only 200 mm of stroke, combined with a 300 mm tooling stack, leaves approximately 200 mm of usable clearance—barely sufficient for a 125 mm (5-inch) flange.

Limited stroke also slows cycle speed. When the ram approaches its travel limit, the machine must switch from rapid approach to slow bending speed earlier in the cycle. Each second of unnecessary slow travel adds up across thousands of cycles. For high-volume production, stroke length is not merely a geometric specification—it is a productivity specification.

Throat Depth: The Forgotten Dimension

Throat depth (also called “gap” or “daylight depth”) is the horizontal distance from the centerline of the tooling to the back of the machine frame. It determines how far a sheet can extend behind the bend line before colliding with the frame. This specification is critical for box bending, channel forming, and any work where flanges on multiple sides must clear the machine structure.

A standard throat depth of 200–400 mm accommodates most flat-panel and simple bracket work. For deep boxes and enclosures, throat depths of 400–600 mm or greater may be required. Specialty machines designed for architectural metalwork or large enclosure fabrication may offer throat depths exceeding 800 mm. The KRRASS product range includes configurations with varied throat depths to match different application profiles; consult the KRRASS press brake product page for current specifications across the MB8, PBS, and EPP series.

Drive Type — Hydraulic, Servo – Hydraulic, Electric, or Hybrid

The Technology Landscape

The drive system is the engine of a press brake. It determines how electrical energy is converted into the mechanical force that moves the ram. Over the past two decades, press brake drive technology has diversified from a single dominant design—conventional hydraulic—to a spectrum of options, each with distinct advantages and trade-offs.

The four principal drive types in production today are:

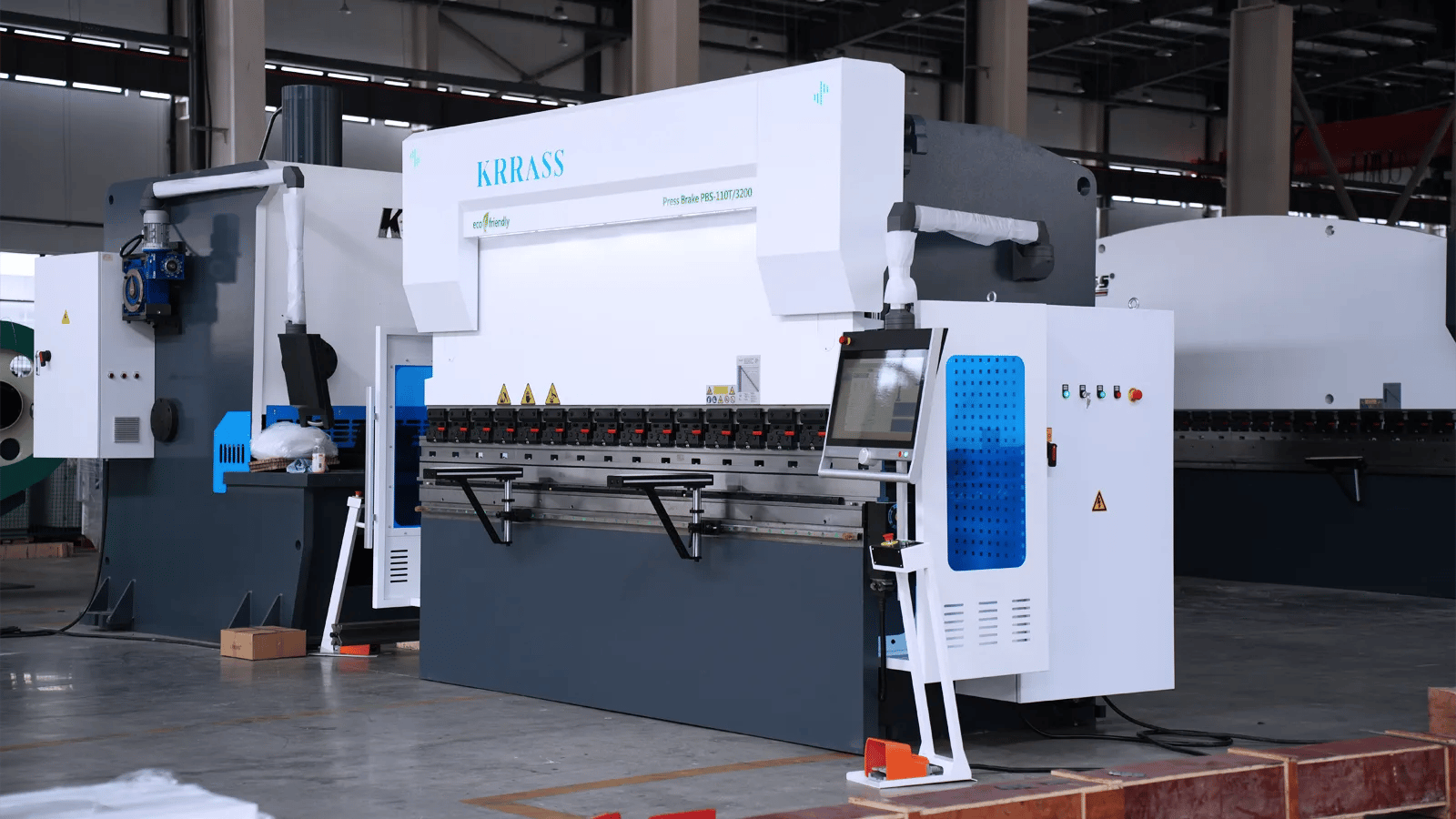

1. Conventional Hydraulic: An AC motor runs continuously, driving a hydraulic pump that pressurizes oil to move cylinders connected to the ram.

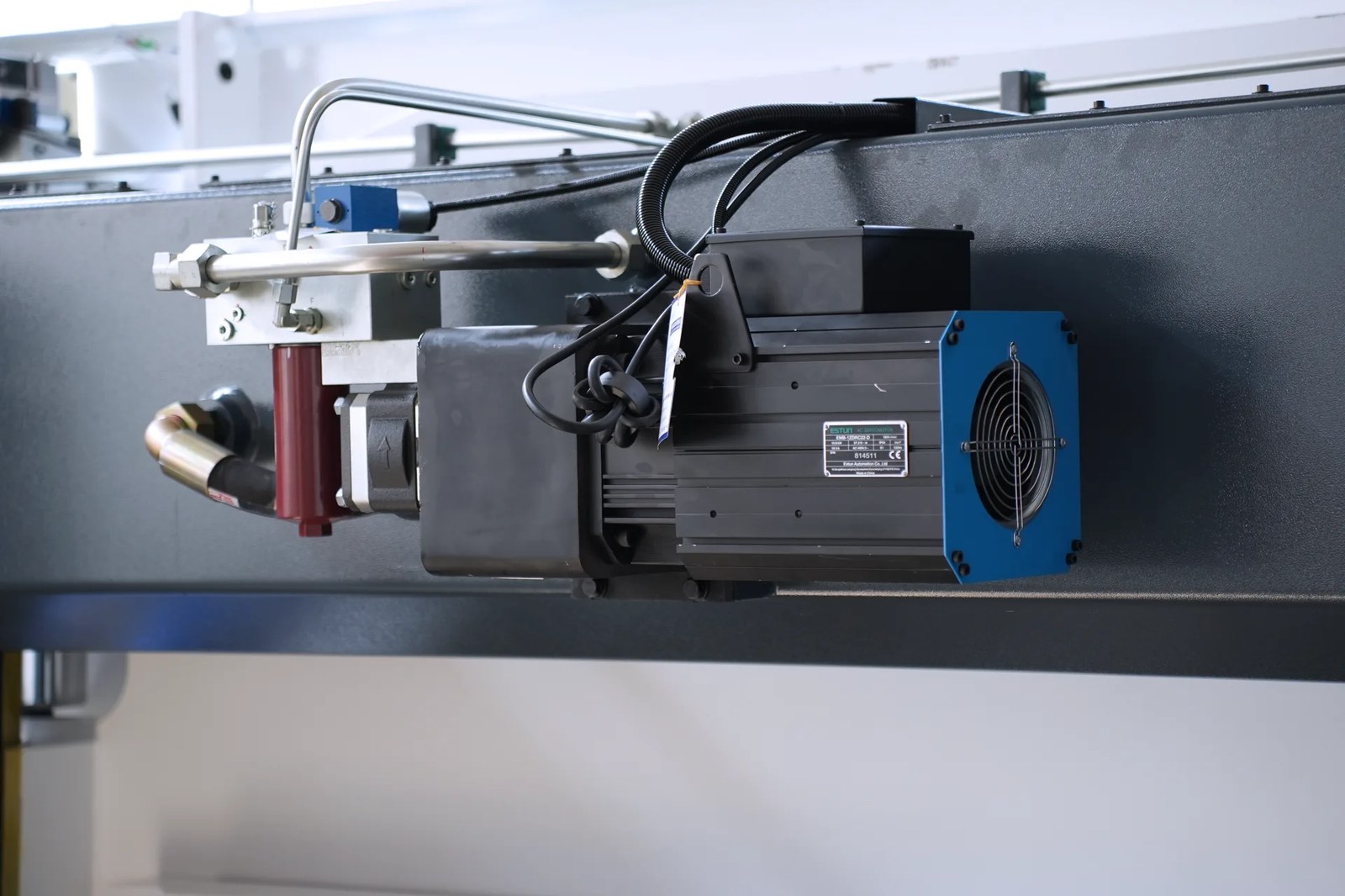

2. Servo-Hydraulic (Main Motor Servo): A servo motor replaces the conventional AC motor, driving the hydraulic pump only when the ram needs to move. During standby, the motor idles or stops entirely.
3. Pump-Controlled Hybrid: A variable-speed pump directly controls hydraulic flow, eliminating the need for proportional valves and reducing hydraulic stress.
4. All-Electric (Servo-Electric): Servo motors drive the ram directly through ball screws or belt mechanisms, eliminating the hydraulic system entirely.

Table 6.1: Drive-Type Comparison Matrix

Dimension	Conventional Hydraulic	Servo-Hydraulic	Pump-Controlled Hybrid	All-Electric
Energy Consumption	High: motor runs continuously	Medium-Low: motor idles during standby	Low: on-demand pumping	Very Low: energy only during ram movement
Typical Energy Saving vs. Hydraulic	Baseline	40–50%	50–60%	55–78%
Precision (Repeatability)	±0.01 mm	±0.005 mm	±0.005 mm	±0.001 mm
Cycle Speed	Moderate	Fast	Fast	Very Fast (30–50% faster)
Maintenance Burden	High: oil, filters, seals, hoses	Medium: reduced oil stress	Medium-Low: less hydraulic wear	Low: no hydraulic system
Noise Level	75–80 dB(A)	70–75 dB(A)	68–72 dB(A)	60–65 dB(A)
Tonnage Range	40–3,000+ tons	60–1,000 tons	80–600 tons	15–300 tons
Best Application	Heavy plate, shipbuilding, structural steel	High-mix fabrication, medium production	Precision work, energy-conscious shops	Thin-to-medium gauge, high-speed, clean-room environments
Relative Purchase Price	Lowest	Medium	Medium-High	Highest (20–30% premium)

Sources: Energy savings data for EPP Series: 55–78% vs. conventional machines. Speed comparison: electric press brakes achieve 30–50% faster cycle times. Precision comparison: electric ±0.001 mm vs. hydraulic ±0.01 mm.

Total Cost of Ownership: Beyond Purchase Price

The most common mistake in drive-type selection is comparing only purchase prices. A conventional hydraulic press brake carries the lowest upfront cost but the highest operating cost: electricity for a continuously running motor, hydraulic oil changes, filter replacements, seal maintenance, and potential downtime for hydraulic system repairs. A 100-ton hydraulic machine can consume approximately 60 kWh per shift in continuous operation, while an equivalent electric model might consume 12 kWh per shift —an energy saving that compounds across every working day.

The higher purchase price of an all-electric press brake—typically 20–30% more than an equivalent hydraulic model—is often recovered through energy and maintenance savings within 2–3 years of normal operation. The decision should be based on total cost of ownership over the machine’s expected service life (commonly 12–15 years for a well-maintained press brake), not on the initial invoice amount.

The KRRASS Drive-Type Portfolio

KRRASS offers press brake solutions across the full drive-type spectrum, organized into distinct product series that make the technology choice explicit:

• MB8 Series: Mature hydraulic CNC platform with a broad controller range and strong general-purpose capability. Suited for flexible production across a wide material range.
• PBS Series: Main-motor servo CNC press brake with intelligent servo-driven pump technology. The main motor only consumes significant energy during ram movement, achieving dramatic energy savings while maintaining full hydraulic bending power.
• PBE Series: Pump-controlled hybrid CNC press brake with reduced oil volume and lower energy consumption. Suited for shops that want hydraulic familiarity with lower operating costs.
• EPP Series: Direct-drive electric servo press brake with fully-electric operation, 55–78% energy savings, reduced maintenance, and quiet, high-speed precision bending.

The hydraulic press brake segment alone is projected to grow from USD 606 million in 2025 to USD 804 million by 2031, at a CAGR of 4.8% —reflecting sustained demand for hydraulic power in heavy-plate applications. Meanwhile, the 4-axis CNC hydraulic press brake market—representing a key mid-range automation tier—was valued at USD 113 million in 2024 and is forecast to reach USD 172 million by 2031, growing at a 5.5% CAGR . These numbers indicate that both hydraulic and electric technologies will coexist for the foreseeable future, each serving different application segments.

CNC Control System and Number of Axes

Why the Controller Determines Daily Productivity

The CNC controller is the interface between the operator and the machine—and, increasingly, between the machine and the factory network. It translates part geometry into bending sequences, manages axis motion, applies compensation values, and stores programs for repeat jobs. A well-matched controller makes complex bending straightforward; a poorly matched one turns even simple parts into programming puzzles.

Modern CNC press brake controllers range from simple 2-axis systems (controlling only Y1 and Y2 ram positions) to sophisticated 6-axis, 8-axis, or multi-axis platforms that simultaneously coordinate ram position, backgauge movement in multiple planes, crowning compensation, and auxiliary functions such as sheet-support arms.

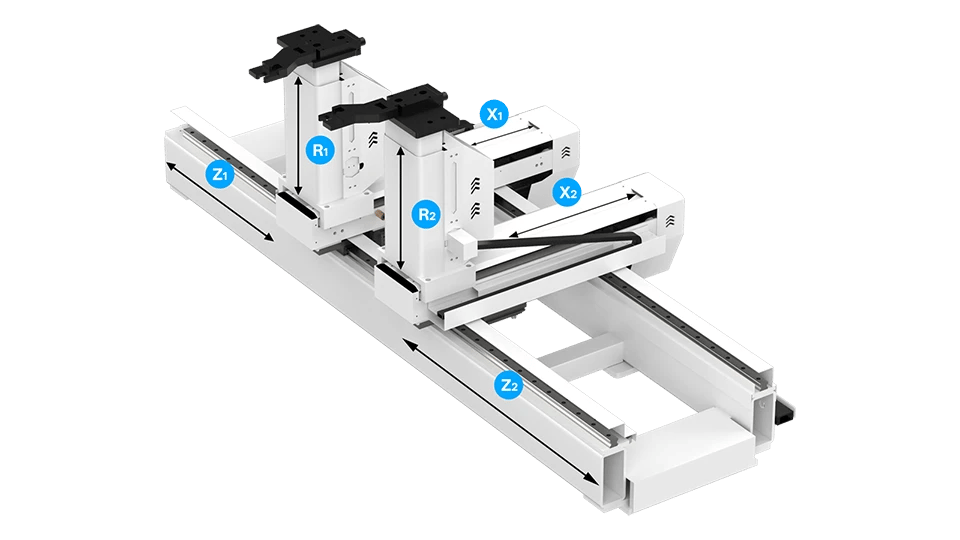

Table 7.1: CNC Axis Naming Convention

Axis	Function	Why It Matters
Y1 / Y2	Ram position (left and right cylinders)	Fundamental for angle control; independent control enables tilt correction.
X (or X1, X2)	Backgauge front-to-back position	Controls flange length; independent X1/X2 enables taper correction.
R (or R1, R2)	Backgauge vertical position	Positions the stop fingers at the correct height for each bend stage.
Z (or Z1, Z2)	Backgauge left-to-right position	Adjusts finger spacing for different part widths.
AP (or AP3, AP4)	Front sheet-support arms	Supports large sheets during feeding.
BM	Mechanical crowning	Compensates for bed deflection under load.

Source: Based on industry-standard CNC axis naming used by DELEM, Cybelec, ESA, and other major controller manufacturers.

Controller Generations: What Has Changed

If your reference point is a press brake purchased ten or fifteen years ago, it is important to understand that controller technology has advanced significantly. Older-generation controllers (such as the DELEM DA-53T, DA-58T, DA-66T, and DA-69T) have been phased out and replaced by newer platforms with substantially enhanced processing power, modern touchscreen interfaces, and native networking capabilities for Industry 4.0 integration. Current-generation KRRASS machines are equipped with the DA-53Tx, DA-58Tx, DA-66S, and DA-69S controllers.

The practical difference is more than cosmetic. The DA-66S features a 24-inch high-resolution color TFT touch display with 2D graphical programming, 3D bending simulation, and offline software compatibility. Operators can draw the part profile directly on the screen, and the controller calculates the optimal bending sequence automatically. The simulation identifies potential collisions between the part, tooling, and machine frame before the first physical bend is attempted.

For environments processing highly complex 3D geometries—aerospace components, advanced enclosures, architectural panels—the DA-69S offers full 3D programming with the ability to import CAD files directly at the machine interface.

Table 7.2: Controller Selection by Production Type

Production Type	Recommended Controller Level	Minimum Axes	Rationale
Simple brackets, low mix, low volume	Entry-level CNC (DA-53Tx)	Y1, Y2, X	Cost-effective; sufficient for straightforward parts.
High-mix, low-volume job shop	Mid-range CNC (DA-58Tx, DA-66S)	4 axes (Y1, Y2, X, R)	Faster programming, graphical interface, part library.
Batch production, medium complexity	Advanced CNC (DA-66S)	4–6 axes	3D simulation, offline programming, networking.
Complex parts, tight tolerances, high value	Premium CNC (DA-69S)	6–8+ axes	CAD import, full 3D, advanced kinematics for multi-axis coordination.

Industry 4.0 and Networking

A specification that is becoming increasingly important is the controller’s networking capability. Modern DELEM controllers on KRRASS machines run on Windows-based environments that support factory network integration, remote diagnostics, and offline programming workflows. An engineer can program parts on a desktop computer in the office using Profile-S2D or Profile-S3D offline software and push completed programs to the machine via the factory LAN—ensuring the press brake never stops producing while waiting for a program.

This capability may not be relevant for every shop today, but as customer demands for traceability, documentation, and shorter lead times increase, the networking capability of the CNC controller becomes a competitive differentiator.

For a deeper exploration of controller options, see the KRRASS CNC press brake guide.

Backgauge System — Accuracy Begins at the Stop

Beyond the Simple Stop Block

A modern CNC press brake backgauge is not merely a physical stop against which the operator positions a sheet. It is a multi-axis coordinate system that dynamically positions the workpiece in three-dimensional space, synchronized with the ram’s motion. The difference between a basic single-axis backgauge and a sophisticated multi-axis system is often the difference between parts that fit and parts that require rework.

When the operator inputs a flange length into the CNC, the controller does not simply move the backgauge to that position. It performs a series of calculations that account for bend allowance (the material consumed in the bend radius), retraction compensation (micro-retraction of the gauge fingers as the material elongates under pressure), and die safety clearances.

Accuracy and Repeatability in Real Numbers

Modern CNC press brakes achieve bending angle accuracy of ±0.5° and flange length accuracy of ±0.05 mm when equipped with properly calibrated multi-axis backgauge systems. At KRRASS, the backgauge systems on our CNC press brakes incorporate Hiwin ball screws and linear guides on the X and R axes, with mechanical accuracy of ±0.03 mm. Axis X positioning speed reaches 500 mm/s, ensuring that the backgauge positions itself faster than the operator can reposition the workpiece.

The precision of the backgauge hardware is necessary but not sufficient. Bend allowance calculation accuracy—specifically, the correct K-factor for the material and tooling combination—is equally important. If the K-factor is set incorrectly, even a backgauge accurate to 0.001 mm will produce scrap parts. This is why modern controllers from DELEM and other manufacturers include material libraries with pre-calculated bend allowance data.

Table 8.1: Backgauge Configuration Decision Matrix

Application	Recommended Axes	Key Capability
Simple brackets, one flange per bend	X (single axis)	Basic flange positioning
Parts with multiple flanges, varied tooling	X, R	Multi-height positioning; staging for complex sequences
Parts requiring taper correction	X1, X2, R	Independent left/right positioning to compensate for sheared-edge taper
Box forming, channels, enclosures	X1, X2, R1, R2, Z1, Z2	Full 3D positioning with independent finger control; collision avoidance
Large sheets, heavy panels	Above + AP (sheet supports)	Front support arms prevent sheet sag during positioning

The Dynamic Backgauge Cycle

A typical automated backgauge cycle follows the sequence: high-speed retraction → abrupt stop positioning → fine forward feed → clamp → micro-retraction. The entire cycle often completes within 0.5 seconds. This speed is essential because backgauge cycle time directly adds to the overall part cycle time. When you are producing thousands of parts per shift, differences measured in fractions of a second accumulate into hours of production time.

At the instant the ram clamps the material, the backgauge fingers must retract minimally —often by just a few tenths of a millimeter. If retraction is too slow or too large, the elongating material rubs against the stop fingers, causing edge damage or triggering servo overload alarms. If retraction is too small, the material presses against the fingers, transferring force into the screw mechanism. This delicate choreography is managed by the CNC in coordination with the Y-axis ram motion.

Crowning and Deflection Compensation

The Universal Problem: Nothing Is Perfectly Rigid

Every press brake frame deflects under load. This is not a defect—it is physics. When hundreds of tons of force are applied at the center of a beam supported at its ends, the beam bends. In a press brake, this means the ram and bed move apart slightly more at the center than at the edges, producing a bend angle that is more open in the middle than at the ends.

For narrow parts bent near the machine’s center, this angular variation may be negligible. For parts that span most of the bed length, the difference between the center angle and the edge angle can be several degrees —enough to make the part unusable.

Crowning systems are designed to counteract this deflection. They introduce a controlled, adjustable curve into the bed or die holder that exactly compensates for the deflection produced by the bending load. The goal is a constant bend angle along the entire length, regardless of where on the bed the measurement is taken.

Types of Crowning Systems

Manual crowning uses mechanical wedges or shims adjusted by the operator. It is low-cost but slow to set up and difficult to calibrate accurately for different bending loads.

Motorized crowning uses an electric motor to drive a wedge mechanism, typically controlled through the CNC. The controller automatically adjusts the crowning based on the programmed tonnage, material, and bend length.

CNC-controlled hydraulic crowning uses hydraulic cylinders embedded in the bed or die holder to apply precise, localized counter-force. This is the fastest and most accurate method, capable of real-time compensation that adjusts during the bending cycle as load conditions change.

Table 9.1: Crowning System Comparison

Crowning Type	Accuracy	Setup Speed	Cost	Best Application
Manual (mechanical wedges)	Moderate (±0.5–1.0°)	Slow: operator-adjustable	Lowest	Low-volume, wide-tolerance work
Motorized (CNC-controlled wedges)	High (±0.2–0.5°)	Fast: automatic via CNC	Medium	Medium-to-high volume, moderate accuracy
CNC Hydraulic (real-time)	Very High (±0.1–0.3°)	Instantaneous: real-time compensation	Highest	High-precision, high-volume, long parts

The KRRASS Approach

KRRASS press brakes utilize CNC-controlled motorized crowning as standard on higher-specification models, with the crowning parameters integrated into the DELEM controller. When the operator programs a bending sequence, the controller automatically calculates the required crowning value based on tonnage, material type, bend length, and tooling configuration. This eliminates manual adjustment and reduces setup time.

The effectiveness of any crowning system depends on the structural integrity of the frame itself. Crowning compensates for elastic deflection; it cannot correct for plastic deformation or frame distortion caused by design deficiencies. This is why KRRASS invests in FEA-optimized frame geometry, premium-grade steel, thermal stress relief, and single-setup CNC machining of all mounting surfaces.

Safety Standards, Certification, and Regulatory Compliance

Why Safety Is a Specification, Not an Afterthought

Safety is sometimes treated as a checkbox—a requirement to satisfy before the machine can be installed, rather than a specification that influences the purchase decision. This perspective is shortsighted. The safety configuration of a press brake directly affects operator productivity (a poorly guarded machine slows down every cycle), legal liability (regulatory non-compliance can trigger fines, shutdowns, and legal exposure), and market access (machines without the correct certifications cannot be legally sold or operated in many jurisdictions).

Key Standards by Region

The global regulatory landscape for press brake safety is structured around several core standards. Understanding which standards apply to your market—and verifying that any machine you purchase meets or exceeds them—is a fundamental part of due diligence.

Table 10.1: Global Press Brake Safety Standards

Standard	Region	Key Focus	Testing Method	Market Advantage
ANSI B11.3	USA	Operator safeguards, risk assessment	Third-party validation	OSHA compliance
EU Machinery Directive 2006/42/EC	Europe	Full machine safety	Notified body audit	CE marking
ISO 12100	Global	Risk reduction methodology	Hazard analysis	International tenders
EN 693 / ISO 6909	EU / Global	Press brake-specific safety requirements	Pressure testing	High-value contracts
OSHA 1910.212	USA	Machine guarding	Workplace inspections	Insurance discounts

Source: Adapted from the WEIYA press brake certification guide and ISO standards references.

ANSI B11.3: The American Standard

ANSI B11.3 sets the gold standard for press brake safety in American manufacturing. It focuses on three pillars: hazard elimination, risk reduction through engineering controls, and mandatory operator training. The standard requires formal risk assessments before any press brake is placed into service, and it mandates specific safeguarding measures including light curtains (Type 4), two-hand controls, and dual-circuit safety systems where a backup immediately assumes control if the primary circuit fails.

Critically, ANSI B11.3 compliance has been shown to reduce workplace injuries by 72% while cutting equipment-related downtime by nearly half, according to OSHA enforcement data.

Table 10.2: ANSI B11.3 Compliance Checklist Summary

Requirement	Implementation	Verification Method
Risk Assessment	Documented hazard analysis for each machine	Third-party review
Safeguarding	Type 4 light curtains, two-hand controls	Performance testing
Control Reliability	Dual-channel safety circuits	Circuit validation
Operator Training	Minimum 40+ hours for new operators; annual refreshers	Documented training records
Maintenance Access	Lockout/tagout points, guarded pinch points	Service simulation

Source: Adapted from ANSI B11.3 compliance framework.

European CE Marking and the EU Machinery Directive

For press brakes sold into the European Economic Area, CE marking under the EU Machinery Directive 2006/42/EC is mandatory. CE marking is not a quality certification—it is a declaration by the manufacturer that the machine meets all applicable European health, safety, and environmental requirements. The conformity assessment must be carried out by a notified body, and the machine must be accompanied by a Declaration of Conformity and a comprehensive technical file.

ISO 6909, currently under final review as a revised standard, specifies technical safety requirements and protective measures for press brakes intended to work cold metal or material partly of cold metal. This standard presumes access to the press brake from all directions and specifies safety measures for both the operator and other exposed persons.

The Business Case for Certified Safety

Beyond regulatory compliance, certified safety configuration has a direct business impact. OSHA compliance reduces press brake-related injuries by 85% and cuts associated workers’ compensation costs by an average of USD 147,000 per incident . These are not abstract statistics—they represent real savings in insurance premiums, lost production time, regulatory penalties, and, most importantly, the human cost of workplace injuries.

For fabricators who export parts or serve multinational customers, equipment certification is increasingly a contractual requirement. Automotive and aerospace supply chains, in particular, routinely audit the safety certification status of production equipment as part of supplier qualification.

All KRRASS press brakes are designed and manufactured with safety configuration as an integral part of the engineering specification, not as a retrofitted option. For specific safety configuration inquiries related to your regional regulatory requirements, we recommend contacting our applications engineering team through the KRRASS contact page.

Putting It All Together: A Specification Comparison Template

The ten specifications discussed in this guide do not exist in isolation. They interact: tonnage depends on part geometry and material; frame design determines load limits; backgauge axes enable part complexity; crowning compensates for deflection; the CNC controller orchestrates everything. A press brake is a system, and the quality of the system depends on how well these ten dimensions are balanced against your production requirements.

The following template is designed to help you systematically compare multiple press brake proposals. Fill in one column per machine under consideration, using data from supplier quotations, specification sheets, and—where possible—your own verification.

Table 11.1: Press Brake Specification Comparison Template

Specification	Machine A	Machine B	Machine C	Your Requirement
1. Part Profile Summary	—	—	—	List your primary materials, thickness range, max bend length, min flange, angle tolerance, and production pattern here.
2. Bending Tonnage (kN/tons)				Calculated tonnage for your worst-case part + 20% margin.
3. Load per Meter (kN/m)				Maximum tons-per-meter for your shortest bend at max thickness.
4. Bending Length (mm)				Your maximum part width + allowance for tooling ends.
5. Daylight / Stroke / Throat (mm)				Tool stack height + tallest flange + safety clearance.
6. Drive Type				Hydraulic, servo-hydraulic, hybrid, or electric based on your energy and maintenance priorities.
7. CNC Controller & Axes				Minimum axis count and controller level for your part complexity.
8. Backgauge Accuracy & Speed				Repeatability (mm), axis speed (mm/s), number of axes.
9. Crowning System				Type (manual, motorized, hydraulic) matched to your accuracy requirements.
10. Safety Certification				Applicable standards for your region and customer requirements.
Price (EXW / CIF)				As quoted by supplier.
Delivery Time				Weeks from order to shipment.
Warranty & After-Sales				Warranty period, local service availability, spare parts lead time.

Final Recommendation

If you work through this template for each machine under consideration, several patterns will typically emerge:

• Machines that look similar on price may differ significantly in specification. A lower-priced machine may omit crowning, use an older-generation controller, offer fewer backgauge axes, or carry incomplete safety certification.
• Specifications that seem technical and abstract at the quotation stage become painfully concrete during production. Daylight clearance that looked adequate on paper may trap parts during removal. Tonnage that covered your current material may prove insufficient when a customer upgrades to stainless steel.
• The supplier relationship matters as much as the machine specification. A press brake is a long-term production asset. The manufacturer’s ability to support the machine with installation, training, spare parts, and technical service directly affects uptime and productivity.

How KRRASS Can Help

At KRRASS, we build press brakes for global sheet metal fabricators, and we see the same purchasing challenges across markets worldwide. Our role is not simply to sell a machine, but to help you configure a bending system that matches your parts, your production environment, and your business goals.

If you are evaluating press brake options and would like to discuss how the ten specifications in this guide apply to your specific situation, we invite you to explore our product range and contact our applications engineering team:

• KRRASS Press Brake Product Range — Overview of all press brake series.
• CNC Press Brake Models — Detailed specifications and controller options.
• Press Brake Tooling Guide — Punches, dies, and clamping systems.
• Contact KRRASS — Reach our engineering team for a customized configuration discussion.

The right press brake is the one that bends your parts accurately, safely, repeatably, and economically over its full working life. We hope this guide brings you closer to that outcome.

FAQ

About KRRASS

KRRASS is a specialized manufacturer and global supplier of sheet metal forming equipment, including CNC press brakes, hydraulic shearing machines, fiber laser cutting machines, and ironworker machines. With decades of engineering experience and a presence in markets worldwide, KRRASS combines advanced manufacturing technology with deep applications knowledge to deliver machines that perform reliably in demanding production environments. Every KRRASS machine is designed with a focus on structural integrity, precision control, operator safety, and long-term serviceability.

Disclaimer: This guide is provided for informational purposes. Specifications, standards, and market data referenced reflect information available as of the publication date. Always verify current regulatory requirements with appropriate authorities and confirm machine specifications directly with manufacturers before making a purchasing decision.
