When a factory evaluates a hydraulic press brake machine, the purchase is usually driven by one practical question: can this machine bend our parts with enough force, enough repeatability, and enough confidence for daily production? Price matters, but price alone does not explain whether the machine can keep angles stable on a long part, whether the tooling can carry the load, whether the backgauge can support repeat work, or whether the hydraulic system can deliver controlled power under real shop-floor conditions.
At KRRASS, we look at a hydraulic press brake machine as a complete bending system. The frame, ram, worktable, hydraulic cylinders, oil pump, proportional valves, CNC controller, linear scales, backgauge, crowning system, tooling, clamping, safety devices, and operator workflow must work together. A strong hydraulic cylinder is not enough. A large tonnage number is not enough. Stable bending comes from the way force is generated, guided, measured, compensated, and repeated through the entire machine structure.
This article explains how a hydraulic press brake machine supports stable and powerful bending in a way that purchasing managers, factory owners, production engineers, and operators can understand. It also gives practical tables and planning data that buyers can use before sending an RFQ. For more general press brake selection logic, buyers can also review the KRRASS Press Brake Buying Guide: 10 Specs That Matter Most and the KRRASS guide on choosing a hydraulic press brake for heavy bending.
Table of Contents
What stable and powerful bending really means
In press brake purchasing, the words “stable” and “powerful” are often used too casually. A machine can be powerful on paper but unstable in the actual bending process. Another machine can make accurate small parts but struggle when a factory bends long stainless steel panels or thick mild steel plates. The best buying decision starts by defining what these words mean in production.
Stable bending means the machine can produce the required bend angle and flange size repeatedly. The angle should not change dramatically from the left side to the right side, from the first part to the tenth part, or from a short batch to a daily production run. Stability also means that the machine reacts predictably when the material thickness changes slightly, when the bend length changes, or when the operator switches to another die opening.
Powerful bending means the machine has enough real working force for the material, thickness, bend length, die opening, bend method, and tooling load. The power must be usable, not only printed on a nameplate. If a factory calculates 240 tons for a common job and buys a 250-ton machine with no reserve, the machine may technically bend the part, but it may work too close to the limit. That can increase wear, reduce process confidence, and make future jobs difficult.
| Buyer concern | What it means in real bending | Machine feature that helps |
|---|---|---|
| Angle consistency | The left, center, and right side of the part should match within the required tolerance | Rigid frame, Y1/Y2 synchronization, linear scales, CNC crowning |
| Enough bending force | The machine should bend the part without overload or tooling damage | Correct tonnage, hydraulic cylinders, suitable V-die opening, tool load review |
| Repeatability | The machine should reproduce the same result across batches | CNC controller, servo backgauge, stable hydraulic control, documented tooling data |
| Long-part accuracy | The center of a long bend should not open wider than the ends | Worktable crowning and deflection compensation |
| Operator confidence | Operators should be able to set up jobs without guessing | Clear controller interface, tooling library, backgauge programs, safety devices |
| Production efficiency | The machine should not waste time on repeated test bends | CNC programming, quick clamping, bend sequence support, offline preparation |
A hydraulic press brake machine supports these goals because hydraulic power can deliver high force with controlled ram movement. However, the machine must be selected according to the actual parts, not only by model name. This is why KRRASS usually asks for material type, thickness range, maximum bend length, common bend length, minimum flange, inside radius, tolerance, surface requirement, production volume, and future product plans before recommending a configuration.
Why hydraulic power remains important for sheet metal forming
Electric and hybrid press brakes are increasingly popular for speed, energy saving, and clean operation in many sheet metal applications. Even so, the hydraulic press brake machine remains one of the most widely used solutions for medium and heavy bending because hydraulic systems are naturally suited to high-force work. Hydraulic cylinders can generate large pressing force in a compact mechanical arrangement, and the machine can be built across common industrial lengths such as 2500 mm, 3200 mm, 4000 mm, 6000 mm, or longer customized sizes.
For factories that produce cabinets, frames, structural brackets, elevator parts, truck parts, construction components, agricultural machinery parts, stainless steel panels, and general fabrication parts, hydraulic bending gives a strong balance of capacity, flexibility, machine cost, and serviceability. Many maintenance teams already understand hydraulic pumps, seals, cylinders, filters, valves, and oil maintenance. That familiarity matters when a machine must run for many years.
A hydraulic press brake machine does not bend by impact. It bends by controlled ram movement. The hydraulic system pushes the ram down through the upper tooling, and the sheet is formed over the lower V die. With a modern CNC electro-hydraulic synchronized press brake, the controller monitors both sides of the ram, adjusts proportional valves, and uses feedback from linear scales to keep the ram position aligned. The result is not only force, but controlled force.
This is the central reason hydraulic press brakes remain practical for demanding production: the machine can combine high tonnage with programmable ram depth, controlled speed transitions, backgauge positioning, and deflection compensation. KRRASS product configurations such as the MB8-175T3200 DA58Tx 4+1 axis hydraulic sheet metal press brake show how a modern hydraulic machine can combine 1750 kN bending pressure, 3200 mm bending length, CNC crowning, a Delem DA-58Tx control, and multiple controlled axes for more repeatable bending.
The machine frame is the foundation of bending stability
The frame is the part buyers do not always see clearly in a brochure, but it has a major effect on bending stability. A hydraulic press brake machine must resist the bending reaction force generated between the punch, material, and die. When the machine applies tonnage, the ram and bed naturally deflect. This is normal for press brakes. The important question is whether the machine is designed to manage deflection in a predictable and correctable way.
In a typical hydraulic press brake, the two hydraulic cylinders are mounted near the side frames. The machine is strongest near those side frames. The center area of the ram and bed is farther from the cylinder support points, so it tends to deflect more under load. If this deflection is not compensated, a long part may be more open in the middle than at the ends. KRRASS explains this issue in its Crowning System page, where press brake deflection is described as the flexing of the ram and bed under load. That page also explains the “canoe effect,” where a long bend may show different angles along its length.
A stable frame does not mean there is zero deflection. In real press brake operation, the better goal is controlled deflection. The frame should be strong enough to avoid excessive deformation, and the crowning system should compensate for the predictable curve of the bed and ram. This is why long bending jobs need more attention to frame rigidity, worktable design, and crowning than short parts.
For buyers, this means the frame should be evaluated together with the bending length and daily load level. A 3200 mm machine that occasionally bends light sheet has very different requirements from a 4000 mm machine that bends heavy plate every day. When buyers plan to bend long parts, they should ask whether the machine includes mechanical crowning, hydraulic crowning, or CNC-controlled crowning. They should also ask whether the supplier calculates the crowning requirement based on material, length, thickness, and die opening.
How hydraulic force becomes usable bending tonnage
Tonnage is the headline number of a hydraulic press brake machine, but it is also one of the most misunderstood numbers. The rated tonnage tells you how much force the machine can apply. It does not automatically tell you what thickness the machine can bend in every situation. Required bending force changes with material tensile strength, material thickness, bend length, V-die opening, punch radius, die radius, bending method, and surface condition.

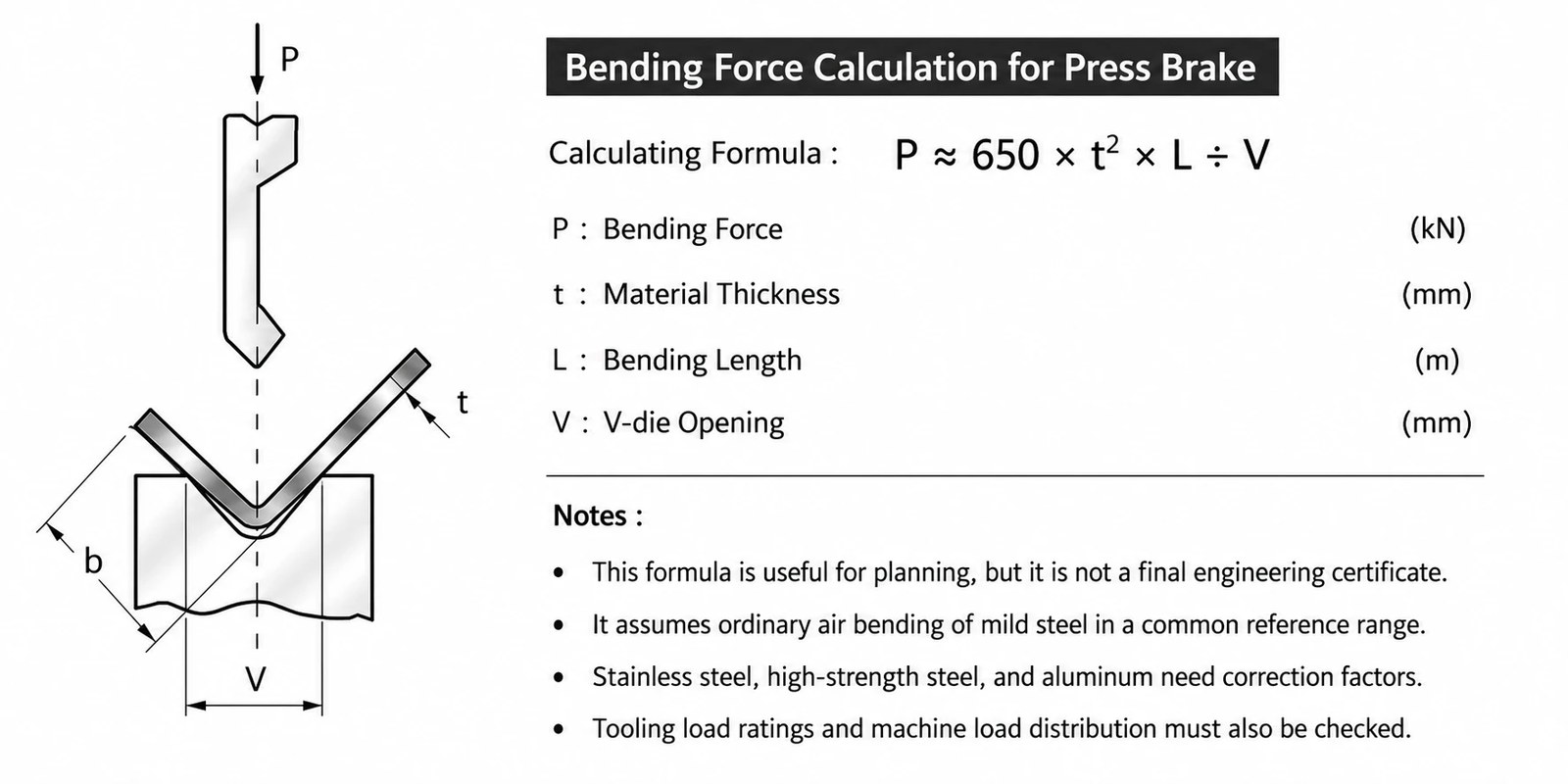

For early air-bending estimates, many fabricators use this common planning formula for mild steel:
P ≈ 650 × t² × L ÷ V
Where P is bending force in kN, t is material thickness in mm, L is bending length in meters, and V is V-die opening in mm. This formula is useful for planning, but it is not a final engineering certificate. It assumes ordinary air bending of mild steel in a common reference range. Stainless steel, high-strength steel, and aluminum need correction factors. Tooling load ratings and machine load distribution must also be checked.
| Mild steel thickness | Planning V opening | Bend length | Estimated force | Approx. metric tons |
|---|---|---|---|---|
| 3 mm | 24 mm | 3 m | 731 kN | 75 tons |
| 4 mm | 32 mm | 3 m | 975 kN | 99 tons |
| 6 mm | 48 mm | 3 m | 1463 kN | 149 tons |
| 8 mm | 64 mm | 3 m | 1950 kN | 199 tons |
| 10 mm | 80 mm | 3 m | 2438 kN | 249 tons |
| 12 mm | 96 mm | 3 m | 2925 kN | 298 tons |
| 10 mm | 80 mm | 4 m | 3250 kN | 331 tons |
| 12 mm | 96 mm | 4 m | 3900 kN | 398 tons |
The table shows why thickness and length matter so much. Going from 6 mm to 12 mm is not a small change. Because thickness is squared in the estimate, the force can increase sharply. Increasing bending length from 3 meters to 4 meters also raises the total force. This is why we do not recommend selecting a hydraulic press brake machine only by a familiar market size such as 160 tons × 3200 mm. A common model may be suitable for many factories, but it may be too small for daily heavy bending or too large for a light-duty production mix.
Buyers should also keep a practical capacity margin. If the calculated force is 249 tons for a regular job, a 250-ton machine is too close to the edge for comfortable daily production. A larger configuration, a wider die opening, a different bend method, or a review of the part design may be needed. For heavy bending, many buyers prefer a reserve margin because material thickness, tensile strength, die wear, and operator setup can vary in real production.
Material behavior changes the required force
A hydraulic press brake machine does not “know” the material name. It responds to resistance. Mild steel, stainless steel, aluminum, galvanized steel, and high-strength steel all behave differently because their tensile strength, yield behavior, ductility, and springback are different. This is why a buyer should not describe a job only as “6 mm plate.” The material grade matters.
International standards help explain why material data matters. ISO 6892-1:2019 specifies tensile testing of metallic materials at room temperature and defines mechanical properties that can be determined, including tensile behavior. ISO 7438:2020 specifies a method for determining the ability of metallic materials to undergo plastic deformation in bending. These standards do not select your press brake for you, but they show why material certificates and bendability data are important when a buyer requests accurate bending advice.
| Material group | Practical force factor vs. mild steel | Springback tendency | Buying note |
|---|---|---|---|
| Mild steel | 1.0 | Moderate | Reference material for many planning charts |
| Stainless steel 304/316 | 1.4–1.6 | Higher | Needs more tonnage, stronger angle control, and careful surface protection |
| Aluminum 5052 | 0.5–0.7 | Moderate to high depending on temper | Lower tonnage, but cracking, marking, and bend radius still matter |
| Galvanized steel | Around 1.0, varies by grade | Moderate | Coating cracking and surface marking should be considered |
| High-strength steel | 1.8–3.0+ | High | Requires careful radius, V opening, tooling load, and springback review |
| Copper or brass | Varies widely | Grade-dependent | Soft materials may mark easily; tooling surface quality matters |
For example, if a mild steel part needs about 200 tons, a similar stainless steel part may require 280 to 320 tons depending on the grade and process. High-strength steel may require even more careful analysis. Aluminum often needs less force, but it can still create problems if the inside radius is too small or if the visible surface must remain clean.
From a purchasing point of view, the safest approach is to send the material grade, material certificate if available, thickness tolerance, grain direction requirement, and surface requirement. If the project includes several materials, the machine should be selected around the most demanding regular job, not the easiest part.
V-die opening controls tonnage, radius, and flange stability
The V-die opening is one of the most important variables in press brake bending. A wider V opening usually reduces required tonnage and surface pressure. It also increases the inside radius and the minimum flange length needed for stable support. A narrower V opening can support shorter flanges and smaller radii, but it increases tonnage and can increase marking.
Many fabricators start air bending with a V opening around 6 to 10 times material thickness. The common 8× thickness rule is a useful starting point for mild steel, not a universal law. Thick plate, stainless steel, high-strength material, or cosmetic panels may need a different die choice. If the flange is very short, the buyer may not be able to use a wide die even if the wide die reduces tonnage. If the part requires a large inside radius, a wider die and suitable punch radius may be better.
| Material thickness | Common starting V opening | Approx. inside radius in air bending | Approx. minimum flange planning value |
|---|---|---|---|
| 2 mm | 16 mm | 2.5–2.7 mm | 11–12 mm |
| 3 mm | 24 mm | 3.8–4.0 mm | 17 mm |
| 4 mm | 32 mm | 5.1–5.3 mm | 22 mm |
| 6 mm | 48 mm | 7.7–8.0 mm | 34 mm |
| 8 mm | 64 mm | 10.2–10.6 mm | 45 mm |
| 10 mm | 80 mm | 12.8–13.2 mm | 56 mm |
| 12 mm | 96 mm | 15.4–15.8 mm | 67 mm |
| 16 mm | 128–160 mm | 20.5–26.4 mm | 90–112 mm |
The inside radius values in this table are planning estimates based on common air-bending behavior. Actual results depend on material, tooling radius, die shoulder radius, punch radius, and machine setup. The minimum flange values use about 70% of the V opening as a first check. For precision work, the buyer should verify with actual tooling data and sample bending.
A professional hydraulic press brake machine quotation should therefore include a tooling discussion. The buyer should know which V openings were assumed in the tonnage calculation. If a supplier calculates the machine capacity using a wide die but the part actually requires a short flange, the quoted machine may not perform as expected. This is one of the most common reasons buyers feel disappointed after installation: the machine tonnage looked sufficient, but the tooling reality was different.

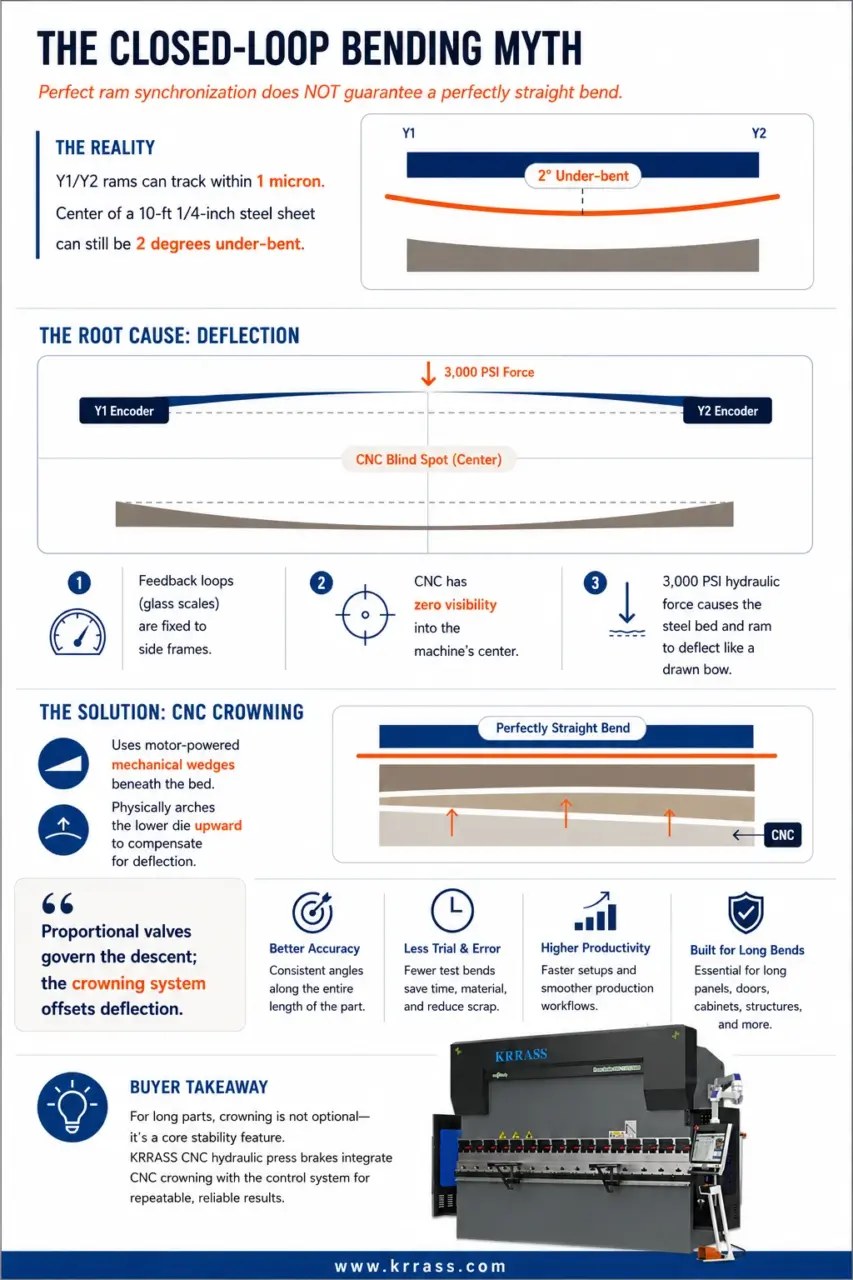

Crowning keeps long bends more consistent
Crowning is not just an optional accessory for serious long bending. It is a core stability feature. When a hydraulic press brake machine bends a long part, the bed and ram deflect under load. Without compensation, the center of the workpiece may receive less effective forming depth than the ends. The result is an angle that changes along the length of the part.
KRRASS describes several ways to manage deflection on the Crowning System page, including shimming, hydraulic crowning, and mechanical crowning. Shimming is slow and depends heavily on operator skill. Mechanical crowning and hydraulic crowning are more suitable for repeatable production because they provide a controlled compensation method. CNC crowning can improve the workflow further because the controller can set or calculate compensation based on the programmed job.
For a buyer, crowning should be discussed together with bending length, tonnage, material, and tolerance. If a factory mainly bends short brackets, crowning may not be the first concern. If a factory bends long cabinet panels, door panels, elevator components, or long structural profiles, crowning becomes much more important. On KRRASS CNC hydraulic press brake configurations, CNC crowning can be integrated with the control system so the operator does not need to rely on repeated manual shimming.
Crowning also supports productivity. Without crowning, operators may need multiple test bends to chase the angle in the center of the part. Each test bend consumes time and material. When a factory bends stainless steel or pre-finished panels, scrap becomes expensive quickly. A good crowning system reduces trial-and-error and improves confidence during setup.
CNC synchronization turns hydraulic power into repeatable motion
A simple hydraulic press brake can apply force, but a modern CNC hydraulic press brake machine must do more than move down and up. It must control ram position, control the left and right sides of the ram, manage speed transitions, coordinate backgauge positions, store tooling data, and repeat the job with minimal operator guesswork.
Electro-hydraulic synchronization is especially important for stable bending. In a synchronized machine, the Y1 and Y2 axes are controlled independently. Linear scales measure the actual position of each side of the ram, and the CNC system adjusts hydraulic valves to keep both sides aligned. This is very different from relying only on mechanical torsion-bar synchronization. For precision parts, long bends, or variable materials, closed-loop synchronization can make the bending process more controllable.
The controller also affects setup time. Delem describes the DA-58Tx as a 2D graphical press brake control with bend sequence calculation, crowning control, USB interfacing, and advanced Y-axis control algorithms. Delem describes the DA-66S as offering 2D programming, 3D machine representation, automatic bend sequence calculation, collision detection, and a 24-inch high-resolution color TFT. These control features matter because complex bending is often limited not only by force, but also by setup quality and sequence planning.
KRRASS offers different control levels for different needs. A simpler NC hydraulic press brake can be cost-effective for straightforward parts, while a CNC electro-hydraulic synchronized model is better for factories that need higher repeatability, more axes, automatic crowning, graphical programming, and complex part support. Buyers should not select the controller only by screen size. They should ask what the controller needs to manage: Y1/Y2 synchronization, X-axis backgauge, R-axis height, Z-axis fingers, crowning, angle correction, offline programming, and part libraries.
Backgauge accuracy supports repeatable flange dimensions
The backgauge does not create bending force, but it has a major effect on part accuracy and productivity. A hydraulic press brake machine bends the sheet where the operator positions it. If the backgauge is slow, flexible, inaccurate, or difficult to program, the flange dimension will vary even if the ram and tooling are strong.
For simple work, an X-axis backgauge may be enough. For more complex work, the buyer may need R-axis adjustment, Z1/Z2 finger movement, X1/X2 independent movement, or a stronger backgauge structure. A multi-axis backgauge helps when parts have offset flanges, tapered geometry, multiple bend lines, or sequence requirements that need different gauge finger positions.
The backgauge should be evaluated as a mechanical system, not only as a list of axes. Buyers should ask about travel distance, positioning speed, repeatability, ball screw and linear guide quality, finger design, collision risk, and how easy the operator can program each bend. On some KRRASS CNC hydraulic press brakes, ball screw and linear guide backgauge systems are used to improve smooth motion and positioning consistency. In the KRRASS MB8-175T3200 DA58Tx 4+1 axis press brake, the listed CNC axes include Y1+Y2+X+R+W crowning, which is suitable for factories needing controlled ram synchronization, backgauge movement, R-axis adjustment, and crowning compensation.
Backgauge selection should match part complexity. A factory producing simple channels may not need the same backgauge as a factory producing electrical cabinets with many bend sequences. Overbuying axes can increase cost, but underbuying can limit future work. The best choice depends on the real parts.
Tooling and clamping decide whether the machine can do the job
A hydraulic press brake machine without the right tooling is not a complete bending solution. Punches, dies, adapters, tool holders, quick clamps, segmented tooling, gooseneck punches, hemming tools, radius tools, and special tools all influence what parts the machine can bend. Many purchasing mistakes happen because the buyer focuses on the machine body and treats tooling as an afterthought.
Tooling affects tonnage, inside radius, minimum flange length, surface marking, operator safety, setup time, and collision clearance. A wide V die can reduce tonnage, but it may require a longer flange. A narrow V die can support shorter flanges, but it increases tonnage and tooling load. A gooseneck punch can clear return flanges, but it has load limits. Segmented tooling helps bend boxes and small parts, but it must be safely clamped and organized.
KRRASS provides service pages for tooling and tool storage solutions and tooling clamping systems. These topics matter because a press brake machine is used through the tooling. Quick clamping can reduce setup time and improve operator confidence. Proper tool storage reduces damage and helps operators find the correct tools quickly. Correct clamping reduces the risk of tool movement, poor alignment, or unsafe setup.
For heavy bending, tooling load rating is critical. It is not enough to ask whether the machine has enough tonnage. The punch and die must also be rated for the force per meter or force per section. If a short part uses only a small tooling segment, the load may be concentrated and can exceed the tool rating even when the total machine tonnage looks acceptable. Buyers should provide bend length and part layout so the supplier can review load distribution.

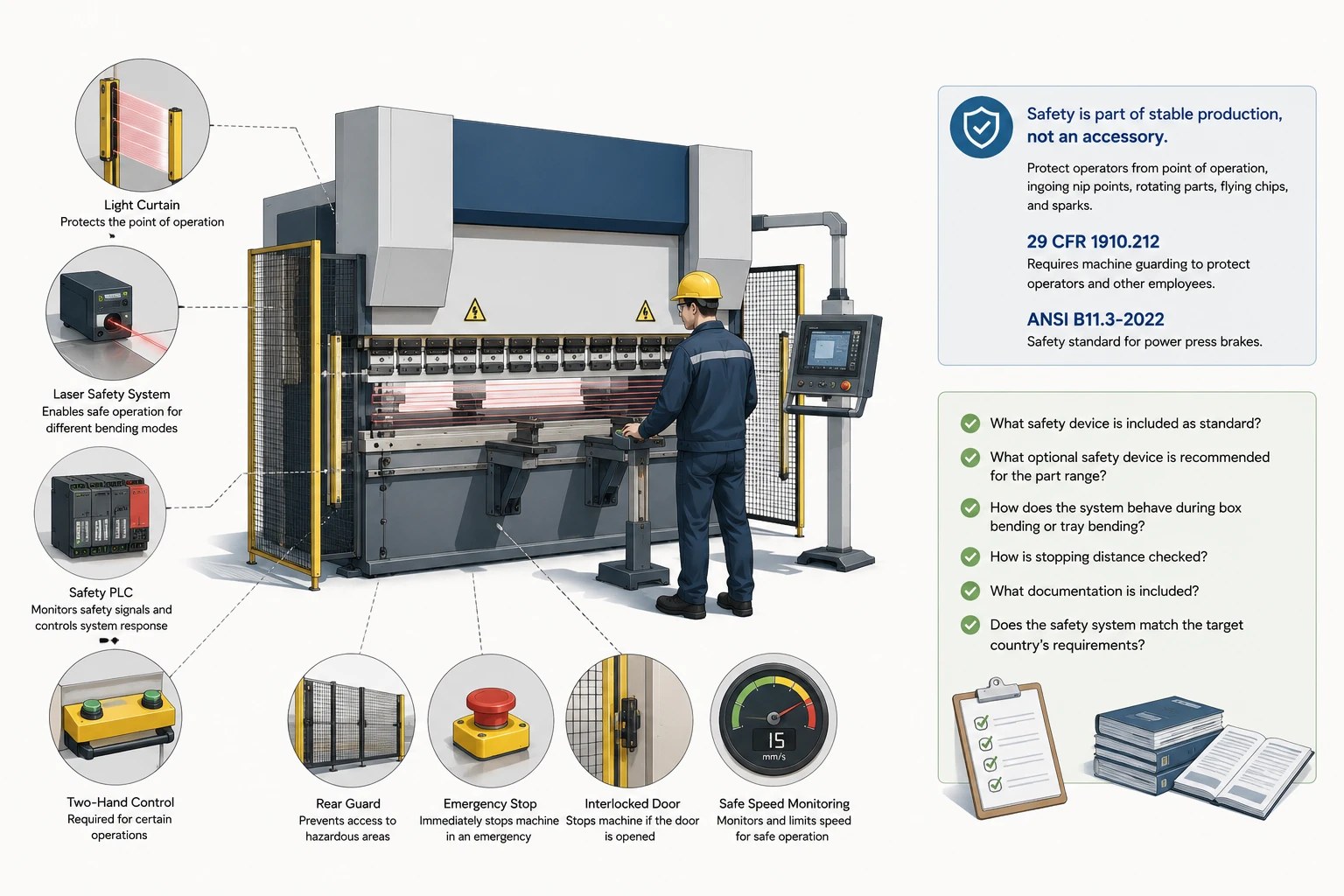

Safety is part of stable production, not an accessory
A hydraulic press brake machine creates a point-of-operation hazard because the punch and die close on the material. Safety must be part of the machine selection, not a final accessory added after purchase. In the United States, 29 CFR 1910.212 requires machine guarding methods to protect operators and other employees from hazards such as point of operation, ingoing nip points, rotating parts, flying chips, and sparks. For press brakes specifically, ANSI B11.3-2022 is a machine-specific safety standard for power press brakes.
Even when a buyer is outside the United States, these references are useful because they show how modern purchasing teams think about safeguarding, risk assessment, and operator protection. Typical press brake safety options include light curtains, laser safety systems, safety PLCs, two-hand controls for certain operations, rear guards, emergency stops, interlocked doors, and safe speed monitoring. The exact configuration depends on local regulations, machine type, tooling, operating mode, and risk assessment.
KRRASS also provides a Safety Arrangements page that discusses optical safety systems, Lazer Safe options, automatic tool alignment, safety speed monitoring, stopping distance monitoring, and press brake control safety systems. These devices are not only about compliance. They also support productivity because operators can work with greater confidence when the safeguarding is matched to the bending process.
A buyer should ask practical safety questions before purchase. What safety device is included as standard? What optional safety device is recommended for the part range? How does the system behave during box bending or tray bending? How is stopping distance checked? What documentation is included? Does the safety system match the target country’s requirements? These questions help avoid costly retrofits after installation.
Comparing hydraulic press brake configurations
Not every hydraulic press brake machine is built for the same buyer. A small factory bending simple parts may need a reliable NC machine with a practical controller and solid tooling. A cabinet manufacturer may need CNC crowning, a better backgauge, quick clamping, and graphical programming. A heavy fabrication factory may need high tonnage, long bending length, strong tooling, front support, and a careful material handling plan.
| Configuration level | Typical buyer need | Advantages | Limits to check |
|---|---|---|---|
| NC hydraulic press brake | General fabrication, simple angles, lower budget | Solid structure, lower investment, easier basic operation | Lower automation, more operator adjustment, less sequence support |
| CNC hydraulic press brake | Repeated production, better accuracy, more part variety | Y1/Y2 control, CNC programs, better backgauge, crowning options | Higher investment, operators need training |
| Multi-axis CNC hydraulic press brake | Cabinets, complex parts, production batches | More flexible backgauge, sequence support, faster setup | Must match real part complexity to avoid unnecessary cost |
| Heavy-duty hydraulic press brake | Thick plate, long bends, structural parts | High tonnage, stronger frame, heavy tooling options | Requires serious tooling, handling, foundation, and safety planning |
| Tandem hydraulic press brake | Very long parts or flexible production | Can bend long parts together or operate separately in some setups | Higher floor space, synchronization, operator coordination |
KRRASS product pages show examples of how configurations differ. The WC67K-200T3200 NC Press Brake with E21 Control lists 2000 kN bending pressure, 3200 mm bending length, Y+X control axes, and an ESTUN E21 controller. The MB8-175T3200 DA58Tx 4+1 axis hydraulic press brake lists 1750 kN bending pressure, 3200 mm bending length, Y1+Y2+X+R+W crowning, and a Delem DA-58Tx controller. The PBS-110T3200 DA66S 8+1 axis CNC press brake lists 1100 kN bending pressure, 3200 mm bending length, Y1+Y2+X1+X2+R1+R2+Z1+Z2+W crowning, and a Delem DA-66S controller.
These examples do not mean one model is always better than another. They show that a press brake should be matched to the buyer’s work. A 200-ton NC machine may be more suitable than a lighter CNC machine for a simple heavy part. A 110-ton multi-axis CNC machine may be better than a higher-tonnage simple machine for complex cabinet production. The correct answer comes from drawings, material data, tolerance, volume, and future plans.
Sample specification comparison from KRRASS pages
The following table uses published KRRASS product-page information as practical examples. Buyers should confirm the latest specifications and options with KRRASS before ordering because final configuration may vary by voltage, controller, tooling, safety package, and customer requirement.
| Example model | Bending pressure | Bending length | Control / axes | Practical positioning |
|---|---|---|---|---|
| WC67K-80T2500 NC Press Brake | 800 kN | 2500 mm | ESTUN E21, Y+X | Basic hydraulic bending, general light-to-medium parts |
| WC67K-200T3200 NC Press Brake | 2000 kN | 3200 mm | ESTUN E21, Y+X | Higher tonnage NC work with simple programming |
| MB8-50T1600 DA53T CNC Press Brake | 500 kN | 1600 mm | Delem DA-53T, Y1+Y2+X+W | Compact CNC bending, shorter parts, higher repeatability |
| MB8-175T3200 DA58Tx CNC Press Brake | 1750 kN | 3200 mm | Delem DA-58Tx, Y1+Y2+X+R+W | CNC production with crowning and stronger hydraulic capacity |

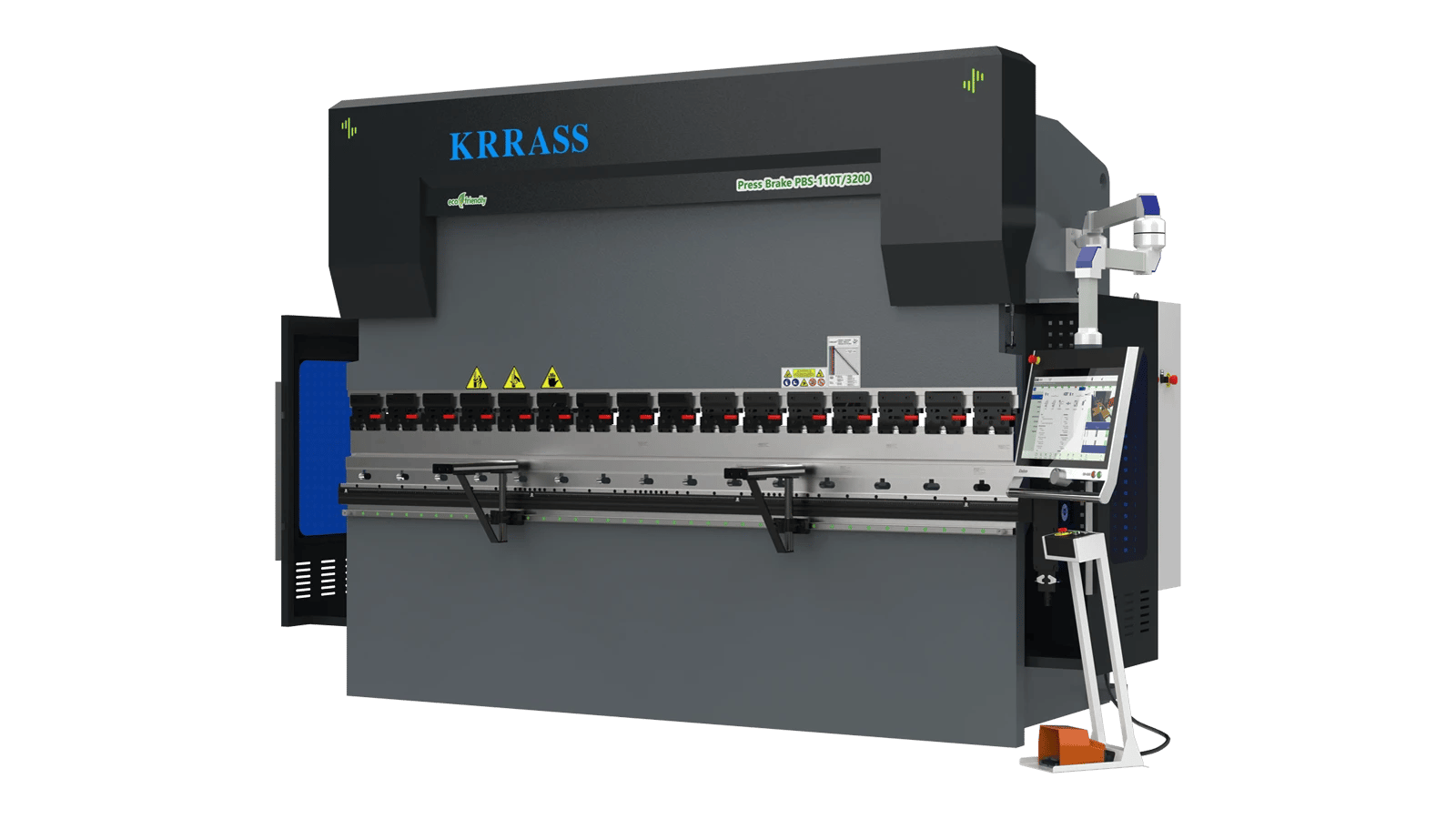

| PBS-110T3200 DA66S CNC Press Brake | 1100 kN | 3200 mm | Delem DA-66S, 8+1 axis | Complex part programming, advanced backgauge and crowning |
This kind of comparison is useful because it separates tonnage from configuration. A buyer may need more tonnage, more axes, better control, longer length, or better tooling. These are different choices. KRRASS can help match these variables to the work instead of forcing every buyer into one standard model.
Maintenance keeps hydraulic bending stable over time
Stable bending is not only created at the factory. It must be maintained during the machine’s life. A hydraulic press brake machine works through oil, cylinders, seals, valves, filters, guide systems, clamps, electrical components, and measuring systems. If maintenance is ignored, angle stability and repeatability can decline even on a good machine.
Hydraulic oil condition is one of the first maintenance concerns. Oil contamination, wrong viscosity, overheating, or low oil level can affect valve response, cylinder behavior, and long-term component life. Filters should be checked and replaced according to the maintenance schedule. Oil temperature should stay within the recommended operating range. Leaks should be addressed early because a small leak may indicate seal wear or connection problems.
Mechanical inspection also matters. Operators should keep tooling clean, check tool alignment, inspect clamping surfaces, remove debris from the worktable, and verify that backgauge fingers are not damaged. Linear scales, limit switches, guide rails, ball screws, and electrical cabinets should be protected from dust, vibration, and moisture. If the machine uses CNC crowning, the operator should understand how crowning values are set and when they need correction.
Documentation is part of maintenance. Buyers should ask for operation manuals, hydraulic diagrams, electrical diagrams, controller manuals, spare parts lists, lubrication schedules, alarm explanations, and troubleshooting guidance. A machine with clear documentation is easier to maintain, train, and diagnose. At KRRASS, we encourage buyers to discuss service expectations before purchase, including remote support, spare parts, operator training, tooling guidance, and configuration review.

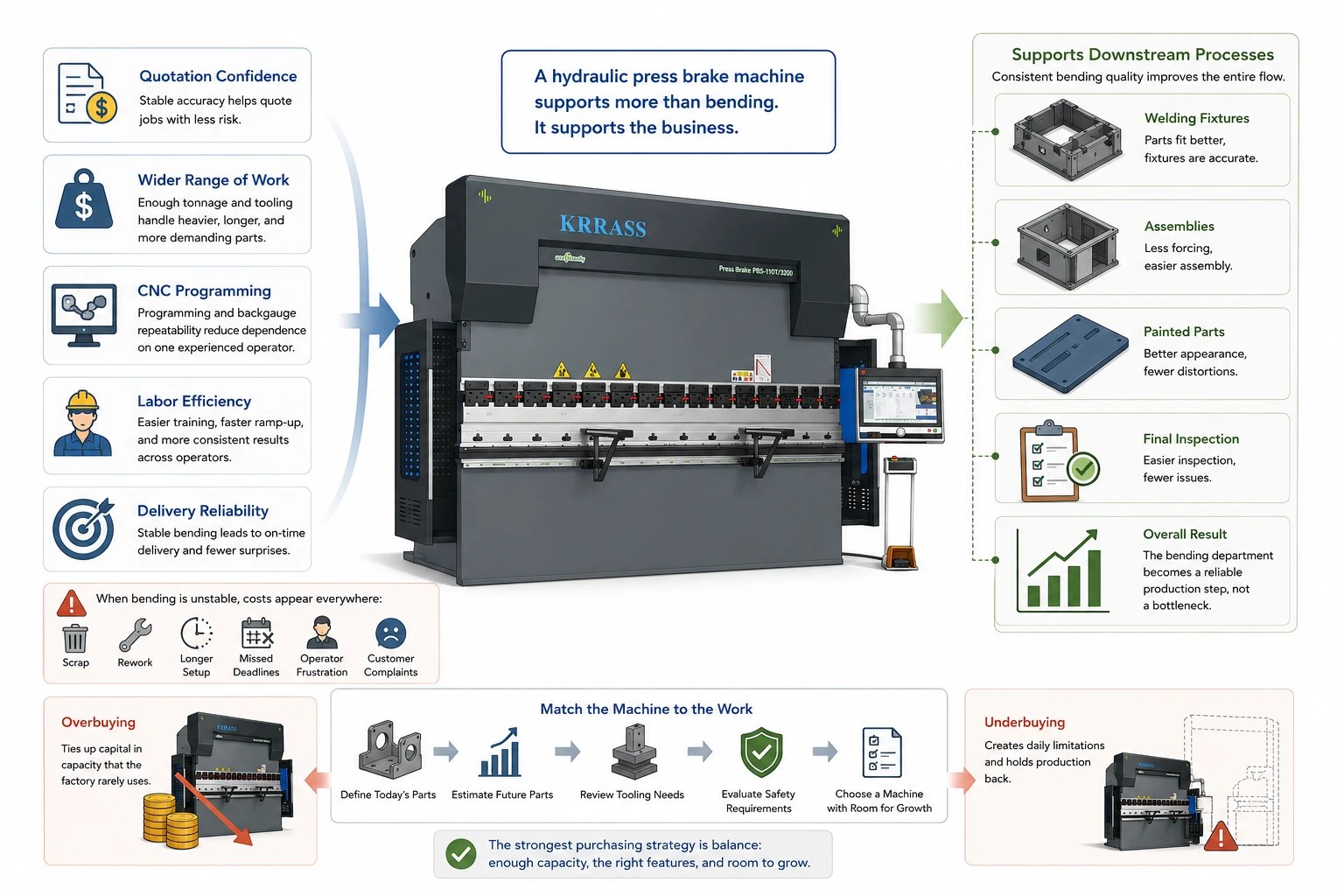

How a hydraulic press brake machine supports business results
From a business perspective, a hydraulic press brake machine is not purchased only to bend metal. It is purchased to support quoting confidence, production planning, delivery reliability, labor efficiency, and product quality. When bending is unstable, the cost appears in many places: scrap, rework, longer setup, missed deadlines, operator frustration, and customer complaints.
Stable bending improves quotation confidence. If the factory knows the machine can hold the required tolerance, it can quote jobs with less risk. Powerful bending expands the range of acceptable work. If the machine has enough tonnage and tooling capability, the factory can accept heavier brackets, longer panels, and more demanding materials. CNC programming and backgauge repeatability reduce dependence on one highly experienced operator. That helps when factories train new operators or scale production.
A better hydraulic press brake machine also supports downstream processes. If bent parts are consistent, welding fixtures fit better, assemblies require less forcing, painted parts look better, and final inspection is easier. The bending department becomes a reliable production step instead of a bottleneck.
However, the best business result comes from matching the machine to the work. Overbuying can tie up capital in capacity that the factory rarely uses. Underbuying can create daily limitations. The strongest purchasing strategy is to define today’s parts, estimate future parts, review tooling needs, evaluate safety requirements, and choose a machine that gives enough room for stable production.
Practical RFQ checklist for buyers
Before requesting a quotation for a hydraulic press brake machine, buyers should prepare more than a desired tonnage. A complete RFQ allows KRRASS to recommend the correct machine, tooling, controller, backgauge, crowning system, and safety package.
| RFQ item | What to provide | Why it matters |
|---|---|---|
| Material | Mild steel, stainless steel 304, aluminum 5052, high-strength steel, etc. | Changes tonnage, radius, cracking risk, and springback |
| Thickness range | Minimum, common, and maximum thickness | Determines tonnage, tooling, and reserve capacity |
| Maximum bend length | Longest required bend line | Determines machine length and total force |
| Common bend length | Typical daily bending length | Prevents overbuying for rare jobs or underbuying for regular jobs |
| Minimum flange | Shortest flange dimension | Limits die opening and part stability |
| Inside radius | Required or acceptable radius | Determines V opening, punch radius, and cracking risk |
| Tolerance | General fabrication or precision requirement | Affects controller, crowning, and angle control options |
| Production volume | One-off, batches, daily repeat work | Affects automation, quick clamping, and programming value |
| Surface requirement | Visible stainless, painted, galvanized, cosmetic panels | Affects anti-marking tooling and handling |
| Part drawings | DXF, PDF, STEP, photos, or samples | Allows collision review and bend sequence planning |
| Safety requirement | Target market and factory safety standard | Determines guarding and safety device selection |
| Future work | Planned thicker or longer parts | Helps choose capacity margin and upgrade path |
If drawings are not available, photos and sketches are still useful. If material certificates are not available, at least identify the material family and thickness. If the factory has existing tooling, send the tooling type, height, V opening, and load rating. Existing tools may be usable, but compatibility should not be assumed.
Common mistakes to avoid when buying a hydraulic press brake machine
The first common mistake is buying by nominal tonnage only. Tonnage matters, but it must be connected to material, thickness, length, V opening, and tooling load. A machine can be too small even when the tonnage sounds large, or unnecessarily large when the real job is short and light.
The second mistake is ignoring the V-die opening. A supplier may calculate capacity using a wide die, while the part requires a short flange and therefore a narrower die. The buyer then discovers that the machine cannot bend the part comfortably. Always ask what V opening was assumed in the calculation.
The third mistake is treating crowning as optional on long parts. Long bending without compensation can produce inconsistent angles along the part length. For long panels, cabinet parts, doors, elevator components, and structural profiles, crowning should be discussed early.
The fourth mistake is underestimating tooling and clamping. Tooling determines what shapes can be formed, how fast setups happen, whether the surface is marked, and whether the load is safe. A machine quotation without a tooling discussion is incomplete.
The fifth mistake is ignoring operator workflow. A powerful machine with a difficult controller can still be inefficient. Operators need clear programming, reliable backgauge movement, accessible tool libraries, safe guarding, and documentation. The more part variety the factory has, the more important workflow becomes.
How KRRASS recommends a hydraulic press brake machine
When KRRASS recommends a hydraulic press brake machine, we start with the customer’s parts. We review drawings, material, thickness range, bending length, flange size, inside radius, tolerance, surface requirement, production volume, and future plans. Then we calculate bending force, check die opening choices, review tooling load, evaluate the need for crowning, select a controller level, and match the backgauge configuration.
For a buyer producing simple structural parts, we may recommend a strong NC or CNC hydraulic press brake with practical tooling and enough tonnage reserve. For a buyer producing cabinets or high-mix sheet metal parts, we may recommend a CNC hydraulic press brake with better backgauge axes, quick clamping, and CNC crowning. For a buyer bending long heavy components, we may focus more on frame strength, high tonnage, long worktable, deflection compensation, front support, and handling safety.
We also discuss trade-offs clearly. A wider V opening can reduce tonnage but increase inside radius and flange requirement. A more advanced controller can reduce setup time but requires training. More axes can improve flexibility but add cost. Higher tonnage gives reserve capacity but may require stronger tooling and more careful load management. These trade-offs are normal. A good purchase is not the most expensive machine; it is the machine that fits the production plan.
Buyers can begin by reviewing the KRRASS Press Brake product category, comparing hydraulic press brake models, and preparing an RFQ based on the checklist above. If the project also involves cutting or shearing before bending, KRRASS can support related equipment such as Fiber Laser Cutting Machines, Hydraulic Shearing Machines, and Ironworker Machines so the full sheet metal forming workflow can be planned together.
Final recommendation
A hydraulic press brake machine supports stable and powerful bending by combining high hydraulic force with a rigid frame, controlled ram motion, accurate synchronization, suitable tooling, reliable backgauge positioning, deflection compensation, and practical safety systems. The machine is not only a source of pressure. It is a complete forming system.
For buyers, the best decision starts with parts, not with a model number. Define the material, thickness, bend length, flange, radius, tolerance, production volume, and surface requirement. Estimate bending force with the correct V-die assumption. Review material correction factors. Confirm tooling load rating. Choose crowning for long bends. Select a controller and backgauge that match the production workflow. Confirm safety and service support before ordering.
When these factors are handled correctly, a hydraulic press brake machine becomes a stable production asset. It helps the factory bend stronger parts, reduce scrap, train operators more easily, quote with greater confidence, and deliver formed components with consistent quality. For manufacturers that need dependable sheet metal bending power, KRRASS can help turn the purchase conversation from “How many tons do you want?” into the more useful question: “What parts do you need to bend, and how can we configure the right machine to bend them reliably?”
