The 20000W(20KW) fiber laser cutting machine is a high-power fiber laser that can be used in cutting, welding, drilling, cladding, additive manufacturing, surface heat treatment and other fields of metal and non-metal materials.
Device Description
Laser Souce Brand: Max,Raycus,IPG,Gw.

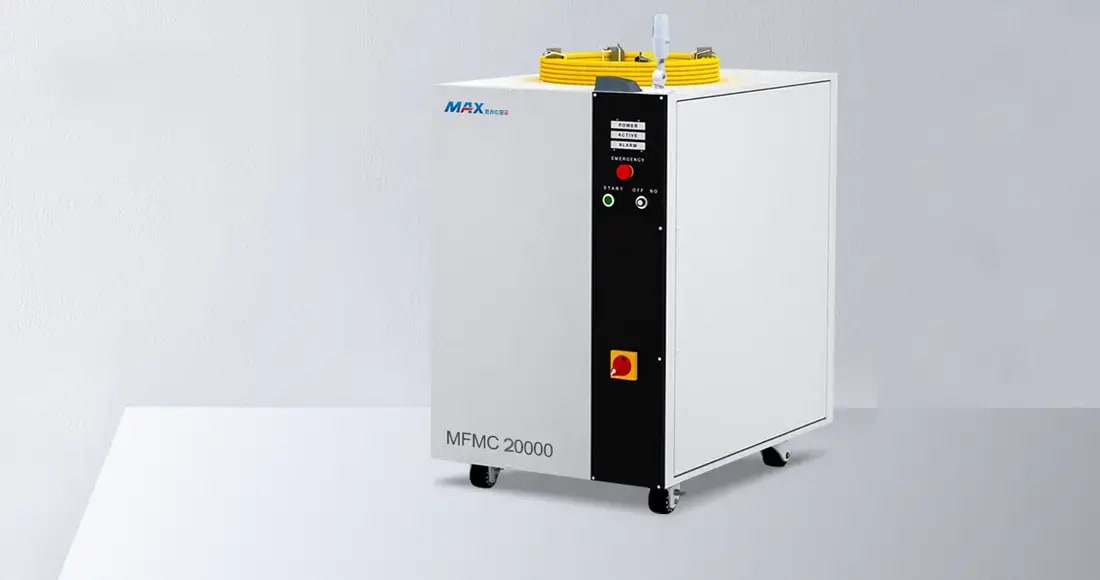

The 20000W fiber laser cutting machine has a built-in high-power single module, unique back-reflection protection technology and internal modular layout, with high energy density (150um output), while achieving ultra-high power output, it is smaller in shape and energy-saving. The laser power is continuously adjustable, with high electro-optical conversion efficiency and high beam quality. The launch of 20000W will greatly expand the application market of ultra-thick plate cutting, laser composite welding, automatic welding, etc. It is an ideal laser source for applications such as cutting, welding, drilling, cladding, additive manufacturing, and surface heat treatment of metal and non-metallic materials.
It has the following characteristics:
- High power and high quality laser output – High electro-optical conversion efficiency, flat-top distribution of spot energy, and high energy density
- Compact structure and smaller volume – Built-in high-power single-module integration, the whole machine is smaller
- Excellent performance, low processing cost – The processing efficiency can be increased by up to 532%, and the annual cost can be saved up to 1.1 million
- Anti high anti – Using unique and innovative hardware-level anti-high reflection protection technology, it can process various high reflection materials
- Modular design, easy maintenance – Separate design of photoelectric modules, stable operation, fewer failures, and more convenient maintenance
- Wide range of applications – It can be used for cutting, welding, drilling, cladding, additive manufacturing, surface heat treatment, etc. of metal and non-metal materials
Device parameters
[wpdatatable id=24 table_view=regular]
Cutting parameters
MAX/Raycus/IPG 20000W Multi-module continuous fiber laser (150μm)
[wpdatatable id=18 table_view=regular]
MAX/Raycus/IPG 20000W Multi-module continuous fiber laser (100μm)
[wpdatatable id=19 table_view=regular]
Remarks: When carbon steel and stainless steel are cut with air or nitrogen, the efficiency and stability will be improved, and the phenomenon of slag hanging will easily occur due to the increase in thickness. The above data parameters are affected by the machine tool, system, cutting head, and air pressure during actual batch cutting Influenced by factors such as materials and materials, the data may change. The parameters marked in red in the table are proofing parameters, which are greatly affected by various factors in actual processing. They are only suitable for small batch production and are not recommended for mass production and processing. It is recommended to use higher power laser. Copper needs to be cut with high-pressure oxygen, and air or nitrogen can easily damage the laser.
Sample display
